MI SCL API

---

REVISION HISTORY

Revision No.	Description	Date
3.0	Initial release	12/04/2020
3.1	Added Muffin flow chart	07/25/2021
	Added PROCFS introduction	08/25/2021
3.2	Added Mochi info	02/17/2022
3.3	Added MI_SCL_StretchBufOsd Info Added PROCFS debug cmd	03/21/2022
3.4	Added Maruko information	03/22/2022
3.5	In Section 5.2 add debug CMD:ptsth/resethw/cmdqtimeout/outputfilter	08/03/2022
3.6	In Section 2.15 add MI_SCL_StretchBuf demo	09/09/2022
3.7	Added Opera info In Section 1.2 modified the expression of Device Id to make it easier to understand	10/28/2022
3.8	In Section 5.2 add debug CMD:cmdqdelay/doublevsyncdrop	12/01/2022
3.9	Added souffle info	02/13/2023
3.10	Added Iford info	12/01/2023
3.11	Added pixel format gray8 support info	03/04/2024
3.12	Added Pcupid info	04/10/2024
3.13	optimize document description	04/18/2025

---

1. OVERVIEW

---

1.1. Module description

SCL scales the original image to the specified resolution of each output port. Each scl is divided into different devices according to the type of input data source,and each output port has a crop/scaling/mirror/flip/pixel conversion function.

Keyword

• Device

  Device consists of a fixed input type and a user assigned HWSclId.

• Channel

  A device can be time-sharing multiplexed into multiple channels.

• Input Port

  Input port on the channel and the input type supported by each device are shown in the flowchart of chapter 1.5.

• Output port

  Output port on the Device, which corresponds to the HWSclId of the Device one-to-one.

• Crop

  Crop the image.

• Scaling

  Saling to reduce or enlarge the image.

• Compress

  Compress mode,compress data transmission to save bandwidth.

• Rotate

  Rotate the input image by a certain angle and output.

---

1.2. Basic structure

• The MI_SCL module processes raw image data from various input sources through the crop, scaling, mirror, and flip units of the target output port, converting it into the target image format resolution. The MI_SCL module can support multiple such output ports, with specific capabilities and the number of supported output ports depending on the particular chip platform. For details on the differences between chips, please refer to section 1.5.

• MI_SCL classifies different devices based on various source data. Most devices support selecting all output ports, while a few devices only support selecting specific output ports. When creating a device, multiple output ports can be selected, but output ports occupied by other devices cannot be chosen. The capability of output ports varies depending on different chipset platforms; specific details can be found in Chapter 1.5, which covers chipset differences.

• For a device with a data source from DRAM, the MI_SCL can additionally configure cropping for the input port. Note that rotation is not currently supported for this crop operation.

• The device performing rotation operations utilizes the hardware resources of the scaling unit within the selected output port. Therefore, an output port that performs rotation cannot simultaneously handle other operations such as cropping, scaling, mirroring/flip, or pixel transformation. In other words, an output port configured for rotation can only perform rotation and cannot be used for scaling, cropping, or other functionalities.

• The SCL backend can be venc, disp, or jpeg modules, or it can directly output the frame without any subsequent processing. The supported backend modules vary across different chip platforms. For details, refer to Section 1.5.1 Chip Specifications.

Figure 1-1: SCL Hardware Block Diagram

---

1.3. Function introduction

MI_SCL supported features:

• Support for image resolution scaling and image effect adjustment

• Support for cropping specific regions of an image

• Support for pixfmt conversion

• Support for multiplexing a single data stream into multiple streams

• Support for image mirroring and flipping

• Support for rotation on certain platforms (refer to section 1.5.1 for chip specifications)

• Support for input decompression and output compression on certain platforms (refer to section 1.5.1 for chip specifications)

---

1.4. Application scenarios

MI_SCL can be applied in the following scenarios:

• Pure linux environment

  Applications can be developed based on the API interfaces provided by MI_SCL.

• Pure rtos environment

  In an RTOS environment, applications can be developed based on the API interfaces provided by MI_SCL.

• Dualos environment

  In a dual OS environment, applications running on the Linux side and applications running on the RTOS side can be developed based on the MI_SCL API.

---

1.5. Chip difference

---

The current chip is "Pcupid"

1.5.1. Specification

Both '\' and 'N' mean this function is not supported.

• Module function specifications

  Function	Tiramisu	Mochi	Muffin	Maruko	Opera	Souffle	Iford	Pcupid
  Dev Number	4	2	7	3	5	4	2	2
  Chn Number	32	32	32	16	16	32	32	32
  Port Number	6	7	9	4	4	7	3	1
  InputCrop	Y	Y	Y	Y	Y	Y	Y	Y
  Rotation	Y	N	Y	N	Y	N	N	Y
  mirror	Y	Y	Y	Y	Y	Y	Y	Y
  flip	Y	Y	Y	Y	Y	Y	Y	Y
  OutPutCrop	Y	Y	Y	Y	Y	Y	Y	Y
  Scaling	Y	Y	Y	Y	Y	Y	Y	Y
  Compress	N	Y	N	Y	Y	Y	N	N
  Max Pixel Rate	4K30	4K60	4K60	4K30	6M30	4K60	4K24	4K20

• Input specifications

  Input		Tiramisu	Mochi	Muffin	Maruko	Opera	Souffle	Iford	Pcupid
  pixel	ARGB8888	Y	Y	Y	Y	Y	Y	Y	Y
  	ABGR8888	Y	Y	Y	Y	Y	Y	Y	Y
  	BGRA8888	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv420SP NV12	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv420SP NV21	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv420 Planer	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv422 YUYV	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv422 YVYU	Y	Y	Y	Y	Y	Y	Y	Y
  	YUV422 VYUY	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv422 UYVY	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv422 SP	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv422 Planer	Y	Y	Y	Y	Y	Y	Y	Y
  	Gray8	N	N	N	N	N	Y	Y	Y
  Crop		Y	Y	Y	Y	Y	Y	Y	Y
  CompressMode	NONE	Y	Y	Y	Y	Y	Y	Y	N
  	10TO6	N	Y	N	Y	Y	Y	N	N
  resolution(yuv420 limit)	MI_SCL_DEV_RDMA0 Max width	4096	4096	7680	3840	2688	8192	3840	1280
  	MI_SCL_DEV_DIPR0 Max width	4096	\	7680	\	2688	8192	\	\
  	MI_SCL_DEV_RDMA2 Max width	\	\	8192	\	\	\	\	\
  	MI_SCL_DEV_DIPR1 Max width	\	\	\	\	2688	\	\	\
  	MIN WxH	16x16	16x16	16x16	16x16	16x16	16x16	16x16	16x16
  Pixel Alignment (The same as rot source pixel)	YUV Pack	8x2	2x2	2x2	2x2	2x2	2x2	2x2	2x2
  	YUV SP	16x2	2x2	2x2	2x2	2x2	2x2	2x2	2x2
  	YUV Planer	32x2	2x2	2x2	2x2	2x2	2x2	2x2	2x2
  	ARGB	4x2	2x2	2x2	2x2	2x2	2x2	2x2	2x2
  	Gray8	NA	NA	NA	NA	NA	2x2	2x2	2x2
  	Rot source	2x2	NA	2x2	NA	2x2	NA	NA	2x2

• Output specifications

  Output		Tiramisu	Mochi	Muffin	Maruko	Opera	Souffle	Iford	Pcupid
  pixel	ARGB8888	Y	Y	Y	Y	Y	Y	Y	Y
  	ABGR8888	Y	Y	Y	Y	Y	Y	Y	Y
  	BGRA8888	Y	Y	Y	Y	Y	Y	Y	Y
  	RGB565	N	N	N	N	N	N	N	Y
  	yuv420SP NV12	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv420SP NV21	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv420 Planer	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv422 YUYV	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv422 YVYU	Y	Y	Y	Y	Y	Y	Y	Y
  	YUV422 VYUY	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv422 UYVY	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv422 SP	Y	Y	Y	Y	Y	Y	Y	Y
  	yuv422 Planer	Y	Y	Y	Y	Y	Y	Y	Y
  	Gray8	N	N	N	N	N	Y	Y	Y
  CompressMode	NONE	Y	Y	Y	Y	Y	Y	Y	N
  	10TO6	N	Y	N	Y	Y	Y	N	N
  	IFC	N	N	N	Y	Y	Y	N	N
  Crop		Y	Y	Y	Y	Y	Y	Y	Y
  Scaling		Y	Y	Y	Y	Y	Y	Y	Y
  Mirror		Y	Y	Y	Y	Y	Y	Y	Y
  Flip		Y	Y	Y	Y	Y	Y	Y	Y
  Rotation		Y	N	Y	N	Y	N	N	Y
  Frame mode		Y	Y	Y	Y	Y	Y	Y	Y
  Realtime_JPEG		Y	Y	N	Y	Y	Y	Y	N
  Ring_H26x		Y	Y	Y	N	N	N	N	N
  HalfRing_H26x		Y	Y	Y	N	N	N	N	N
  MultiRing_H26x		N	N	N	Y(Only supported by E_MI_SCL_HWSCL0)	Y(Only supported by E_MI_SCL_HWSCL0)	Y(Only supported by E_MI_SCL_HWSCL0)	Y(Only supported by E_MI_SCL_HWSCL0)	N
  TileMode SclId(Used by Disp rot)		E_MI_SCL_HWSCL5	\	\	\	E_MI_SCL_HWSCL3	\	\	\
  YUV420 MAX Width	E_MI_SCL_HWSCL0	4608	4096	7680	3840	2688	8192	3840	1280
  	E_MI_SCL_HWSCL1	4608	4096	7680	3840	2688	8192	3840	\
  	E_MI_SCL_HWSCL2	4096	3840	3840	1920	1920	1920	1920	\
  	E_MI_SCL_HWSCL3	4096	1920	1920	1920	2688	3840	\	\
  	E_MI_SCL_HWSCL4	4096	1280	7680	\	\	3840	\	\
  	E_MI_SCL_HWSCL5	4096	1280	7680	\	\	3840	\	\
  	E_MI_SCL_HWSCL6	\	4096	3840	\	\	8192	\	\
  	E_MI_SCL_HWSCL7	\	\	1920	\	\	\	\	\
  	E_MI_SCL_HWSCL8	\	\	8192	\	\	\	\	\
  	E_MI_SCL_HWSCL9	\	\	\	\	\	\	\	\
  Pixel Alignment	Width	2	2	2	2	2	2	2	2
  	Height	2	2	2	2	2	2	2	2

---

1.5.2. Tiramisu

Figure 1-2: Tiramisu Diagram

Tiramisu MI_SCL has 6 scl hardware, which are divided into different Devices according to the type of input source.

Device Id	Input port source type
MI_SCL_DEV_ISP_REALTIME0	Only supports connection with MI_ISP output port0 realtime
MI_SCL_DEV_RDMA0	Support Frame mode reading data from Dram; Support binding with MI_JPD realtime
MI_SCL_DEV_VIF_REALTIME0	Only supports connection with MI_VIF YUV Realtime
MI_SCL_DEV_DIPR0	Only supports Frame mode reading data from Dram; Only E_MI_SCL_HWSCL5 can be used; Support Rotation, see MI_SCL_SetChnParam for function limitation

---

1.5.3. Muffin

Figure 1-3: Muffin Diagram

MI_SCL muffin has 9 scl hardware, which are divided into different Devices according to the type of input source.

Device Id	Input port source type
MI_SCL_DEV_ISP_REALTIME0	Only supports connection with MI_ISP device0 output port0 realtime
MI_SCL_DEV_RDMA0	Support Frame mode reading data from Dram; Support binding with MI_JPD realtime
MI_SCL_DEV_VIF_REALTIME0	Only supports connection with MI_VIF device8 YUV Realtime
MI_SCL_DEV_DIPR0	Only support Frame mode reading data from Dram; Only E_MI_SCL_HWSCL8 can be used; Support Rotation, see MI_SCL_SetChnParam for function limitation;
MI_SCL_DEV_ISP_REALTIME1	Only supports connection with MI_ISP device1 output port0 realtime
MI_SCL_DEV_RDMA2	Support Frame mode reading data from Dram; Support binding with MI_JPD realtime
MI_SCL_DEV_VIF_REALTIME1	Only supports connection with MI_VIF device24 YUV Realtime

---

1.5.4. Mochi

Figure 1-4: Mochi Diagram

Mochi MI_SCL has 7 scl hardware, which are divided into different Devices according to the type of input source.

Device Id	Input port source type
MI_SCL_DEV_ISP_REALTIME0	Only support connection with MI_ISP output port0 realtime.
MI_SCL_DEV_RDMA0	Support Frame mode reading data from Dram; Support binding with MI_JPD realtime.

---

1.5.5. Maruko

Figure 1-5: Maruko Diagram

Maruko MI_SCL has 4 scl hardware, which are divided into different Devices according to the type of input source.

Device Id	Input port source type
MI_SCL_DEV_ISP_REALTIME0	Only support connection with MI_ISP output port0 realtime.
MI_SCL_DEV_RDMA0	Support Frame mode reading data from Dram.
MI_SCL_DEV_VIF_REALTIME0	Only supports connection with MI_VIF YUV Realtime.

---

1.5.6. Opera

Figure 1-6: Opera Diagram

Opera MI_SCL has 4 scl hardware, which are divided into different Devices according to the type of input source.

Device Id	Input port source type
MI_SCL_DEV_ISP_REALTIME0	Only support connection with MI_ISP output port0 realtime.
MI_SCL_DEV_RDMA0	Support Frame mode reading data from Dram and MI_JPD realtime binding.
MI_SCL_DEV_VIF_REALTIME0	Only supports connection with MI_VIF YUV Realtime.
MI_SCL_DEV_DIPR0	Only support Frame mode reading data from Dram; Only E_MI_SCL_HWSCL3 can be used.
MI_SCL_DEV_DIPR1	Only support Frame mode reading data from Dram; Only E_MI_SCL_HWSCL1 can be used; Support Rotation, see MI_SCL_SetChnParam for function limitation.
MI_SCL_DEV_HVP_REALTIME0	Only support connection with MI_HVP realtime; Only E_MI_SCL_HWSCL3 can be used, no support scaling up.

---

1.5.7. Souffle

Figure 1-7: Souffle Diagram

Souffle MI_SCL has 7 scl hardware, which are divided into different Devices according to the type of input source.

Device Id	Input port source type
MI_SCL_DEV_ISP_REALTIME0	Only support connection with MI_ISP device0 output port0 realtime.
MI_SCL_DEV_RDMA0	Support Frame mode reading data from Dram and MI_JPD realtime binding.
MI_SCL_DEV_VIF_REALTIME0	Only supports connection with MI_VIF YUV Realtime.
MI_SCL_DEV_DIPR0	Only support Frame mode reading data from Dram; Only E_MI_SCL_HWSCL6 can be used.

---

1.5.8. Iford

Figure 1-8: Iford Diagram

Iford MI_SCL has 3 scl hardware, which are divided into different Devices according to the type of input source.

Device Id	Input port source type
MI_SCL_DEV_ISP_REALTIME0	Only support connection with MI_ISP device0 output port0 realtime.
MI_SCL_DEV_RDMA0	Support Frame mode reading data from Dram.

---

1.5.9. Pcupid

Figure 1-9: Pcupid Diagram

Pcupid MI_SCL has 1 scl hardware, which are divided into different Devices according to the type of input source.

Device Id	Input port source type
MI_SCL_DEV_ISP_REALTIME0	Only support connection with MI_ISP device0 output port0 realtime.
MI_SCL_DEV_RDMA0	Support Frame mode reading data from Dram and Rotation. For the function limitation during rotation, please refer to MI_SCL_SetChnParam.

---

1.6. Work principle

NA

---

1.7. Development process

1.7.1. Compile configuration

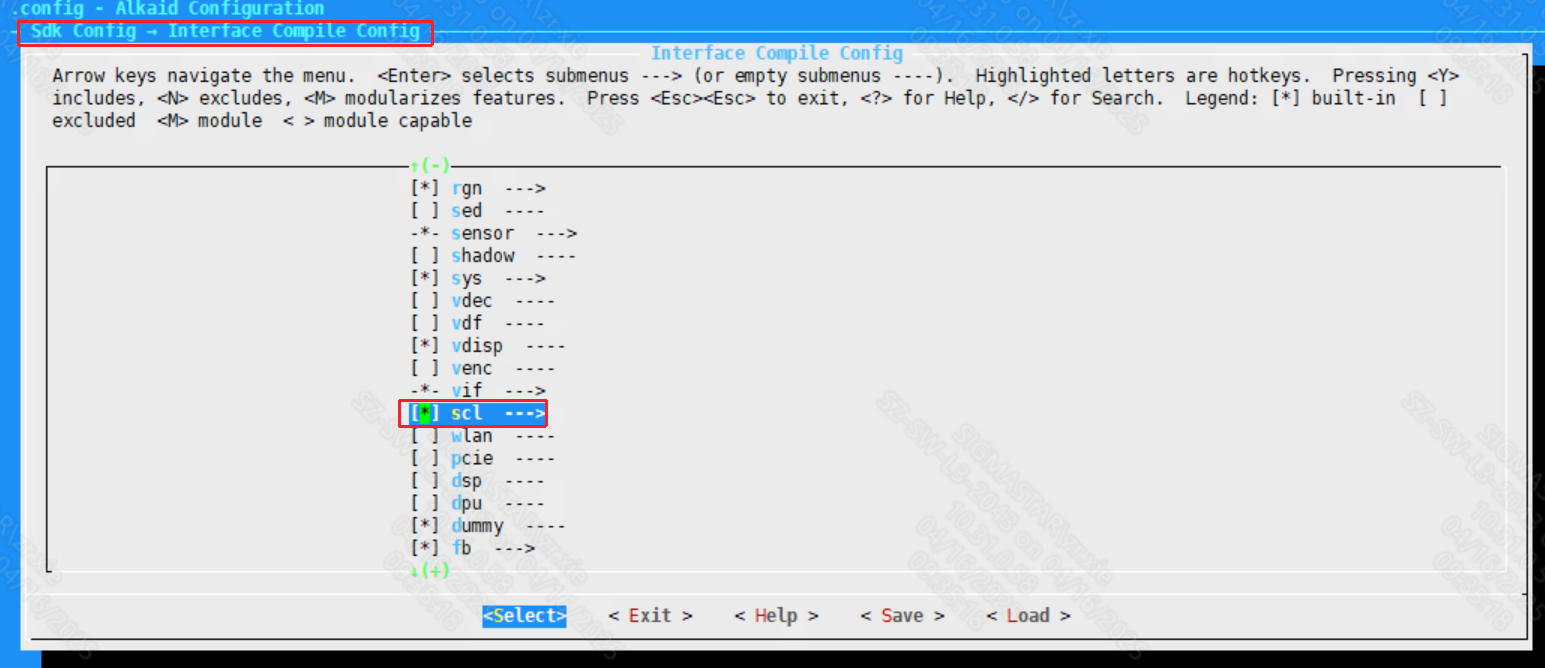

Figure 1-10: MI_SCL compilation configuration process

1. Enter the project directory of alkaid, make menuconfig

2. Press the enter key to select the "Sdk Config" submenu

3. Press the Enter key again to enter the "Interface Compile Config" submenu

4. Use the spacebar to select the "scl" submodule. Once selected, save your configuration and recompile the project

   After successful compilation, mi_scl.ko will be placed in the directory sdk/interface/src/scl/, mi_scl.h and mi_scl_datatype.h will be exported to the project/release directory. Under a pure Linux environment, these files will be automatically included in the images.

---

1.7.2 Configure MI_SCL module parameter loading

The "modparam.json" file is located in the "/config" directory. This file will be loaded during the SCL initialization phase. For details about the common fields and their interpretation in "modparam.json", please refer to section 6.

---

1.7.3. API call flow

Figure 1-11: API call flow

The MI_SCL generic stream interface call is divided into the following steps:

1. MI_SYS initialize

2. Create MI_SCL Device

3. Create MI_SCL Channel

4. Set MI_SCL Channel parameter

5. Start MI_SCL Channel

6. Set MI_SCL Output port parameter

7. Enable MI_SCL Output port

8. Set MI_SCL Output port depth

9. If MI_SCL has front and rear level modules, call the MI_SYS interface to bind MI_SCL with these modules

10. The previous modules or SYS streams to SCL, SYS pulls streams from SCL, or SCL streams to the next stage

11. Disable the enabled MI_SCL Output port

12. Stop MI_SCL Channel

13. Destroy MI_SCL Channel

14. Destroy MI_SCL Device

15. MI_SYS deinitialization

---

1.8. Instance introduction

This instance describes the initialization and deinitialization processes of the MI_SCL module.

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <signal.h>
#include <unistd.h>

#include "mi_common.h"
#include "mi_common_datatype.h"
#include "mi_sys.h"
#include "mi_sys_datatype.h"
#include "mi_scl.h"
#include "mi_scl_datatype.h"

#define ExecFuncIfSuccess(_func_,_ret_)                      \
    if((_func_)!=_ret_)                                      \
    {                                                        \
        printf("[ %d ] exec function is failed\n",__LINE__); \
        exit(-1);                                            \
    }                                                        \
    else                                                     \
    {                                                        \
        printf("[ %d ] exec function is success\n",__LINE__);\
    }

MI_BOOL bExit = FALSE;

MI_SCL_DEV g_SclDevId = 1;
MI_SCL_CHANNEL g_SclChnId = 0;
MI_SCL_PORT g_SclPortId = 0;

MI_S32 scl_Init(void)
{
    MI_SCL_DevAttr_t createDevAttr;
    MI_SCL_ChannelAttr_t sclChnAttr;
    MI_SCL_ChnParam_t sclChnParam;
    MI_SCL_OutPortParam_t sclOutPortParam;

    MI_SYS_ChnPort_t stChnPort;
    MI_SYS_WindowRect_t   stSCLOutCropRect;
    MI_SYS_WindowSize_t   stSCLOutputSize;

    memset(&createDevAttr, 0x0, sizeof(MI_SCL_DevAttr_t));
    memset(&sclChnAttr, 0x0, sizeof(MI_SCL_ChannelAttr_t));
    memset(&sclChnParam, 0x0, sizeof(MI_SCL_ChnParam_t));
    memset(&sclOutPortParam, 0x0, sizeof(MI_SCL_OutPortParam_t));

    memset(&stChnPort, 0x0, sizeof(MI_SYS_ChnPort_t));
    memset(&stSCLOutCropRect, 0x0, sizeof(MI_SYS_WindowRect_t));
    memset(&stSCLOutputSize, 0x0, sizeof(MI_SYS_WindowSize_t));

    createDevAttr.u32NeedUseHWOutPortMask = E_MI_SCL_HWSCL0;
    ExecFuncIfSuccess(MI_SCL_CreateDevice(g_SclDevId, &createDevAttr), MI_SUCCESS);

    ExecFuncIfSuccess(MI_SCL_CreateChannel(g_SclDevId, g_SclChnId, &sclChnAttr), MI_SUCCESS);

    sclChnParam.eRot = E_MI_SYS_ROTATE_NONE;
    ExecFuncIfSuccess(MI_SCL_SetChnParam(g_SclDevId, g_SclChnId, &sclChnParam), MI_SUCCESS);

    ExecFuncIfSuccess(MI_SCL_StartChannel(g_SclDevId, g_SclChnId), MI_SUCCESS);

    sclOutPortParam.stSCLOutCropRect = stSCLOutCropRect;
    sclOutPortParam.stSCLOutputSize = stSCLOutputSize;
    sclOutPortParam.bMirror = FALSE;
    sclOutPortParam.bFlip = FALSE;
    sclOutPortParam.eCompressMode = E_MI_SYS_COMPRESS_MODE_NONE;
    sclOutPortParam.stSCLOutputSize.u16Width = 1280;
    sclOutPortParam.stSCLOutputSize.u16Height = 720;
    sclOutPortParam.ePixelFormat = E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420;
    ExecFuncIfSuccess(MI_SCL_SetOutputPortParam(g_SclDevId, g_SclChnId, g_SclPortId, &sclOutPortParam), MI_SUCCESS);

    ExecFuncIfSuccess(MI_SCL_EnableOutputPort(g_SclDevId, g_SclChnId, g_SclPortId), MI_SUCCESS);

    stChnPort.eModId = E_MI_MODULE_ID_SCL;
    stChnPort.u32DevId = g_SclDevId;
    stChnPort.u32ChnId = g_SclChnId;
    stChnPort.u32PortId = g_SclPortId;
    ExecFuncIfSuccess(MI_SYS_SetChnOutputPortDepth(0, &stChnPort, 0, 4), MI_SUCCESS);

    return MI_SUCCESS;
}

MI_S32 scl_unInit(void)
{
    ExecFuncIfSuccess(MI_SCL_DisableOutputPort(g_SclDevId, g_SclChnId, g_SclPortId), MI_SUCCESS);

    ExecFuncIfSuccess(MI_SCL_StopChannel(g_SclDevId, g_SclChnId), MI_SUCCESS);

    ExecFuncIfSuccess(MI_SCL_DestroyChannel(g_SclDevId, g_SclChnId), MI_SUCCESS);

    ExecFuncIfSuccess(MI_SCL_DestroyDevice(g_SclDevId), MI_SUCCESS);

    return MI_SUCCESS;
}

void signalHandler(int signo)
{
    printf("ctrl +c is input \n");
    bExit = TRUE;
    return;
}

int main(int argc, char** argv)
{
    ExecFuncIfSuccess(MI_SYS_Init(0), MI_SUCCESS);

    ExecFuncIfSuccess(scl_Init(), MI_SUCCESS);

    //User defined streaming or extraction code snippets

    signal(SIGINT, signalHandler);

    while (!bExit)
    {
        sleep(1);
    }

    ExecFuncIfSuccess(scl_unInit(), MI_SUCCESS);

    ExecFuncIfSuccess(MI_SYS_Exit(0), MI_SUCCESS);
}

---

2. API REFERENCE

---

This function module provides the following API:

API Name	Function
MI_SCL_CreateDevice	Create SCL device
MI_SCL_DestoryDevice	Destroy SCL device
MI_SCL_CreateChannel	Create SCL channel
MI_SCL_DestroyChannel	Destroy SCL channel
MI_SCL_SetChnParam	Set channel attribute
MI_SCL_GetChnParam	Get channel attribute
MI_SCL_SetInputPortCrop	Set channel input port crop
MI_SCL_GetInputPortCrop	Get channel input port crop information
MI_SCL_StartChannel	Start channel
MI_SCL_StopChannel	Stop channel
MI_SCL_SetOutputPortParam	Set output port parameter
MI_SCL_GetOutputPortParam	Get output port parameter
MI_SCL_EnableOutputPort	Enable output port
MI_SCL_DisableOutputPort	Disable output port
MI_SCL_StretchBuf	Zoom, stretch, crop the image data in the specified memory
MI_SCL_StretchBufOsd	Superimpose OsdBuf on the basis of Zoom, stretch, crop the image data in the specified memory

---

2.1. MI_SCL_CreateDevice

• Description

  Create SCL device.

• Syntax

  MI_S32 MI_SCL_CreateDevice(MI_SCL_DEV DevId, MI_SCL_DevAttr_t *pstSclDevAttr)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID.	Input
  pstSclDevAttr	Scl device attribute.	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  • For the characteristics of each device, please refer to Note in section 1.2.

---

2.2. MI_SCL_DestroyDevice

• Description

  Destroy SCL device.

• Syntax

  MI_S32 MI_SCL_DestroyDevice(MI_SCL_DEV DevId)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  Disable all the output ports and channels on device, otherwise the failure will be returned.

• Example

  See the example of MI_SCL_CreateDevice.

• Related APIs

  MI_SCL_CreateDevice

---

2.3. MI_SCL_CreateChannel

• Description

  Create a SCL channel.

• Syntax

  MI_S32 MI_SCL_CreateChannel(MI_SCL_DEV DevId, MI_SCL_CHANNEL ChnId, MI_SCL_ChannelAttr_t *pstChnAttr)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID, value range (0 ~ 31)	Input
  pstChnAttr	SCL channel attribute	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  Create device firstly, then channel can be created.

• Example

  See the example of MI_SCL_CreateDevice.

• Related APIs

  MI_SCL_DestroyChannel

---

2.4. MI_SCL_DestroyChannel

• Description

  Destroy SCL channel.

• Syntax

  MI_S32 MI_SCL_DestroyChannel(MI_SCL_DEV DevId, MI_SCL_CHANNEL ChnId)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  Disable all the output ports on device firstly, then the channel can be destroyed.

• Example

  See the example of MI_SCL_CreateDevice.

• Related APIs

  MI_SCL_CreateChannel

---

2.5. MI_SCL_SetChnParam

• Description

  Dynamically set channel parameters.

• Syntax

  MI_S32 MI_SCL_SetChnParam(MI_SCL_DEV DevId, MI_SCL_CHANNEL ChnId, MI_SCL_ChnParam_t *pstChnParam)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID	Input
  pstChnParam	Channel parameter	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  • If the channel is running, use MI_SCL_StopChannel to stop it first and clear the buffer when you need to change the channel parameter.
  • When the channel sets rotation, it does not support crop, scaling, mirror, flip and pixel-change.

• Example

  See the example of MI_SCL_CreateDevice.

• Related APIs

  MI_SCL_GetChnParam

---

2.6. MI_SCL_GetChnParam

• Description

  Get channel parameter.

• Syntax

  MI_S32 MI_SCL_GetChnParam(MI_SCL_DEV DevId, MI_SCL_CHANNEL ChnId, MI_SCL_ChnParam_t *pstChnParam)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID	Input
  pstChnParam	SCL channel parameter	Output

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  When there is no setting, Parameter is all 0.

• Related APIs

  MI_SCL_SetChnParam

---

2.7. MI_SCL_SetInputPortCrop

• Description

  Set channel input port crop area.

• Syntax

  MI_S32 MI_SCL_SetInputPortCrop(MI_SCL_DEV DevId,MI_SCL_CHANNEL ChnId, MI_SYS_WindowRect_t *pstCropInfo)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID	Input
  pstCropInfo	Crop area	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  • This setting can only take effect when the Input port is reading data from DRAM.

  • When the input data compression mode is not E_MI_SYS_COMPRESS_MODE_NONE, the input data does not support cropping.

• Example

  See the example of MI_SCL_CreateDevice.

• Related APIs

  MI_SCL_GetInputPortCrop

---

2.8. MI_SCL_GetInputPortCrop

• Description

  Get channel input port crop area.

• Syntax

  MI_S32 MI_SCL_GetInputPortCrop(MI_SCL_DEV DevId,MI_SCL_CHANNEL ChnId, MI_SYS_WindowRect_t *pstCropInfo)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID	Input
  pstCropInfo	Crop area	Output

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  When no cropping is required, what you got is the input port resolution.

• Related APIs

  MI_SCL_SetInputPortCrop

---

2.9. MI_SCL_StartChannel

• Description

  Start channel on device.

• Syntax

  MI_S32 MI_SCL_StartChannel(MI_SCL_DEV DevId, MI_SCL_CHANNEL ChnId)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  Called in pairs with MI_SCL_StopChannel.

• Example

  See the example of MI_SCL_CreateDevice.

• Related APIs

  MI_SCL_StopChannel

---

2.10. MI_SCL_StopChannel

• Description

  Stop channel on device.

• Syntax

  MI_S32 MI_SCL_StopChannel(MI_SCL_DEV DevId, MI_SCL_CHANNEL ChnId)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  All the channels can be stopped while creating, and then all the output ports will have no data output.

• Example

  See the example of MI_SCL_CreateDevice.

• Related APIs

  MI_SCL_StartChannel

---

2.11. MI_SCL_SetOutputPortParam

• Description

  Set channel output port parameter.

• Syntax

  MI_S32 MI_SCL_SetOutputPortParam(MI_SCL_DEV DevId, MI_SCL_CHANNEL ChnId, MI_SCL_PORT PortId, MI_SCL_OutPortParam_t *pstOutPortParam)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID	Input
  PortId	Output port ID	Input
  pstOutPortParam	Output port parameter	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  • If the output port is enabled, and the output parameter need to be changed, you should call MI_SCL_DisableOutputPort to disable the port and set parameter, then restart the output port.

  • When VIF->ISP->SCL are all Realtime bindings, SCL Output setting Scaling up has the risk of FIFO FULL. It is not recommended to set Scaling up.

• Example

  See the example of MI_SCL_CreateDevice.

• Related APIs

  MI_SCL_GetOutputPortParam

---

2.12. MI_SCL_GetOutputPortParam

• Description

  Get output port parameter.

• Syntax

  MI_S32 MI_SCL_GetOutputPortParam(MI_SCL_DEV DevId, MI_SCL_CHANNEL ChnId, MI_SCL_PORT PortId, MI_SCL_OutPortParam_t *pstOutPortParam)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID	Input
  PortId	SCL output port ID	Input
  pstOutPortParam	SCL output port parameter	Output

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Related APIs

  MI_SCL_SetOutputPortParam

---

2.13. MI_SCL_EnableOutputPort

• Description

  Enable output port.

• Syntax

  MI_S32 MI_SCL_EnableOutputPort(MI_SCL_DEV DevId,MI_SCL_CHANNEL ChnId, MI_SCL_PORT PortId)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID	Input
  PortId	SCL output port ID	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  Called in pair withMI_SCL_DisableOutputPort.

• Example

  See the example of MI_SCL_CreateDevice.

• Related APIs

  MI_SCL_DisableOutputPort

---

2.14. MI_SCL_DisableOutputPort

• Description

  Disable output port.

• Syntax

  MI_S32 MI_SCL_DisableOutputPort(MI_SCL_DEV DevId,MI_SCL_CHANNEL ChnId, MI_SCL_PORT PortId)


• Parameter

  Parameter name	Description	Input/Output
  DevId	SCL device ID	Input
  ChnId	SCL channel ID	Input
  PortId	Output port ID	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  Called in pair with MI_SCL_EnableOutputPort.

• Example

  See the example of MI_SCL_CreateDevice.

• Related APIs

  MI_SCL_EnableOutputPort

---

2.15. MI_SCL_StretchBuf

• Description

  Zoom, stretch, crop the image data in the specified memory.

• Syntax

  MI_S32 MI_SCL_StretchBuf(MI_SCL_DirectBuf_t *pstSrcBuf, MI_SYS_WindowRect_t *pstSrcCrop, MI_SCL_DirectBuf_t *pstDstBuf, MI_SCL_FilterType_e eFilterType)


• Parameter

  Parameter name	Description	Input/Output
  pstSrcBuf	Source data buffer parameter pointer	Input
  pstSrcCrop	Source data crop area	Input
  pstDstBuf	Output buffer parameter pointer	Output
  eFilterType	Scl filter type	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  • This interface is in blocking mode, and the frame of data will not end until it is finished.

  • Before using this interface, you need to set the corresponding DEVID. The corresponding DEVIDs used by different series of chips are as follows:

    Chip	StretchBuf used DEVID
    Tiramisu	MI_SCL_DEV_DIPR0
    Muffin	MI_SCL_DEV_DIPR0
    Mochi	MI_SCL_DEV_RDMA0
    Maruko	MI_SCL_DEV_RDMA0
    Souffle	MI_SCL_DEV_RDMA0
    Iford	MI_SCL_DEV_RDMA0
    Pcupid	MI_SCL_DEV_RDMA0

  • Alignment requirements for input width, height and stride:

    pixel format	width	height	stride
    YUV420SPNV12, YUV420SPNV21, YUV422SP, Gray8	2	2	16
    YUV422YUYV, YUV422UYVY, YUV422YVYU, YUV422VYUY	2	2	16
    ARGB8888, ABGR8888, BGRA8888	2	2	16

  • Alignment requirements for output width and height:

    pixel format	width	height	stride
    YUV420SPNV12, YUV420SPNV21, YUV422SP, Gray8	2	2	16
    YUV422YUYV, YUV422UYVY, YUV422YVYU, YUV422VYUY	2	2	16
    ARGB8888, ABGR8888, BGRA8888	2	2	16

  • StretchBuf used HWSCLID:

    Chip	StretchBuf used HWSCL ID
    Tiramisu	E_MI_SCL_HWSCL5
    Muffin	E_MI_SCL_HWSCL8
    Mochi	E_MI_SCL_HWSCL6
    Maruko	E_MI_SCL_HWSCL3
    Souffle	E_MI_SCL_HWSCL6
    Iford	E_MI_SCL_HWSCL2
    Pcupid	E_MI_SCL_HWSCL0

• Example

  MI_SCL_StretchBuf Usage:

  #define ALIGN_UP(x, align) (((x) + ((align) - 1)) & ~((align) - 1))

  int stretchBuffDemo()
  {
      MI_S32 s32Ret = 0;
      char *pInFilePath = "in.yuv";
      char *pOutFilePath = "out.yuv";

      MI_SCL_DirectBuf_t  stSrcBuff;
      memset(&stSrcBuff, 0x0, sizeof(MI_SCL_DirectBuf_t));
      stSrcBuff.u32Width = 1920;
      stSrcBuff.u32Height = 1080;
      stSrcBuff.ePixelFormat = E_MI_SYS_PIXEL_FRAME_YUV422_YUYV;
      stSrcBuff.u32Stride[0] = ALIGN_UP((stSrcBuff.u32Width*2),16);
      stSrcBuff.u32BuffSize = stSrcBuff.u32Stride[0]*stSrcBuff.u32Height;

      MI_SYS_WindowRect_t stoutputCrop;
      memset(&stoutputCrop, 0x0, sizeof(MI_SYS_WindowRect_t));
      stoutputCrop.u16X = 100;
      stoutputCrop.u16Y = 122;
      stoutputCrop.u16Width = 124;
      stoutputCrop.u16Height = 126;

      MI_SCL_DirectBuf_t  stDestBuff;
      memset(&stDestBuff, 0x0, sizeof(MI_SCL_DirectBuf_t));
      stDestBuff.u32Width = 100;
      stDestBuff.u32Height = 110;
      stDestBuff.ePixelFormat = E_MI_SYS_PIXEL_FRAME_YUV422_YUYV;
      stDestBuff.u32Stride[0] = ALIGN_UP((stDestBuff.u32Width*2),16);
      stDestBuff.u32BuffSize = stDestBuff.u32Stride[0]*stDestBuff.u32Height;

      void *pviraddr = NULL, *pviroutaddr = NULL;
      MI_PHY  phyInAllockAddr = 0, phyOutAllocAddr = 0;

      ExecFuncResult(MI_SYS_Init(0), s32Ret);
      ExecFuncResult(MI_SYS_MMA_Alloc(0, (MI_U8*)"mma_heap_name0", stSrcBuff.u32BuffSize, &phyInAllockAddr), s32Ret);
      ExecFuncResult(MI_SYS_Mmap(phyInAllockAddr, stSrcBuff.u32BuffSize, &pviraddr, FALSE), s32Ret);
      ExecFuncResult(MI_SYS_MMA_Alloc(0, (MI_U8*)"mma_heap_name0", stDestBuff.u32BuffSize, &phyOutAllocAddr), s32Ret);
      ExecFuncResult(MI_SYS_Mmap(phyOutAllocAddr, stDestBuff.u32BuffSize, &pviroutaddr, FALSE), s32Ret);

      stSrcBuff.phyAddr[0] = phyInAllockAddr;
      stDestBuff.phyAddr[0] = phyOutAllocAddr;

      FILE *src_fd = NULL;
      src_fd  = fopen(pInFilePath,"rb");
      fread(pviraddr, stSrcBuff.u32BuffSize, 1, src_fd);
      fclose(src_fd);

      MI_SCL_DEV DevId = 1;
      MI_SCL_DevAttr_t stDevAttr;
      stDevAttr.u32NeedUseHWOutPortMask = E_MI_SCL_HWSCL3;
      ExecFuncResult(MI_SCL_CreateDevice(DevId, &stDevAttr), s32Ret);
      ExecFuncResult(MI_SCL_StretchBuf(&stSrcBuff, &stoutputCrop, &stDestBuff, E_MI_SCL_FILTER_TYPE_AUTO), s32Ret);

      FILE *dst_fd = NULL;
      dst_fd  = fopen(pOutFilePath,"wb+");
      fwrite(pviroutaddr, stDestBuff.u32BuffSize, 1, dst_fd);
      fclose(dst_fd);

      ExecFuncResult(MI_SCL_DestroyDevice(DevId), s32Ret);

      MI_SYS_Munmap(pviraddr, stSrcBuff.u32BuffSize);
      MI_SYS_Munmap(pviroutaddr, stDestBuff.u32BuffSize);
      MI_SYS_MMA_Free(0,phyInAllockAddr);
      MI_SYS_MMA_Free(0,phyOutAllocAddr);

      EXIT:

      return MI_SUCCESS;

  }


• Related APIs

  MI_SCL_CreateDevice

---

2.16. MI_SCL_StretchBufOsd

• Description

  Superimpose OsdBuf on the basis of Zoom, stretch, crop the image data in the specified memory.

• Syntax

  MI_S32 MI_SCL_StretchBufOsd(MI_SCL_DirectBuf_t *pstSrcBuf,
  MI_SYS_WindowRect_t*pstSrcCrop,MI_SCL_DirectBuf_t *pstDstBuf,
  MI_SCL_DirectOsdBuf_t*pstDstOsdBuf,MI_SCL_FilterType_e eFilterType);


• Parameter

  Parameter name	Description	Input/Output
  pstSrcBuf	Source data buffer parameter pointer	Input
  pstSrcCrop	Source data crop area	Input
  pstDstBuf	Output buffer parameter pointer	Output
  pstDstOsdBuf	OsdBuf pointer superimposing on Output buffer	Input
  eFilterType	Scl filter type	Input

• Return value

  • MI_SUCCESS(0): successful.

  • Non-Zero: failed, see error code for details.

• Dependence

  • Header: mi_scl_datatype.h, mi_scl.h

  • Library:

• Note

  • Using this interface requires SCL to support OSD. Please refer to the MI RGN API for support.

  • Before using this interface, you need to create device first.

  • This interface is in blocking mode, and the frame of data will not end until it is finished.

  • The corresponding DEVIDs used by different series of chips are as follows:

    Chip	StretchBuf used DEVID
    Tiramisu	MI_SCL_DEV_DIPR0
    Muffin	MI_SCL_DEV_DIPR0
    Mochi	MI_SCL_DEV_RDMA0
    Maruko	MI_SCL_DEV_RDMA0
    Souffle	MI_SCL_DEV_RDMA0
    Iford	MI_SCL_DEV_RDMA0
    Pcupid	MI_SCL_DEV_RDMA0

  • Alignment requirements for input width, height and stride:

    pixel format	width	height	stride
    YUV420SPNV12, YUV420SPNV21, YUV422SP, Gray8	2	2	16
    YUV422YUYV, YUV422UYVY, YUV422YVYU, YUV422VYUY	2	2	16
    ARGB8888, ABGR8888, BGRA8888	2	2	16

  • Alignment requirements for output width and height:

    pixel format	width	height	stride
    YUV420SPNV12, YUV420SPNV21, YUV422SP, Gray8	2	2	16
    YUV422YUYV, YUV422UYVY, YUV422YVYU, YUV422VYUY	2	2	16
    ARGB8888, ABGR8888, BGRA8888	2	2	16

  • StretchBuf used HWSCLID:

    Chip	StretchBuf used HWSCL ID
    Tiramisu	E_MI_SCL_HWSCL5
    Muffin	E_MI_SCL_HWSCL8
    Mochi	E_MI_SCL_HWSCL6
    Maruko	E_MI_SCL_HWSCL3
    Souffle	E_MI_SCL_HWSCL6
    Iford	E_MI_SCL_HWSCL2
    Pcupid	E_MI_SCL_HWSCL0

• Related APIs

  MI_SCL_CreateDevice

---

3. SCL DATA TYPE

---

The video Input related data types are defined as follows:

Data type	Description
MI_SCL_DEV	SCL device ID
MI_SCL_CHANNEL	SCL channel ID
MI_SCL_PORT	SCL output port ID
MI_SCL_HWSclId_e	SCL output port corresponded hardware scaling ID
MI_SCL_DevAttr_t	SCL device attribute
MI_SCL_ChannelAttr_t	SCL channel static attribute
MI_SCL_ChnParam_t	SCL channel dynamic attribute
MI_SCL_OutPortParam_t	SCL output port parameter
MI_SCL_FilterType_e	SCL filter type
MI_SCL_DirectBuf_t	SCL specified buffer parameter type
MI_SCL_DirectOsdArgb1555Alpha_t	Foreground and background Alpha settings of Argb1555 format
MI_SCL_DirectOsdAlphaModePara_u	The union of osd alpha mode parameters
MI_SCL_DirectOsdAlphaMode_e	The way to display with alpha mode
MI_SCL_DirectOsdAlphaAttr_t	The structure of the attribute of OSD ‘alpha’
MI_SCL_DirectOsdInfo_t	SCL direct processes Osdbuffer parameter Info
MI_SCL_DirectOsdBuf_t	SCL direct processes Osdbuffer parameter type
MI_SCL_DEV_ISP_REALTIME0	SCL Device 0
MI_SCL_DEV_RDMA0	SCL Device 1
MI_SCL_DEV_VIF_REALTIME0	SCL Device 2
MI_SCL_DEV_DIPR0	SCL Device 3
MI_SCL_DEV_ISP_REALTIME1	SCL Device 4
MI_SCL_DEV_RDMA2	SCL Device 5
MI_SCL_DEV_VIF_REALTIME1	SCL Device 6
MI_SCL_DEV_DIPR1	SCL Device 7
MI_SCL_DEV_HVP_REALTIME0	SCL Device 8

---

3.1. MI_SCL_DEV

• Description

  Define SCL device ID type.

• Definition

  typedef MI_U32 MI_SCL_DEV;


---

3.2. MI_SCL_CHANNEL

• Description

  Define SCL channel ID type.

• Definition

  typedef MI_U32 MI_SCL_CHANNEL;


---

3.3. MI_SCL_PORT

• Description

  Define SCL output port ID type.

• Definition

  typedef MI_U32 MI_SCL_PORT;


---

3.4. MI_SCL_HWSclId_e

• Description

  SCL device used hardware scaler Id enumeration.

• Definition

  typedef enum
  {
      E_MI_SCL_HWSCLID_INVALID= 0,
      E_MI_SCL_HWSCL0         = 0x0001,
      E_MI_SCL_HWSCL2         = 0x0004,
      E_MI_SCL_HWSCL3         = 0x0008,
      E_MI_SCL_HWSCL1         = 0x0002,
      E_MI_SCL_HWSCL4         = 0x0010,
      E_MI_SCL_HWSCL5         = 0x0020,
      E_MI_SCL_HWSCL6         = 0x0040,
      E_MI_SCL_HWSCL7         = 0x0080,
      E_MI_SCL_HWSCL8         = 0x0100,
      E_MI_SCL_HWSCL_MAX      = 0xffff,
  }MI_SCL_HWSclId_e;


• Note

  • For each HW scl id specification, please refer to HW sclid in Output specifications in Chapter 1.4, and select according to the scene.

• Related data type and interface

  MI_SCL_DevAttr_t

---

3.5. MI_SCL_DevAttr_t

• Description

  SCL device attribute.

• Definition

  typedef struct MI_SCL_DevAttr_s
  {
      MI_U32 u32NeedUseHWOutPortMask;
  }MI_SCL_DevAttr_t;


• Member

  Member name	Description
  u32NeedUseHWOutPortMask	Scaler id used by device.

• Note

  • u32NeedUseHWOutPortMask is composed of bit mask of MI_SCL_HWSclId_e.

    • Mapping with MI_SCL_HWSclId_e from low to high

    • The correspondence between portid and HWSCL ID on each Dev:

      stCreateDevAttr.u32NeedUseHWOutPortMask = E_MI_SCL_HWSCL2 | E_MI_SCL_HWSCL3 | E_MI_SCL_HWSCL4;

      Port0 → E_MI_SCL_HWSCL2

      Port1 → E_MI_SCL_HWSCL3

      Port2 → E_MI_SCL_HWSCL4

      PortID corresponds to HWSCL bitmask from least significant bit (LSB) to most significant bit (MSB)

  • The same HWSclId cannot be used across devices

    For example:

    MI_SCL_DEV_ISP_REALTIME0 pstSclDevAttr->u32NeedUseHWOutPortMask= E_MI_SCL_HWSCL2 | E_MI_SCL_HWSCL3;

    MI_SCL_DEV_RDMA0 pstSclDevAttr->u32NeedUseHWOutPortMask= E_MI_SCL_HWSCL0 | E_MI_SCL_HWSCL2;

    In this way, E_MI_SCL_HWSCL2 will be used by MI_SCL_DEV_ISP_REALTIME0 / MI_SCL_DEV_RDMA0 at the same time, and the err status will be returned when the device is created.

  • In Tiramisu, MI_SCL_DEV_DIPR0 will be created and used internally when MI_VDEC is used, and other device cannot use E_MI_SCL_HWSCL5 anymore, use the channel corresponding to MI_SCL_DEV_DIPR0 created by the user.

  • In Muffin, MI_SCL_DEV_DIPR0 will be created and used internally when MI_VDEC is used, and other device cannot use E_MI_SCL_HWSCL8 anymore, use the channel corresponding to MI_SCL_DEV_DIPR0 created by the user.

  • In Mochi, MI_SCL_DEV_RDMA0 will be created and used internally when MI_VDEC is used, and other device cannot use E_MI_SCL_HWSCL6 anymore, use the channel corresponding to MI_SCL_DEV_RDMA0 created by the user.

  • In Souffle, MI_SCL_DEV_DIPR0 will be created and used internally in MI_DISP, MI_SCL cannot use MI_SCL_DEV_DIPR0.

• Related data type and interface

  MI_SCL_CreateDevice

---

3.6. MI_SCL_ChannelAttr_t

• Description

  Scl channel attribute.

• Definition

  typedef struct MI_SCL_ChannelAttr_s
  {
      MI_U32 u32Reserved;
  }MI_SCL_ChannelAttr_t;


• Member

  Member name	Description
  u32Reserved	Reserved.

• Note

  Tiramisu has no channel static setting Parameter, which can be set directly to 0.

• Related data type and interface

  MI_SCL_CreateChannel

---

3.7. MI_SCL_ChnParam_t

• Description

  SCL channel dynamic parameter type.

• Definition

  typedef struct MI_SCL_ChnParam_s
  {
      MI_SYS_Rotate_e eRot;
  }MI_SCL_ChnParam_t;


• Member

  Member name	Description
  eRot	Rotation Parameter

• Note

  • When rotate 90/180/270 degree, output port only support rotation, do not support crop/scaling/pixel format conversion/Mirror/Filp.

  • When rotate 90/180/270 degree, MI_RGN attach is not supported to overlay osd/cover.

  • Chip support rotate situation:

    chip	Support rotate devid
    Tiramisu	MI_SCL_DEV_DIPR0
    Muffin	MI_SCL_DEV_DIPR0
    Mochi	Not support rotation
    Souffle	Not support rotation
    Iford	Not support rotation
    Pcupid	Support rotation

  • Mochi/Souffle/Iford only supports E_MI_SYS_ROTATE_NONE.

• Related data type and interface

  MI_SCL_SetChnParam

---

3.8. MI_SCL_OutPortParam_t

• Description

  SCL output port parameter.

• Definition

  typedef struct MI_SCL_OutPortParam_s
  {
      MI_SYS_WindowRect_t stSCLOutCropRect;
      MI_SYS_WindowSize_t stSCLOutputSize;
      MI_BOOL bMirror;
      MI_BOOL bFlip;
      MI_SYS_PixelFormat_e ePixelFormat;
      MI_SYS_CompressMode_e eCompressMode;
  }MI_SCL_OutPortParam_t;


• Member

  Member name	Description
  stSCLOutCropRect	Output crop area
  stSCLOutputSize	Output size
  bMirror	Enable horizontal flip
  bFlip	Enable vertical flip
  ePixelFormat	Output pixel format
  eCompressMode	Output compression format

• Note

  • eCompressMode support range:

    Chip	Supported compress mode
    Tiramisu	E_MI_SYS_COMPRESS_MODE_NONE
    Muffin	E_MI_SYS_COMPRESS_MODE_NONE
    Mochi	E_MI_SYS_COMPRESS_MODE_NONE E_MI_SYS_COMPRESS_MODE_TO_6BIT
    Maruko	E_MI_SYS_COMPRESS_MODE_NONE E_MI_SYS_COMPRESS_MODE_TO_6BIT E_MI_SYS_COMPRESS_MODE_IFC
    Souffle	E_MI_SYS_COMPRESS_MODE_NONE E_MI_SYS_COMPRESS_MODE_TO_6BIT E_MI_SYS_COMPRESS_MODE_IFC
    Iford	E_MI_SYS_COMPRESS_MODE_NONE
    Pcupid	E_MI_SYS_COMPRESS_MODE_NONE

    • eCompressMode limit

      Output_Compress		10TO6	IFC
      Pixel	yuv420SP NV12	Y	Y
      	yuv422 YUYV	Y	N
      Pixel Alignment (WxH)	yuv420SP NV12	2x2	2x2
      	yuv422 YUYV	2x2	2x2
      bMirror		N	N
      bFlip		Y	N

    • E_MI_SYS_COMPRESS_MODE_IFC only supports one HW SclId at the same time.

• Mochi/Maruko/Souffle/Iford/Pcupid does not support to enable Mirror when ePixelFormat is YUV422_UYVY / YUV422_VYUY; and Pcupid does not support to enable Mirror when ePixelFormat is RGB565.

• Related data type and interface

  MI_SCL_SetOutputPortParam

---

3.9. MI_SCL_FilterType_e

• Description

  Scl filter type.

• Definition

  typedef enum
  {
      E_MI_SCL_FILTER_TYPE_AUTO,
      E_MI_SCL_FILTER_TYPE_BYPASS,
      E_MI_SCL_FILTER_TYPE_BILINEAR,
      E_MI_SCL_FILTER_TYPE_BICUBIC,
      E_MI_SCL_FILTER_TYPE_MAX,
  } MI_SCL_FilterType_e;


• Member

  Member name	Description
  E_MI_SCL_FILTER_TYPE_AUTO	Automatic filter selection
  E_MI_SCL_FILTER_TYPE_BYPASS	Without algorithm filter
  E_MI_SCL_FILTER_TYPE_BILINEAR	Bilinear filter
  E_MI_SCL_FILTER_TYPE_BICUBIC	Bicubic interpolation filter
  E_MI_SCL_FILTER_TYPE_MAX	Maximum filter type

• Note

  Choose the same filter type as the algorithm to get more accurate algorithm results.

• Related data type and interface

  MI_SCL_StretchBuf

---

3.10. MI_SCL_DirectBuf_t

• Description

  SCL direct processes buffer parameter type.

• Definition

  typedef struct MI_SCL_DirectBuf_s
  {
      MI_SYS_PixelFormat_e ePixelFormat;
      MI_U32 u32Width;
      MI_U32 u32Height;
      MI_PHY phyAddr[2];
      MI_U32 u32Stride[2];
      MI_U32 u32BuffSize;
  }MI_SCL_DirectBuf_t;


• Member

  Member name	Description
  ePixelFormat	Buffer pixel format
  u32Width	Effective pixel width
  u32Height	Effective pixel height
  phyAddr	Buffer physical address
  u32Stride	Buffer number of bytes in a row
  u32BuffSize	Buffer size

• Related data type and interface

  MI_SCL_StretchBuf

  MI_SCL_StretchBufOsd

---

3.11. MI_SCL_DirectOsdArgb1555Alpha_t

• Description

  Argb1555 only has one bit to describe the alpha, which divides two settings, the foreground alpha with alpha bit equal '1' and background alpha with alpha bit equal '0'.

• Definition

  typedef struct MI_SCL_DirectBufOsdArgb1555Alpha_s
  {
      MI_U8 u8BgAlpha;
      MI_U8 u8FgAlpha;
  } MI_SCL_DirectOsdArgb1555Alpha_t;


• Member

  Member name	Description
  u8BgAlpha	The alpha value to display in background when alpha bit is 0. Value range: 0~0xFF.
  u8FgAlpha	The alpha value to display in foreground when alpha bit is 1. Value range: 0~0xFF.

• Related data type and interface

  MI_SCL_StretchBufOsd

---

3.12. MI_SCL_DirectOsdAlphaModePara_u

• Description

  The union of osd alpha mode parameters.

• Definition

  typedef union
  {
      MI_SCL_DirectOsdArgb1555Alpha_t stArgb1555Alpha;
      MI_U8 u8ConstantAlpha;
  } MI_SCL_DirectOsdAlphaModePara_u;


• Member

  Member name	Description
  stArgb1555Alpha	The setting of argb1555 format foreground and background alpha.
  u8ConstantAlpha	The setting in constant alpha case, and value range is from 0 to 0xFF.

• Related data type and interface

  MI_SCL_StretchBufOsd

---

3.13. MI_SCL_DirectOsdAlphaMode_e

• Description

  The way to display with alpha mode.

• Definition

  typedef enum
  {
      E_MI_SCL_DIRECT_BUF_OSD_PIXEL_ALPHA = 0,
      E_MI_SCL_DIRECT_BUF_OSD_CONSTANT_ALPHT
  } MI_SCL_DirectOsdAlphaMode_e;


• Member

  Member name	Description
  E_MI_SCL_DIRECT_BUF_OSD_PIXEL_ALPHA	OSD displays every pixel with alpha value, which can support by these color formats 'argb1555/argb4444/arbg8888/i2/i4/i8'. Rgb565 without alpha value does not make sense.
  E_MI_SCL_DIRECT_BUF_OSD_CONSTANT_ALPHT	The hardware ignores the alpha value (if exist) from the pixel format, In fact it use the specified alpha value to take the place of the original alpha value of each pixel.

• Related data type and interface

  MI_SCL_StretchBufOsd

---

3.14. MI_SCL_DirectOsdAlphaAttr_t

• Description

  The structure of the attribute of OSD 'alpha'.

• Definition

  typedef struct MI_SCL_DirectOsdAlphaAttr_s
  {
      MI_SCL_DirectOsdAlphaMode_e   eAlphaMode;
      MI_SCL_DirectOsdAlphaModePara_u stAlphaPara;
  } MI_SCL_DirectOsdAlphaAttr_t;


• Member

  Member name	Description
  eAlphaMode	The OSD alpha mode enum.
  stAlphaPara	The parameters of alpha mode.

• Related data type and interface

  MI_SCL_StretchBufOsd

---

3.15. MI_SCL_DirectOsdInfo_t

• Description

  SCL direct processes Osdbuffer parameter Info.

• Definition

  typedef struct MI_SCL_DirectOsdInfo_s
  {
      MI_U32           u32X;
      MI_U32           u32Y;
      MI_U32           u32Width;
      MI_U32           u32Height;
      MI_PHY           phyAddr;
      MI_U32           u32Stride;
      MI_SCL_DirectOsdAlphaAttr_t stOsdAlphaAttr;
  } MI_SCL_DirectOsdInfo_t;


• Member

  Member name	Description
  u32X	X-axis
  u32Y	Y-axis
  u32Width	Effective pixel width
  u32Height	Effective pixel height
  phyAddr	Buffer physical address
  u32Stride	Buffer number of bytes in a row
  stOsdAlphaAttr	Osd Alpha attribute.

• Related data type and interface

  MI_SCL_StretchBufOsd

---

3.16. MI_SCL_DirectOsdBuf_t

• Description

  SCL direct processes Osdbuffer parameter type.

• Definition

  typedef struct MI_SCL_DirectOsdBuf_s
  {
      MI_U8         u8OsdBufCnt;
      MI_SYS_PixelFormat_e  ePixelFormat;
      MI_SCL_DirectOsdInfo_t astOsdBuf[MI_SCL_DIRECT_OSD_CNT_MAX];
  } MI_SCL_DirectOsdBuf_t;


• Member

  Member name	Description
  u8OsdBufCnt	the quantity of OSD image data
  ePixelFormat	the pixfmt of OSD Buffer
  astOsdBuf	OSD image data

• Note

  • u8OsdBufCnt Effective interval is [0, MI_SCL_DIRECT_OSD_CNT_MAX].

    #define MI_SCL_DIRECT_OSD_CNT_MAX (8)


  • For ePixelFormat support scope, please refer to MI_RGN_AttachToChn in MI_RGN_API_V3.

• Related data type and interface

  MI_SCL_StretchBufOsd

---

3.17. MI_SCL_DEV_ISP_REALTIME0

• Description

  SCL Device 0

• Definition

  #define MI_SCL_DEV_ISP_REALTIME0 (0x0)


---

3.18. MI_SCL_DEV_RDMA0

• Description

  SCL Device 1

• Definition

  #define MI_SCL_DEV_RDMA0         (0x1)


---

3.19. MI_SCL_DEV_VIF_REALTIME0

• Description

  SCL Device 2

• Definition

  #define MI_SCL_DEV_VIF_REALTIME0 (0x2)


---

3.20. MI_SCL_DEV_DIPR0

• Description

  SCL Device 3

• Definition

  #define MI_SCL_DEV_DIPR0         (0x3)


---

3.21. MI_SCL_DEV_ISP_REALTIME1

• Description

  SCL Device 4

• Definition

  #define MI_SCL_DEV_ISP_REALTIME1 (0x4)


---

3.22. MI_SCL_DEV_RDMA2

• Description

  SCL Device 5

• Definition

  #define MI_SCL_DEV_RDMA2 (0x5)


---

3.23. MI_SCL_DEV_VIF_REALTIME1

• Description

  SCL Device 6

• Definition

  #define MI_SCL_DEV_VIF_REALTIME1 (0x6)


---

3.24. MI_SCL_DEV_DIPR1

• Description

  SCL Device 7

• Definition

  #define MI_SCL_DEV_DIPR1 (0x7)


---

3.25. MI_SCL_DEV_HVP_REALTIME0

• Description

  SCL Device 8

• Definition

  #define MI_SCL_DEV_HVP_REALTIME0 (0x8)


---

4. SCL ERROR CODE

---

Video input APIs error code are as following.

Error code	Macro definition	Description
0XA0222000	MI_ERR_SCL_INVALID_DEVID	Invalid device ID
0XA0222001	MI_ERR_SCL_INVALID_CHNID	Invalid channel ID
0XA0222002	MI_ERR_SCL_INVALID_PORTID	Invalid port ID
0XA0222003	MI_ERR_SCL_ILLEGAL_PARAM	Invalid parameter setting
0XA0222004	MI_ERR_SCL_EXIST	Device already exists
0XA0222005	MI_ERR_SCL_UNEXIST	Device already unexists
0XA0222006	MI_ERR_SCL_NULL_PTR	Input parameter null pointer error
0XA0222007	MI_ERR_SCL_NOT_SUPPORT	Operation not supported
0XA0222008	MI_ERR_SCL_NOT_PERM	Operation not allowed
0XA0222009	MI_ERR_SCL_NOMEM	Failed to allocate memory
0XA022200a	MI_ERR_SCL_NOBUF	Buffer is full
0XA022200b	MI_ERR_SCL_BUF_EMPTY	Buffer is empty
0XA022200c	MI_ERR_SCL_NOTREADY	System is not initialized
0XA022200d	MI_ERR_SCL_BUSY	System is busy

---

5. PROCFS INTRODUCTION

---

5.1. cat

• Debug Information

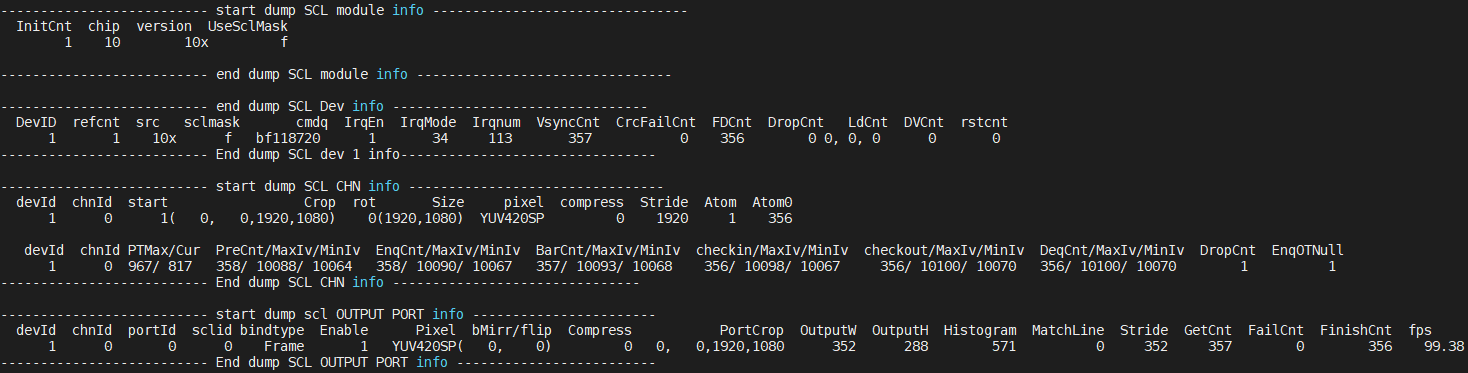

  # cat /proc/mi_modules/mi_scl/mi_scl0




• Debug Information Analysis

  Record the current use status and related attributes of the scaler, which can be dynamically obtained to facilitate debugging and testing.

• Parameter Description

  Parameter		Description
  module info	InitCnt	The count of connected module occurrence
  	chip	Chip index
  	version	Chip version
  	UseSclMask	The use status of scaler
  Device Info	DevID	Device ID
  	refcnt	The count of dev repeated creation
  	src	Input source
  	sclmask	Scaler id used by the device
  	cmdq	Cmdq pointer
  	IrqEn	IRQ enable status
  	IrqMode	IRQ mode
  	Irqnum	IRQ ID
  	VsyncCnt	ISR vsync Cnt
  	crcFailCnt	input crc check fail cnt
  	FDCnt	ISR Frame Done Cnt
  	DropCnt	IRQ Frame Drop or Double Vsync
  	LdCnt	Low Lantency Mode Match Line IRQ Cnt
  	DVCnt	double vsync cnt
  	rstcnt	reset hw cnt
  Channel Info	DevId	Device id
  	ChnId	Channel ID
  	start	Channel start or not
  	Crop	Channel Crop location
  	Rot	Rotation angle
  	Size	Input width/height
  	pixel	Input Pixel format
  	compress	input compress type
  	Stride	Input buffer stride
  	Atom	The count of buffers held by the bottom layer
  	Atom0Cnt	The count of times that the bottom layer cannot get buffer after buffer release
  	PTMax/Cur	Maximum hardware processing time/Current frame hardware processing time
  	PreCnt/EnqCnt/BarCnt/checkin/ checkout/DeqCnt	The count of Callback interface execution
  	MaxIv/MinIv	callback execution interval
  	DropCnt	drop task cnt
  	EnqOTNull	The count that OutBuffer is Null while Enq
  Outputport Info	DevId	Device id
  	ChnId	Channel ID
  	PortId	Port ID
  	sclid	scaler ID
  	bindtype	0: Real Time mode 1: Ring mode 2: frame mode
  	Enable	Enable status
  	Pixel	Output pixel format
  	compress	output compress type
  	bMirr/flip	Port mirror/flip
  	PortCrop	Port crop range
  	OutputW/OutputH	Output width/output height
  	Histogram	Scl Picture complexity
  	MatchLine	Low Lantency Mode Match Line Cnt
  	Stride	Output buffer stride, pixel byte
  	GetCnt	The count of outputbuffer to get
  	FailCnt	The count of outputbuffer failed to get
  	FinishCnt	The count of output buffer finished
  	fps	Output port frame rate

---

5.2. echo

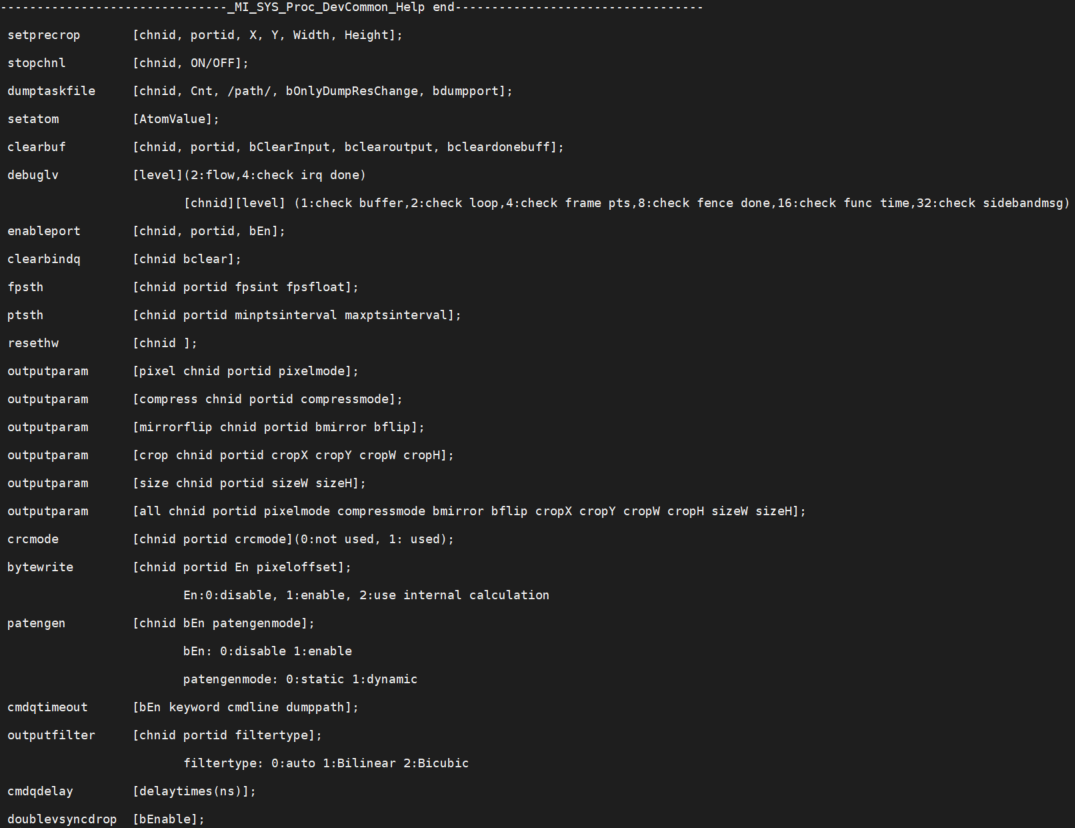

Echo help can view available commands:

# echo help > /proc/mi_modules/mi_scl/mi_scl0

Function	Set the crop Parameter of each scl port, which is directly set to the driver without going through the MI process.
Command	echo setprecrop [chnid portid X Y Width Height] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	Chnid: channel id Portid: port id X,Y,width,height: crop range
Example	echo setprecrop 0 0 0 0 800 200 > /proc/mi_modules/mi_scl/mi_scl0

Function	After finishing the bottom layer buffer, stop channel to trigger the bottem layer.
Command	echo stopchnl [chnid, ON/OFF] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	Chnid: channel id ON/OFF: ON means stop channel, OFF means open channel
Example	echo stopchnl 0 ON > /proc/mi_modules/mi_scl/mi_scl0 echo stopchnl 0 OFF > /proc/mi_modules/mi_scl/mi_scl0

Function	Dump the output data of the selected channel and save it in the /path.
Command	echo dumptaskfile [chnid, Cnt, /path/, bOnlyDumpResChange, bdumpport] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	Chnid: channel id Cnt: dump count Path: The path to store dumped files bOnlyDumpResChange: Sometimes some flower images are generated when the resolution is changed, and the dump command does not work well with the resolution changing. You can set this parameter first, and then change the resolution. When the program recognizes the resolution change, it will dump the buffer after the resolution change. (Optional parameter) Bdumpport: Only dump a certain portid, the default is to dump all the output ports. (Optional parameter)
Example	echo dumptaskfile 0 2 /tmp > /proc/mi_modules/mi_scl/mi_scl0

Function	Set pass atomvalue
Command	echo setatom [AtomValue] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	AtomValue: The maximum number of buffers held by the driver.
Example	echo setatom 3 > /proc/mi_modules/mi_scl/mi_scl0 PS: Sometimes the bottom layer is stuck, you can try to enlarge this atom, plug a buffer into the driver, and trigger again to see if it can be restored. Or when the frame is dropped, increase the atom to see if the frame can be full.

Function	Clear the input/output/done buffer of the specified channel port.
Command	echo clearbuf [chnid, portid, bClearInput, bClearoutput] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	Chnid: channel id Portid: port id bClearInput: Clear input buffer bClearoutput: Clear output buffer
Example	echo clearbuf 0 0 1 0 > /proc/mi_modules/mi_scl/mi_scl0

Function	Set debug level
Command	echo debuglv [level] > /proc/mi_modules/mi_scl/mi_scl0 echo debuglv [chnid][level] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	Chnid: channel id Level: (1) When single parameter: 2:flow, 4:check irq done (2) When two parameters: 1:check buffer, 2:check loop, 4:check frame pts, 8:check fence done, 16:check func time, 32:check sidebandmsg
Example	echo debuglv 4 > /proc/mi_modules/mi_scl/mi_scl0 //Open check irq done related MI print. echo debuglv 0 3 > /proc/mi_modules/mi_scl/mi_scl0 //Open channel0 level3 print about buffer info and loop info.

Function	Set port enable or not
Command	echo enableport [chnid, portid, bEn] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	Chnid: channel id Portid: port id bEn: 0:disable, 1:enable
Example	echo enableport 0 0 1 > /proc/mi_modules/mi_scl/mi_scl0

Function	Clear the buffer cached in Bind Q
Command	echo clearbindq [chnid bclear] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	Chnid: channel id bclear: Whether to clear
Example	echo clearbindq 0 1 > /proc/mi_modules/mi_scl/mi_scl0 //clear channel0 bindQ Clear channel0 bindQ. Sometimes the front end can't get the buffer, and it is found that scl BindQ is full. Judge whether scl takes the buffer fast enough. Clear bindQ to see if bindQ will be accumulated. If it is still accumulated, it means that the scl is not fast enough. If it is not increased, it means that the previous exception has been stuffed in and has not been consumed.

Function	Print the value lower than the setting frame rate.
Command	echo fpsth [chnid portid fpsint fpsfloat] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	Chnid: channel id Portid: port id fpsint: Frame rate integer bits fpsfloat: Frame rate demical bits
Example	echo fpsth 0 0 30 30 > /proc/mi_modules/mi_scl/mi_scl0 //Print the fps lower than 30.30 in channel0 port0.

Function	Set the print pts, print if it is exceeding PTS interval.
Command	echo ptsth [chnid portid ptsmininterval ptsmaxinterval] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	Chnid: channel id Portid: port id ptsmininterval: pts interval min value ptsmaxinterval: pts interval max value
Example	echo ptsth 0 0 30000 40000 > /proc/mi_modules/mi_scl/mi_scl0 // Values with PTS interval less than 30ms and more than 40ms in channel0 port0 are printed out.

Function	Reset SCL entire hardware.
Command	echo resethw [chnid ] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	Chnid: channel id
Example	echo resethw 0 > /proc/mi_modules/mi_scl/mi_scl0 //mi_scl0 mens MI_SCL_DEV_ISP_REALTIME0, mi_scl1 means MI_SCL_DEV_RDMA0.

Function	Set output port parameters
Command	echo outputparam pixel [chnid, portid pixelmode] > /proc/mi_modules/mi_scl/mi_scl1 echo outputparam compress [chnid, portid compressmode] > /proc/mi_modules/mi_scl/mi_scl1 echo outputparam mirrorflip [chnid, portid bmirror bflip] > /proc/mi_modules/mi_scl/mi_scl1 echo outputparam crop [chnid, portid cropX cropY cropW cropH] > /proc/mi_modules/mi_scl/mi_scl1 echo outputparam size [chnid, portid sizeW sizeH] > /proc/mi_modules/mi_scl/mi_scl1 echo outputparam all [chnid, portid pixelmode compressmode bmirror bflip cropX cropY cropW cropH sizeW sizeH] > /proc/mi_modules/mi_scl/mi_scl1
Parameter Description	Chnid: channel id Portid: port id Pixelmode: output pixel format Compressmode: ouput compress mode Bmirror: Ouput enable horizontal turn Bflip: Ouput enable vertical turn cropX: Output crop X coordinate cropY: Output crop Y coordinate cropW: Output crop width cropH: Output crop height sizeW: Output size width sizeH: Output size height
Example	echo outputparam pixel 0 0 11 > /proc/mi_modules/mi_scl/mi_scl1 echo outputparam compress 0 0 5 > /proc/mi_modules/mi_scl/mi_scl1 echo outputparam mirrorflip 0 0 1 1 > /proc/mi_modules/mi_scl/mi_scl1 echo outputparam crop 0 0 0 0 1920 1080 > /proc/mi_modules/mi_scl/mi_scl1 echo outputparam size 0 0 1920 1080 > /proc/mi_modules/mi_scl/mi_scl1 echo outputparam all 0 0 11 5 1 1 0 0 1920 1080 1920 1080 > /proc/mi_modules/mi_scl/mi_scl1

Function	Set the crc of the output port.
Command	echo crcmode [chnid portid crcmode] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	chnid: channel id Portid: port id crcmode: 0:not used, 1: used
Example	echo crcmode 0 1 1 > /proc/mi_modules/mi_scl/mi_scl0

Function	Set the bytewrite of the output port.
Command	echo bytewrite [chnid portid bEn offsetbyte] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	chnid: channel id Portid: port id bEn: 0:disable, 1:enable offsetbyte: offset byte
Example	echo bytewrite 0 0 1 1 > /proc/mi_modules/mi_scl/mi_scl0

Function	Set the patengen of the input source.
Command	echo patengen [chnid bEn patengenmode] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	chnid: channel id bEn: 0:disable, 1:enable patengenmode: 0:static, 1:dynamic
Example	echo patengen 0 1 0 > /proc/mi_modules/mi_scl/mi_scl0

Function	Set the command fetching information executed after cmdq timeout
Command	echo cmdqtimeout [bEn, keyword, cmdline, path] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	bEn: 0:disable, 1:enable keyword: Commands executed cmdline: Executed string path: Information saving path
Example	echo 1 cat /proc/mi_modules/mi_isp/mi_scl0 /mnt/cmdqerr.txt > /proc/mi_modules/mi_isp/mi_scl0

Function	Set scl filter type.
Command	echo outputfilter [chnid, portid, filtertype] > /proc/mi_modules/mi_scl/mi_scl0
Parameter Description	Chnid: channel id Portid: port id filtertype: 0:auto, 1:bilinear, 2:bicubic
Example	echo outputfilter 0 0 1> /proc/mi_modules/mi_scl/mi_scl0

Function	Set cmdq delay time.
Command	echo cmdqdelay [time(ns)] > /proc/mi_modules/mi_scl/mi_scl1
Parameter Description	time: cmdq delay time (ns)
Example	echo cmdqdelay 100000 > /proc/mi_modules/mi_scl/mi_scl1

Function	Set double vsync drop enable.
Command	echo doublevsyncdrop [bEn] > /proc/mi_modules/mi_scl/mi_scl1
Parameter Description	bEn: 0:disable, 1:enable
Example	echo doublevsyncdrop 1 > /proc/mi_modules/mi_scl/mi_scl1

---

6. MODPARAM.JSON INTRODUCTION

6.1. The json file content

{ "E_MI_MODULE_ID_SCL" : { "bEnableMultiRing": "TRUE", "bDefaultDropFifoBuffer": "TRUE", "u32MaxChnNum": "32", "bUseHwResetArray": "1", "bCmdqTimeOutDbgArray": "0", "u16CpuMaskAffinityArray": "0", "u32threadPriorityArray": "98", "u32CmdqSizeArray": "91136", "u32PatMode": "0,0", "bDoubleVsyncDropDbgArray": "FALSE", "u64PmTimeoutLatencyNS": "1000000000", "u32BaseFrameIdxArray": "0", "u32DevDbgLv": "0", "u8ChnDbgLv": "0", "bCrcEnableArray": "0", "bEnableTileModeArray": "0", "u16ByteWriteArray": "0", "u16FilterTypeArray": "0", "u16RingLineCntArray": "-1" } }

The modparam.json is under /config, when SCL is initialized, the json file will be loaded.

---

6.2. SCL common paramaters and paramater description

Parameters	Default	Support chip	Customer configuration	Function
bEnableMultiRing	TRUE	Maruko, Opera, Souffle and later chip	N	Set scl to enable MultiRing mode or not, 0: disable, 1: enable
bDefaultDropFifoBuffer	TRUE	Maruko, Opera, Souffle and later chip	Y	Set whether scl drop fifo buffer by defalt, 0: disable, 1: enable
u32MaxChnNum	32	Maruko, Opera, Souffle and later chip	Y	Set scl max channel number per device,[0-U32MAX]
bUseHwResetArray	1	Maruko, Opera, Souffle and later chip	Y	Enable isp dev default hw reset or not, 0: disable, 1: enable
bCmdqTimeOutDbgArray	0	Maruko, Opera, Souffle and later chip	N	Enable dev default cmdq timeout debuginfo or not, 0: disable, 1: enable
u16CpuMaskAffinityArray	0	Maruko, Opera, Souffle and later chip	N	Set which cpu scl dev thread can repond on, 0: Use all cpu by default, bit0-3 -> cpu 0-3, like: 6 means that use cpu1 and cpu2
u32threadPriorityArray	98	Maruko, Opera, Souffle and later chip	N	Set scl dev work thread priority,[0-U32MAX]
u32CmdqSizeArray	91136	Maruko, Opera, Souffle and later chip	N	Set scl dev cmdq size,[0-U32MAX]
u32PatMode	0,0	Maruko, Opera, Souffle and later chip	N	Set scl dev pattern gen, [W,H], 0:disable
bDoubleVsyncDropDbgArray	FALSE	Maruko, Opera, Souffle and later chip	N	Set whether scl dev drop double vsync buffer, 0: disable,1: enable
u64PmTimeoutLatencyNS	1000000000	Maruko, Opera, Souffle and later chip	N	Set scl dev pm timeout,[0-U64MAX]
u32BaseFrameIdxArray	0	Maruko, Opera, Souffle and later chip	N	Set scl dev basic frame index, [0-U32MAX]
u32DevDbgLv	0	Maruko, Opera, Souffle and later chip	N	Set scl dev debug level,[0-U32MAX]
u8ChnDbgLv	0	Maruko, Opera, Souffle and later chip	N	Set scl dev channel debug level,[0-U8MAX]
bCrcEnableArray	0	Maruko, Opera, Souffle and later chip	N	Enable scl port crc or not, 0: disable, 1: enable
bEnableTileModeArray	0	Maruko, Opera, Souffle and later chip	N	Enable scl port Tile mode or not, 0: disable, 1: enable
u16ByteWriteArray	0	Maruko, Opera, Souffle and later chip	N	Set scl port ByteWrite pixel offset,[0-U16MAX]
u16FilterTypeArray	0	Maruko, Opera, Souffle and later chip	N	Set scl port filter type, 0: Auto mode, 1: Bilinear mode, 2: Bicubic mode
u16RingLineCntArray	-1	Iford and later chip	N	Set the height of RingBuf used in scl port JPEG_EmiRing, -1: Auto mode, [0-OutSizeHeight]
