API Algorithm User Guide

1. OVERVIEW¶

1.1. Module Description¶

APC (short for Audio Process Chain) is a combination of algorithms including noise reduction, equalizer and automatic gain control.

The purpose of APC is to improve audio quality. The internal algorithm concatenation process is ANR → EQ/HPF → AGC. The SNR is improved through noise reduction and noise elimination. The EQ/HPF is adjusted according to the curve required by the customer, and the output is amplified or suppressed through AGC.

1.2. Keyword¶

AGC

AGC(Automatic Gain Control), used to control the digital output gain.
EQ

EQ(Equalizer), used to gain or attenuate specific frequency bands.
ANR

ANR(Acoustic Noise Reduction), used to remove the continued and fixed frequency noise in the environment.
HPF

HPF(High-Pass Filtering).

1.3. Note¶

In order to facilitate debugging and confirm the effect of the algorithm, the user application needs to implement replacement algorithm parameter and grab audio data.

2. API REFERENCE¶

2.1. API List¶

API name	Features
IaaApc_GetBufferSize	Get the memory size required for Apc algorithm running
IaaApc_Init	Initialize the Apc algorithm
IaaApc_Config	Configure the Apc algorithm
IaaApc_SetLowFreqCompressionRatioCurve	Set Agc in Apc compression ratio by bin(low frequency).
IaaApc_SetMidFreqCompressionRatioCurve	Set Agc in Apc compression ratio by bin(Mid frequency).
IaaApc_SetHighFreqCompressionRatioCurve	Set Agc in Apc compression ratio by bin(High frequency).
IaaApc_SetAgcFreqBand	Set Agc in Apc frequency band.
IaaApc_GetNrResult	Get Anr output
IaaApc_GetNrEqResult	Get Anr and EQ/HPF output
IaaApc_GetVadOut	Get the speech probability of Anr in the Apc algorithm.
IaaApc_Run	Apc algorithm run
IaaApc_Free	Release Apc algorithm resources
IaaApc_Reset	Reinitialize the Apc algorithm
IaaApc_GetConfig	Get the Apc algorithm current configuration parameters
IaaApc_ApplyDigitalGain	Apply digital gain on input data.
IaaAnr_GetBufferSize	Get the memory size required for Anr algorithm running
IaaAnr_Init	Initialize the Anr algorithm
IaaAnr_Config	Configure the Anr algorithm
IaaAnr_Run	Anr algorithm processing
IaaAnr_Free	Release Anr algorithm resources
IaaAnr_Reset	Reinitialize the Anr algorithm
IaaAnr_GetConfig	Get the Anr algorithm current configuration parameters
IaaEq_GetBufferSize	Get the memory size required for Eq algorithm running
IaaEq_Init	Initialize the Eq algorithm
IaaEq_Config	Configure the Eq algorithm
IaaEq_Run	Eq algorithm processing
IaaEq_Free	Release Eq algorithm resources
IaaEq_Reset	Reinitialize the Eq algorithm
IaaEq_GetConfig	Get the Eq algorithm current configuration parameters
IaaAgc_GetBufferSize	Get the memory size required for Agc algorithm running
IaaAgc_Init	Initialize the Agc algorithm
IaaAgc_Config	Configure the Agc algorithm
IaaAgc_SetLowFreqCompressionRatioCurve	Set Agc compression ratio by bin(low frequency)
IaaAgc_SetMidFreqCompressionRatioCurve	Set Agc compression ratio by bin(Mid frequency)
IaaAgc_SetHighFreqCompressionRatioCurve	Set Agc compression ratio by bin(High frequency)
IaaAgc_SetAgcFreqBand	Set Agc frequency band
IaaAgc_Run	Agc algorithm processing
IaaAgc_Free	Release Agc algorithm resources
IaaAgc_Reset	Reinitialize the Eq algorithm
IaaAgc_GetConfig	Get the Agc algorithm current configuration parameters
IaaApc_SetCompressionRatioCurve	Set Agc in Apc compression ratio curve for more slope segment
IaaAgc_SetCompressionRatioCurve	Set Agc compression ratio curve for more slope segment
IaaApc_NrEstimateReferAec	Noise estimation refer to Aec linear process output
IaaApc_EnhanceNNBFMode	Special enhancement for concatenating Bf mode 3 and APC deep learning based noise reduction
IaaApc_FilterDesign	Initialized IIR filter configuration
IaaApc_FilterApply	IIR filter apply
IaaEq_FilterDesign	Initialized IIR filter configuration
IaaEq_FilterApply	IIR filter apply
IaaAnr_EnhanceNNBFMode	Special enhancement for concatenating Bf mode 3 and ANR deep learning based noise reduction
IaaApc_GetAPIVersion	Get Apc API version
IaaApc_SetHandleId	Set Apc Handle Id
IaaAnr_SetHandleId	Set Anr Handle Id
IaaEq_SetHandleId	Set Eq Handle Id
IaaAgc_SetHandleId	Set Agc Handle Id
IaaApc_GetJsonFileSize	Apc gets the memory size required to parse the Json file content
IaaApc_NrReadJson	Configure Json parameters to Apc algorithm
IaaAnr_GetJsonFileSize	Anr gets the memory size required to parse the Json file content
IaaAnr_NrReadJson	Configure Json parameters to Anr algorithm
IaaApc_EnableComfortNoise	Configure Apc comfort noise algorithm and set comfort noise energy
IaaAnr_EnableComfortNoise	Configure the ANR comfort noise algorithm and set the comfort noise energy
IaaEq_EnableComfortNoise	Configure Eq comfort noise algorithm and set comfort noise energy
IaaAgc_EnableComfortNoise	Configure the Agc comfort noise algorithm and set the comfort noise energy
IaaApc_EnableAutoSmooth	Configure the Anr smooth noise algorithm in Apc
IaaAnr_EnableAutoSmooth	Configure Anr smooth noise algorithm
IaaApc_ApplyComfortNoise	Apply comfort noise of specified energy

2.2. IaaApc_GetBufferSize¶

Features

Get the memory size required for Apc algorithm running.

Syntax

unsigned int IaaApc_GetBufferSize(AudioApcBufferConfig
*apc_switch);

Parameters

Parameter name Description Input/output

apc_switch Structure pointer for configure the Apc algorithm to enable Input
Return value

Return value is the memory size required for Apc algorithm running.
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note

The interface only returns the required memory size. The application and release of memory needs to be processed by the application.
Example

Please refer to IaaApc_Run example.

2.3. IaaApc_Init¶

Features

Initialize the Apc algorithm .

Syntax

APC_HANDLE IaaApc_Init(char* const
working_buffer_address, AudioProcessInit
*audio_process_init, AudioApcBufferConfig
*apc_switch);

Parameters

Parameter name	Description	Input/output
working_buffer_address	Apc algorithm memory address	Input
audio_process_init	Apc algorithm initialization structure pointer	Input
apc_switch	Apc algorithm enable structure pointer	Input

Return value

Return value Result

Not NULL Successful

NULL Failed
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- In the Apc algorithm, ANR/AGC/EQ supports 8K/16K/48K sampling rate, HPF only supports 8K/16K.
Example

Please refer to IaaApc_Run example.

2.4. IaaApc_Config¶

Features

Configure the Apc algorithm.

Syntax

ALGO_APC_RET IaaApc_Config(APC_HANDLE handle,
                        AudioAnrConfig *anr_config,
                        AudioEqConfig *eq_config,
                        AudioHpfConfig *hpf_config,
                        AudioVadConfig *vad_config,
                        AudioDereverbConfig *dereverb_config,
                        AudioAgcConfig *agc_config);

Parameters

Parameter name	Description	Input/output
handle	Apc algorithm handle	Input
anr_config	Configure Anr algorithm structure pointer	Input
eq_config	Configure Eq algorithm structure pointer	Input
hpf_config	Configure Hpf algorithm structure pointer	Input
vad_config	Configure Vad algorithm structure pointer(stop using)	Input
dereverb_config	Configure Dereverb algorithm structure pointer (stop using)	Input
agc_config	Configure Agc algorithm structure pointer	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaApc_Run example.

2.5. IaaApc_SetLowFreqCompressionRatioCurve¶

Features

Configure the frequency band compression ratio curve (low frequency) of the Agc algorithm in Apc. Please set the user_mode of Agc to 2 before using this function, otherwise an error will be returned.

Syntax

ALGO_APC_RET IaaApc_SetLowFreqCompressionRatioCurve(APC_HANDLE handle,
                    int* CompressRatioInput, int* CompressRatioOutput);

Parameters

Parameter name	Description	Input/output
handle	Apc algorithm handle	Input
CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaApc_Run example.

2.6. IaaApc_SetMidFreqCompressionRatioCurve¶

Features

Configure the frequency band compression ratio curve (mid frequency) of the Agc algorithm in Apc. Please set the user_mode of Agc to 2 before using this function, otherwise an error will be returned.

Syntax

ALGO_APC_RET IaaApc_SetMidFreqCompressionRatioCurve(APC_HANDLE handle,
                    int* CompressRatioInput, int* CompressRatioOutput);

Parameters

Parameter name	Description	Input/output
handle	Apc algorithm handle	Input
CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaApc_Run example.

2.7. IaaApc_SetHighFreqCompressionRatioCurve¶

Features

Configure the frequency band compression ratio curve (high frequency) of the Agc algorithm in Apc. Please set the user_mode of Agc to 2 before using this function, otherwise an error will be returned.

Syntax

ALGO_APC_RET IaaApc_SetHighFreqCompressionRatioCurve(APC_HANDLE handle,
                    int* CompressRatioInput, int* CompressRatioOutput);

Parameters

Parameter name	Description	Input/output
handle	Apc algorithm handle	Input
CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaApc_Run example.

2.8. IaaApc_SetAgcFreqBand¶

Features

Configure the frequency band of the Agc algorithm in Apc. Please set the user_mode of Agc to 2 before using this function, otherwise an error will be returned.

Syntax

ALGO_APC_RET IaaApc_ SetAgcFreqBand(APC_HANDLE handle,
                        int* frequency_band);

Parameters

Parameter name	Description	Input/output
handle	Apc algorithm handle	Input
Frequency_band	Frequency band setting array. It involve low frequency upper limit, middle frequency upper limit and high frequency upper limit. For example: setting frequency band as	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaApc_Run example.

2.9. IaaApc_GetNrResult¶

Features

Get the Apc algorithm Anr processing result.

Syntax

ALGO_APC_RET IaaApc_GetNrResult(APC_HANDLE handle, short*
nr_audio_out);

Parameters

Parameter name Description Input/output

handle Apc algorithm handle Input

nr_audio_out Anr handles Output data pointer Output
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- Anr in the Apc algorithm must be enabled before calling the interface to obtain data.
Example

Please refer to IaaApc_Run example.

2.10. IaaApc_GetNrEqResult¶

Features

Get the processing result of Anr and Eq in the Apc algorithm

Syntax

ALGO_APC_RET IaaApc_GetNrEqResult(APC_HANDLE handle,short*
nr_eq_audio_out);

Parameters

Parameter name Description Input/output

handle Aec algorithm handle Input

nr_eq_audio_out Anr and Eq handle output data pointer Output
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- Enable Anr and Eq in the Apc algorithm before calling this interface to obtain data.
Example

Please refer to IaaApc_Run example.

2.11. IaaApc_GetVadOut¶

Features

Get the speech probability of Anr in the Apc algorithm.

Syntax

ALGO_APC_RET IaaApc_GetVadOut (APC_HANDLE handle, int* speech_prob);

Parameters

Parameter name Description Input/output

handle Apc algorithm handle Input

Speech_prob Anr handle output speech probability pointer Output
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- Enable Anr in the Apc algorithm before calling this interface to obtain data.
Example

Please refer to IaaApc_Run example.

2.12. IaaApc_Run¶

Features

Apc algorithm processing.

Syntax

ALGO_APC_RET IaaApc_Run(APC_HANDLE handle,short* pss_audio_in);

Parameters

Parameter name Description Input/output

handle Apc algorithm handle Input

pss_audio_in Input data pointer Input/output
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- The data must correspond to the point_number (sampling points required for one IaaApc_Run) set when calling IaaApc_Init. The processed data will be written back to the memory pointed to by pss_audio_in.

Example

#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <string.h>
#include "AudioProcess.h"

int main(int argc, char *argv[])
{
    short input[1024];
    char input_file[512];
    char output_file[512];
    int counter = 0;
    int speech_prob = 0;
    int intensity_band[6] = { 3, 24, 40, 64, 80, 128 };
    int intensity[7] = { 30, 30, 30, 30, 30, 30, 30 };
    short eq_table[129] = { 1, 1, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5 };
    short compression_ratio_input[_AGC_CR_NUM] = { -65, -55, -48, -25, -18, -12, 0 };
    short compression_ratio_output[_AGC_CR_NUM] = { -65, -50, -40, -20, -10, -5, -3 };

    AudioApcBufferConfig apc_switch;
    apc_switch.anr_enable = 1;
    apc_switch.eq_enable = 0;
    apc_switch.dr_enable = 0;
    apc_switch.vad_enable = 0;
    apc_switch.agc_enable = 1;

    int buffersize = IaaApc_GetBufferSize(&apc_switch);
    char *working_buf_ptr = (char*)malloc(buffersize);

    FILE * fin, *fout;
    ALGO_APC_RET ret1;
    AudioProcessInit apc_init;
    AudioAnrConfig anr_config;
    AudioEqConfig eq_config;
    AudioHpfConfig hpf_config;
    AudioAgcConfig agc_config;
    APC_HANDLE handle;
    apc_init.point_number = 128;
    apc_init.channel = 1;
    apc_init.sample_rate = IAA_APC_SAMPLE_RATE_16000;

    handle = IaaApc_Init((char *)working_buf_ptr, &apc_init, &apc_switch);
    if (handle == NULL)
    {
        printf("APC init error\r\n");
        return -1;
    }
    else
    {
        printf("APC init succeed\r\n");
    }
    /******ANR Config*******/
    anr_config.anr_enable = apc_switch.anr_enable;
    anr_config.user_mode = 2;
    anr_config.anr_filter_mode = 4;
    memcpy(anr_config.anr_intensity_band, intensity_band, 6 * sizeof(int));
    memcpy(anr_config.anr_intensity, intensity, 7 * sizeof(int));
    anr_config.anr_smooth_level = 10;
    anr_config.anr_converge_speed = 2;
    /******EQ Config********/
    eq_config.eq_enable = 0;
    eq_config.user_mode = 1;
    memcpy(eq_config.eq_gain_db, eq_table, _EQ_BAND_NUM*sizeof(short));
    /******HPF Config********/
    hpf_config.hpf_enable = apc_switch.eq_enable;
    hpf_config.user_mode = 1;
    hpf_config.cutoff_frequency = AUDIO_HPF_FREQ_500;
    /******AGC Config********/
    agc_config.agc_enable = apc_switch.agc_enable;
    agc_config.user_mode = 2;
    agc_config.gain_info.gain_max = 60;
    agc_config.gain_info.gain_min = -5;
    agc_config.gain_info.gain_init = 0;
    agc_config.gain_step = 3;
    agc_config.drop_gain_max = 50;
    agc_config.attack_time = 1;
    agc_config.release_time = 1;
    agc_config.noise_gate_db = -50;
    memcpy(agc_config.compression_ratio_input, compression_ratio_input, _AGC_CR_NUM*sizeof(short));
    memcpy(agc_config.compression_ratio_output, compression_ratio_output, _AGC_CR_NUM*sizeof(short));
    agc_config.noise_gate_attenuation_db = 0;
    agc_config.drop_gain_threshold = -5;

    int freqBand[_AGC_FREQ_BAND_NUM] = { 3000, 6000, 8000 };
    int compressionRatioArrayLowInput[_AGC_CR_NUM] = { -80, -60, -40, -20, 0, 0, 0 };
    int compressionRatioArrayLowOutput[_AGC_CR_NUM] = { -5, -5, -5, -5, -5, -5, -5 };
    int compressionRatioArrayMidInput[_AGC_CR_NUM] = { -80, -60, -40, -20, 0, 0, 0 };
    int compressionRatioArrayMidOutput[_AGC_CR_NUM] = { -80, -60, -40, -20, 0, 0, 0 };
    int compressionRatioArrayHighInput[_AGC_CR_NUM] = { -80, -60, -40, -20, 0, 0, 0 };
    int compressionRatioArrayHighOutput[_AGC_CR_NUM] = { -80, -60, -40, -20, 0, 0, 0 };

    AudioProcessInit apc_init_cpy;
    AudioAnrConfig anr_config_cpy;
    AudioEqConfig eq_config_cpy;
    AudioHpfConfig hpf_config_cpy;
    AudioAgcConfig agc_config_cpy;

    if (IaaApc_Config(handle, &anr_config, &eq_config, &hpf_config, NULL, NULL, &agc_config) == -1)
    {
        return -1;
    }

    IaaApc_SetAgcFreqBand(handle, freqBand);
    IaaApc_SetLowFreqCompressionRatioCurve(handle, compressionRatioArrayLowInput, compressionRatioArrayLowOutput);
    IaaApc_SetMidFreqCompressionRatioCurve(handle, compressionRatioArrayMidInput, compressionRatioArrayMidOutput);
    IaaApc_SetHighFreqCompressionRatioCurve(handle, compressionRatioArrayHighInput, compressionRatioArrayHighOutput);

    IaaApc_GetConfig(handle, &apc_init_cpy, &anr_config_cpy, &eq_config_cpy, &hpf_config_cpy, NULL, NULL, &agc_config_cpy);

    sprintf(input_file, "%s", "./../code/sample/data/IEEE_Female_mono_16_kHz.wav");
    sprintf(output_file, "%s", "./../code/sample/data/APC_out_16K.wav");

    fin = fopen(input_file, "rb");
    if (!fin)
    {
        printf("the input file %s could not be open\n", input_file);
        return -1;
    }

    fout = fopen(output_file, "wb");
    if (!fout)
    {
        printf("the output file could not be open\n");
        return -1;
    }

    fread(input, sizeof(char), 44, fin); // read header 44 bytes
    fwrite(input, sizeof(char), 44, fout); // write 44 bytes output

    while (fread(input, sizeof(short), apc_init.point_number*apc_init.channel, fin))
    {
        counter++;
        // do one frame audio process ---------------
        ret1 = IaaApc_Run(handle, input);
        IaaApc_GetVadOut(handle, &speech_prob);
        if (counter % 1000 == 999)
        {
            printf("counter = %d\n", counter);
            printf("current time = %f\n", (float)counter*apc_init.point_number / apc_init.sample_rate);
        }

        if (ret1 != ALGO_APC_RET_SUCCESS)
        {
            printf("Error occured in AudioProcess\n");
            break;
        }

        fwrite(input, sizeof(short), apc_init.point_number*apc_init.channel, fout);
    }
    IaaApc_Free(handle);
    fclose(fin);
    fclose(fout);

    printf("Done\n");
    return 0;
}

2.13. IaaApc_Free¶

Features

Release Apc algorithm resources

Syntax

ALGO_APC_RET IaaApc_Free(APC_HANDLE handle);

Parameters

Parameter name Description Input/output

handle Apc algorithm handle Input
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaApc_Run example.

2.14. IaaApc_Reset¶

Features

Reinitialize the Apc algorithm.

Syntax

APC_HANDLE IaaApc_Reset(char* working_buffer_address,AudioProcessInit *audio_process_init, AudioApcBufferConfig *apc_switch);

Parameters

Parameter name	Description	Input/output
working_buffer_address	Memory address used by Apc algorithm	Input
audio_process_init	Apc algorithm initialization structure pointer	Input
apc_switch	Structure pointer for configure the Apc algorithm to enable	Input

Return value

Return value Result

Not NULL Successful

NULL Failed
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note

When the Apc algorithm is reinitialized and the function options are different from previous, we need to release the memory used by the original algorithm, call IaaApc_GetBufferSize again to get the memory size required by the current function options, and reapply for the corresponding size of memory for the Apc algorithm.

2.15. IaaApc_GetConfig¶

Features

Get the Apc algorithm current configuration parameters.

Syntax

ALGO_APC_RET IaaApc_GetConfig(APC_HANDLE handle,
                        AudioProcessInit *audio_process_init,
                        AudioAnrConfig *anr_config,
                        AudioEqConfig *eq_config,
                        AudioHpfConfig *hpf_config,
                        AudioVadConfig *vad_config,
                        AudioDereverbConfig *dereverb_config,
                        AudioAgcConfig *agc_config);

Parameters

Parameter name	Description	Input/output
handle	Apc algorithm handle	Input
audio_process_init	Apc algorithm initialization structure pointer	Output
anr_config	The current Anr configuration parameters in the Apc algorithm	Output
eq_config	The current Eq configuration parameters in the Apc algorithm	Output
hpf_config	The current Hpf configuration parameters in the Apc algorithm	Output
vad_config	The current Vad configuration parameters in the Apc algorithm(stop using)	Output
dereverb_config	The current Dereverb configuration parameters in the Apc algorithm(stop using)	Output
agc_config	The current Agc configuration parameters in the Apc algorithm	Output

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaApc_Run example.

2.16. IaaApc_ApplyDigitalGain¶

Features

Apply digital gain on input data.

Syntax

ALGO_APC_RET IaaApc_ApplyDigitalGain(APC_HANDLE handle,
short* pss_audio_in, float gain_value);

Parameters

Parameter name Description Input/output

handle Apc handle Input

pss_audio_in Input data pointer input/output

gain_value Gain value
range: [-120,120] input
Return value

Return value Result

Not NULL Successful

NULL Failed
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

2.17. IaaAnr_GetBufferSize¶

Features

Get the memory size required for Anr algorithm running.

Syntax

unsigned int IaaAnr_GetBufferSize(void);

Return value

Return value is the memory size required for Anr algorithm running.
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note

The interface only returns the required memory size. The application and release of memory needs to be processed by the application.。
Example

Please refer to IaaAnr_Run example.

2.18. IaaAnr_Init¶

Features

Initialize the Anr algorithm.

Syntax

ANR_HANDLE IaaAnr_Init(char* working_buffer_address, AudioProcessInit *anr_init);

Parameters

Parameter name Description Input/output

working_buffer_address Anr algorithm memory address Input

anr_init Anr algorithm initialization structure pointer Input
Return value

Return value Result

Not NULL Successful

NULL Failed
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- ANR supports 8K/16K/48K sampling rate.
Example

Please refer to IaaAnr_Run example.

2.19. IaaAnr_Config¶

Features

Configure the Anr algorithm.

Syntax

ALGO_ANR_RET IaaAnr_Config(ANR_HANDLE handle, AudioAnrConfig *anr_config);

Parameters

Parameter name Description Input/output

handle Anr algorithm handle Input

anr_config Configure Anr algorithm structure pointer Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaAnr_Run example.

2.20. IaaAnr_Run¶

Features

Anr algorithm processing.

Syntax

ALGO_ANR_RET IaaAnr_Run(ANR_HANDLE handle, short* pss_audio_in);

Parameters

Parameter name Description Input/output

handle Anr algorithm handle Input

pss_audio_in Input data pointer Input/output
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- The data must correspond to the point_number (sampling points required for one IaaAnr_Run) set when calling IaaAnr_Init. The processed data will be written back to the memory pointed to by pss_audio_in.

Example

#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <sys/time.h>

#include "AudioProcess.h"

/*  0:Fixed input file  1:User input file   */
#define IN_PARAMETER 1

int main(int argc, char *argv[])
{
    short in_output[1024];
    unsigned int workingBufferSize;
    char *workingBuffer = NULL;
    ANR_HANDLE handle;
    AudioProcessInit anr_init, anr_get_init;
    AudioAnrConfig anr_config, anr_get_config;
    ALGO_APC_RET ret;
    int tempSize;
    FILE* fpIn;  //input file
    FILE* fpOut; //output file
    char src_file[128] = {0};
    char dst_file[128] = {0};
    /*********************User change section start*******************/
    int intensity_band[6] = {3,24,40,64,80,128};
    int intensity[7] = {30,30,30,30,30,30,30};
    anr_init.point_number = 128;
    anr_init.channel = 1;
    anr_init.sample_rate = IAA_APC_SAMPLE_RATE_16000;

    anr_config.anr_enable = 1;
    anr_config.user_mode = 2;
    anr_config.anr_filter_mode = 4;
    anr_config.anr_smooth_level = 10;
    anr_config.anr_converge_speed = 2;
    /*********************User change section end*******************/
    memcpy(anr_config.anr_intensity_band, intensity_band, sizeof(intensity_band));
    memcpy(anr_config.anr_intensity, intensity, sizeof(intensity));
    //(1)IaaAnr_GetBufferSize
    workingBufferSize = IaaAnr_GetBufferSize();
    workingBuffer = (char *)malloc(workingBufferSize);
    if(NULL == workingBuffer)
    {
        printf("malloc workingBuffer failed !\n");
        return -1;
    }
    printf("malloc workingBuffer succeed !\n");
    //(2)IaaAnr_Init
    handle = IaaAnr_Init(workingBuffer, &anr_init);
    if(NULL == handle)
    {
        printf("IaaAnr_Init failed !\n");
        return -1;
    }
    printf("IaaAnr_Init succeed !\n");
    //(3)IaaAnr_Config
    ret = IaaAnr_Config(handle, &anr_config);
    if(ret)
    {
        printf("IaaAnr_Config failed !\n");
        return -1;
    }
    printf("IaaAnr_Config succeed !\n");
    //(4)IaaAnr_GetConfig
    ret = IaaAnr_GetConfig(handle, &anr_get_init, &anr_get_config);
    if(ret)
    {
        printf("IaaAnr_GetConfig failed !\n");
        return -1;
    }
    printf("IaaAnr_GetConfig succeed !\n");
    printf("anr_get_config.user_mode = %d, ...\n", anr_get_config.user_mode);

#if IN_PARAMETER
    if(argc < 3)
    {
        printf("Please enter the correct parameters!\n");
        return -1;
    }
    sscanf(argv[1], "%s", src_file);
    sscanf(argv[2], "%s", dst_file);
#else
    sprintf(src_file, "%s", "./APC_AFE_16K.wav");
    if(argc < 2)
    {
        printf("Please enter the correct parameters!\n");
        return -1;
    }
    sscanf(argv[1], "%s", dst_file);
#endif

    fpIn = fopen(src_file, "rb");
    if(NULL == fpIn)
    {
        printf("fopen in_file failed !\n");
        return -1;
    }
    printf("fopen in_file success !\n");
    fpOut = fopen(dst_file, "wb");
    if(NULL == fpOut)
    {
        printf("fopen out_file failed !\n");
        return -1;
    }
    printf("fopen out_file success !\n");
#if 1
    fread(in_output, sizeof(char), 44, fpIn);
    fwrite(in_output, sizeof(char), 44, fpOut);
#endif
    tempSize = anr_init.point_number * anr_init.channel;
    while(tempSize == fread(in_output, sizeof(short), tempSize, fpIn))
    {
        //(5)IaaAnr_Run
        ret = IaaAnr_Run(handle, in_output);
        if(ret)
        {
            printf("IaaAnr_Run failed !\n");
            return -1;
        }
        fwrite(in_output, sizeof(short), tempSize, fpOut);
    }
    printf("Break:needBytes =%d \t nBytesRead = %d\n", anr_init.point_number * anr_init.channel, tempSize);
    //(6)IaaAnr_Free
    IaaAnr_Free(handle);
    free(workingBuffer);
    fclose(fpIn);
    fclose(fpOut);
    printf("APC_ANR end !\n");

    return 0;
}

2.21. IaaAnr_Free¶

Features

Release Anr algorithm resources.

Syntax

ALGO_APC_RET IaaAnr_Free(ANR_HANDLE handle);

Parameters

Parameter name Description Input/output

handle Anr algorithm handle Input
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaAnr_Run example.

2.22. IaaAnr_Reset¶

Features

Reinitialize the Anr algorithm.

Syntax

ANR_HANDLE IaaAnr_Reset(char* working_buffer_address,
AudioProcessInit *anr_init);

Parameters

Parameter name Description Input/output

working_buffer_address Memory address used by Anr algorithm Input

anr_init Anr algorithm initialization structure pointer Input
Return value

Return value Result

Not NULL Successful

NULL Failed
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

2.23. IaaAnr_GetConfig¶

Features

Get the Anr algorithm current configuration parameters.

Syntax

ALGO_ANR_RET IaaAnr_GetConfig(ANR_HANDLE handle, AudioProcessInit *anr_init, AudioAnrConfig *anr_config);

Parameters

Parameter name	Description	Input/output
handle	Anr algorithm handle	Input
anr_init	Anr algorithm initialization structure pointer	Output
anr_config	Anr algorithm in the current configuration parameters	Output

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaAnr_Run example.

2.24. IaaEq_GetBufferSize¶

Features

Get the memory size required for Anr algorithm running.

Syntax

unsigned int IaaEq_GetBufferSize(void);

Return value

Return value is the memory size required for Eq algorithm running.
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note

The interface only returns the required memory size. The application and release of memory needs to be processed by the application.。
Example

Please refer to IaaEq_Run example.

2.25. IaaEq_Init¶

Features

Initialize the Eq algorithm.

Syntax

EQ_HANDLE IaaEq_Init(char* working_buffer_address,
AudioProcessInit *eq_init);

Parameters

Parameter name Description Input/output

working_buffer_address Eq algorithm memory address Input

eq_init Eq algorithm initialization structure pointer Input
Return value

Return value Result

Not NULL Successful

NULL Failed
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- Eq algorithm supports 8K/16K/48K sampling Rate，Hpf only supports 8K/16K.
Example

Please refer to IaaEq_Run example.

2.26. IaaEq_Config¶

Features

Configure the Eq algorithm.

Syntax

ALGO_EQ_RET IaaEq_Config(EQ_HANDLE handle, AudioHpfConfig *hpf_config, AudioEqConfig *eq_config);

Parameters

Parameter name	Description	Input/output
handle	Eq algorithm handle	Input
hpf_config	Configure Hpf algorithm structure pointer	Input
eq_config	Configure Eq algorithm structure pointer	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaEq_Run example.

2.27. IaaEq_Run¶

Features

Eq algorithm processing.

Syntax

ALGO_EQ_RET IaaEq_Run(EQ_HANDLE handle, short* pss_audio_in);

Parameters

Parameter name Description Input/output

handle Eq algorithm handle Input

pss_audio_in Input data pointer Input/output
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- he data must correspond to the point_number (sampling points required for one IaaEq_Run) set when calling IaaEq_Init. The processed data will be written back to the memory pointed to by pss_audio_in.

Example

#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <sys/time.h>

#include "AudioProcess.h"

/*  0:Fixed input file  1:User input file   */
#define IN_PARAMETER 1

int main(int argc, char *argv[])
{
    short in_output[1024];
    unsigned int workingBufferSize;
    char *workingBuffer = NULL;
    EQ_HANDLE handle;
    AudioProcessInit eq_init, eq_get_init;
    AudioHpfConfig hpf_config, hpf_get_config;
    AudioEqConfig  eq_config, eq_get_config;
    ALGO_APC_RET ret;
    int tempSize;

    FILE* fpIn;  //input file
    FILE* fpOut; //output file
    char src_file[128] = {0};
    char dst_file[128] = {0};
    /*********************User change section start*******************/
    short eq_table[129];
    memset(eq_table, 0, sizeof(eq_table));
    eq_init.point_number = 128;
    eq_init.channel = 1;
    eq_init.sample_rate = IAA_APC_SAMPLE_RATE_16000;

    hpf_config.hpf_enable = 1;
    hpf_config.user_mode = 1;
    hpf_config.cutoff_frequency = AUDIO_HPF_FREQ_150;

    eq_config.eq_enable = 1;
    eq_config.user_mode = 1;
    /*********************User change section end*******************/
    memcpy(eq_config.eq_gain_db, eq_table, sizeof(eq_table));
    //(1)IaaEq_GetBufferSize
    workingBufferSize = IaaEq_GetBufferSize();
    workingBuffer = (char *)malloc(workingBufferSize);
    if(NULL == workingBuffer)
    {
        printf("malloc workingBuffer failed !\n");
        return -1;
    }
    printf("malloc workingBuffer succeed !\n");
    //(2)IaaEq_Init
    handle = IaaEq_Init(workingBuffer, &eq_init);
    if(NULL == handle)
    {
        printf("IaaEq_Init failed !\n");
        return -1;
    }
    printf("IaaEq_Init succeed !\n");
    //(3)IaaEq_Config
    ret = IaaEq_Config(handle, &hpf_config, &eq_config);
    if(ret)
    {
        printf("IaaEq_Config failed !\n");
        return -1;
    }
    printf("IaaEq_Config succeed !\n");
    //(4)IaaEq_GetConfig
    ret = IaaEq_GetConfig(handle, &eq_get_init, &hpf_get_config, &eq_get_config);
    if(ret)
    {
        printf("IaaEq_GetConfig failed !\n");
        return -1;
    }
    printf("IaaEq_GetConfig succeed !\n");
    printf("eq_get_config.user_mode = %d, ...\n", eq_get_config.user_mode);

#if IN_PARAMETER
    if(argc < 3)
    {
        printf("Please enter the correct parameters!\n");
        return -1;
    }
    sscanf(argv[1], "%s", src_file);
    sscanf(argv[2], "%s", dst_file);
#else
    sprintf(src_file, "%s", "./APC_AFE_16K.wav");
    if(argc < 2)
    {
        printf("Please enter the correct parameters!\n");
        return -1;
    }
    sscanf(argv[1], "%s", dst_file);
#endif

    fpIn = fopen(src_file, "rb");
    if(NULL == fpIn)
    {
        printf("fopen in_file failed !\n");
        return -1;
    }
    printf("fopen in_file success !\n");
    fpOut = fopen(dst_file, "wb");
    if(NULL == fpOut)
    {
        printf("fopen out_file failed !\n");
        return -1;
    }
    printf("fopen out_file success !\n");
#if 1
    fread(in_output, sizeof(char), 44, fpIn);
    fwrite(in_output, sizeof(char), 44, fpOut);
#endif
    tempSize = eq_init.point_number * eq_init.channel;
    while(tempSize == fread(in_output, sizeof(short), tempSize, fpIn))
    {
        //(5)IaaEq_Run
        ret = IaaEq_Run(handle, in_output);
        if(ret)
        {
            printf("IaaEq_Run failed !\n");
            return -1;
        }
        fwrite(in_output, sizeof(short), tempSize, fpOut);
    }
    printf("Break:needBytes =%d \t nBytesRead = %d\n", eq_init.point_number * eq_init.channel, tempSize);
    //(6)IaaEq_Free
    IaaEq_Free(handle);
    free(workingBuffer);
    fclose(fpIn);
    fclose(fpOut);
    printf("APC_EQ end !\n");

    return 0;
}

2.28. IaaEq_Free¶

Features

Release Eq algorithm resources.

Syntax

ALGO_EQ_RET IaaEq_Free(EQ_HANDLE handle);

Parameters

Parameter name Description Input/output

handle Eq algorithm handle Input
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaEq_Run example.

2.29. IaaEq_Reset¶

Features

Reinitialize the Eq algorithm.

Syntax

EQ_HANDLE IaaEq_Reset(char* working_buffer_address,
AudioProcessInit *eq_init);

Parameters

Parameter name Description Input/output

working_buffer_address Memory address used by Eq algorithm Input

eq_init Eq algorithm initialization structure pointer Input
Return value

Return value Result

Not NULL Successful

NULL Failed
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

2.30. IaaEq_GetConfig¶

Features

Get the Eq algorithm current configuration parameters.

Syntax

ALGO_EQ_RET IaaEq_GetConfig(EQ_HANDLE handle, AudioProcessInit *eq_init, AudioHpfConfig *hpf_config, AudioEqConfig *eq_config);

Parameters

Parameter name	Description	Input/output
handle	Eq algorithm handle	Input
eq_init	Eq algorithm initialization structure pointer	Output
hpf_config	Hpf algorithm in the current configuration parameters	Output
eq_config	Eq algorithm in the current configuration parameters	Output

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaEq_Run example

2.31. IaaAgc_GetBufferSize¶

Features

Get the memory size required for Agc algorithm running.

Syntax

unsigned int IaaAgc_GetBufferSize(void);

Return value

Return value is the memory size required for Agc algorithm running.
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note

The interface only returns the required memory size. The application and release of memory needs to be processed by the application.。
Example

Please refer to IaaAgc_Run example.

2.32. IaaAgc_Init¶

Features

Initialize the Agc algorithm.

Syntax

AGC_HANDLE IaaAgc_Init(char* working_buffer_address,
AudioProcessInit *agc_init);

Parameters

Parameter name Description Input/output

working_buffer_address Agc algorithm memory address Input

agc_init Agc algorithm initialization structure pointer Input
Return value

Return value Result

Not NULL Successful

NULL Failed
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- AGC supports 8K/16K/48K sampling rate.
Example

Please refer to IaaAgc_Run example.

2.33. IaaAgc_Config¶

Features

Configure the Agc algorithm.

Syntax

ALGO_AGC_RET IaaAgc_Config(AGC_HANDLE handle, AudioAgcConfig *agc_config);

Parameters

Parameter name Description Input/output

handle Agc algorithm handle Input

agc_config Configure Agc algorithm structure pointer Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaAgc_Run example.

2.34. IaaAgc_SetLowFreqCompressionRatioCurve¶

Features

Configure the frequency band compression ratio curve (low frequency) of the Agc algorithm. Please set user_mode of Agc to 2 before using this function, otherwise an error will be returned.

Syntax

ALGO_AGC_RET IaaAgc_SetLowFreqCompressionRatioCurve(AGC_HANDLE handle,
                    int* CompressRatioInput, int* CompressRatioOutput);

Parameters

Parameter name	Description	Input/output
handle	Agc algorithm handle	Input
CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaAgc_Run example.

2.35. IaaAgc_SetMidFreqCompressionRatioCurve¶

Features

Configure the frequency band compression ratio curve (mid frequency) of the Agc algorithm. Please set user_mode of Agc to 2 before using this function, otherwise an error will be returned.

Syntax

ALGO_AGC_RET IaaAgc_SetMidFreqCompressionRatioCurve(AGC_HANDLE handle,
                    int* CompressRatioInput, int* CompressRatioOutput);

Parameters

Parameter name	Description	Input/output
handle	Agc algorithm handle	Input
CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaAgc_Run example.

2.36. IaaAgc_SetHighFreqCompressionRatioCurve¶

Features

Configure the frequency band compression ratio curve (high frequency) of the Agc algorithm. Please set user_mode of Agc to 2 before using this function, otherwise an error will be returned.

Syntax

ALGO_AGC_RET IaaAgc_SetHighFreqCompressionRatioCurve(AGC_HANDLE handle,
                    int* CompressRatioInput, int* CompressRatioOutput);

Parameters

Parameter name	Description	Input/output
handle	Agc algorithm handle	Input
CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaAgc_Run example.

2.37. IaaAgc_SetAgcFreqBand¶

Features

Configure the frequency band of the Agc algorithm. Please set user_mode of Agc to 2 before using this function, otherwise an error will be returned.

Syntax

ALGO_AGC_RET IaaAgc_ SetAgcFreqBand(AGC_HANDLE handle,
                        int* frequency_band);

Parameters

Parameter name	Description	Input/output
handle	Agc algorithm handle	Input
Frequency_band	Frequency band setting array. It involve low frequency upper limit, middle frequency upper limit and high frequency upper limit. For example: setting frequency band as	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaAgc_Run example.

2.38. IaaAgc_Run¶

Features

Agc algorithm processing.

Syntax

ALGO_AGC_RET IaaAgc_Run(AGC_HANDLE handle, short* pss_audio_in);

Parameters

Parameter name Description Input/output

handle Agc algorithm handle Input

pss_audio_in Input data pointer Input/output
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- The data must correspond to the point_number (sampling points required for one IaaAgc_Run) set when calling IaaAgc_Init. The processed data will be written back to the memory pointed to by pss_audio_in.

Example

#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <sys/time.h>

#include "AudioProcess.h"

/*  0:Fixed input file  1:User input file   */
#define IN_PARAMETER 1

int main(int argc, char *argv[])
{
    short in_output[1024];
    unsigned int workingBufferSize;
    char *workingBuffer = NULL;
    AGC_HANDLE handle;
    AudioProcessInit agc_init, agc_get_init;
    AudioAgcConfig agc_config, agc_get_config;
    ALGO_APC_RET ret;
    int tempSize;
    FILE* fpIn;  //input file
    FILE* fpOut; //output file
    char src_file[128] = {0};
    char dst_file[128] = {0};
    /*********************User change section start*******************/
    short compression_ratio_input[7] = {-65,-55,-48,-25,-18,-12,0};
    short compression_ratio_output[7] = {-65,-50,-27,-12,-1,-1,-1};
    int freqBand[7] = {1000,6000,8000};
    int compressionRatioArrayLowInput[7] = {-65,-55,-48,-25,-18,-12,0};
    int  compressionRatioArrayLowOutput [7] = {-65,-50,-27,-12,-1,-1,-1};
    int  compressionRatioArrayMidInput [7] = {-65,-55,-48,-25,-18,-12,0};
    int  compressionRatioArrayMidOutput [7] = {-65,-50,-27,-12,-1,-1,-1};
    int  compressionRatioArrayHighInput [7] = {-65,-55,-48,-25,-18,-12,0};
    int  compressionRatioArrayHighOutput [7] = {-65,-50,-27,-12,-1,-1,-1};
    agc_init.point_number = 128;
    agc_init.channel = 1;
    agc_init.sample_rate = IAA_APC_SAMPLE_RATE_16000;

    agc_config.agc_enable = 1;
    agc_config.user_mode = 2;
    agc_config.gain_info.gain_max  = 40;
    agc_config.gain_info.gain_min  = -10;
    agc_config.gain_info.gain_init = 12;
    agc_config.drop_gain_max = 36;
    agc_config.drop_gain_step = 1;
    agc_config.attack_time = 1;
    agc_config.release_time = 1;
    agc_config.noise_gate_db = -80;
    agc_config.noise_gate_attenuation_db = 0;
    agc_config.drop_gain_threshold = -5;
    /*********************User change section end*******************/
    memcpy(agc_config.compression_ratio_input, compression_ratio_input, sizeof(compression_ratio_input));
    memcpy(agc_config.compression_ratio_output, compression_ratio_output, sizeof(compression_ratio_output));
    //(1)IaaAgc_GetBufferSize
    workingBufferSize = IaaAgc_GetBufferSize();
    workingBuffer = (char *)malloc(workingBufferSize);

    if(NULL == workingBuffer)
    {
        printf("malloc workingBuffer failed !\n");
        return -1;
    }
    printf("malloc workingBuffer succeed !\n");
    //(2)IaaAgc_Init
    handle = IaaAgc_Init(workingBuffer, &agc_init);
    if(NULL == handle)
    {
        printf("IaaAgc_Init failed !\n");
        return -1;
    }
    printf("IaaAgc_Init succeed !\n");
    //(3)IaaAgc_Config
    ret = IaaAgc_Config(handle, &agc_config);
    if(ret)
    {
        printf("IaaAgc_Config failed !\n");
        return -1;
    }
    printf("IaaAgc_Config succeed !\n");

    IaaAgc_SetAgcFreqBand(handle, freqBand);
    IaaAgc_SetLowFreqCompressionRatioCurve(handle,compressionRatioArrayLowInput, compressionRatioArrayLowOutput);
    IaaAgc_SetMidFreqCompressionRatioCurve(handle,compressionRatioArrayMidInput, compressionRatioArrayMidOutput);
    IaaAgc_SetHighFreqCompressionRatioCurve(handle,compressionRatioArrayHighInput, compressionRatioArrayHighOutput);
    //(4)IaaAgc_GetConfig
    ret = IaaAgc_GetConfig(handle, &agc_get_init, &agc_get_config);
    if(ret)
    {
        printf("IaaAgc_GetConfig failed !\n");
        return -1;
    }
    printf("IaaAgc_GetConfig succeed !\n");
    printf("agc_get_config.user_mode = %d, ...\n", agc_get_config.user_mode);

#if IN_PARAMETER
    if(argc < 3)
    {
        printf("Please enter the correct parameters!\n");
        return -1;
    }
    sscanf(argv[1], "%s", src_file);
    sscanf(argv[2], "%s", dst_file);
#else
    sprintf(src_file, "%s", "./APC_AFE_16K.wav");
    if(argc < 2)
    {
        printf("Please enter the correct parameters!\n");
        return -1;
    }
    sscanf(argv[1], "%s", dst_file);
#endif

    fpIn = fopen(src_file, "rb");
    if(NULL == fpIn)
    {
        printf("fopen in_file failed !\n");
        return -1;
    }
    printf("fopen in_file success !\n");
    fpOut = fopen(dst_file, "wb");
    if(NULL == fpOut)
    {
        printf("fopen out_file failed !\n");
        return -1;
    }
    printf("fopen out_file success !\n");

    fread(in_output, sizeof(char), 44, fpIn);
    fwrite(in_output, sizeof(char), 44, fpOut);

    tempSize = agc_init.point_number * agc_init.channel;
    while(tempSize == fread(in_output, sizeof(short), tempSize, fpIn))
    {
        //(5)IaaAgc_Run
        ret = IaaAgc_Run(handle, in_output);
        if(ret)
        {
            printf("IaaAnr_Run failed !\n");
            return -1;
        }
        fwrite(in_output, sizeof(short), tempSize, fpOut);
    }
    printf("Break:needBytes =%d \t nBytesRead = %d\n", agc_init.point_number * agc_init.channel, tempSize);
    //(6)IaaAgc_Free
    IaaAgc_Free(handle);
    free(workingBuffer);
    fclose(fpIn);
    fclose(fpOut);
    printf("APC_AGC end !\n");

    return 0;
}

2.39. IaaAgc_Free¶

Features

Release Agc algorithm resources.

Syntax

ALGO_AGC_RET IaaAgc_Free(AGC_HANDLE handle);

Parameters

Parameter name Description Input/output

handle Agc algorithm handle Input
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaAgc_Run example.

2.40. IaaAgc_Reset¶

Features

Reinitialize the Agc algorithm.

Syntax

AGC_HANDLE IaaAgc_Reset(char* working_buffer_address,
AudioProcessInit *agc_init);

Parameters

Parameter name Description Input/output

working_buffer_address Memory address used by Agc algorithm Input

agc_init Agc algorithm initialization structure pointer Input
Return value

Return value Result

Not NULL Successful

NULL Failed
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

2.41. IaaAgc_GetConfig¶

Features

Get the Agc algorithm current configuration parameters.

Syntax

ALGO_AGC_RET IaaAgc_GetConfig(AGC_HANDLE handle, AudioProcessInit *agc_init, AudioAgcConfig *agc_config);

Parameters

Parameter name	Description	Input/output
handle	Agc algorithm handle	Input
agc_init	Agc algorithm initialization structure pointer	Output
agc_config	Agc algorithm in the current configuration parameters	Output

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaAgc_Run example.

2.42. IaaApc_SetCompressionRatioCurve¶

Features

Set Agc in Apc compression ratio curve for more slope segment.

Syntax

ALGO_AGC_RET IaaApc_SetCompressionRatioCurve(APC_HANDLE handle, short* CompressionRatioInput, short* CompressionRatioOutput, int curve_len);

Parameters

Parameter name	Description	Input/output
handle	Apc algorithm handle	Input
CompressionRatioInput	Compression ratio curve input	Input
CompressionRatioOutput	Compression ratio curve output	Input
curve_len	Compression ratio curve array length value Range: [2, 20]	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaApc_Run example.

2.43. IaaAgc_SetCompressionRatioCurve¶

Features

Set Agc compression ratio curve for more slope segment.

Syntax

ALGO_AGC_RET IaaAgc_SetCompressionRatioCurve(AGC_HANDLE handle, short* CompressionRatioInput, short* CompressionRatioOutput, int curve_len);

Parameters

Parameter name	Description	Input/output
handle	Agc algorithm handle	Input
CompressionRatioInput	Compression ratio curve input	Input
CompressionRatioOutput	Compression ratio curve output	Input
curve_len	Compression ratio curve array length value Range: [2, 20]	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Example

Please refer to IaaAgc_Run example.

2.44. IaaApc_NrEstimateReferAec¶

Features

Noise estimation refer to Aec linear process output.

Syntax

ALGO_APC_RET IaaApc_NrEstimateReferAec (APC_HANDLE handle, short aec_in);

Parameters

Parameter name Description Input/output

handle Apc algorithm handle Input

aec_in Input data pointer. Provide Aec linear process output for Noise reduction module. Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

2.45. IaaApc_EnhanceNNBFMode¶

Features

Special enhancement for concatenating Bf mode 3 and APC deep learning based noise reduction.

Syntax

ALGO_APC_RET IaaApc_EnhanceNNBFMode(APC_HANDLE handle, APC_BF_HANDLE  handle2 , int is_enable);

Parameters

Parameter name Description Input/output

handle Apc handle Input

handle2 BF handle Input

is_enable 0:disable, 1: enable Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- The API is only applicable to special enhancement that using BF mode 3 and anr_filter_mode 5 simultaneously.
- Must include BF library.
- The API should be run between IaaBf_Run and IaaApc_Run.

2.46. IaaApc_FilterDesign¶

Features

Initialized IIR filter configuration.

Syntax

ALGO_APC_RET IaaApc_FilterDesign (APC_HANDLE handle, int filter_cnt, AudioFilterConfig* filter_config);

Parameters

Parameter name Description Input/output

handle Apc algorithm handle Input

filter_cnt Filter sequence
range:[1,10] Input

filter_config Filter configuration Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

2.47. IaaApc_FilterApply¶

Features

IIR filter apply.

Syntax

ALGO_APC_RET IaaApc_FilterApply(APC_HANDLE handle, short* pss_audio_in);

Parameters

Parameter name Description Input/output

handle Apc algorithm handle Input

pss_audio_in Input data pointer Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

Example

//filter 1
AudioFilterConfig filter_design;
filter_design.q_factor = 5;
filter_design.f0 = 1000;
filter_design.type = EQ_NOTCH_FILTER;
filter_design.gain = -10;
//filter 2
AudioFilterConfig filter_design2;
filter_design2.q_factor = 5;
filter_design2.f0 = 5000;
filter_design2.type = EQ_NOTCH_FILTER;
filter_design2.gain = -10;
//filter 3
AudioFilterConfig filter_design3;
filter_design3.q_factor = 5;
filter_design3.f0 = 500;
filter_design3.type = EQ_NOTCH_FILTER;
filter_design3.gain = -10;

IaaApc_FilterDesign(handle, 1, &filter_design);
IaaApc_FilterDesign(handle, 2, &filter_design2);
IaaApc_FilterDesign(handle, 3, &filter_design3);

while(read input data){
ret1 = IaaApc_FilterApply(handle, input);
}

2.48. IaaEq_FilterDesign¶

Features

Initialized IIR filter configuration.

Syntax

ALGO_EQ_RET IaaEq_FilterDesign (EQ_HANDLE handle, int filter_cnt, AudioFilterConfig* filter_config);

Parameters

Parameter name Description Input/output

handle Eq algorithm handle Input

filter_cnt Filter sequence
range:[1,10] Input

filter_config Filter configuration Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note

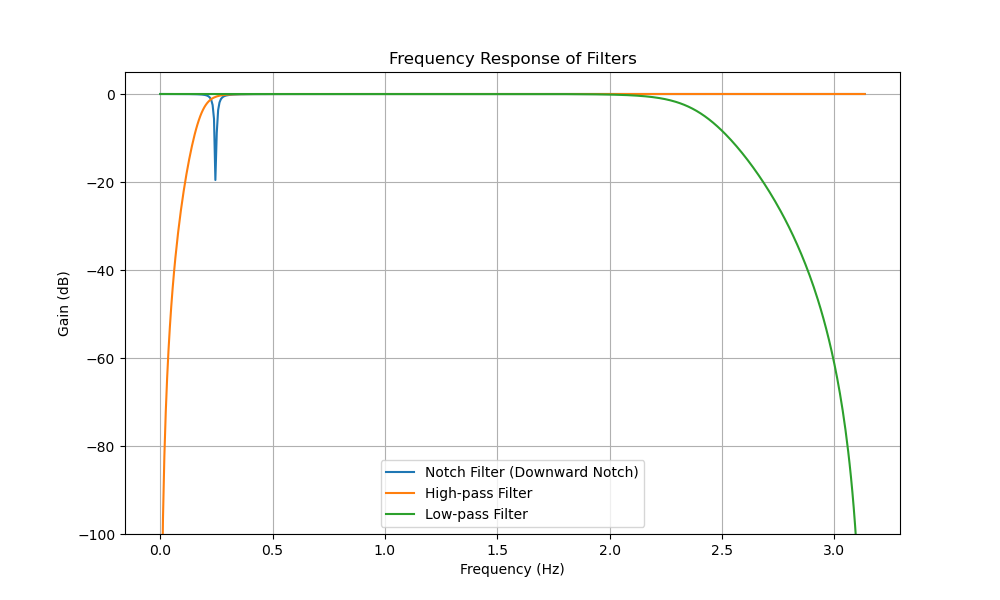

- The filter design result must be based on the frequency response curve. It is not the case that the target gain will be achieved by setting a certain frequency.
- Because this filter is an IIR filter, it will have a nonlinear effect on the phase, so it is recommended to be placed at the end of all algorithms.

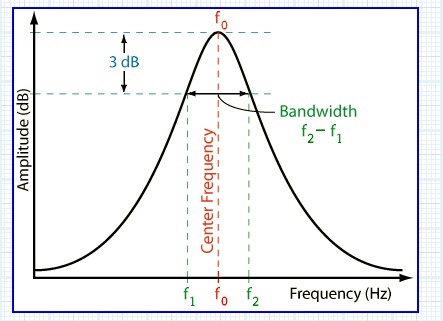

- If the Q value is set too large, it means that the energy drops more steeply, which may cause abnormal increases in other frequency bands. Please refer to the frequency response curve.
- If you want to achieve a steeper curve, you can design multiple identical filter stacking.
- There is no standard answer for filter design, it depends on the user's needs.

Example

The following figure shows an example of a Q value that is set too high

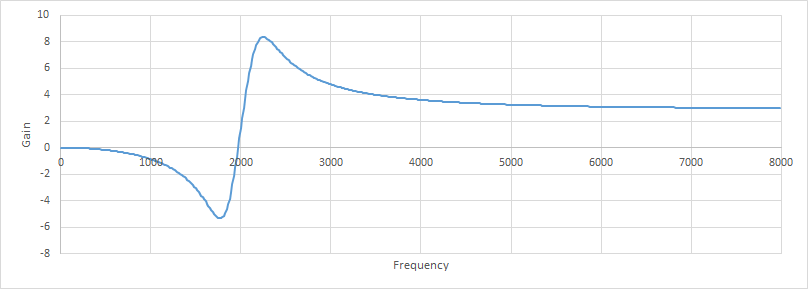

filter_design.q_factor = 5;

filter_design.f0 = 2000;

filter_design.type = EQ_HIGH_PASS_FILTER;

filter_design.gain = 3;

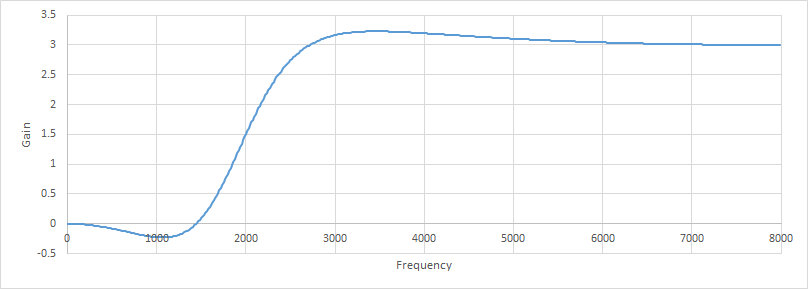

Filter stacking

As the name implies, it is to directly set the coefficients of the two filters

//filter1
AudioFilterConfig filter_design;

filter_design.q_factor = 1;

filter_design.f0 = 2000;

filter_design.type = EQ_HIGH_PASS_FILTER;

filter_design.gain = 0;

//filter 2
AudioFilterConfig filter_design2;

filter_design2.q_factor = 1;

filter_design2.f0 = 2000;

filter_design2.type = EQ_HIGH_PASS_FILTER;

filter_design2.gain = 0;

The blue figure below shows the frequency response of applying only filter_design, and the orange figure shows the frequency response of applying both filter_design and filter_design2, which can achieve a steeper frequency drop.

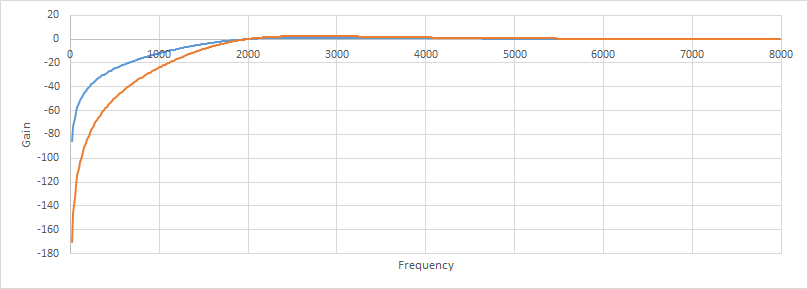

2.49. IaaEq_FilterApply¶

Features

IIR filter apply.

Syntax

ALGO_EQ_RET IaaEq_FilterApply(EQ_HANDLE handle, short* pss_audio_in);

Parameters

Parameter name Description Input/output

handle Eq algorithm handle Input

pss_audio_in Input data pointer Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

Example

//filter 1
AudioFilterConfig filter_design;
filter_design.q_factor = 5;
filter_design.f0 = 1000;
filter_design.type = EQ_NOTCH_FILTER;
filter_design.gain = -10;
//filter 2
AudioFilterConfig filter_design2;
filter_design2.q_factor = 5;
filter_design2.f0 = 5000;
filter_design2.type = EQ_NOTCH_FILTER;
filter_design2.gain = -10;
//filter 3
AudioFilterConfig filter_design3;
filter_design3.q_factor = 5;
filter_design3.f0 = 500;
filter_design3.type = EQ_NOTCH_FILTER;
filter_design3.gain = -10;

IaaEq_FilterDesign(handle, 1, &filter_design);
IaaEq_FilterDesign(handle, 2, &filter_design2);
IaaEq_FilterDesign(handle, 3, &filter_design3);

while(read input data){
ret1 = IaaEq_FilterApply(handle, input);
}

2.50. IaaAnr_EnhanceNNBFMode¶

Features

Special enhancement for concatenating Bf mode 3 and ANR deep learning based noise reduction.

Syntax

ALGO_ANR_RET IaaAnr_EnhanceNNBFMode(ANR_HANDLE handle, ANR_BF_HANDLE  handle2 , int is_enable);

Parameters

Parameter name Description Input/output

handle Anr algorithm handle Input

handle2 BF algorithm handle Input

is_enable 0:disable, 1: enable Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a
Note
- The API is only applicable to special enhancement that using BF mode 3 and anr_filter_mode 5 simultaneously.
- Must include BF library.
- The API should be run between IaaBf_Run and IaaAnr_Run.

2.51. IaaApc_GetAPIVersion¶

Features

Get version of Apc API.

Syntax

ALGO_APC_RET IaaApc_GetAPIVersion(unsigned short* major, unsigned short* minor);

Parameters

Parameter name	Description	Input/output
major	Input data pointer and get number before the decimal point of APC API version	Output
minor	Input data pointer and get number after the decimal point of APC API version	Output

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

2.52. IaaApc_SetHandleId¶

Features

Set Apc Handle Id.

Syntax

ALGO_APC_RET IaaApc_SetHandleId(APC_HANDLE handle, int id);

Parameters

Parameter name Description Input/output

handle Apc algorithm handle Input

id Apc handle id
range:[0,100] Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

2.53. IaaAnr_SetHandleId¶

Features

Set Anr Handle Id.

Syntax

ALGO_ANR_RET IaaAnr_SetHandleId(ANR_HANDLE handle, int id);

Parameters

Parameter name Description Input/output

handle Anr algorithm handle Input

id Anr handle id
range:[0,100] Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

2.54. IaaEq_SetHandleId¶

Features

Set Eq Handle Id.

Syntax

ALGO_EQ_RET IaaEq_SetHandleId(EQ_HANDLE handle, int id);

Parameters

Parameter name Description Input/output

handle Eq algorithm handle Input

id Eq handle id
range:[0,100] Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

2.55. IaaAgc_SetHandleId¶

Features

Set Agc Handle Id.

Syntax

ALGO_AGC_RET IaaAgc_SetHandleId(AGC_HANDLE handle, int id);

Parameters

Parameter name Description Input/output

handle Agc algorithm handle Input

id Agc handle id
range:[0,100] Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioProcess.h
- Library: libAPC_LINUX.so/ libAPC_LINUX.a

2.56. IaaApc_GetJsonFileSize¶

Features

Apc gets the memory size required to parse the Json file content

Syntax

unsigned int IaaApc_GetJsonFileSize(char* jsonfile);

Parameters

Parameter Name Description Input/Output

jsonfile Json file name Input
Return value

The return value is the memory size required to parse the content of the Json file.
Dependency
- Header file: AudioProcess.h
- Library file: libAPC_LINUX.so/ libAPC_LINUX.a

2.57. IaaApc_NrReadJson¶

Features

Configure Json file content to Apc algorithm

Syntax

ALGO_APC_RET IaaApc_NrReadJson(APC_HANDLE handle, char* jsonBuffer, char* jsonfile, unsigned int buffSize);

Parameters

Parameter name	Description	Input/output
handle	Apc algorithm handle	Input
jsonBuffer	Memory address used to parse Json file content	Input
jsonfile	Json file name	Input
buffSize	The memory size required to parse the contents of the Json file	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header file: AudioProcess.h
- Library file: libAPC_LINUX.so/ libAPC_LINUX.a

2.58. IaaAnr_GetJsonFileSize¶

Features

Anr gets the memory size required to parse the content of the Json file

Syntax

unsigned int IaaAnr_GetJsonFileSize(char* jsonfile);

Parameters

Parameter name Description Input/output

jsonfile Json file name Input
Return value

The return value is the memory size required to parse the content of the Json file.
Dependency
- Header file: AudioProcess.h
- Library files: libAPC_LINUX.so/ libAPC_LINUX.a

2.59. IaaAnr_NrReadJson¶

Features

Configure Json file content to Anr algorithm

Syntax

ALGO_ANR_RET IaaAnr_NrReadJson(ANR_HANDLE handle, char* jsonBuffer, char* jsonfile, unsigned int buffSize);

Parameters

Parameter Name	Description	Input/Output
handle	Anr algorithm handle	Input
jsonBuffer	The memory address used to parse the contents of the Json file	Input
jsonfile	Json file name	Input
buffSize	The memory size required to parse the contents of the Json file	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header file: AudioProcess.h
- Library file: libAPC_LINUX.so/ libAPC_LINUX.a

2.60. IaaApc_EnableComfortNoise¶

Features

Configure the Apc comfort noise algorithm and set the comfort noise energy

Syntax

ALGO_APC_RET IaaApc_EnableComfortNoise(APC_HANDLE handle, int enable, int dB);

Parameters

Parameter Name Description Input/Output

handle Apc algorithm handle Input

enable Enable comfort noise algorithm Input

dB Comfort Noise Energy Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header file: AudioProcess.h
- Library files: libAPC_LINUX.so/ libAPC_LINUX.a

2.61. IaaAnr_EnableComfortNoise¶

Features

Configure the ANR comfort noise algorithm and set the comfort noise energy

Syntax

ALGO_ANR_RET IaaAnr_EnableComfortNoise(ANR_HANDLE handle, int enable, int dB);

Parameters

Parameter Name Description Input/Output

handle Anr algorithm handle Input

enable Enable comfort noise algorithm Input

dB Comfort Noise Energy Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header file: AudioProcess.h
- Library files: libAPC_LINUX.so/ libAPC_LINUX.a

2.62. IaaEq_EnableComfortNoise¶

Features

Configure the Eq comfort noise algorithm and set the comfort noise energy

Syntax

ALGO_EQ_RET IaaEq_EnableComfortNoise(EQ_HANDLE handle, int enable, int dB);

Parameters

Parameter Name Description Input/Output

handle Eq algorithm handle Input

enable Enable comfort noise algorithm Input

dB Comfort Noise Energy Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header file: AudioProcess.h
- Library files: libAPC_LINUX.so/ libAPC_LINUX.a

2.63. IaaAgc_EnableComfortNoise¶

Features

Configure the Agc comfort noise algorithm and set the comfort noise energy

Syntax

ALGO_AGC_RET IaaAgc_EnableComfortNoise(AGC_HANDLE handle, int enable, int dB);

Parameters

Parameter Name Description Input/Output

handle Agc algorithm handle Input

enable Enable comfort noise algorithm Input

dB Comfort Noise Energy Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header file: AudioProcess.h
- Library files: libAPC_LINUX.so/ libAPC_LINUX.a

2.64. IaaApc_EnableAutoSmooth¶

Features

Configure Apc smooth noise algorithm

Syntax

ALGO_APC_RET IaaApc_EnableAutoSmooth(APC_HANDLE handle, int enable);

Parameters

Parameter Name Description Input/Output

handle Apc algorithm handle Input

enable Enable the silky noise algorithm Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header file: AudioProcess.h
- Library files: libAPC_LINUX.so/ libAPC_LINUX.a

2.65. IaaAnr_EnableAutoSmooth¶

Features

Configure Anr smooth noise algorithm

Syntax

ALGO_ANR_RET IaaAnr_EnableAutoSmooth(ANR_HANDLE handle, int enable);

Parameters

Parameter Name Description Input/Output

handle Anr algorithm handle Input

enable Enable the silky noise algorithm Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header file: AudioProcess.h
- Library files: libAPC_LINUX.so/ libAPC_LINUX.a

2.66. IaaApc_ApplyComfortNoise¶

Features

Apply comfort noise of specified energy

Syntax

ALGO_APC_RET IaaApc_ApplyComfortNoise(CngStruct cng_para, short* pss_audio_in);

Parameters

Parameter Name	Description	Input/Output
cng_para	Structure pointer for configuring comfort noise	Input
pss_audio_in	To mix the input signal with comfort noise, the output signal will be overwritten on the input signal	Input/Output

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header file: AudioProcess.h
- Library files: libAPC_LINUX.so/ libAPC_LINUX.a

3. APC DATA TYPE¶

3.1. APC data type list¶

Data type	Definition
AudioApcBufferConfig	The buffer configuration parameter structure type of the Apc algorithm
AudioProcessInit	Apc algorithm initialization parameter structure type
APC_HANDLE	Apc algorithm handle type
AudioAnrConfig	The Anr configuration parameter structure type of the Apc algorithm
AudioEqConfig	The Eq configuration parameter structure type of the Apc algorithm
AudioHpfConfig	The Hpf configuration parameter structure type of the Apc algorithm
AudioAgcConfig	The Agc configuration parameter structure type of the Apc algorithm
AgcGainInfo	Agc gain parameter structure type in Apc algorithm
IAA_APC_SAMPLE_RATE	Define the sampling rate type in the Apc algorithm
NR_CONVERGE_SPEED	Anr algorithm convergence speed type
IAA_HPF_FREQ	Hpf algorithm cut-off frequency type
ANR_HANDLE	Anr algorithm handle type
EQ_HANDLE	Eq algorithm handle type
AGC_HANDLE	Agc algorithm handle type
APC_BF_HANDLE	Define the BF handle type that cooperating with Apc algorithm
EQ_FILTER_TYPE	IIR filter type
AudioFilterConfig	The IIR configuration parameter structure type of the filter algorithm
CngStruct	Structure pointer for configuring comfort noise

3.2. AudioApcBufferConfig¶

Description

Define the buffer configuration parameter structure type of the Apc algorithm.

Definition

typedef struct{

    unsigned int anr_enable;

    unsigned int eq_enable;

    unsigned int dr_enable;

    unsigned int vad_enable;

    unsigned int agc_enable;

}AudioApcBufferConfig;

Member

Member name	Description
anr_enable	The Anr enable option in the Apc algorithm is used to assist in calculating the memory size required for Apc algorithm running.
eq_enable	The Eq enable option in the Apc algorithm is used to assist in calculating the memory size required for Apc algorithm running.
dr_enable	Algorithm is being developed
vad_enable	Vad algorithm has established a separate module, Vad is currently disabled in APC, it is recommended to close
agc_enable	The Agc enable option in the Apc algorithm is used to assist in calculating the memory size required for Apc algorithm running.

Related data types and interfaces

IaaApc_GetBufferSize

IaaApc_Init

IaaApc_Reset

3.3. AudioProcessInit¶

Description

Define Apc(Anr/Eq/Hpf/Agc) algorithm initialization parameter structure type.

Definition

typedef struct {

    unsigned int point_number;

    unsigned int channel;

    IAA_APC_SAMPLE_RATE sample_rate;

}AudioProcessInit;

Member

Member name	Description
point_number	The amount of data processed by the algorithm once (that is, how many sampling points are in a frame), the value is 128 or 256(according to chip), and how many short values need to be given to Apc is determined by chip. Value range: 128 or 256
channel	The channel numbers of data. If it is a dual channel, the data given to Apc in each frame is twice the point_number.
sample_rate	Data sampling frequency

Related data types and interfaces

IaaApc_Init

IaaApc_Reset

IaaApc_GetConfig

IaaAnr_Init

IaaAnr_Reset

IaaAnr_GetConfig

IaaEq_Init

IaaEq_Reset

IaaEq_GetConfig

IaaAgc_Init

IaaAgc_Reset

IaaAgc_GetConfig

3.4. APC_HANDLE¶

Description

Apc algorithm handle type.
Definition
```
typedef void* APC_HANDLE;
```
Related data types and interfaces

IaaApc_Init

IaaApc_Config

IaaApc_GetNrResult

IaaApc_GetNrEqResult

IaaApc_Run

IaaApc_Free

IaaApc_Reset

3.5. AudioAnrConfig¶

Description

Define the Anr configuration parameter structure type of the Apc algorithm.

Definition

typedef struct{

    unsigned int anr_enable;

    unsigned int user_mode;

    int anr_intensity_band[6];

    int anr_intensity[7];

    unsigned int anr_smooth_level;

    NR_CONVERGE_SPEED anr_converge_speed;

    int anr_filter_mode;

}AudioAnrConfig;

Member

Member name	Description
anr_enable	Whether to enable Anr algorithm
user_mode	Anr algorithm running mode
anr_intensity_band	ANR frequency range Range [1,127]; step size 1
anr_intensity	ANR intensity, the larger the value, the higher the ANR intensity, but at the same time it will also bring about the loss/damage of details. The recommended value is 10. Range [0,30]; step size 1
anr_smooth_level	Frequency domain smoothness Recommended value:10 Range [0,10]; step size 1
anr_converge_speed	Noise convergence speed Recommended value: mid Range [low; mid; high]
anr_filter_mode	Frequency domain noise reduction filter Range [0,5]; step size 1

Note
- When anr_enable is FALSE, other Anr parameters will not work;
- user_mode specifies the running mode of Anr. 0, means that the Anr algorithm does not use other Anr parameters at all, but uses the internal settings of the Anr algorithm; 1 or 2 means that the Anr parameters under the application are completely used.
- anr_intensity_band, ANR frequency range, the latter element must be greater than or equal to the first element.

  For example: u32NrIntensityBand[0]= 10, then: u32NrIntensityBand[1] must be greater than or equal to 10.

  The highest frequency corresponding to the current sampling rate is divided into 128 parts on average, and the frequency range corresponds to how many parts form a frequency band.

  For example: the current sampling rate is 16K, the corresponding maximum frequency is 8K, each one is 8000 / 128 ≈ 62.5Hz. Under the setting of {4,6,36, 49,50,51}, the ANR frequency range is {0 ~ 4 * 62.5Hz, 4 ~ 6 * 62.5Hz, 6 ~ 36 * 62.5Hz, 36 ~ 49 * 62.5Hz, 49 ~ 50 * 62.5Hz, 50 ~ 51 * 62.5Hz, 51-127 * 62.5Hz} = {0 ~ 250Hz, 250 ~ 375Hz, 375 ~ 2250Hz, 2250 ~ 3062.5Hz, 3062.5 ~ 3125Hz, 3125 ~ 3187.5Hz, 3187.5Hz ~ 8000Hz}，anr_intensity is the ANR intensity, According to the frequency band division of anr_intensity_band, different parameters are set for the noise situation of each frequency band.
- anr_smooth_level, the smoothness of Anr algorithm the frequency domain procession, avoid excessively large suppression gaps between adjacent frequencies during noise estimation, resulting in sound damage.
- anr_converge_speed，Anr algorithm convergence speed, noise update speed, the faster the setting, the faster the ANR will converge, but the details will be lost/damaged.
- anr_filter_mode specifies the Anr algorithm. 0 is the original Anr algorithm. 1 ~ 4 Anr algorithms are based on different noise estimation approaches. 5 Anr algorithm is deep-learning based noise reduction algorithm.
- When using anr_filter_mode 5, the anr_converge_speed must be set as [high]. In addition, anr_smooth_level will not affect the results of using anr_filter_mode 5.
- anr_filter_mode 5 has five version. Version 1, 2, 4 and 5 are focus on wideband scenario from 0kHz to 8kHz, supporting 8kHz, 16kHz and 32kHz sampling rate and 128 point number. Version 3 is designed for superwideband scenario from 0kHz to 16kHz and only support 32kHz sampling rate and 256 point number. The latest anr_filter_mode 5 version 5 is recommended. The anr_filter_mode version can be checked by following command to APC or ANR library.
```
 strings libAPC_LINUX.a | grep ALGO
```
Related data types and interfaces

IaaApc_Config

IaaApc_GetConfig

IaaAnr_Config

IaaAnr_GetConfig

3.6. AudioEqConfig¶

Description

Define the Eq configuration parameter structure type of the Apc algorithm.

Definition

typedef struct{

    unsigned int eq_enable;

    unsigned int user_mode;

    short eq_gain_db[129];

}AudioEqConfig;

Member

Member name	Description
eq_enable	Whether to enable Eq algorithm
user_mode	Eq algorithm running mode
eq_gain_db	Eq algorithm gain adjustment value, divide the frequency range of the current sampling rate into 129 frequency ranges for adjustment. Unit: 1dB Range [-50,20]; step size 1

Note
- When eq_enable is FALSE, other Eq parameters will not work;
- user_mode specifies the running mode of Eq. 0, means Eq uses the preset parameters which are all 0, without any gain or attenuation; 1 means that the Eq parameters under the application are completely used.
- eq_gain_db is the table for gain adjustment, divide the frequency range of the current sampling rate into 129 frequency ranges for adjustment. For example: the current sampling rate is 16K, the corresponding highest frequency is 8K, 8000 / 129 ≈ 62Hz, the frequency range of a single adjustment is 62Hz, and 0-8K is divided into {0-1 * 62Hz，1-2 * 62Hz，2-3 * 62Hz，…，128-129 * 62Hz} = {0-62Hz，62-124Hz，124-186Hz，…，7938-8000Hz}, each segment corresponds to a gain value.
Related data types and interfaces

IaaApc_Config

IaaApc_GetConfig

IaaEq_Config

IaaEq_GetConfig

3.7. AudioHpfConfig¶

Description

Define the Hpf configuration parameter structure type of the Apc algorithm.

Definition

typedef struct{

    unsigned int hpf_enable;

    unsigned int user_mode;

    IAA_HPF_FREQ cutoff_frequency;

}AudioHpfConfig;

Member

Member name Description

hpf_enable Whether to enable Hpf algorithm

user_mode Hpf algorithm running mode

cutoff_frequency Hpf cutoff frequency Range: [0,1,2,3,4]
Note
- When hpf_enable is FALSE, other Hpf parameters will not work;
- user_mode specifies the running mode of Hpf. 0, means Eq uses the preset parameters, without any gain or attenuation; 1 means that the Hpf parameters under the application are completely used.
- cutoff_frequency is the cutoff frequency of Hpf, signals below this frequency will be filtered out.
Related data types and interfaces

IaaApc_Config

IaaApc_GetConfig

IaaEq_Config

IaaEq_GetConfig

3.8. AudioAgcConfig¶

Description

Define the Agc configuration parameter structure type of the Apc algorithm.

Definition

typedef struct

{

    unsigned int agc_enable;

    unsigned int user_mode;

    //gain setting

    AgcGainInfo gain_info;

    unsigned int drop_gain_max;

    //attack time, release time

    unsigned int attack_time;

    unsigned int release_time;

    //target level

    short compression_ratio_input[7];

    short compression_ratio_output[7];

    int drop_gain_threshold;

    // noise gate

    int noise_gate_db;

    unsigned int noise_gate_attenuation_db;

    unsigned int gain_step;

}AudioAgcConfig;

Member

Member name	Description
agc_enable	Whether to enable Agc algorithm
user_mode	Agc algorithm running mode, set 1 to time domain processing mode, set 2 to frequency domain processing mode, please refer to the precautions section below for the corresponding API of frequency domain processing
gain_info	The Agc algorithm gain information, which defines the maximum, minimum and initial values of the AGC gain
drop_gain_max	The maximum value of instantaneous gain drop, prevent output saturation. If the output plus the current Gain exceeds the dB value set by drop_gain_threshold, Agc will instantly reduce the Gain to prevent the peak value of the current signal from exceeding drop_gain_threshold. Range: [0,60]; Step size: 1 Note：This value only represents the range that can be lowered, but the specific value that can be lowered depends on the minimum value of the AGC gain.
attack_time	Time step for gain reduction, take 4 milliseconds as 1 unit, if set to 2, it will judge whether to increase Gain every 8 milliseconds. Range: [1,20]; step size: 1
release_time	Time step for gain increase, take 4 milliseconds as 1 unit, if set to 2, it will judge whether to increase Gain every 8 milliseconds Range: [1,20]; step size: 1
compression_ratio_input	Use with compression_ratio_output, realize the curve with multiple slopes through multiple turning points to get the relationship between input power level and output power level. Range: [-80,0]dBFS; step size: 1
compression_ratio_output	Use with compression_ratio_input, realize the curve with multiple slopes through multiple turning points to get the relationship between input power level and output power level. Range: [-80,0]dBFS; step size: 1
drop_gain_threshold	Attenuation threshold, When the signal peak amplitude exceeds this value, it will attenuate instantly, and the attenuation amplitude is limited by drop_gain_max and gain_info. Range: [-80,0]dB; step size: 1
noise_gate_db	Noise threshold, when the signal is less than this value, treat it as noise. Case1: If you set noise_gate_db from -80 to 0, the current gain value will converge to 0 according to the release/attack time. Case2: If you set noise_gate_db from 1 to 80, when the signal is less than this value, the Gain value will not be changed, and keep the Gain value of the previous frame Range: [-80,80] ; step size: 1
noise_gate_attenuation_db	When the noise threshold is effective, it is input source attenuation percentage. Range: [0,100] ; step size: 1
gain_step	The speed of applying gain is 0.5dB as a unit. If it is set to 1, then ±0.5dB is applied per frame according to requirements. The higher the value, the faster the speed of increasing and decreasing the volume. Range: [1,10] ; step size: 1

Note
- When agc_enable is FALSE, other Agc parameters will not work;
- user_mode specifies the running mode of Agc. 0, means that the Agc algorithm does not use other Agc parameters at all, but uses the internal settings of the Agc algorithm; 1 means that the Agc parameters under the application are completely used.
- Compression ratio Curve defines the relationship between InputOutput energy. By setting seven points, six different slope transitions can be obtained. For example, the parameters are set as follows:

  compression_ratio_input[7] = {-80, -60, -50,-40,-30,-12,0}

  compression_ratio_output[7] = {-80, -45, -36, -27, -18, -9, -6}

  The curve is shown in the figure below.

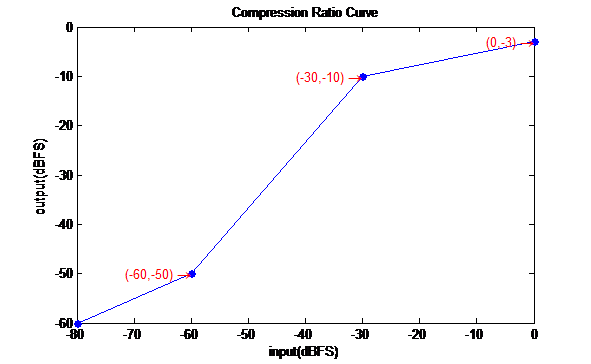

  If you don’t need so many different slopes, you can set the last compression ratio parameter to 0, as follows:

  compression_ratio_input[7] = {-70, -60, -30, 0,0,0,0};

  compression_ratio_output[7] = {-60, -50, -10, -3, 0,0,0};
- There are two modes for the noise gate setting, which can converge Gain to 0 or keep it unchanged. Convergence to 0 can prevent signals smaller than the noise gate from being amplified, maintain noise stability, and maintain the Gain value unchanged to avoid the "breathing phenomenon" where the beginning and end of the voice disappear.
- Set user mode to 2, enable frequency domain processing mode, please refer to the following API for usage

  IaaApc_SetLowFreqCompressionRatioCurve

  IaaApc_SetMidFreqCompressionRatioCurve

  IaaApc_SetHighFreqCompressionRatioCurve

  IaaApc_SetAgcFreqBand

  IaaAgc_SetLowFreqCompressionRatioCurve

  IaaAgc_SetMidFreqCompressionRatioCurve

  IaaAgc_SetHighFreqCompressionRatioCurve

  IaaAgc_SetAgcFreqBand
Related data types and interfaces

IaaApc_Config

IaaApc_GetConfig

IaaAgc_Config

IaaAgc_GetConfig

3.9. AgcGainInfo¶

Description

Define Agc gain parameter structure type in Apc algorithm.

Definition

typedef struct

{

    int gain_max; //gain maximum

    int gain_min; //gain minimum

    int gain_init; //default gain (initial gain)

}AgcGainInfo;

Member

Member name Description

gain_max Maximum gain Range: [0,60]; step size: 1

gain_min Minimum gain Range: [-20,30] ; step size: 1

gain_init Gain initial value Range: [-20,60] ; step size: 1
Related data types and interfaces

AudioAgcConfig

3.10. IAA_APC_SAMPLE_RATE¶

Description

Define the sampling rate type in the Apc algorithm.

Definition

typedef enum {

    IAA_APC_SAMPLE_RATE_8000 = 8000 ,

    IAA_APC_SAMPLE_RATE_16000 = 16000 ,

    IAA_APC_SAMPLE_RATE_48000 = 48000 ,

}IAA_APC_SAMPLE_RATE;

Member

Member name Description

IAA_APC_SAMPLE_RATE_8000 8K sampling rate

IAA_APC_SAMPLE_RATE_16000 16K sampling rate

IAA_APC_SAMPLE_RATE_48000 48K sampling rate
Related data types and interfaces

AudioProcessInit

3.11. NR_CONVERGE_SPEED¶

Description

Define Anr algorithm convergence speed type.

Definition

typedef enum {

    NR_SPEED_LOW,

    NR_SPEED_MID,

    NR_SPEED_HIGH

} NR_CONVERGE_SPEED;

Member

Member name Description

NR_SPEED_LOW Low speed

NR_SPEED_MID Medium speed

NR_SPEED_HIGH High speed
Note
- Low/medium/high NR convergence speed represents 3/2/1 frame update once noise suppression
Related data types and interfaces

AudioAnrConfig

3.12. IAA_HPF_FREQ¶

Description

Define Hpf algorithm cut-off frequency type.

Definition

typedef enum {
    AUDIO_HPF_FREQ_80 , /* 80Hz*/
    AUDIO_HPF_FREQ_120, /*120Hz*/
    AUDIO_HPF_FREQ_150, /*150Hz*/
    AUDIO_HPF_FREQ_BUTT,
    AUDIO_HPF_FREQ_500, /*500Hz*/
}IAA_HPF_FREQ;

Member

Member name Description

AUDIO_HPF_FREQ_80 80Hz

AUDIO_HPF_FREQ_120 120Hz

AUDIO_HPF_FREQ_150 150Hz

AUDIO_HPF_FREQ_500 500Hz

AUDIO_HPF_FREQ_BUTT
Related data types and interfaces

AudioHpfConfig

3.13. ANR_HANDLE¶

Description

Define Anr algorithm handle type.
Definition
```
typedef void* ANR_HANDLE;
```
Related data types and interfaces

IaaAnr_Init

IaaAnr_Config

IaaAnr_Run

IaaAnr_Free

IaaAnr_Reset

IaaAnr_GetConfig

3.14. EQ_HANDLE¶

Description

Define Eq algorithm handle type.
Definition
```
typedef void* EQ_HANDLE;
```
Related data types and interfaces

IaaEq_Init

IaaEq_Config

IaaEq_Run

IaaEq_Free

IaaEq_Reset

IaaEq_GetConfig

3.15. AGC_HANDLE¶

Description

Define Agc algorithm handle type.
Definition

typedef void* AGC_HANDLE;
Related data types and interfaces

IaaAgc_Init

IaaAgc_Config

IaaAgc_Run

IaaAgc_Free

IaaAgc_Reset

IaaAgc_GetConfig

3.16. APC_BF_HANDLE¶

Description

Define the BF handle type that cooperating with Apc algorithm.
Definition
```
typedef void* APC_BF_HANDLE;
```
Related data types and interfaces

IaaApc_EnhanceNNBFMode
Note
- This pointer is only applicable to special enhancement that using BF mode as 3 and anr_filter_mode as 5 simultaneously. It won’t affect the results of using other modes.

3.17. EQ_FILTER_TYPE¶

Description

Define IIR filter type.

Definition

typedef enum {

    EQ_NOTCH_FILTER ,

    EQ_HIGH_PASS_FILTER,

    EQ_LOW_PASS_FILTER,

}EQ_FILTER_TYPE;

Member

Member name Description

EQ_NOTCH_FILTER Notch filter

EQ_HIGH_PASS_FILTER High pass filter

EQ_LOW_PASS_FILTER Low pass filter
Related data types and interfaces

AudioFilterConfig

3.18. AudioFilterConfig¶

Description

Define IIR filter parameter structure type in filter algorithm.

Definition

typedef struct{

    EQ_FILTER_TYPE type;

    int f0;

    int q_factor;

    int gain;

}AudioFilterConfig;

Member

Member name Description

type Filter type by EQ_FILTER_TYPE

f0 Fitler center frequency

q_fctor Q factor

gain Gain value
Related data types and interfaces

EQ_FILTER_TYPE
Note
- type

  There are three types: notch filter/high-pass filter/low-pass filter. Please refer to the following figure for the typical frequency response of the three filters.
  1. Notch fitler is to suppress or increase specific frequencies
  2. High-pass filter suppresses energy below a certain frequency
  3. Low-pass filter suppresses energy above a certain frequency
- f0

  For HPF and LPF, it is the turning frequency, the turning point of the frequency response curve, the so-called -3dB frequency point, while for Notch filter, it is the center frequency, as shown in the figure below.
- q_fctor

  The Q value is the quality factor. The following is the formula for the Q value. Please refer to the figure above for $f_0$ , $f_1$ and $f_2$ .

  $Q=\frac{f_0}{f_2-f_1}$
- gain

  For HPF and LPF, it is the gain in the stable state. For Notch filter, it is the Peak value.
```
filter_design.q_factor = 1;

filter_design.f0 = 2000;

filter_design.type = EQ_HIGH_PASS_FILTER;

filter_design.gain = 3;
```
  The frequency response curve is shown below:
```
filter_design.q_factor = 1;

filter_design.f0 = 2000;

filter_design.type = EQ_NOTCH_FILTER;

filter_design.gain = 3;
```
  The frequency response curve is shown below:

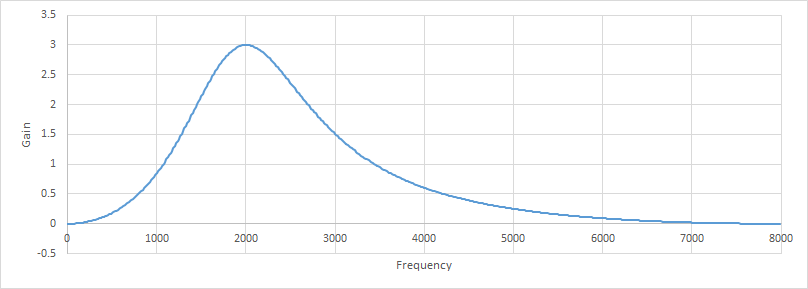

3.19. CngStruct¶

Description

Structure pointer for configuring comfort noise.

Definition

typedef struct
{

    int energy_dbfs;

    short point_number;

    int channel_num;

}CngStruct;

Member

Member Name Description

energy_dbfs Comfort noise energy to be superimposed

point_number Length of input signal

channel_num Channel number of input signal
Related data types and interfaces

IaaApc_ApplyComfortNoise
Note

When using this API and in dual-channel mode, the signal should be arranged in a cross-pattern between left and right channels.

4. Error code¶

APC API error codes are shown as follow:

Error code	Definition	Description
0x00000000	ALGO_APC_RET_SUCCESS	APC run successful
0x10000501	ALGO_APC_RET_INIT_ERROR	APC not initialized
0x10000502	ALGO_APC_RET_INVALID_HANDLE	HANDLE invalid
0x10000503	ALGO_APC_RET_INVALID_SAMPLE_RATE	Sampling frequency is not supported
0x10000504	ALGO_APC_RET_INVALID_POINT_NUMBER	Points per frame not supported
0x10000505	ALGO_APC_RET_INVALID_CHANNEL	Channel number doesn't support
0x10000506	ALGO_APC_ANR_RET_INVALID_ENABLE	ANR switch parameter setting is invalid
0x10000507	ALGO_APC_ANR_RET_INVALID_MODE	ANR mode parameter setting is invalid
0x10000508	ALGO_APC_ANR_RET_INVALID_INTENSITY	ANR intensive parameter setting is invalid
0x10000509	ALGO_APC_ANR_RET_INVALID_SMOOTH_LEVEL	ANR smoothing parameter setting is invalid
0x10000510	ALGO_APC_ANR_RET_INVALID_COVERGE_SPEED	ANR convergence rate parameter setting is invalid
0x10000511	ALGO_APC_EQ_RET_INVALID_ENABLE	EQ switch parameter setting is invalid
0x10000512	ALGO_APC_EQ_RET_INVALID_MODE	EQ mode parameter setting is invalid
0x10000513	ALGO_APC_EQ_RET_INVALID_TABLE	EQ parameter setting is invalid
0x10000514	ALGO_APC_HPF_RET_INVALID_ENABLE	HPF switch parameter setting is invalid
0x10000515	ALGO_APC_HPF_RET_INVALID_MODE	HPF mode parameter setting is invalid
0x10000516	ALGO_APC_HPF_RET_INVALID_TABLE	HPF parameter setting is invalid
0x10000517	ALGO_APC_AGC_RET_INVALID_ENABLE	AGC switch parameter setting is invalid
0x10000518	ALGO_APC_AGC_RET_INVALID_MODE	AGC mode parameter setting is invalid
0x10000519	ALGO_APC_AGC_RET_INVALID_COMPRESSION_RATIO	AGC compression curve parameter setting is invalid
0x10000520	ALGO_APC_AGC_RET_INVALID_FREQUENCY_BAND	AGC frequency band setting is invalid
0x10000521	ALGO_APC_AGC_RET_INVALID_DROP_GAIN_MAX	AGC anti-saturation parameter setting is invalid
0x10000522	ALGO_APC_AGC_RET_INVALID_GAIN_STEP	AGC gain step parameter setting is invalid
0x10000523	ALGO_APC_AGC_RET_INVALID_RELEASE_TIME	AGC recovery time parameter setting is invalid
0x10000524	ALGO_APC_AGC_RET_INVALID_ATTACK_TIME	AGC subtracted time parameter setting is invalid
0x10000525	ALGO_APC_AGC_RET_INVALID_NOISE_GATE	AGC noise threshold parameter setting is invalid
0x10000526	ALGO_APC_AGC_RET_INVALID_NOISE_ATTENU	AGC noise attenuation setting is invalid
0x10000527	ALGO_APC_AGC_RET_INVALID_DROP_GAIN_LEVEL	AGC anti-saturation threshold parameter setting is invalid
0x10000528	ALGO_APC_AGC_RET_INVALID_GAIN_INFO	AGC gain control parameter setting is invalid
0x10000529	ALGO_APC_RET_API_CONFLICT	Other APIs are running
0x10000530	ALGO_APC_RET_INVALID_CALLING	Incorrect order of calling API
0x10000531	ALGO_APC_RET_FAILED	Parameter setting error

Parameter name	Description	Input/output
handle	Aec algorithm handle	Input
nr_eq_audio_out	Anr and Eq handle output data pointer	Output

Parameter name	Description	Input/output
handle	Apc handle	Input
pss_audio_in	Input data pointer	input/output
gain_value	Gain value range: [-120,120]	input

Parameter name	Description	Input/output
working_buffer_address	Anr algorithm memory address	Input
anr_init	Anr algorithm initialization structure pointer	Input

Parameter name	Description	Input/output
working_buffer_address	Memory address used by Anr algorithm	Input
anr_init	Anr algorithm initialization structure pointer	Input

Parameter name	Description	Input/output
working_buffer_address	Eq algorithm memory address	Input
eq_init	Eq algorithm initialization structure pointer	Input

Parameter name	Description	Input/output
working_buffer_address	Memory address used by Eq algorithm	Input
eq_init	Eq algorithm initialization structure pointer	Input

Parameter name	Description	Input/output
working_buffer_address	Agc algorithm memory address	Input
agc_init	Agc algorithm initialization structure pointer	Input

Parameter name	Description	Input/output
working_buffer_address	Memory address used by Agc algorithm	Input
agc_init	Agc algorithm initialization structure pointer	Input

Member name	Description
hpf_enable	Whether to enable Hpf algorithm
user_mode	Hpf algorithm running mode
cutoff_frequency	Hpf cutoff frequency Range: [0,1,2,3,4]

Member name	Description
gain_max	Maximum gain Range: [0,60]; step size: 1
gain_min	Minimum gain Range: [-20,30] ; step size: 1
gain_init	Gain initial value Range: [-20,60] ; step size: 1

Return value	Result
Not NULL	Successful
NULL	Failed

Return value	Result
0	Successful
Non-zero	Failed, refer to error code

Return value	Result
0	Successful
Non-zero	Failed, refer to error code

Return value	Result
0	Successful
Non-zero	Failed, refer to error code

Member name	Description
IAA_APC_SAMPLE_RATE_8000	8K sampling rate
IAA_APC_SAMPLE_RATE_16000	16K sampling rate
IAA_APC_SAMPLE_RATE_48000	48K sampling rate

Member name	Description
NR_SPEED_LOW	Low speed
NR_SPEED_MID	Medium speed
NR_SPEED_HIGH	High speed

Member name	Description
AUDIO_HPF_FREQ_80	80Hz
AUDIO_HPF_FREQ_120	120Hz
AUDIO_HPF_FREQ_150	150Hz
AUDIO_HPF_FREQ_500	500Hz
AUDIO_HPF_FREQ_BUTT

Member name	Description
EQ_NOTCH_FILTER	Notch filter
EQ_HIGH_PASS_FILTER	High pass filter
EQ_LOW_PASS_FILTER	Low pass filter

Member name	Description
type	Filter type by EQ_FILTER_TYPE
f0	Fitler center frequency
q_fctor	Q factor
gain	Gain value

Member Name	Description
energy_dbfs	Comfort noise energy to be superimposed
point_number	Length of input signal
channel_num	Channel number of input signal
