Gesture Recognition Algorithm

REVISION HISTORY¶

Revision No.	Description	Date
101	Initial release	03/22/2024

1. Algorithm Description¶

The gesture recognition algorithm primarily recognizes 13 types of gestures:

Static gestures (10 types): L, dislike, ok, fist, stop, like, yes, one, call, rock
Dynamic gestures (3 types): wave_up, wave_down, grip

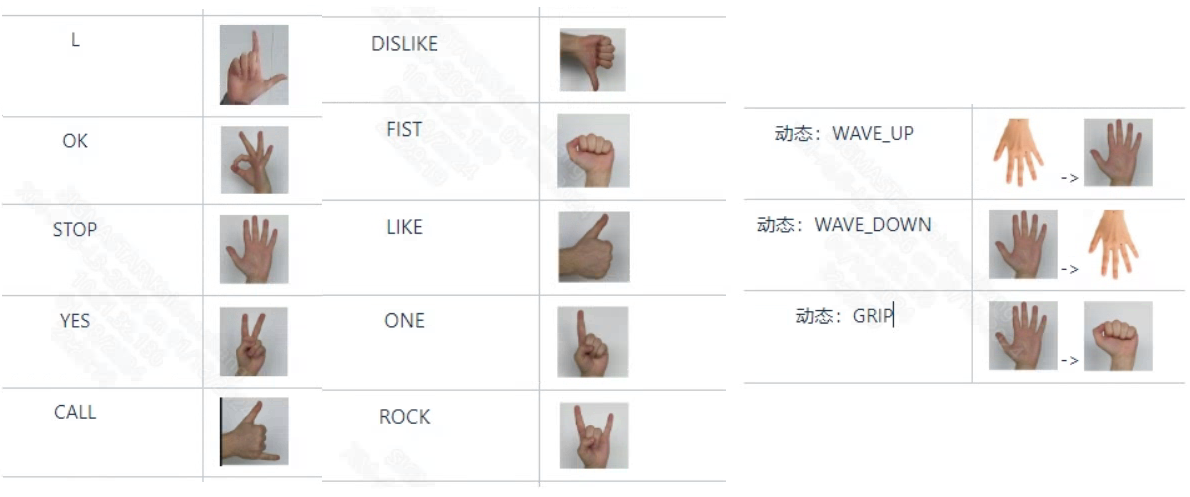

When in use, please follow the standard gestures shown in the figure below to ensure the effectiveness of the algorithm:

Model Introduction:

model	Function	Resolution(w*h)	Input Format
handpose_det36m.img	Gesture Detection (Medium)	640*352	yuvsp420_nv12
handpose_det48m.img	Gesture Detection (Medium)	800*480	yuvsp420_nv12
handpose_det36l.img	Gesture Detection (Large)	640*352	yuvsp420_nv12
handpose_det48l.img	Gesture Detection (Large)	800*480	yuvsp420_nv12
handpose_cls.img	Gesture Pose Classification	224*224	yuvsp420_nv12

2. Interface Calling Process¶

The algorithm interface calling process is ALGO_HandPose_CreateHandle->ALGO_HandPose_InitHandle->ALGO_HandPose_GetInputAttr->ALGO_HandPose_SetParams->ALGO_HandPose_Detect->ALGO_HandPose_Cls->ALGO_HandPose_DeinitHandle->ALGO_HandPose_ReleaseHandle.

3. Functional Module API¶

API Name	Function
ALGO_HandPose_CreateHandle	Create Handle
ALGO_HandPose_InitHandle	Initialize Handle
ALGO_HandPose_GetInputAttr	Get Input Attributes
ALGO_HandPose_SetParams	Set Parameters
ALGO_HandPose_Detect	Hand Detection
ALGO_HandPose_Cls	Gesture Recognition
ALGO_HandPose_DeinitHandle	Handle Deinitialization
ALGO_HandPose_ReleaseHandle	Release Handle

3.1. ALGO_HandPose_CreateHandle¶

Function

Create Handle

Syntax

MI_S32 ALGO_HandPose_CreateHandle(void** handle);

Parameters

Parameter Name Description Input/Output

handle Handle Output
Return Value

0: Success.

Non-zero: Failure.
Dependency

Header File: sgs_pose_api.h

Library File: libsgsalgo_pose.so, libsgsalgo_pose.a

3.2. ALGO_HandPose_InitHandle¶

Function

Initialize Handle

Syntax

MI_S32 ALGO_HandPose_InitHandle(void *handle, const PoseInit_t *init);

Parameters

Parameter Name Description Input/Output

handle Handle Input

init Initialization Parameters Input
Return Value

0: Success.

Non-zero: Failure.
Dependency

Header File: sgs_pose_api.h

Library File: libsgsalgo_pose.so, libsgsalgo_pose.a

3.3. ALGO_HandPose_GetInputAttr¶

Function

Get Input Attributes

Syntax

MI_S32 ALGO_HandPose_GetInputAttr(void *handle, PoseInputAttr_t *det_input_attr, PoseInputAttr_t *cls_input_attr);

Parameters

Parameter Name	Description	Input/Output
handle	Handle	Input
det_input_attr	Detection Model Input Attributes (Width, Height, Image Format)	Output
cls_input_attr	Recognition Model Input Attributes (Width, Height, Image Format)	Output

Return Value

0: Success.

Non-zero: Failure.
Dependency

Header File: sgs_pose_api.h

Library File: libsgsalgo_pose.so, libsgsalgo_pose.a

3.4. ALGO_HandPose_SetParams¶

Function

Set Parameters

Syntax

MI_S32 ALGO_HandPose_SetParams(void *handle, const PoseParams_t* params);

Parameters

Parameter Name Description Input/Output

handle Handle Input

params Parameters Input
Return Value

0: Success.

Non-zero: Failure.
Dependency

Header File: sgs_pose_api.h

Library File: libsgsalgo_pose.so, libsgsalgo_pose.a

3.5. ALGO_HandPose_Detect¶

Function

Hand Detection

Syntax

MI_S32 ALGO_HandPose_Detect(void *handle, const PoseInput_t *input, PoseBox_t boxes[MAX_POSE_OBJECT], MI_S32 *num_boxes);

Parameters

Parameter Name	Description	Input/Output
handle	Handle	Input
input	Detection Model Input Data 800*480 yuv420_nv12	Input
boxes	Detection Box Results	Output
num_boxes	Number of Detection Boxes	Output

Return Value

0: Success.

Non-zero: Failure.
Dependency

Header File: sgs_pose_api.h

Library File: libsgsalgo_pose.so, libsgsalgo_pose.a

3.6. ALGO_HandPose_Cls¶

Function

Hand Pose Recognition, identifying which gesture among the 13 gestures

Syntax

MI_S32 ALGO_HandPose_Cls(void *handle,  const PoseInput_t *input, PoseBox_t* box, PoseCls_t* cls);

Parameters

Parameter Name Description Input/Output

handle Handle Input

input Recognition Model Input Data 224*224 yuv420_nv12 Input

box Hand Detection Box Input

cls Hand Pose Result Output
Return Value

0: Success.

Non-zero: Failure.
Dependency

Header File: sgs_pose_api.h

Library File: libsgsalgo_pose.so, libsgsalgo_pose.a

3.7. ALGO_HandPose_DeinitHandle¶

Function

Handle Deinitialization

Syntax

MI_S32 ALGO_HandPose_DeinitHandle(void *handle);

Parameters

Parameter Name Description Input/Output

handle Handle Input
Return Value

0: Success.

Non-zero: Failure.
Dependency

Header File: sgs_pose_api.h

Library File: libsgsalgo_pose.so, libsgsalgo_pose.a

3.8. ALGO_HandPose_ReleaseHandle¶

Function

Release Handle

Syntax

MI_S32 ALGO_HandPose_ReleaseHandle(void *handle);

Parameters

Parameter Name Description Input/Output

handle Handle Input
Return Value

0: Success.

Non-zero: Failure.
Dependency

Header File: sgs_pose_api.h

Library File: libsgsalgo_pose.so, libsgsalgo_pose.a

4. Data Types¶

Data Type	Definition
PoseInit_t	Initialization Parameter Structure
PoseInput_t	Input Image Property Structure
PoseInputAttr_t	Model Input Data Structure
PoseCls_t	Gesture Recognition Result Structure
PoseBox_t	Hand Detection Box Structure
PoseParams_t	Input Parameters Structure
HandPoseClass_e	Gesture Category Information
HandKeyPoint_e	Hand Key Point Category Information

4.1. PoseInit_t¶

Description

Initialization Parameter Structure

Definition

typedef struct
{
    char ipu_firmware_path[MAX_POSE_STRLEN];
    char pose_model[MAX_POSE_STRLEN];
    char cls_model[MAX_POSE_STRLEN];
    MI_BOOL create_device;
    MI_BOOL destroy_device;
} PoseInit_t;

Members

Member Name	Description
ipu_firmware_path	ipu_firmware_bin path
pose_model	Detection Model Path (e.g., ./models/handpose_det48y_20240313.img)
cls_model	Recognition Model Path (e.g., ./models/handpose_cls_20240222.img)
create_device	Whether to create device: if false, need to create device externally; if true, create device automatically within the algorithm library
destroy_device	Whether to destroy device: if false, need to destroy device externally; if true, destroy device automatically within the algorithm library

Related Interfaces

ALGO_HandPose_InitHandle

4.2. PoseInput_t¶

Description

Input Image Data Structure

Definition

typedef struct
{
    void *p_vir_addr;
    MI_PHY phy_addr;
    MI_U32 buf_size;
    MI_U64 pts;
    MI_U16 width;
    MI_U16 height;
} PoseInput_t;

Members

Member Name Description

p_vir_addr Virtual Address

phy_addr Physical Address

buf_size Data Size

pts Timestamp (can be left unassigned)

width Image Width

height Image Height
Related Data Types and Interfaces

ALGO_HandPose_Detect

ALGO_HandPose_Cls

4.3. PoseInputAttr_t¶

Description

Model Input Attribute Structure

Definition

typedef struct
{
    MI_U32 width;
    MI_U32 height;
    MI_IPU_ELEMENT_FORMAT format;
} PoseInputAttr_t;

Members

Member Name Description

width Input Image Width

height Input Image Height

format Input Image Format
Related Data Types and Interfaces

ALGO_HandPose_GetInputAttr

4.4. PoseCls_t¶

Description

Gesture Recognition Result Structure

Definition

typedef struct
{
    MI_S32 cls;
    MI_FLOAT score;
} PoseCls_t;

Members

Member Name Description

cls Gesture Category (Corresponding relationship see HandPoseClass_e)

score Gesture Category Score
Related Data Types and Interfaces

ALGO_HandPose_Cls

4.5. PoseBox_t¶

Description

Hand Detection Box Structure

Definition

typedef struct
{
    MI_U32 x;
    MI_U32 y;
    MI_U32 width;
    MI_U32 height;
    MI_S32 cls;
    MI_FLOAT score;
    MI_U64 pts;
    MI_FLOAT keypts[MAX_POSE_NUM_KEYPTS][2];
    MI_U64 track_id;
} PoseBox_t;

Members

Member Name	Description
x	Box's top-left X coordinate
y	Box's top-left Y coordinate
width	Box's Width
height	Box's Height
cls	Box's Category
score	Box's Score
pts	Timestamp (can be left unassigned)
keypts	Key Point Sequence
track_id	Tracking ID

Related Data Types and Interfaces

ALGO_HandPose_Detect

ALGO_HandPose_Cls

4.6. PoseParams_t¶

Description

Input Parameters Structure

Definition

typedef struct
{
    MI_S32 disp_width;
    MI_S32 disp_height;
    MI_FLOAT min_width;
    MI_FLOAT min_height;
    MI_FLOAT det_threshold;
    MI_FLOAT cls_threshold;
    MI_FLOAT attr_threshold[MAX_POSE_NUM_ATTR];
} PoseParams_t;

Members

Member Name	Description
disp_width	Display Width
disp_height	Display Height
min_width	Minimum Width for Detection
min_height	Minimum Height for Detection
det_threshold	Detection Threshold
cls_threshold	Recognition Threshold (the higher the threshold, the stricter the recognition criteria)
attr_threshold	Attribute Threshold (unused in gesture recognition)

Related Data Types and Interfaces

ALGO_HandPose_SetParams

4.7. HandPoseClass_e¶

Description

Gesture Category Information

Definition

typedef enum
{
    E_HAND_POSE_NONE = 0,
    E_HAND_POSE_CALL,
    E_HAND_POSE_DISLIKE,
    E_HAND_POSE_FIST,
    E_HAND_POSE_FOUR,
    E_HAND_POSE_LIKE,
    E_HAND_POSE_MUTE,
    E_HAND_POSE_OK,
    E_HAND_POSE_ONE,
    E_HAND_POSE_PALM,
    E_HAND_POSE_PEACE,
    E_HAND_POSE_ROCK,
    E_HAND_POSE_STOP,
    E_HAND_POSE_STOP_INV,
    E_HAND_POSE_THREE,
    E_HAND_POSE_TWO_UP,
    E_HAND_POSE_TWO_UP_INV,
    E_HAND_POSE_THREE2,
    E_HAND_POSE_PEACE_INV,
    E_HAND_POSE_DOWN_INV,
    E_HAND_POSE_L,
    E_HAND_POSE_WAVE_UP,
    E_HAND_POSE_WAVE_DOWN,
    E_HAND_POSE_GRIP,
    E_NUM_HAND_POSE
} HandPoseClass_e;

Related Data Types and Interfaces

PoseCls_t

ALGO_HandPose_Cls

4.8. HandKeyPoint_e¶

Description

Hand Key Point Category Information

Definition

typedef enum
{
    E_WRIST = 0,
    E_THUMB_CMC,
    E_THUMB_MCP,
    E_THUMB_IP,
    E_THUMB_TIP,
    E_INDEX_FINGER_MCP,
    E_INDEX_FINGER_PIP,
    E_INDEX_FINGER_DIP,
    E_INDEX_FINGER_TIP,
    E_MIDDLE_FINGER_MCP,
    E_MIDDLE_FINGER_PIP,
    E_MIDDLE_FINGER_DIP,
    E_MIDDLE_FINGER_TIP,
    E_RING_FINGER_MCP,
    E_RING_FINGER_PIP,
    E_RING_FINGER_DIP,
    E_RING_FINGER_TIP,
    E_PINKY_MCP,
    E_PINKY_PIP,
    E_PINKY_DIP,
    E_PINKY_TIP,
    E_NUM_HAND_KEYPTS
} HandKeyPoint_e;

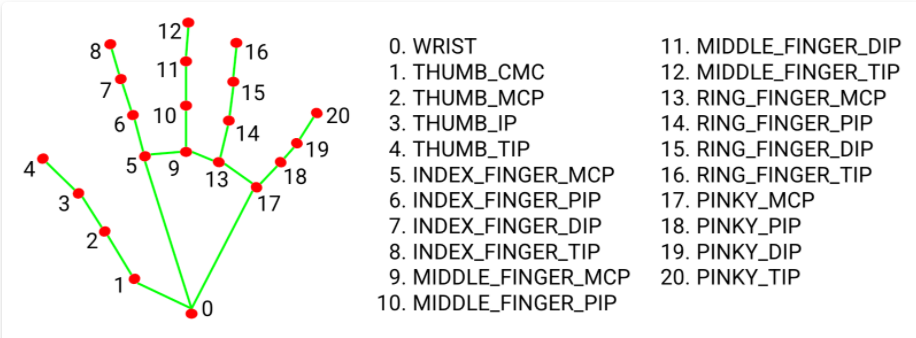

Illustration
Related Data Types and Interfaces

PoseBox_t

ALGO_HandPose_Detect

ALGO_HandPose_Cls
