MI DISP API

REVISION HISTORY

Revision No.
Description
 Date
2.03
  • Initial release
    		•  04/12/2018
    2.04
  • Add API: MI_DISP_GetLcdParam, MI_DISP_SetLcdParam,MI_DISP_DeviceGetColorTempeture, MI_DISP_DeviceSetColorTempeture, MI_DISP_DeviceSetGammaParam, MI_DISP_SetVideoLayerRotateMode
  • Data structure modification: MI_DISP_InputPortAttr_t adds parameter MI_U16 u16SrcWidth, MI_U16 u16SrcHeight;
    		•  06/06/2019
    2.05
  • Add API: MI_DISP_DeviceAttach, MI_DISP_DeviceDetach
    		•  06/19/2019
    2.06
  • Modify MI_DISP_ClearInputPortBuffer parameter
  • Add API: MI_DISP_InitDev, MI_DISP_DeInitDev
    		•  05/13/2020
    2.07
  • Add Interface Type
    		•  06/18/2020
    2.08
  • Modify chip name
  • Table 2‑1 deletes MI_DISP_RefreshInputPort
  • Add API：MI_DISP_SetZoomInWindow
    		•  08/04/2020
    2.09
  • Add interface type: E_MI_DISP_INTF_TTL_SPI_IF
    		•  09/03/2020
    2.10
  • Add interface type: E_MI_DISP_INTF_SRGB
    		•  10/26/2020
    2.11
  • Add data type: MI_DISP_DevAttachAttr_t
    		•  12/24/2020
    2.12
  • Add API: MI_DISP_SetWBCSource, MI_DISP_GetWBCSource, MI_DISP_SetWBCAttr, MI_DISP_GetWBCAttr , MI_DISP_EnableWBC, MI_DISP_DisableWBC
    		•  01/05/2021
    2.13
  • Add interface type: E_MI_DISP_INTF_MCU, E_MI_DISP_INTF_MCU_NOFLM
    		•  01/22/2021
    2.14
  • Modify struct MI_DISP_SyncInfo_t
  • Add parameter: MI_U16 u16VStart, MI_U16 u16HStart
    		•  04/16/2021
    2.15
  • Add Timing Type: E_MI_DISP_OUTPUT_1920x1080_5994, E_MI_DISP_OUTPUT_1920x1080_2997, E_MI_DISP_OUTPUT_1280x720_5994
    		•  04/22/2021
    2.16
  • Add Timing Type: E_MI_DISP_OUTPUT_1280x720_2997
    		•  05/17/2021
    2.17
  • Add Muffin info
    		•  05/25/2021
    2.18
  • Add Timing Type: E_MI_DISP_OUTPUT_2560x1440_50, E_MI_DISP_OUTPUT_2560x1440_60, E_MI_DISP_OUTPUT_3840x2160_25
    		•  06/10/2021
    2.19
  • Add Timing Type; Modify Ikayaki flow chart: E_MI_DISP_OUTPUT_3840x2160_2997
    		•  08/05/2021
  • Added PROCFS introduction
    		•  08/25/2021
    2.20
  • Add Mochi related content
  • Error code optimization
    		•  09/03/2021
    2.21
  • Add Support BT601 output
  • Add csc supported by CVBS interface
    		•  10/12/2021
    2.22
  • Add Timing Type: E_MI_DISP_OUTPUT_720P24, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_1920x1080_2398, E_MI_DISP_OUTPUt_3840x2160_24, E_MI_DISP_OUTPUT_848x480_60, E_MI_DISP_OUTPUT_1280x768_60, E_MI_DISP_OUTPUT_1280x960_60, E_MI_DISP_OUTPUT_1360x768_60, E_MI_DISP_OUTPUT_1400x1050_60, E_MI_DISP_OUTPUT_1600x900_60, E_MI_DISP_OUTPUT_1920x1440_60
    		•  11/29/2021
    2.23
  • Add interface type: E_MI_DISP_INTF_BT1120_DDR
    		•  12/08/2021
    2.24
  • Add interface: MI_DISP_SetVideoLayerAttrBatchBegin, MI_DISP_SetVideoLayerAttrBatchEnd
  • Modify Note for the following interfaces: MI_DISP_DisableVideoLayer, MI_DISP_UnBindVideoLayer
    		•  12/20/2021
    2.25
  • Modify 1.2.6 Flow chart
  • Modify 3.23 Note
    		•  2/16/2022
    2.26
  • Add some info of Maruko
    		•  3/7/2022
    2.27
  • Add a flow chart about device init or deinit.
  • Add notes for each chips
  • Add a timing table supported by each interface
  • Modify the binding diagram of device to layer
  • Modify procfs information
    		•  06/10/2022
    2.28
  • Add new API: MI_DISP_GetCurrentPts
    		•  06/28/2022
    2.29
  • Modify word errors (CscMattrix -> CscMatrix)
  • Add a new enum about MI_DISP_CscMatrix_e
    		•  08/03/2022
    2.30
  • New interface type: E_MI_DISP_INTF_LVDS, E_MI_DISP_INTF_LVDS1, E_MI_DISP_INTF_DUAL_LVDS
    		•  08/08/2022
    2.31
  • New interface type：E_MI_DISP_INTF_MIPIDSI1
    		•  10/13/2022
    2.32
  • New interface: MI_DISP_SetPowerConfig,MI_DISP_WriteMipiDsiCmd,MI_DISP_ReadMipiDsiCmd
    		•  10/27/2022
    2.33
  • compatible 32bits/64bits
    		•  11/10/2022
    2.34
  • Delete MI_DISP_DeviceAttach,MI_DISP_DeviceDetach,MI_DISP_GetScreenFrame,MI_DISP_ReleaseScreenFrame
    		•  05/12/2022
    2.35
  • Add some info of Souffle
    		•  03/14/2023
  • Add Timing Type: E_MI_DISP_OUTPUT_720I25，E_MI_DISP_OUTPUT_720I30，E_MI_DISP_OUTPUT_720I50，E_MI_DISP_OUTPUT_720I60，E_MI_DISP_OUTPUT_1080I25，E_MI_DISP_OUTPUT_1080I30
    		•  03/14/2023
    2.36
  • Added Pcupid info
    		•  04/11/2024
    2.37
  • Added instructions for the use of u32BgColor
    		•  05/27/2025

    1. SUMMARY

    1.1. Module Description

    The DISP is a video processing and display unit. Its main function is to perform hardware image splicing and image effect processing on the images output from the front end, and then output the processed images to the display through interfaces such as HDMI, VGA, MIPI, and TTL.

    Key word explanation：

    • DEV

      Display device. Corresponding to DISP0/DISP1, etc.

    • MOP

      A hardware unit that reads image data in memory and performs puzzle processing.

    • LAYER

      Video layer. RDMA hardware abstraction layer, generally refers to MOP, SCL_RDMA, etc.

    • CSC

      Color space conversion unit

    • OSD Mixer

      UI overlay

    • GUI FB/HW Cursor

      GOP output

    • PIP

      Picture In Picture

    • WBC

      Write back channel, it can capture video layer or device-level video data, used for multi-dev homologous display.

    • PQ

      Picture Quality.

    1.2. Basic Structure

    The DISP is mainly used to manage video display units and output processed images to different display interfaces.

    1. The main function of DISP is to obtain front-end image data through RDMA and handle tasks such as image stitching, rotation, cropping, and magnification. When RDMA is of the MOPG type, it can support the display of multiple non-overlapping windows; when RDMA is of the MOPS type, it can be overlapped and superimposed on the MOPG window; when RDMA is of the SCL_RDMA type, it only supports single-window display.
    2. After being processed by RDMA, the data flows into the PQ module inside the DISP, which can further adjust the picture quality. Finally, it blends with the UI output by GOP and displays the final image on the screen interface.

    3. DISP supports screen interfaces such as HDMI, VGA, TTL, LVDS, MIPI DSI, etc.

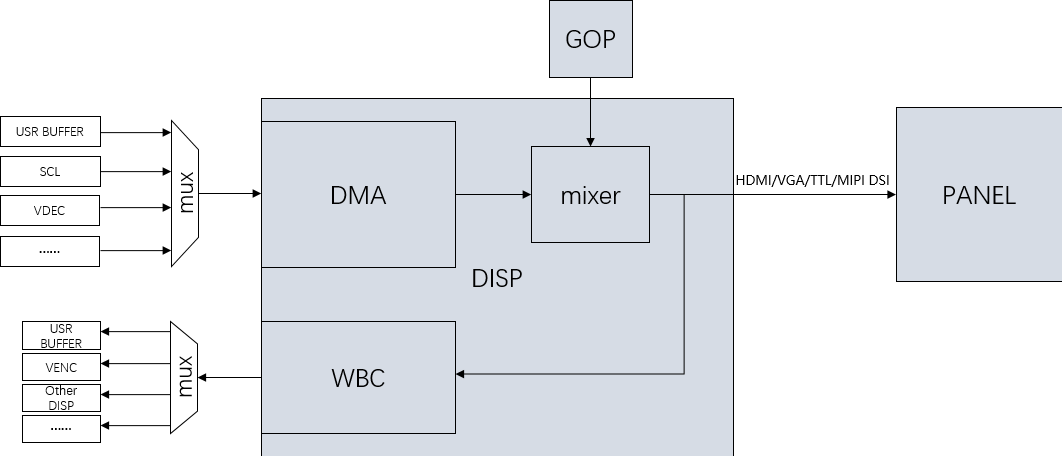

      Figure 1-1 Hardware Flow Block Diagram of DISP

    As shown in the above figure, from the perspective of usage scenarios, the DISP front-end can be bound to VDEC, SCL or other modules, or it can be a User Input Buffer; the output module of WBC can be VENC, Other DISP, or it can be a User Output Buffer.

    From the perspective of software development, the layered structure of the DISP software is as shown in the following figure. Users mainly operate the DISP/HDMI/WBC hardware through interfaces such as MI_DISP_API/MI_HDMI_API/MI_WBC_API.

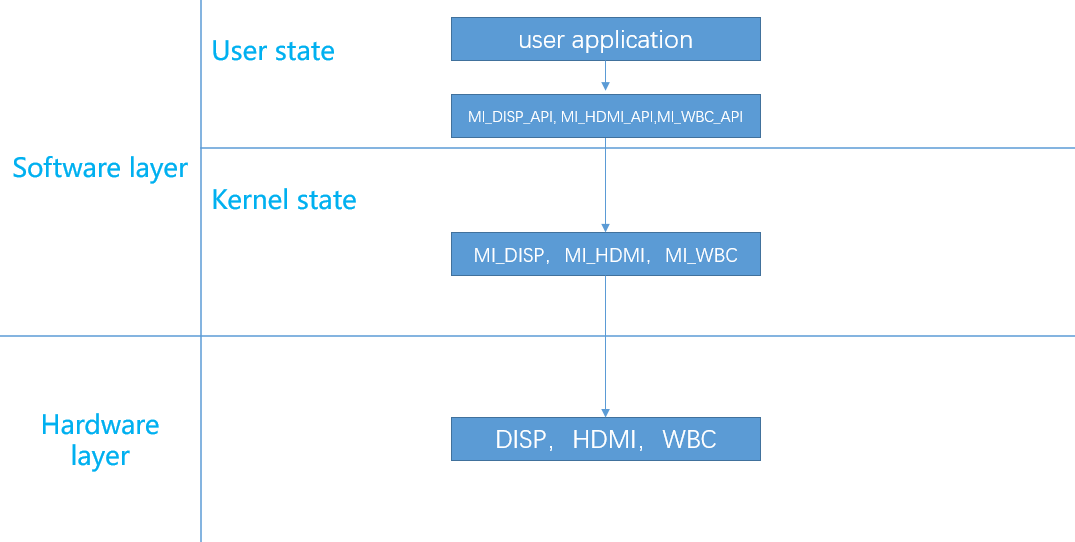

    Figure 1-2 Usage of DISP

    1.3. Function Introduction and Working Principle

    1.3.1. Multi-path Puzzles and Layer Management

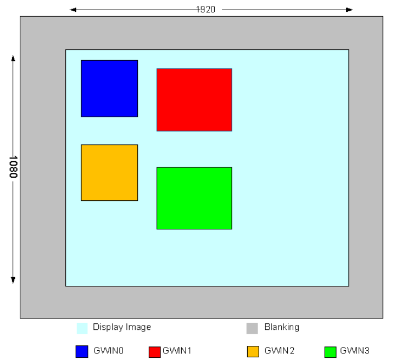

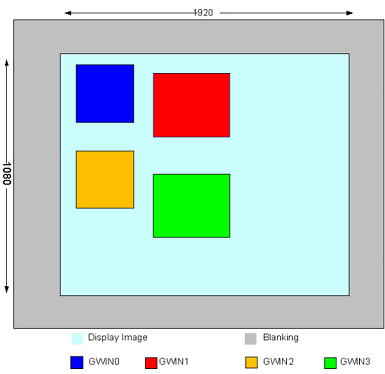

    Figure 1-3 Multiple Jigsaw Puzzles

    • Input port management: The MOPG hardware of DISP has multiple gwin, which are abstracted by software as the corresponding number of input ports. Each port receives YUV data (such as NV12 format) output from the front end. The display positions of all input ports on the MOPG can be set arbitrarily, but it is strictly necessary to ensure that there is no overlap between windows.

    • Data flow control: Each input port is allocated an independent video memory area, and image data is directly transferred to the display interface via DMA.

    1.3.2. Picture-in-Picture (PIP)

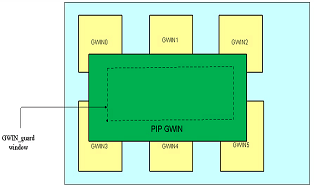

    Figure 1-4 PIP

    • Hierarchy Priority: MOPS can be used for the PIP function to overlay the picture onto MOPG. By default, its priority is higher than that of MOPG. If there is content on both MOPs, then MOPS will be on top and MOPG will be below. Moreover, it supports dynamic adjustment of the overlay sequence.

    • Real-time switching: Quickly switch the visibility state of PIP through register configuration, and support dynamic adjustment of the position and size of the overlay window.

    1.3.3. Core Functions of Image Processing

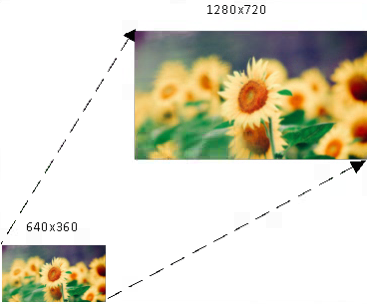

    Figure 1-5 Image Scaling

    • Dynamic scaling: Each single window supports up to 16x in both horizontal and vertical directions to meet the final display size requirements of each window.

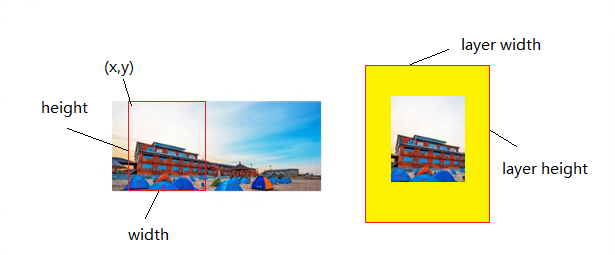

      Figure 1-6 Image Cropping

    • Image Cropping: Supports zooming in and displaying the enlarged view of a selected local area of the input image.

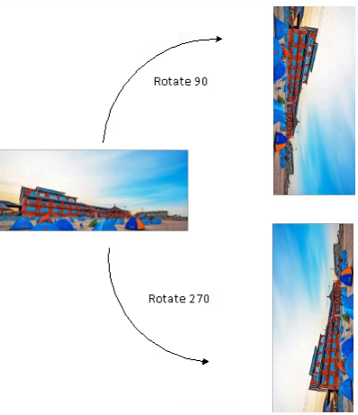

      Figure 1-7 Image Rotation

    • Image Rotation: Supports rotation by 90 degrees or 270 degrees in MOP units, and also supports rotation combined with zooming to meet the requirement of full-screen display after rotation.

    1.3.4.WBC（Video Rewriting）

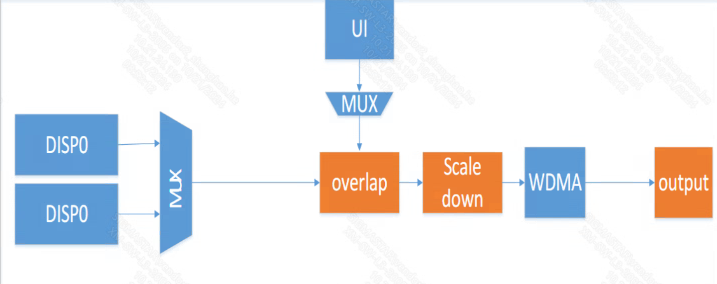

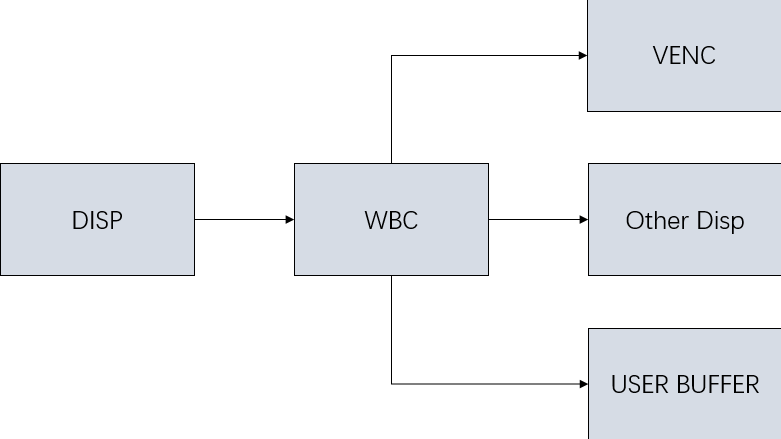

    Figure 1-8 WBC

    • Video re-write device, which captures video layer or device-level video data, can be used for multi-devices with the same source display.

    • The WDMA software is abstracted as WBC. Generally, DISP has no output and is connected to the panel. WBC is used to abstract the output.

    • The WBC input buffer is transferred by disp0/disp1 and then written back to VENC/USER BUFFER/Other Disp.

    1.3.5. PQ（Picture Quality）

    • On chips that support PQ, the output image effect can be adjusted, including saturation, brightness, contrast, sharpness, color temperature, Gamma, and other functions.

    1.4. Application Scenarios

    MI_DISP can be applied in the following scenarios:

    1. Pure linux scenario

      Development is carried out in the Linux environment based on the API interfaces provided by MI_DISP/MI_HDMI/MI_WBC.

    2. Pure rtos scenario

      In the RTOS environment, applications can be developed based on the API interfaces provided by MI_DISP/MI_HDMI/MI_WBC.

    3. Dualos scenario

      In the DualOS environment, applications running on either the Linux side or the RTOS side are all developed based on the MI_DISP/MI_HDMI/MI_WBC API.

    1.5. Chip Differences

    For the current document, please refer to the introduction of1.5.10. Pcupid

    1.5.1. Taiyaki/Takoyaki

    Note:

    1. HDMI and VGA interface can be used at the same time to output an image, whereas MIPI/TTL interface can only be used one at a time to output an image.

    2. The output screen of MOP1 will be superimposed on MOP0 to realize the function of PIP, that is, the display priority of MOP1 is higher than that of MOP0.

    3. The display positions of the 16 Input Ports on MOP0 cannot overlap each other.

    4. The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.

    5. The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

    1.5.2. Pretzel/Pudding

    Note:

    • Pretzel/Pudding does not support to adjust brightness, saturation and chroma.

    • The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.

    • The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

    1.5.3. Tiramisu

    Note:

    • For each device, HDMI and VGA interfaces can be used to output an image at the same time, whereas interfaces like CVBS, MIPI, TTL, BT1120, BT656, BT601, sRGB, MCU can only be output an image separately.

    • The output screen of MOP1 will be superimposed on MOP0 to realize the function of PIP, that is, the display priority of MOP1 is higher than that of MOP0.

    • The display positions of the 16 Input Ports on MOP0 cannot overlap each other.

    • MOP2 and MOP3 are used in the same way as MOP0 and MOP1.

    • The output of DISP0 and DISP1 can be written back to the memory by WBC.

    • The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.

    • The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

    1.5.4. Ikayaki

    Note:

    • TTL/sRGB interface can only be used one to output an image at a time.

    • The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.

    • The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

    1.5.5. Muffin

    Note:

    • For each device, HDMI and VGA interfaces can be used to output an image at the same time, whereas interfaces like CVBS, MIPI, TTL, BT1120, BT656, BT601, sRGB, MCU can only be output an image separately.

    • The output screen of MOP1 will be superimposed on MOP0 to realize the function of PIP, that is, the display priority of MOP1 is higher than that of MOP0.

    • The display positions of the 32 Input Ports on MOP0 cannot overlap each other.

    • MOP⅔ and MOP⅘ are used in the same way as MOP0 and MOP1.

    • The output of DISP0 and DISP1 can be written back to the memory by WBC.

    • The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.

    • The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

    1.5.6. Mochi

    Note:

    • For each device, HDMI and VGA interfaces can be used to output an image at the same time, whereas interfaces like CVBS can only be output an image separately.

    • The output screen of MOP1 will be superimposed on MOP0 to realize the function of PIP, that is, the display priority of MOP1 is higher than that of MOP0.

    • The display positions of the 32 Input Ports on MOP0 cannot overlap each other.

    • MOP2 and MOP3 are used in the same way as MOP0 and MOP1.

    • The output of DISP0 and DISP1 can be written back to the memory by WBC.

    • The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.

    • The input image data format of the DISP module only supports E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420.

    1.5.7. Maruko

    Note:

    • sRGB, TTL, BT656 and BT1120 cannot be output at the same time, only one of them can be output at a time.

    • The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.

    • The input image data format of the DISP module only supports: E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420、 E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420_NV21、 E_MI_SYS_PIXEL_FRAME_YUV420_PLANAR、 E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_422、 E_MI_SYS_PIXEL_FRAME_YUV422_PLANAR、 E_MI_SYS_PIXEL_FRAME_YUV422_YUYV、 E_MI_SYS_PIXEL_FRAME_YUV422_UYVY、 E_MI_SYS_PIXEL_FRAME_ARGB8888、 E_MI_SYS_PIXEL_FRAME_ABGR8888、 E_MI_SYS_PIXEL_FRAME_BGRA8888。

    1.5.8. Opera

    Note:

    • For each device, MIPIDSI and LVDS single channel interfaces can be used to output an image at the same time, whereas interfaces like TTL, BT1120, BT656, LVDS dual channel can only be output an image separately.

    • The output screen of MOP1 will be superimposed on MOP0 to realize the function of PIP, that is, the display priority of MOP1 is higher than that of MOP0.

    • The display positions of the 16 Input Ports on MOP0 cannot overlap each other.

    • MOP2 and MOP3 are used in the same way as MOP0 and MOP1.

    • All ports of Disp1 can be merged to Disp0, a maximum of 66 Gwin ports can be merged.

    • The output of DISP0 and DISP1 can be written back to the memory by WBC.

    • The DISP module and other modules can be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE, MOP1/MOP3 can also be bound through E_MI_SYS_BIND_TYPE_REALTIME.

    • The input image data format of the DISP module supports: E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420、 E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420_NV21、 E_MI_SYS_PIXEL_FRAME_YUV420_PLANAR、 E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_422、 E_MI_SYS_PIXEL_FRAME_YUV422_PLANAR、 E_MI_SYS_PIXEL_FRAME_YUV422_YUYV、 E_MI_SYS_PIXEL_FRAME_YUV422_UYVY、 E_MI_SYS_PIXEL_FRAME_YUV422_VYUY、 E_MI_SYS_PIXEL_FRAME_YUV422_YVYU。 The MOP0 and MOP2 supports only E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420 format.

    • The output image data format of the WBC module supports: E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420、 E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420_NV21、 E_MI_SYS_PIXEL_FRAME_YUV420_PLANAR、 E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_422、 E_MI_SYS_PIXEL_FRAME_YUV422_PLANAR、 E_MI_SYS_PIXEL_FRAME_YUV422_YUYV、 E_MI_SYS_PIXEL_FRAME_YUV422_UYVY、 E_MI_SYS_PIXEL_FRAME_YUV422_VYUY、 E_MI_SYS_PIXEL_FRAME_YUV422_YVYU、 E_MI_SYS_PIXEL_FRAME_ARGB8888。

    1.5.9. Souffle

    Note:

    • MIPIDSI, TTL, BT656 and BT1120 cannot be output at the same time, only one of them can be output at a time.

    • The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.

    • The input image data format of the DISP module only supports: E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420、 E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420_NV21、 E_MI_SYS_PIXEL_FRAME_YUV420_PLANAR、 E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_422、 E_MI_SYS_PIXEL_FRAME_YUV422_PLANAR、 E_MI_SYS_PIXEL_FRAME_YUV422_YUYV、 E_MI_SYS_PIXEL_FRAME_YUV422_UYVY、 E_MI_SYS_PIXEL_FRAME_ARGB8888、 E_MI_SYS_PIXEL_FRAME_ABGR8888、 E_MI_SYS_PIXEL_FRAME_BGRA8888。

    1.5.10. Pcupid

    Note:

    • MIPIDSI, TTL, BT656, sRGB and MCU cannot be output at the same time, only one of them can be output at a time.

    • The DISP module and other modules can only be bound through E_MI_SYS_BIND_TYPE_FRAME_BASE.

    • The input image data format of the DISP module only supports: E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420、 E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420_NV21、 E_MI_SYS_PIXEL_FRAME_YUV420_PLANAR、 E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_422、 E_MI_SYS_PIXEL_FRAME_YUV422_PLANAR、 E_MI_SYS_PIXEL_FRAME_YUV422_YUYV、 E_MI_SYS_PIXEL_FRAME_YUV422_UYVY、 E_MI_SYS_PIXEL_FRAME_YUV422_VYUY、 E_MI_SYS_PIXEL_FRAME_YUV422_YVYU。

    The differences among different chip series are shown in the table below:

    Output interface
    Chip series    		 HDMI VGA MIPI DSI TTL CVBS sRGB BT601 BT656 BT1120 LVDS 8080
    Pretzel Not support Not support Not support Support Not support Not support Not support Not support Not support Not support Not support
    Macaron Not support Not support Not support Not support Not support Not support Not support Not support Not support Not support Not support
    Taiyaki Support Support Not support Not support Not support Not support Not support Not support Not support Not support Not support
    Takoyaki Not support Not support Support Support Not support Not support Not support Not support Not support Not support Not support
    Pudding Not support Not support Not support Support Not support Not support Not support Not support Not support Not support Not support
    Ispahan Not support Not support Not support Support Not support Not support Not support Not support Not support Not support Not support
    Tiramisu Support Support Support Support Support Support Support Support Support Not support Support
    Ikayaki Not support Not support Not support Support Not support Support Not support Not support Not support Not support Not support
    Muffin Support Support Support Support Support Support Support Support Support Not support Support
    Mochi Support Support Not support Not support Support Not support Not support Not support Not support Not support Not support
    Maruko Not support Not support Not support Support Not support Support Not support Support Support Not support Not support
    Opera Not support Not support Support Support Not support Not support Support Support Not support Support Not support
    Souffle Not support Not support Support Support Not support Not support Not support Support Support Not support Not support
    Iford Not support Not support Not support Support Not support Not support Not support Support Not support Not support Not support
    Pcupid Not support Not support Support Support Not support Support Not support Support Not support Not support Support

    1.6. Development Process

    1.6.1 Compilation Configuration

    1. Enter the root directory of the alkaid project，make menuconfig

    2. Press Enter to enter the Sdk Config sub-option.

    3. Press Enter to enter the Interface Compile Config sub-option.

    4. Press the space bar to select the disp sub-module and recompile the project.

      Upon successful compilation, the mi_disp.ko file will be generated under the sdk/interface/src/disp directory. Meanwhile, mi_disp.h, mi_disp_datatype.h, and mi_disp_impl_datatype.h will be released to the project/release directory. In a pure Linux environment, they will be automatically packaged into images by default.

    1.7.2 Configure DISP Parameters

    The output interface configuration parameters of DISP are managed in the system configuration file config.json. The content and PQ fields defined in config.json respectively describe the entries of the screen types supported by the current platform and whether PQ is enabled.

    1. The "content" node mainly describes the interface screen parameter names related to panel, bt, and mipidsi.
    2. The "PQ" node mainly describes whether PQ is enabled and the file used.
    {
    "mi_disp": {
        "content": {
            "m_pnlList": [
                "SAT070AT50H18BH",
                "BT656OUT_800_480",
                "IL8961_SRGB",
                "ST7789V",
                "ILI9341V",
                "RM68200_LX50HDH40145",
                "GC9503v",
                "LX50HDH40136"
            ],
            "m_btList": [
                "BT656OUT_576P_50",
                "BT656OUT_480P_60",
                "BT656OUT_800_480",
                "BT656OUT_720P_25",
                "BT656OUT_720P_30",
                "BT656OUT_720P_50",
                "BT656OUT_720P_60",
                "BT656OUT_1080P_25",
                "BT656OUT_1080P_30"
            ],
            "m_mipidsiList": [
                "MIPIDSI_480P_60",
                "MIPIDSI_576P_50",
                "MIPIDSI_720P_30",
                "MIPIDSI_720P_50",
                "MIPIDSI_720P_60",
                "MIPIDSI_1080P_25",
                "MIPIDSI_1080P_30",
                "MIPIDSI_1080P_50",
                "MIPIDSI_1080P_60",
                "MIPIDSI_2560x1440P_60",
                "MIPIDSI_4KP_30"
            ]
        },
        "PQ": {
            "m_bEnable": 0,
            "m_pFilePath": "/misc/PQ.bin"
        }
    }
}

    Note:If new screen parameters (supported by the chip) need to be added, the new node should be added to the corresponding m_pnlList. If the added screen parameters share the same timing as others, they should be moved forward. Then, the corresponding screen parameter information should be added subsequently.

    The descriptions of each configuration parameter in config.json are as follows:

    Parameter Description
    m_pnlList Interface names supported by the panel type
    m_btList Interface names supported by the bt type
    m_mipidsiList Interface names supported by the mipidsi type
    PQ Describes whether PQ is enabled and the required files)
    m_bEnable Describes whether PQ is currently enabled
    m_pFilePath Describes the current file path required for PQ
    m_pPanelName Describes the current screen model name of the interface
    m_ePanelIntfType Describes the enumeration corresponding to the interface type in the code
    m_ePanelTiming Describes the enumeration corresponding to the timing used by the current interface type
    m_wPanelHSyncWidth Horizontal synchronization pulse width (effective duration of HSYNC)
    m_wPanelHSyncBackPorch Horizontal back porch (time interval from the end of HSYNC to the start of valid data)
    m_wPanelVSyncWidth Vertical synchronization pulse width (effective duration of VSYNC)
    m_wPanelVBackPorch Vertical back porch (time interval from the end of VSYNC to the start of valid data)
    m_wPanelHStart Horizontal start pixel of the valid area
    m_wPanelVStart Vertical start line number of the valid area
    m_wPanelWidth Horizontal pixels of the effective display area (actual resolution width)
    m_wPanelHeight Vertical pixels of the effective display area (actual resolution width)
    m_wPanelHTotal Horizontal total period (including effective area + blanking area)
    m_wPanelVTotal Vertical total period (including effective area + blanking area)
    m_wPanelDCLK Pixel clock frequency
    m_bPanelInvDCLK Pixel clock polarity
    m_bPanelInvDE Data enable signal polarity
    m_bPanelInvHSync Horizontal synchronization signal polarity
    m_bPanelInvVSync Vertical synchronization signal polarity
    m_wSpreadSpectrumFreq Spread spectrum modulation frequency
    m_wSpreadSpectrumRatio Spread spectrum modulation depth
    m_ucPanelSwapChnR Red channel swap
    m_ucPanelSwapChnG Green channel swap
    m_ucPanelSwapChnB Blue channel swap

    1.6.3 Interface Call

    The development of DISP users mainly involves calling APIs to configure DISP-related attributes and output interface timing sequences. Different application scenarios can be achieved through various parameters.

    For other interface usage methods, please refer toAPINote

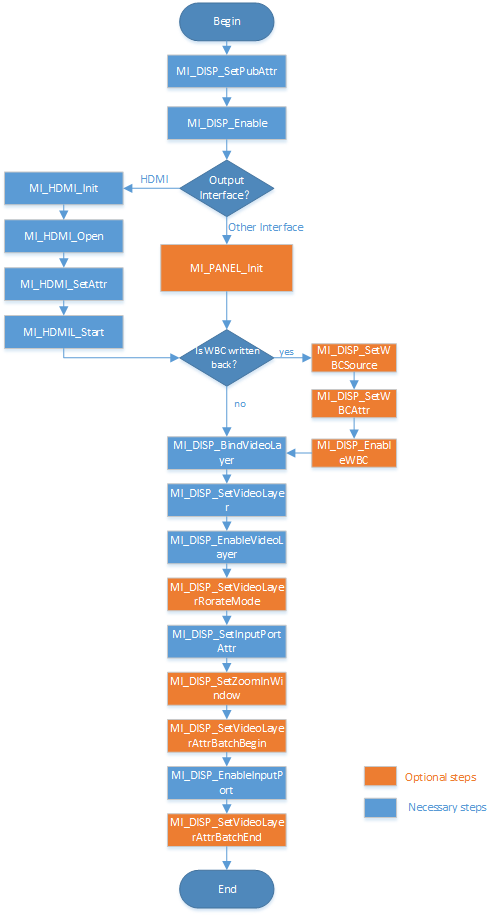

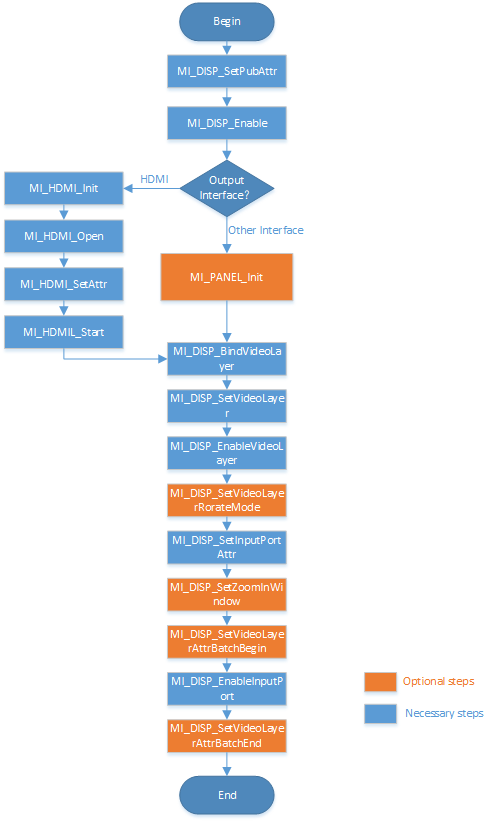

    Figure 1-9 Call Flow of the DISP Interface

    The interface call of DISP is divided into the following steps:

    1. Configure the DISP device

    2. Enable the DISP device

    3. Initialize HDMI/PANEL

    4. Configure the DISP video layer

    5. Bind the DISP video layer to the DISP device

    6. Enable DISP video layer

    7. Configure the DISP input port

    8. Enable DISP input port

    9. Send image data

    1.7. Example Introduction

    This example introduces the calling process of the DISP api

    Function Overview:

    • Display Device initialization: Configure the interface properties of HDMI/PANEL and enable DISP Device.
    • Set WBC to write back data (optional) : Write back DISP data to VENC/USER BUFFER/Other DISP.
    • Video Layer management: Create a video layer (Layer), bind it to DISP Device, device window properties and rotation modes.
    • Input port configuration: Define the parameters of the input source (resolution, display area) and enable the port.
    • Resource release: Disable ports, unbind layers and turn off the device when exiting.
    #include <stdio.h>
#include <unistd.h>
#include <string.h>
#include <pthread.h>
#include <sys/prctl.h>
#include <poll.h>
#include <fcntl.h>
#include <stdlib.h>
#include <signal.h>
#include <assert.h>
#include <sys/resource.h>
#include <sys/mman.h>
#include <sys/types.h>
#include <sys/time.h>
#include <sys/stat.h>
#include "mi_sys.h"
#include "mi_disp.h"
#include "mi_common.h"
#include "mi_panel.h"
#include "mi_hdmi.h"

// Define variables and structures

MI_U32 DispDev = 0;          // Display device ID (such as DISP0)

MI_U32 DispLayer = 0;        // Video layer ID (such as Layer0)

MI_U32 DispInport = 0;       // Input port ID (such as Port0)

MI_S32 DispWbc = 0;          //WBC ID

MI_DISP_PubAttr_t stPubAttr;              // Define the data structure of the Device parameter

MI_DISP_SetWbcSource_t stSetWbcSource;    // Define the wbc write-back source data structure

MI_DISP_SetWbcAttr_t stSetWbcAttr;        // Define the WBC parameter data structure

MI_DISP_VideoLayerAttr_t stLayerAttr;     // Define the parameter data structure of the video layer

MI_DISP_InputPortAttr_t stInputPortAttr;  // Define the data structure of input port parameters

MI_DISP_VidWinRect_t stWinRect;           // Define the data structure of the display window scaling parameters

MI_DISP_RotateConfig_t stRotateConfig;    // Define the data structure of the display window rotation parameter. By default, there is no rotation



memset(&stPubAttr,0,sizeof(MI_DISP_PubAttr_t));

memset(&stLayerAttr,0,sizeof(MI_DISP_VideoLayerAttr_t));

memset(&stInputPortAttr,0,sizeof(MI_DISP_InputPortAttr_t));

memset(&stWinRect, 0, sizeof(MI_DISP_VidWinRect_t));

memset(&stRotateConfig, 0, sizeof(MI_DISP_RotateConfig_t));



// WBC configuration (Non-essential steps)

MI_DISP_SetWBCSource(DispWbc, &stSetWbcSource);

MI_DISP_SetWBCAttr(DispWbc, &stSetWbcAttr);

MI_DISP_EnableWBC(DispWbc);



// Initialize the DISP Device parameter

stPubAttr.eIntfSync = E_MI_DISP_OUTPUT_1080P60;  Output Timing: 1080P60

stPubAttr.eIntfType = E_MI_DISP_INTF_HDMI;       // Interface type: HDMI

MI_DISP_SetPubAttr(DispDev, &stPubAttr);         // Configure the DISP Device parameter

MI_DISP_Enable(DispDev);                         // Enable DISP Device



//HDMI related init

//Necessary steps. Not listed here



// Initialize the video layer parameters

stLayerAttr.stVidLayerSize.u16Width = 1920;          // Wide resolution

stLayerAttr.stVidLayerSize.u16Height = 1080;         // High resolution

stLayerAttr.stVidLayerDispWin.u16X = 0;              // Configure the video layer to display the starting point X

stLayerAttr.stVidLayerDispWin.u16Y = 0;              // Configure the video layer to display the starting point Y

stLayerAttr.stVidLayerDispWin.u16Width = 1920;       // Configure the display width of the video layer

stLayerAttr.stVidLayerDispWin.u16Height = 1080;      // Configure the display height of the video layer

stRotateConfig.eRotateMode = E_MI_DISP_ROTATE_NONE;

MI_DISP_BindVideoLayer(DispLayer,DispDev);           // Bind the video layer to the DISP Device

MI_DISP_SetVideoLayerAttr(DispLayer, &stLayerAttr);  // Configure the video layer parameters

MI_DISP_EnableVideoLayer(DispLayer);                 // Enable the video layer

MI_DISP_SetVideoLayerRotateMode(DispLayer, &stRotateConfig);  // Set the rotation Angle (Non-essential steps)



stInputPortAttr.u16SrcWidth = 1920;                  // Configure the width of the input image

stInputPortAttr.u16SrcHeight = 1080;                 // Configure the height of the input image

stInputPortAttr.stDispWin.u16X = 0;                  // The configuration window displays the coordinate starting point X

stInputPortAttr.stDispWin.u16Y = 0;                  // The configuration window displays the coordinate starting point Y

stInputPortAttr.stDispWin.u16Width = 1920;           // Configure the display width of the window

stInputPortAttr.stDispWin.u16Height = 1080;          // Configure the display height of the window



stWinRect.u16X = 0;                                  // Configure the cropping starting point X of the input graph

stWinRect.u16Y = 0;                                  // Configure the cropping starting point Y of the input graph

stWinRect.u16Width = 1920;                           // Configure the cropping width of the input image

stWinRect.u16Height = 1080;                          // Configure the cropping height of the input image



// Application window configuration

MI_DISP_SetInputPortAttr(DispLayer, DispInport, &stInputPortAttr);  // Configure the display window parameters

MI_DISP_SetZoomInWindow(DispLayer, DispInport, &stWinRect);  // Configure the display window cropping parameters (Non-essential steps)



// Batch processing (Non-essential steps)

MI_DISP_SetVideoLayerAttrBatchBegin(DispLayer);  // Open the window for batch processing

MI_DISP_EnableInputPort(DispLayer, DispInport);  // Enable the window

MI_DISP_SetVideoLayerAttrBatchEnd(DispLayer);    // End the batch processing of the window





/* exit flow */

// Disable the window

MI_DISP_SetVideoLayerAttrBatchBegin(DispLayer);  // Non-essential steps

MI_DISP_DisableInputPort(DispLayer, DispInport); // Close the window



// Unbind the video layer and the display device

MI_DISP_SetVideoLayerAttrBatchEnd(DispLayer);  // Non-essential steps

MI_DISP_DisableVideoLayer(DispLayer);          // Disable the video layer

MI_DISP_UnBindVideoLayer(DispLayer, DispDev);  // Unbind the video layer

MI_DISP_Disable(DispDev);                      // Turn off the DISP Device

    2. API Reference

    The MI DISP module provides the following APIs:

    API Name Function
    MI_DISP_Enable Enable video output device
    MI_DISP_Disable Disable video output device
    MI_DISP_SetPubAttr Set public attribute of video output device
    MI_DISP_GetPubAttr Get public attribute of video output device
    MI_DISP_EnableVideoLayer Enable video layer
    MI_DISP_DisableVideoLayer Disable video layer
    MI_DISP_SetVideoLayerAttr Set video layer attribute
    MI_DISP_GetVideoLayerAttr Get video layer attribute
    MI_DISP_BindVideoLayer Bind video layer to specified device
    MI_DISP_UnBindVideoLayer Unbind video layer from specified device
    MI_DISP_SetPlayToleration Set playback toleration
    MI_DISP_GetPlayToleration Get playback toleration
    MI_DISP_SetVideoLayerAttrBatchBegin Set the input port on the video layer related operations start
    MI_DISP_SetVideoLayerAttrBatchEnd Set the input port on the video layer related operations end
    MI_DISP_EnableInputPort Enable specified video input port
    MI_DISP_DisableInputPort Disable specified video input port
    MI_DISP_SetInputPortAttr Set specified video input port attribute
    MI_DISP_GetInputPortAttr Get specified video input port attribute
    MI_DISP_SetInputPortDispPos Set specified video input port display position
    MI_DISP_GetInputPortDispPos Get specified video input port display position
    MI_DISP_PauseInputPort Pause specified video input port
    MI_DISP_ResumeInputPort Resume specified video input port
    MI_DISP_StepInputPort Play specified video input port by single frame
    MI_DISP_ShowInputPort Show specified video input port
    MI_DISP_HideInputPort Hide specified video input port
    MI_DISP_SetInputPortSyncMode Set specified video input port sync mode
    MI_DISP_QueryInputPortStat Query video input port status
    MI_DISP_SetZoomInWindow Crop video input port
    MI_DISP_GetVgaParam Get VGA output device parameter
    MI_DISP_SetVgaParam Set VGA output device parameter
    MI_DISP_GetHdmiParam Get HDMI output device parameter
    MI_DISP_SetHdmiParam Set HDMI output device parameter
    MI_DISP_GetLcdParam Get LCD output device parameter
    MI_DISP_SetLcdParam Set LCD output device parameter
    MI_DISP_GetCvbsParam Get CVBS output device parameter
    MI_DISP_SetCvbsParam Set CVBS output device parameter
    MI_DISP_DeviceGetColorTempeture Get output image color temperature information
    MI_DISP_DeviceSetColorTempeture Set output image color temperature information
    MI_DISP_DeviceSetGammaParam Adjust output image gamma parameter
    MI_DISP_SetVideoLayerRotateMode Set the rotation Angle of the output image
    MI_DISP_ClearInputPortBuffer Clear the content of specified video input port
    MI_DISP_InitDev Initialize disp device
    MI_DISP_DeInitDev De-initialize disp device
    MI_DISP_SetWBCSource Set the write-back source of the write-back device
    MI_DISP_GetWBCSource Get the write-back source of the write-back device
    MI_DISP_SetWBCAttr Set write-back device attributes
    MI_DISP_GetWBCAttr Get write-back device attributes
    MI_DISP_EnableWBC Enable write-back device
    MI_DISP_DisableWBC Disable write-back device
    MI_DISP_GetCurrentPts Get the timestamp of the currently displayed frame
    MI_DISP_SetPowerConfig Set output power config
    MI_DISP_WriteMipiDsiCmd write mipidsi cmd
    MI_DISP_ReadMipiDsiCmd read mipidsi cmd

    • Note

      • Opera, Souffle, Iford and Pcupid do not need to call the MI_PANEL API.

      • The MIPI interface supported by Takoyaki needs to call the MI_PANEL API.

      • The TTL interfaces supported by Tiramisu, Takoyaki, Muffin, Maruko and Pretzel need to call the MI_PANEL API.

      • The sRGB interfaces supported by Tiramisu, Muffin and Maruko need to call the MI_PANEL API.

      • Tiramisu, the 8080 interface supported by Muffin needs to call the MI_PANEL API.

    2.1. MI_DISP_Enable

    • Function

      Enable video output device

    • Syntax

      MI_S32 MI_DISP_Enable (MI_DISP_DEV DispDev);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Since system will not initialize to enable the device, the device should first be enabled before the video output function can be used.

      • Before calling the device enable function, the public attribute of the device must be set beforehand; otherwise, a device not configured error code will be returned.

      • Souffle and Pcupid do not need to call MI_PANEL API.

      • The MIPI interface supported by Takoyaki needs to call the MI_PANEL API.

      • The TTL interfaces supported by Tiramisu, Takoyaki, Muffin, Maruko and Pretzel need to call the MI_PANEL API.

      • The sRGB interfaces supported by Tiramisu, Muffin and Maruko need to call the MI_PANEL API.

      • Tiramisu, the 8080 interface supported by Muffin needs to call the MI_PANEL API.

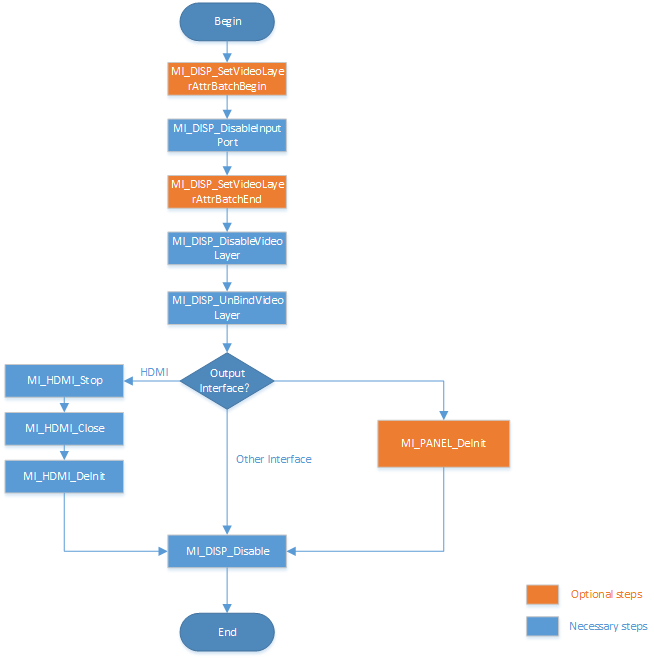

    • Flow Diagram

    • Related API

      MI_DISP_Disable

    2.2. MI_DISP_Disable

    • Function

      Disable video output device

    • Syntax

      MI_S32 MI_DISP_Disable(MI_DISP_DEV DispDev);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Souffle and Pcupid do not need to call MI_PANEL API.

      • The MIPI interface supported by Takoyaki needs to call the MI_PANEL API.

      • The TTL interfaces supported by Tiramisu, Takoyaki, Muffin, Maruko and Pretzel need to call the MI_PANEL API.

      • The sRGB interfaces supported by Tiramisu, Muffin and Maruko need to call the MI_PANEL API.

      • Tiramisu, the 8080 interface supported by Muffin needs to call the MI_PANEL API.

    • Flow Diagram

    • Related API

      MI_DISP_Enable

    2.3. MI_DISP_SetPubAttr

    • Function

      Set public attribute of video output device

    • Syntax

      MI_S32 MI_DISP_SetPubAttr(MI_DISP_DEV DispDev, MI_DISP_PubAttr_t *pstPubAttr);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Output device number Input
      pstPubAttr Pointer to output device public attribute structure Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Related API

      MI_DISP_GetPubAttr

    2.4. MI_DISP_GetPubAttr

    • Function

      Get public attribute of video output device

    • Syntax

      MI_S32 MI_DISP_GetPubAttr (MI_DISP_DEV DispDev, MI_DISP_PubAttr_t *pstPubAttr);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Output device number Input
      pstPubAttr Pointer to output device public attribute structure Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Related API

      MI_DISP_SetPubAttr

    2.5. MI_DISP_EnableVideoLayer

    • Function

      Enable video layer

    • Syntax

      MI_S32 MI_DISP_EnableVideoLayer (MI_DISP_LAYER DispLayer);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Related API

      MI_DISP_DisableVideoLayer

    2.6. MI_DISP_DisableVideoLayer

    • Function

      Disable video layer

    • Syntax

      MI_S32 MI_DISP_DisableVideoLayer (MI_DISP_LAYER DispLayer);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure all input port of video layer has been disabled.

    • Related API

      MI_DISP_EnableVideoLayer

    2.7. MI_DISP_SetVideoLayerAttr

    • Function

      Set video layer attribute

    • Syntax

      MI_S32 MI_DISP_SetVideoLayerAttr(MI_DISP_LAYER DispLayer, MI_DISP_VideoLayerAttr_t *pstLayerAttr);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      pstLayerAttr Pointer to video layer attribute structure Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Related API

      MI_DISP_GetVideoLayerAttr

    2.8. MI_DISP_GetVideoLayerAttr

    • Function

      Get video layer attribute

    • Syntax

      MI_S32 MI_DISP_GetVideoLayerAttr(MI_DISP_LAYER DispLayer, MI_DISP_VideoLayerAttr_t *pstLayerAttr);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      pstLayerAttr Pointer to video layer attribute structure Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Related API

      MI_DISP_SetVideoLayerAttr

    2.9. MI_DISP_BindVideoLayer

    • Function

      Bind video layer to specified device

    • Syntax

      MI_S32 MI_DISP_BindVideoLayer(MI_DISP_LAYER DispLayer, MI_DISP_DEV DispDev);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      DispDev Output device number Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the device has been enabled.

      • Before calling this function, make sure the all input port of video layer has been disabled

      • When DISP is bound to other modules, the mapping relationship between device/video layer/input port of DISP and the corresponding channel/port are as follows.

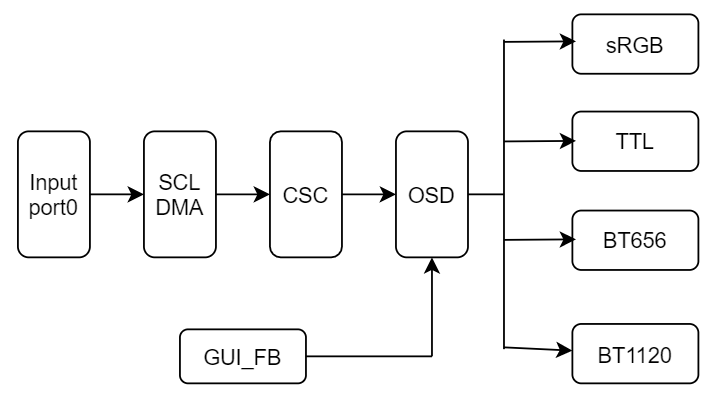

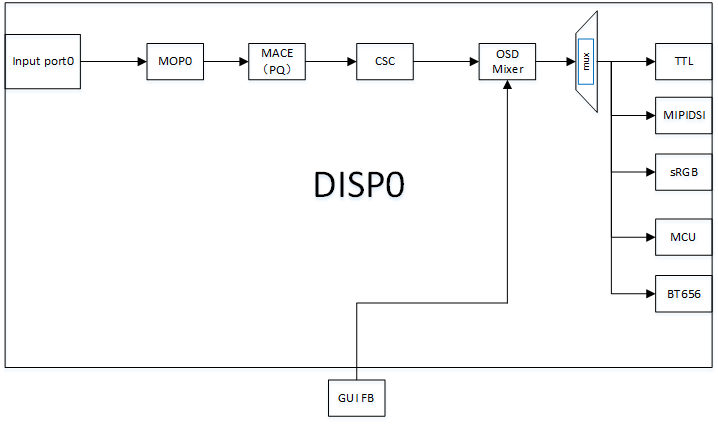

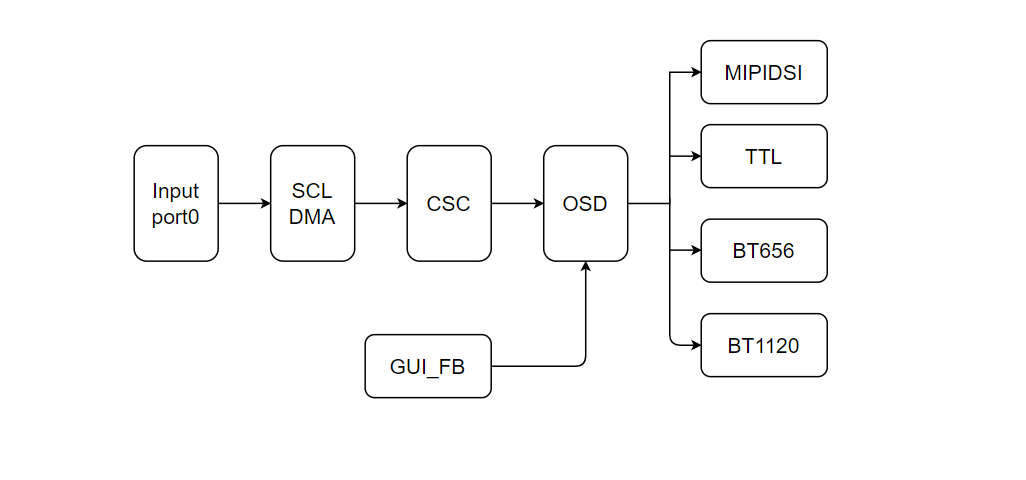

        Tiramisu:

        Muffin supports two binding relationships:

        Mochi supports two binding relationships:

    • Related API

      MI_DISP_UnBindVideoLayer

    2.10. MI_DISP_UnBindVideoLayer

    • Function

      Unbind video layer from specified device

    • Syntax

      MI_S32 MI_DISP_UnBindVideoLayer(MI_DISP_LAYER DispLayer, MI_DISP_DEV DispDev);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      DispDev Output device number Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure all input port of video layer has been disabled.

      • Before calling this function, make sure video layer has been disabled

    • Related API

      MI_DISP_BindVideoLayer

    2.11. MI_DISP_SetPlayToleration

    • Function

      Set playback toleration

    • Syntax

      MI_S32 MI_DISP_SetPlayToleration(MI_DISP_LAYER DispLayer, MI_U32 u32Toleration);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      u32Toleration Playback toleration used to adjust the error tolerance of the frame rate control algorithm Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Playback toleration is measured in unit of millisecond.

      • Before calling this function, make sure the video layer has been enabled.

      • Currently supported chips include MSR930 and MSR650x.

    • Related API

      MI_DISP_GetPlayToleration

    2.12. MI_DISP_GetPlayToleration

    • Function

      Get playback toleration

    • Syntax

      MI_S32 MI_DISP_GetPlayToleration (MI_DISP_LAYER DispLayer, MI_U32 *pu32Toleration);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      pu32Toleration Playback toleration. Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Playback toleration is measured in unit of millisecond.

      • Before calling this function, make sure the video layer has been enabled.

      • Currently supported chips include MSR930 and MSR650x.

    • Related API

      MI_DISP_SetPlayToleration

    2.13. MI_DISP_SetVideoLayerAttrBatchBegin

    2.14. MI_DISP_SetVideoLayerAttrBatchEnd

    • Function

      Set the input port on the video layer related operations end.

    • Syntax

      MI_S32 MI_DISP_SetVideoLayerAttrBatchEnd (MI_DISP_LAYER DispLayer);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the MI_DISP_SetVideoLayerAttrBatchBegin has been called.

      • Before calling this function, make sure the video layer has been enabled.

      • Currently supported chips include Muffin and Mochi.

    • Related API

      MI_DISP_SetVideoLayerAttrBatchBegin

    2.15. MI_DISP_EnableInputPort

    • Function

      Enable specified video input port

    • Syntax

      MI_S32 MI_DISP_EnableInputPort (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      LayerInputPort Video input port number Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

      • Before calling this function, make sure video layer has been bound

    • Related API

      MI_DISP_DisableInputPort

    2.16. MI_DISP_DisableInputPort

    • Function

      Disable specified video input port

    • Syntax

      MI_S32 MI_DISP_DisableInputPort (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      LayerInputPort Video input port number Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    • Related API

      MI_DISP_EnableInputPort

    2.17. MI_DISP_SetInputPortAttr

    • Function

      Set specified video input port attribute

    • Syntax

      MI_S32 MI_DISP_SetInputPortAttr(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_InputPortAttr_t *pstInputPortAttr);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      LayerInputPort Video input port number Input
      pstInputPortAttr Video input port attribute pointer Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

      • Before calling this function, make sure video layer has been bound .

    • Related API

      MI_DISP_GetInputPortAttr

    2.18. MI_DISP_GetInputPortAttr

    • Function

      Get specified video input port attribute

    • Syntax

      MI_S32 MI_DISP_GetInputPortAttr(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_InputPortAttr_t *pstInputPortAttr);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      LayerInputPort Video input port number Input
      pstInputPortAttr Video input port attribute pointer Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

      • Before calling this function, make sure video layer has been bound

    • Related API

      MI_DISP_SetInputPortAttr

    2.19. MI_DISP_SetInputPortDispPos

    • Function

      Set specified video input port display position

    • Syntax

      MI_S32 MI_DISP_SetInputPortDispPos(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, const MI_DISP_Position_t *pstDispPos);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      LayerInputPort Video input port number Input
      pstDispPos Input port position pointer Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    • Related API

      MI_DISP_GetInputPortDispPos

    2.20. MI_DISP_GetInputPortDispPos

    • Function

      Get specified video input port display position

    • Syntax

      MI_S32 MI_DISP_GetInputPortDispPos(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_Position_t *pstDispPos);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      LayerInputPort Video input port number Input
      pstDispPos Input port position pointer Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    • Related API

      MI_DISP_SetInputPortDispPos

    2.21. MI_DISP_PauseInputPort

    2.22. MI_DISP_ResumeInputPort

    2.23. MI_DISP_StepInputPort

    • Function

      Play specified video input port by single frame

    • Syntax

      MI_S32 MI_DISP_StepInputPort (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      LayerInputPort Video input port number Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

      • Currently supported chips include MSR930 and MSR650x.

    • Related API

      MI_DISP_DisableInputPort

      MI_DISP_PauseInputPort

      MI_DISP_ResumeInputPort

      MI_DISP_StepInputPort

      MI_DISP_ShowInputPort

      MI_DISP_HideInputPort

    2.24. MI_DISP_ShowInputPort

    2.25. MI_DISP_HideInputPort

    2.26. MI_DISP_SetInputPortSyncMode

    • Function

      Set specified video input port sync mode

    • Syntax

      MI_S32 MI_DISP_SetInputPortSyncMode (MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_SyncMode_e eMode);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      LayerInputPort Video input port number Input
      eMode Input port sync mode Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

      • Currently supported chips include MSR930 and MSR650x.

    2.27. MI_DISP_QueryInputPortStat

    • Function

      Query video input port status

    • Syntax

      MI_S32 MI_DISP_QueryInputPortStat(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_QueryChanelStatus_t *pstStatus);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output display layer number Input
      LayerInputPort Video input port number Input
      pstStatus Input port status pointer Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    2.28. MI_DISP_SetZoomInWindow

    • Function

      Crop video input port.

    • Syntax

      MI_S32 MI_DISP_SetZoomInWindow(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_DISP_VidWinRect_t *pstZoomRect);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output video layer number. Input
      LayerInputPort Video input port number. Input
      pstZoomRect Video cropping attribute pointer. Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • The video layer must be enabled before calling.

    • Related API

      MI_DISP_VidWinRect_t

    2.29. MI_DISP_GetVgaParam

    • Function

      Get VGA output device parameter

    • Syntax

      MI_S32 MI_DISP_GetVgaParam(MI_DISP_DEV DispDev, MI_DISP_VgaParam_t *pstVgaParam);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstVgaParam Pointer to VGA image output effect structure Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    • Related API

      MI_DISP_SetVgaParam

    2.30. MI_DISP_SetVgaParam

    • Function

      Set VGA output device parameter

    • Syntax

      MI_S32 MI_DISP_SetVgaParam (MI_DISP_DEV DispDev, MI_DISP_VgaParam_t *pstVgaParam);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstVgaParam Pointer to VGA image output effect structure Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    • Related API

      MI_DISP_GetVgaParam

    2.31. MI_DISP_GetHdmiParam

    • Function

      Get HDMI output device parameter

    • Syntax

      MI_S32 MI_DISP_GetHdmiParam(MI_DISP_DEV DispDev, MI_DISP_HdmiParam_t *pstHdmiParam);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video Output device number Input
      pstHdmiParam Pointer to HDMI image output effect structure Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    • Related API

      MI_DISP_SetHdmiParam

    2.32. MI_DISP_SetHdmiParam

    • Function

      Set HDMI output device parameter

    • Syntax

      MI_S32 MI_DISP_SetHdmiParam(MI_DISP_DEV DispDev, MI_DISP_HdmiParam_t *pstHdmiParam);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstHdmiParam Pointer to HDMI image output effect structure Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    • Related API

      MI_DISP_GetHdmiParam

    2.33. MI_DISP_GetLcdParam

    • Function

      Get LCD output device parameter

    • Syntax

      MI_S32 MI_DISP_GetLcdParam(MI_DISP_DEV DispDev, MI_DISP_LcdParam_t *pstLcdParam);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstLcdParam Pointer to LCD image output effect structure Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    • Related API

      MI_DISP_SetLcdParam

    2.34. MI_DISP_SetLcdParam

    • Function

      Set LCD output device parameter

    • Syntax

      MI_S32 MI_DISP_SetLcdParam(MI_DISP_DEV DispDev, MI_DISP_LcdParam_t *pstLcdParam);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstLcdParam Pointer to LCD image output effect structure Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    • Related API

      MI_DISP_GetLcdParam

    2.35. MI_DISP_GetCvbsParam

    • Function

      Get CVBS output device parameter

    • Syntax

      MI_S32 MI_DISP_GetCvbsParam(MI_DISP_DEV DispDev, MI_DISP_CvbsParam_t *pstCvbsParam);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstCvbsParam CVBS image output effect structure pointer Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    • Related API

      MI_DISP_SetCvbsParam

    2.36. MI_DISP_SetCvbsParam

    • Function

      Set CVBS output device parameter

    • Syntax

      MI_S32 MI_DISP_SetCvbsParam(MI_DISP_DEV DispDev, MI_DISP_CvbsParam_t *pstCvbsParam);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstCvbsParam CVBS image output effect structure pointer Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    • Related API

      MI_DISP_GetCvbsParam

    2.37. MI_DISP_DeviceGetColorTempeture

    • Function

      Get output image color temperature information

    • Syntax

      MI_S32 MI_DISP_DeviceGetColorTempeture(MI_DISP_DEV DispDev, MI_DISP_ColorTemperature_t *pstColorTempInfo);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstColorTempInfo Pointer to output image color temperature structure Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

      • Currently supported chips include Takoyaki series.

    • Related API

      MI_DISP_DeviceSetColorTempeture

    2.38. MI_DISP_DeviceSetColorTempeture

    • Function

      Set image output color temperature information

    • Syntax

      MI_S32 MI_DISP_DeviceSetColorTempeture(MI_DISP_DEV DispDev, MI_DISP_ColorTemperature_t *pstColorTempInfo);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstColorTempInfo Pointer to output image color temperature structure Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

      • Currently supported chips include Takoyaki series.

    • Related API

      MI_DISP_DeviceGetColorTempeture

    2.39. MI_DISP_DeviceSetGammaParam

    • Function

      Adjust output image Gamma

    • Syntax

      MI_S32 MI_DISP_DeviceSetGammaParam(MI_DISP_DEV DispDev, MI_DISP_GammaParam_t *pstGammaParam);

    • Parameter

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstGammaParam Pointer to output image gamma structure Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

      • Currently supported chips include Takoyaki series.

    2.40. MI_DISP_SetVideoLayerRotateMode

    • Function

      Set video layer rotation mode

    • Syntax

      MI_S32 MI_DISP_SetVideoLayerRotateMode(MI_DISP_LAYER DispLayer, MI_DISP_RotateConfig_t *pstRotateConfig);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output layer number Input
      pstRotateConfig Pointer to rotation angle structure of the output image Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Currently supported chips include Takoyaki/Tiramisu/Muffin series. Only Takoyaki support 180 degrees of rotation.

      • Before calling this function, make sure video layer has been enabled.

      • Before calling this function, make sure all input port of video layer has been disabled.

      • Need to be bound by VDEC/SCL.

      • Each video layer only supports one input port. For example, when turn on 90 degrees of rotation, each video layer can only enable input port 0.

      • The rotate mode maximum supported resolution is 1920x1080.

    2.41. MI_DISP_ClearInputPortBuffer

    • Function

      Clear the content of specified video input port

    • Syntax

      MI_S32 MI_DISP_ClearInputPortBuffer(MI_DISP_LAYER DispLayer, MI_DISP_INPUTPORT LayerInputPort, MI_BOOL  bClrAll);

    • Parameter

      Parameter Name Description Input/Output
      DispLayer Video output layer number Input
      LayerInputPort Video input port number Input
      bClrAll The flag of clearing current display content Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer has been enabled.

    2.42. MI_DISP_InitDev

    • Function

      Initialize disp device.

    • Syntax

      MI_S32 MI_DISP_InitDev(MI_DISP_InitParam_t *pstInitParam);

    • Parameters

      Parameter Name Description Input/Output
      pstInitParam Initialization Parameter Currently unused and can be configured as NULL Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • If this interface is not called before calling any DISP API, the device will be initialized automatically in the code.

    2.43. MI_DISP_DeInitDev

    • Function

      De-initialize disp device.

    • Syntax

      MI_S32 MI_DISP_DeInitDev(void);

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • This interface should be called after the device has been initialized; otherwise, a failed message will be returned.

      • If this interface is not called after the app exited, the disp device will be auto de-initialized.

      • Please call this interface before dynamically switching to the next interface type.

    2.44. MI_DISP_SetWBCSource

    • Function

      Set the write-back source of the video write-back device, the device or the video layer of the device can be set.

    • Syntax

      MI_S32 MI_DISP_SetWBCSource(MI_DISP_WBC DispWbc, const MI_DISP_WBC_Source_t *pstWbcSource);

    • Parameters

      Parameter Name Description Input/Output
      DispWbc Write back the device number. Input
      pstWbcSource Write back the source structure pointer. Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Only supports Tiramisu/ Muffin/ Mochi, and one write-back device.

      • u32SourceId only supported 0/1.

    • Example

      MI_DISP_WBC_Source_t stWbcSource;
MI_DISP_WBC_Attr_t stWbcAttr;

stWbcSource.eSourceType = MI_DISP_WBC_SOURCE_DEV;
stWbcSource.u32SourceId = 0;
MI_DISP_SetWBCSource(0, &stWbcSource);

stWbcAttr.stTargetSize.u32Width = 720;
stWbcAttr.stTargetSize.u32Height = 576;
stWbcAttr.ePixFormat = E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420;
MI_DISP_SetWBCAttr(0, &stWbcAttr);
MI_DISP_EnableWBC(0);

stSrcChnPort.eModId = E_MI_MODULE_ID_WBC;
stSrcChnPort.u32DevId = 0;
stSrcChnPort.u32ChnId = 0;
stSrcChnPort.u32PortId = 0;

stDstChnPort.eModId = E_MI_MODULE_ID_DISP;
stDstChnPort.u32DevId = 1;
stDstChnPort.u32ChnId = 0;
stDstChnPort.u32PortId = 0;

MI_SYS_BindChnPort(0, &stSrcChnPort, &stDstChnPort, 30, 30);

    • Related API

      MI_DISP_GetWBCSource

      MI_DISP_SetWBCAttr

      MI_DISP_GetWBCAttr

      MI_DISP_EnableWBC

      MI_DISP_DisableWBC

    2.45. MI_DISP_GetWBCSource

    • Function

      Get the write-back source from the video write-back device.

    • Syntax

      MI_S32 MI_DISP_GetWBCSource(MI_DISP_WBC DispWbc, MI_DISP_WBC_Source_t *pstWbcSource);

    • Parameters

      Parameter Name Description Input/Output
      DispWbc Write back the device number. Input
      pstWbcSource Write back the source structure pointer. Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Related API

      MI_DISP_SetWBCSource

      MI_DISP_SetWBCAttr

      MI_DISP_GetWBCAttr

      MI_DISP_EnableWBC

      MI_DISP_DisableWBC

    2.46. MI_DISP_SetWBCAttr

    • Function

      Set video write-back device attributes.

    • Syntax

      MI_S32 MI_DISP_SetWBCAttr(MI_DISP_WBC DispWbc, const MI_DISP_WBC_Attr_t *pstWbcAttr);

    • Parameters

      Parameter Name Description Input/Output
      DispWbc Write back the device number. Input
      pstWbcAttr Write back the device attribute structure pointer. Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Related API

      MI_DISP_SetWBCSource

      MI_DISP_GetWBCSource

      MI_DISP_GetWBCAttr

      MI_DISP_EnableWBC

      MI_DISP_DisableWBC

    2.47. MI_DISP_GetWBCAttr

    • Function

      Get video write-back device attributes.

    • Syntax

      MI_S32 MI_DISP_GetWBCAttr(MI_DISP_WBC DispWbc, MI_DISP_WBC_Attr_t *pstWbcAttr);

    • Parameters

      Parameter Name Description Input/Output
      DispWbc Write back the device number. Input
      pstWbcAttr Write back the device attribute structure pointer. Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Related API

      MI_DISP_SetWBCSource

      MI_DISP_GetWBCSource

      MI_DISP_SetWBCAttr

      MI_DISP_EnableWBC

      MI_DISP_DisableWBC

    2.48. MI_DISP_EnableWBC

    2.49. MI_DISP_DisableWBC

    2.50. MI_DISP_GetCurrentPts

    • Function

      Get the timestamp of the currently displayed frame.

    • Syntax

      MI_S32 MI_DISP_GetCurrentPts (MI_DISP_LAYER DispLayer,
MI_DISP_INPUTPORT LayerInputPort, MI_U64 *pu64Pts);

    • Parameters

      Parameter Name Description Input/Output
      DispLayer Video output display layer number. Input
      LayerInputPort Video input port number Input
      pu64Pts Write back the timestamp pointer Output

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    • Note

      • Before calling this function, make sure the video layer input port has been enabled.

    2.51. MI_DISP_SetPowerConfig

    • Function

      Set output power config.

    • Syntax

      MI_S32 MI_DISP_SetPowerConfig (MI_DISP_DEV DispDev, MI_DISP_PowerConfig_t *pstPowerCfg);

    • Parameters

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstPowerCfg config pointer Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    2.52. MI_DISP_WriteMipiDsiCmd

    • Function

      write mipidsi cmd.

    • Syntax

      MI_S32 MI_DISP_WriteMipiDsiCmd(MI_DISP_DEV DispDev, MI_DISP_WriteMipiDsiCmd_t *pstWriteMipiDsiCmd);

    • Parameters

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstWriteMipiDsiCmd config pointer Input

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    2.53. MI_DISP_ReadMipiDsiCmd

    • Function

      read mipidsi cmd

    • Syntax

      MI_S32 MI_DISP_ReadMipiDsiCmd(MI_DISP_DEV DispDev, MI_DISP_ReadMipiDsiCmd_t *pstReadMipiDsiCmd);

    • Parameters

      Parameter Name Description Input/Output
      DispDev Video output device number Input
      pstReadMipiDsiCmd config pointer Input/Ouput

    • Return Value

      • Zero: Successful

      • Non-zero: Failed, see error code for details

    • Requirement

      • Header file: mi_disp.h, mi_disp_datatype.h

      • Lib: libmi_disp.a / libmi_disp.so

    3. DATA TYPE

    The table below lists the data type definitions of the DISP module:

    Data Structure Description
    MI_DISP_DEV Define the DISP_DEV type
    MI_DISP_LAYER Define the DISP_LAYER type
    MI_DISP_INPUTPORT Define the LAYER_INPUTPORT type
    MI_DISP_Interface_e Define the DISP interface type
    MI_DISP_IntfSync_e Define DISP timing type
    MI_DISP_SyncInfo_t Define the DISP sync information
    MI_DISP_PubAttr_t Define the DISP public attribute
    MI_DISP_Csc_t Define the DISP color space conversion information
    MI_DISP_CscMatrix_e Define the DISP color space conversion matrix
    MI_DISP_VgaParam_t Define the DISP VGA parameter information
    MI_DISP_HdmiParam_t Define the DISP HDMI parameter information
    MI_DISP_LcdParam_t Define the DISP LCD parameter information
    MI_DISP_CvbsParam_t Define the DISP CVBS output image parameter
    MI_DISP_ColorTemperature_t Define the DISP color temperature parameter
    MI_DISP_GammaParam_t Define the DISP Gamma parameter
    MI_DISP_VideoLayerSize_t
    Define the DISP video layer size
    MI_DISP_VideoLayerAttr_t Define the DISP video layer attribute
    MI_DISP_RotateMode_e Define the DISP rotation angle information
    MI_DISP_RotateConfig_t Define the DISP rotation parameter
    MI_DISP_VidWinRect_t Define the DISP window attribute
    MI_DISP_InputPortAttr_t Define the DISP input port attribute
    MI_DISP_Position_t Define the DISP input port position
    MI_DISP_SyncMode_e Define the DISP sync mode
    MI_DISP_InputPortStatus_e Define the DISP input port status type
    MI_DISP_QueryChannelStatus_t Define the DISP input port status information
    MI_DISP_InitParam_t Define the initialized parameter of DISP device
    MI_DISP_WBC Define the type of DISP_WBC.
    MI_DISP_WBC_SourceType_e The source type of the data captured by the video write-back device
    MI_DISP_WBC_Source_t The write-back source of video write-back device
    MI_DISP_WBC_TargetSize_t The target size of the video write-back device
    MI_DISP_WBC_Attr_t Video write-back device attributes
    MI_DISP_PowerConfig_t Output power config.
    MI_DISP_MipiDsiPacketType_e Mipidsi packet type.
    MI_DISP_WriteMipiDsiCmd_t Write mipidsi cmd config.
    MI_DISP_ReadMipiDsiCmd_t Read mipidsi cmd config.

    3.1. MI_DISP_DEV

    • Description

      Define the DISP_DEV type

    • Definition

      typedef MI_S32 MI_DISP_DEV;

    3.2. MI_DISP_LAYER

    • Description

      Define the DISP_LAYER type.

      Video layer is the output unit of DISP. For DISP with multiple input ports, all input ports are eventually spliced into a video layer and output to the monitor or LCD. For DISP with only one input port, the input port size is equal to the video layer size.

    • Definition

      typedef MI_S32 MI_DISP_LAYER;

    3.3. MI_DISP_INPUTPORT

    • Description

      Define the LAYER_INPUTPORT type.

    • Definition

      typedef MI_S32 MI_DISP_INPUTPORT;

    3.4. MI_DISP_Interface_e

    • Description

      Define video output interface.

    • Definition

      typedef enum
{
    E_MI_DISP_INTF_CVBS = 0,
    E_MI_DISP_INTF_YPBPR,
    E_MI_DISP_INTF_VGA,
    E_MI_DISP_INTF_BT656,
    E_MI_DISP_INTF_BT1120,
    E_MI_DISP_INTF_HDMI,
    E_MI_DISP_INTF_LCD,
    E_MI_DISP_INTF_BT656_H,
    E_MI_DISP_INTF_BT656_L,
    E_MI_DISP_INTF_TTL,
    E_MI_DISP_INTF_MIPIDSI,
    E_MI_DISP_INTF_TTL_SPI_IF,
    E_MI_DISP_INTF_SRGB,
    E_MI_DISP_INTF_MCU,
    E_MI_DISP_INTF_MCU_NOFLM,
    E_MI_DISP_INTF_BT601,
    E_MI_DISP_INTF_BT1120_DDR,
    E_MI_DISP_INTF_LVDS,
    E_MI_DISP_INTF_LVDS1,
    E_MI_DISP_INTF_DUAL_LVDS,
    E_MI_DISP_INTF_MIPIDSI1,
    E_MI_DISP_INTF_MAX,
}MI_DISP_Interface_e;

    • Supported Timings

      eIntfType eIntfSync
      E_MI_DISP_INTF_HDMI E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_1080P24, E_MI_DISP_OUTPUT_1920x1080_2997, E_MI_DISP_OUTPUT_1920x1080_5994, E_MI_DISP_OUTPUT_1920x1080_2398, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_720P24, E_MI_DISP_OUTPUT_1280x720_2997, E_MI_DISP_OUTPUT_1280x720_5994, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_640x480_60, E_MI_DISP_OUTPUT_848x480_60, E_MI_DISP_OUTPUT_800x600_60, E_MI_DISP_OUTPUT_2560x1440_60, E_MI_DISP_OUTPUT_2560x1440_50, E_MI_DISP_OUTPUT_2560x1440_30, E_MI_DISP_OUTPUT_2560x1600_60, E_MI_DISP_OUTPUT_1024x768_60, E_MI_DISP_OUTPUT_1280x1024_60, E_MI_DISP_OUTPUT_1366x768_60, E_MI_DISP_OUTPUT_1440x900_60, E_MI_DISP_OUTPUT_1280x800_60, E_MI_DISP_OUTPUT_1680x1050_60, E_MI_DISP_OUTPUT_1600x1200_60, E_MI_DISP_OUTPUT_1280x768_60, E_MI_DISP_OUTPUT_1280x960_60, E_MI_DISP_OUTPUT_1360x768_60, E_MI_DISP_OUTPUT_1400x1050_60, E_MI_DISP_OUTPUT_1600x900_60, E_MI_DISP_OUTPUT_1920x1440_60, E_MI_DISP_OUTPUT_1920x1200_60, E_MI_DISP_OUTPUT_3840x2160_30, E_MI_DISP_OUTPUT_3840x2160_25, E_MI_DISP_OUTPUt_3840x2160_24, E_MI_DISP_OUTPUT_3840x2160_2997
      E_MI_DISP_INTF_VGA E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_1080P24, E_MI_DISP_OUTPUT_1920x1080_2997, E_MI_DISP_OUTPUT_1920x1080_5994, E_MI_DISP_OUTPUT_1920x1080_2398, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_720P24, E_MI_DISP_OUTPUT_1280x720_2997, E_MI_DISP_OUTPUT_1280x720_5994, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_640x480_60, E_MI_DISP_OUTPUT_848x480_60, E_MI_DISP_OUTPUT_800x600_60, E_MI_DISP_OUTPUT_1024x768_60, E_MI_DISP_OUTPUT_1280x1024_60, E_MI_DISP_OUTPUT_1366x768_60, E_MI_DISP_OUTPUT_1440x900_60, E_MI_DISP_OUTPUT_1280x800_60, E_MI_DISP_OUTPUT_1680x1050_60, E_MI_DISP_OUTPUT_1600x1200_60, E_MI_DISP_OUTPUT_1280x768_60, E_MI_DISP_OUTPUT_1280x960_60, E_MI_DISP_OUTPUT_1360x768_60, E_MI_DISP_OUTPUT_1400x1050_60, E_MI_DISP_OUTPUT_1600x900_60, E_MI_DISP_OUTPUT_1920x1200_60
      E_MI_DISP_INTF_HDMI+E_MI_DISP_INTF_VGA E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_1080P24, E_MI_DISP_OUTPUT_1920x1080_2997, E_MI_DISP_OUTPUT_1920x1080_5994, E_MI_DISP_OUTPUT_1920x1080_2398, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_720P24, E_MI_DISP_OUTPUT_1280x720_2997, E_MI_DISP_OUTPUT_1280x720_5994, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_640x480_60, E_MI_DISP_OUTPUT_848x480_60, E_MI_DISP_OUTPUT_800x600_60, E_MI_DISP_OUTPUT_1024x768_60, E_MI_DISP_OUTPUT_1280x1024_60, E_MI_DISP_OUTPUT_1366x768_60, E_MI_DISP_OUTPUT_1440x900_60, E_MI_DISP_OUTPUT_1280x800_60, E_MI_DISP_OUTPUT_1680x1050_60, E_MI_DISP_OUTPUT_1600x1200_60, E_MI_DISP_OUTPUT_1280x768_60, E_MI_DISP_OUTPUT_1280x960_60, E_MI_DISP_OUTPUT_1360x768_60, E_MI_DISP_OUTPUT_1400x1050_60, E_MI_DISP_OUTPUT_1600x900_60, E_MI_DISP_OUTPUT_1920x1200_60
      E_MI_DISP_INTF_BT1120 E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_720I25, E_MI_DISP_OUTPUT_720I30, E_MI_DISP_OUTPUT_720I50, E_MI_DISP_OUTPUT_720I60, E_MI_DISP_OUTPUT_1080I25, E_MI_DISP_OUTPUT_1080I30, E_MI_DISP_OUTPUT_USER
      E_MI_DISP_INTF_BT1120_DDR E_MI_DISP_OUTPUT_3840x2160_30, E_MI_DISP_OUTPUT_3840x2160_25, E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_USER
      E_MI_DISP_INTF_BT656 E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_720I25, E_MI_DISP_OUTPUT_720I30, E_MI_DISP_OUTPUT_720I50, E_MI_DISP_OUTPUT_720I60, E_MI_DISP_OUTPUT_1080I25, E_MI_DISP_OUTPUT_1080I30, E_MI_DISP_OUTPUT_USER
      E_MI_DISP_INTF_CVBS E_MI_DISP_OUTPUT_PAL, E_MI_DISP_OUTPUT_NTSC
      E_MI_DISP_INTF_TTL E_MI_DISP_OUTPUT_USER
      E_MI_DISP_INTF_MIPIDSI E_MI_DISP_OUTPUT_3840x2160_30, E_MI_DISP_OUTPUT_3840x2160_25, E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_USER
      E_MI_DISP_INTF_MIPIDSI1 E_MI_DISP_OUTPUT_3840x2160_30, E_MI_DISP_OUTPUT_3840x2160_25, E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_USER
      E_MI_DISP_INTF_MCU E_MI_DISP_OUTPUT_USER
      E_MI_DISP_INTF_MCU_NOFLM E_MI_DISP_OUTPUT_USER
      E_MI_DISP_INTF_SRGB E_MI_DISP_OUTPUT_USER
      E_MI_DISP_INTF_LVDS E_MI_DISP_OUTPUT_3840x2160_30, E_MI_DISP_OUTPUT_3840x2160_25, E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_USER
      E_MI_DISP_INTF_LVDS1 E_MI_DISP_OUTPUT_3840x2160_30, E_MI_DISP_OUTPUT_3840x2160_25, E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_USER
      E_MI_DISP_INTF_DUAL_LVDS E_MI_DISP_OUTPUT_3840x2160_30, E_MI_DISP_OUTPUT_3840x2160_25, E_MI_DISP_OUTPUT_1080P60, E_MI_DISP_OUTPUT_1080P30, E_MI_DISP_OUTPUT_1080P50, E_MI_DISP_OUTPUT_1080P25, E_MI_DISP_OUTPUT_720P60, E_MI_DISP_OUTPUT_720P30, E_MI_DISP_OUTPUT_720P50, E_MI_DISP_OUTPUT_720P25, E_MI_DISP_OUTPUT_480P60, E_MI_DISP_OUTPUT_576P50, E_MI_DISP_OUTPUT_USER

    • Note

      • E_MI_DISP_INTF_BT1120 is single edge sampling; E_MI_DISP_INTF_BT1120_DDR is double edge sampling
      • Currently, only Souffle chip(interface: bt1120 and bt656) supports these timing: E_MI_DISP_OUTPUT_720I25, E_MI_DISP_OUTPUT_720I30, E_MI_DISP_OUTPUT_720I50, E_MI_DISP_OUTPUT_720I60, E_MI_DISP_OUTPUT_1080I25, E_MI_DISP_OUTPUT_1080I30.

    • Related Data Type and Interface

      MI_DISP_PubAttr_t

      MI_DISP_SetPubAttr

    3.5. MI_DISP_IntfSync_e

    • Description

      define DISP timing type.

    • Definition

      typedef enum
{
    E_MI_DISP_OUTPUT_PAL = 0,
    E_MI_DISP_OUTPUT_NTSC,
    E_MI_DISP_OUTPUT_960H_PAL,  /* ITU-R BT.1302 960 x 576 at 50 Hz (interlaced)*/
    E_MI_DISP_OUTPUT_960H_NTSC, /* ITU-R BT.1302 960 x 480 at 60 Hz (interlaced)*/

    E_MI_DISP_OUTPUT_480i60,
    E_MI_DISP_OUTPUT_576i50,
    E_MI_DISP_OUTPUT_480P60,
    E_MI_DISP_OUTPUT_576P50,
    E_MI_DISP_OUTPUT_720P50,
    E_MI_DISP_OUTPUT_720P60,
    E_MI_DISP_OUTPUT_1080P24,
    E_MI_DISP_OUTPUT_1080P25,
    E_MI_DISP_OUTPUT_1080P30,
    E_MI_DISP_OUTPUT_1080I50,
    E_MI_DISP_OUTPUT_1080I60,
    E_MI_DISP_OUTPUT_1080P50,
    E_MI_DISP_OUTPUT_1080P60,

    E_MI_DISP_OUTPUT_640x480_60,   /* VESA 640 x 480 at 60 Hz (non-interlaced) CVT */
    E_MI_DISP_OUTPUT_800x600_60,   /* VESA 800 x 600 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1024x768_60,  /* VESA 1024 x 768 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1280x1024_60, /* VESA 1280 x 1024 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1366x768_60,  /* VESA 1366 x 768 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1440x900_60,  /* VESA 1440 x 900 at 60 Hz (non-interlaced) CVT Compliant */
    E_MI_DISP_OUTPUT_1280x800_60,  /* 1280*800@60Hz VGA@60Hz*/
    E_MI_DISP_OUTPUT_1680x1050_60, /* VESA 1680 x 1050 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1920x2160_30, /* 1920x2160_30 */
    E_MI_DISP_OUTPUT_1600x1200_60, /* VESA 1600 x 1200 at 60 Hz (non-interlaced) */
    E_MI_DISP_OUTPUT_1920x1200_60, /* VESA 1920 x 1600 at 60 Hz (non-interlaced) CVT (Reduced Blanking)*/

    E_MI_DISP_OUTPUT_2560x1440_30,   /* 2560x1440_30 */
    E_MI_DISP_OUTPUT_2560x1440_50,   /* 2560x1440_50 */
    E_MI_DISP_OUTPUT_2560x1440_60,   /* 2560x1440_60 */
    E_MI_DISP_OUTPUT_2560x1600_60,   /* 2560x1600_60 */
    E_MI_DISP_OUTPUT_3840x2160_25,   /* 3840x2160_25 */
    E_MI_DISP_OUTPUT_3840x2160_30,   /* 3840x2160_30 */
    E_MI_DISP_OUTPUT_3840x2160_60,   /* 3840x2160_60 */
    E_MI_DISP_OUTPUT_1920x1080_5994, /* 1920x1080_59.94 */
    E_MI_DISP_OUTPUT_1920x1080_2997, /* 1920x1080_29.97 */
    E_MI_DISP_OUTPUT_1280x720_5994,  /* 1280X720_59.94 */
    E_MI_DISP_OUTPUT_1280x720_2997,  /* 1280x720_29.97 */
    E_MI_DISP_OUTPUT_3840x2160_2997, /* 3840x2160_29.97 */
    E_MI_DISP_OUTPUT_720P24,         /* 1280x720_24 */
    E_MI_DISP_OUTPUT_720P25,         /* 1280x720_25 */
    E_MI_DISP_OUTPUT_720P30,         /* 1280x720_30 */
    E_MI_DISP_OUTPUT_1920x1080_2398, /* 1920x1080_23.98*/
    E_MI_DISP_OUTPUt_3840x2160_24,   /* 3840x2160_24 */
    E_MI_DISP_OUTPUT_848x480_60,     /* 848x480_60 */
    E_MI_DISP_OUTPUT_1280x768_60,    /* 1280x768_60 */
    E_MI_DISP_OUTPUT_1280x960_60,    /* 1280x960_60 */
    E_MI_DISP_OUTPUT_1360x768_60,    /* 1360x768_60 */
    E_MI_DISP_OUTPUT_1400x1050_60,   /* 1400x1050_60 */
    E_MI_DISP_OUTPUT_1600x900_60,    /* 1600x900_60 */
    E_MI_DISP_OUTPUT_1920x1440_60,    /* 1920x1440_60 */
    E_MI_DISP_OUTPUT_USER,
    E_MI_DISP_OUTPUT_720I25,        /*only for bt1120 and bt656*/
    E_MI_DISP_OUTPUT_720I30,
    E_MI_DISP_OUTPUT_720I50,        /*only for bt1120 and bt656*/
    E_MI_DISP_OUTPUT_720I60,        /*only for bt1120 and bt656*/
    E_MI_DISP_OUTPUT_1080I25,       /*only for bt1120 and bt656*/
    E_MI_DISP_OUTPUT_1080I30,
    E_MI_DISP_OUTPUT_MAX,
} MI_DISP_OutputTiming_e;

    • Member

      For each Timing definition, LCD display should use E_MI_DISP_OUTPUT_USER.

    • Related Data Type and Interface

      MI_DISP_PubAttr_t

      MI_DISP_SetPubAttr。

    3.6. MI_DISP_SyncInfo_t

    • Description

      Define the DISP sync information

    • Definition

      typedef struct MI_DISP_SyncInfo_s
{
    MI_BOOL  bSynm;     /* sync mode(0:timing,as BT.656; 1:signal,as LCD) */
    MI_BOOL  bIop;      /* interlaced or progressive display(0:i; 1:p) */
    MI_U8     u8Intfb;   /* interlace bit width while output */

    MI_U16   u16VStart ;   /* vertical de start */
    MI_U16   u16Vact ;   /* vertical active area */
    MI_U16   u16Vbb;    /* vertical back blank porch */
    MI_U16   u16Vfb;    /* vertical front blank porch */

    MI_U16   u16HStart;   /* herizontal de start */
    MI_U16   u16Hact;   /* herizontal active area */
    MI_U16   u16Hbb;    /* herizontal back blank porch */
    MI_U16   u16Hfb;    /* herizontal front blank porch */
    MI_U16   u16Hmid;   /* bottom herizontal active area */

    MI_U16   u16Bvact;  /* bottom vertical active area */
    MI_U16   u16Bvbb;   /* bottom vertical back blank porch */
    MI_U16   u16Bvfb;   /* bottom vertical front blank porch */

    MI_U16   u16Hpw;    /* horizontal pulse width */
    MI_U16   u16Vpw;    /* vertical pulse width */

    MI_BOOL  bIdv;      /* inverse data valid of output */
    MI_BOOL  bIhs;      /* inverse horizontal synch signal */
    MI_BOOL  bIvs;      /* inverse vertical synch signal */
    MI_U32   u32FrameRate;
} MI_DISP_SyncInfo_t

    • Member

      Member Name Description
      u16VStart Start from the vertical effective. Generally equal to Vsync width + Vsync back porch
      u16Vact Line number of each frame
      u16Vbb Vsync back porch
      u16Vfb Vsync front porch
      u16HStart Start from the horizontal effective. Generally equal to Hsync width + Hsync back porch
      u16Hact Pixel count of each line
      u16Hbb Hsync back porch
      u16Hfb Hsync front porch
      u16Hpw Hsync width
      u16Vpw Vsync width
      u32Framerate Frame rate

      Parameters not listed in the table are parameters not used yet.

    • Note

      • Only used when pictures are shown on LCD.

    • Related Data Type and Interface

      MI_DISP_PubAttr_t

      MI_DISP_SetPubAttr

    3.7. MI_DISP_PubAttr_t

    • Description

      Define the DISP public attribute

    • Definition

      typedef struct MI_DISP_PubAttr_s
{
    MI_U32      u32BgColor;         /* Background color of a device */
    MI_DISP_Interface_e      eIntfType;         /* Type of a VO interface */
    MI_DISP_IntfSync_e       eIntfSync;          /* Type of a VO interface timing */
    MI_DISP_SyncInfo_t       stSyncInfo;          /* Information about VO interface timings */
} MI_DISP_PubAttr_t;

    • Member

      Member Description
      u32BgColor Set the background color
      u32IntfType Interface definition: MI_DISP_Interface_e
      eIntfSync Interface timing definition: MI_DISP_IntfSync_e
      stSyncInfo User-defined interface timing definition: MI_DISP_SyncInfo_t

    • Note

      • stSyncInfo is used for E_MI_DISP_OUTPUT_USER; that is, the case in which the interface timing is user-defined.

      • u32BgColor has two sets of definitions

        Chips with MOP (support amplification) is defined as:

        bit function
        24~31 unuse
        16~23 V
        8~15 U
        0~7 Y

        Chips with SCL_RDMA (not support amplification) is defined as:

        bit function
        24~31 unuse
        16~23 B
        8~15 G
        0~7 R

    • Related Data Type and Interface

      MI_DISP_PubAttr_t

      MI_DISP_SetPubAttr

    3.8. MI_DISP_Csc_t

    • Description

      Define the DISP color space conversion information

    • Definition

      typedef struct MI_DISP_Csc_s

{

    MI_DISP_CscMatrix_e eCscMatrix;

    MI_U32 u32Luma;           /* luminance:  0 ~ 100 default: 50 */

    MI_U32 u32Contrast;         /* contrast :  0 ~ 100 default: 50 */

    MI_U32 u32Hue;           /* hue   :  0 ~ 100 default: 50 */

    MI_U32 u32Saturation;        /* saturation: 0 ~ 100 default: 50 */

} MI_DISP_Csc_t;

    • Member

      Member Description
      eCscMatrix Color space conversion matrix
      u32Luma Luminance adjustment
      u32Contrast Contrast adjustment
      u32Hue Hue adjustment
      u32Saturation Saturation adjustment

    • Note

      • Currently supported chips include MSR930, MSR650x, Taiyaki, and Takoyaki series.

    • Related Data Type and Interface

      MI_DISP_GetVgaParam

      MI_DISP_SetVgaParam

      MI_DISP_GetHdmiParam

      MI_DISP_SetHdmiParam

      MI_DISP_GetLcdParam

      MI_DISP_SetLcdParam

    3.9. MI_DISP_CscMatrix_e

    • Description

      Define the DISP color space conversion matrix

    • Definition

      typedef enum

{

    E_MI_DISP_CSC_MATRIX_BYPASS = 0,    /* do not change color space */

    E_MI_DISP_CSC_MATRIX_BT601_TO_RGB_PC,  /* change color space from BT.601 to RGB */

    E_MI_DISP_CSC_MATRIX_BT709_TO_RGB_PC,  /* change color space from BT.709 to RGB */

    E_MI_DISP_CSC_MATRIX_RGB_TO_BT601_PC,  /* change color space from RGB to BT.601 */

    E_MI_DISP_CSC_MATRIX_RGB_TO_BT709_PC, /* change color space from RGB to BT.709 */

    E_MI_DISP_CSC_MATRIX_USER, /* Change color space from PQ.bin */

    E_MI_DISP_CSC_MATRIX_NUM

} MI_DISP_CscMatrix_e;

    • Member

      Member Description
      E_MI_DISP_CSC_MATRIX_BYPASS Bypass color space conversion
      E_MI_DISP_CSC_MATRIX_BT601_TO_RGB_PC BT.601 to RGB color space CSC matrix
      E_MI_DISP_CSC_MATRIX_BT709_TO_RGB_PC BT.709 to RGB color space CSC matrix
      E_MI_DISP_CSC_MATRIX_RGB_TO_BT601_PC RGB to BT.601 color space CSC matrix
      E_MI_DISP_CSC_MATRIX_RGB_TO_BT709_PC RGB to BT.709 color space CSC matrix
      E_MI_DISP_CSC_MATRIX_USER Change color space from PQ.bin.

    • Note

      • Currently supported chips include MSR930, MSR650x, Taiyaki, and Takoyaki series.

    • Related Data Type and Interface

      MI_DISP_GetVgaParam

      MI_DISP_SetVgaParam

      MI_DISP_GetHdmiParam

      MI_DISP_SetHdmiParam

      MI_DISP_GetLcdParam

      MI_DISP_SetLcdParam

    3.10. MI_DISP_VgaParam_t

    • Description

      Define the DISP VGA parameter information

    • Definition

      typedef struct MI_DISP_VgaParam_s

{

    MI_DISP_Csc_t stCsc;     /* color space */

    MI_U32 u32Gain;       /* current gain of VGA signals. [0, 64). default:0x30 */

    MI_U32 u32Sharpness;

} MI_DISP_VgaParam_t;

    • Member

      Member Description
      stCsc Color space conversion information definition
      u32Gain Signal strength gain
      u32Sharpness Sharpness definition

    • Note

      • Currently supported chips include MSR930, MSR650x, Taiyaki series.

    • Related Data Type and Interface

      MI_DISP_Csc_t

      MI_DISP_GetVgaParam

      MI_DISP_SetVgaParam

    3.11. MI_DISP_HdmiParam_t

    • Description

      Define the DISP HDMI parameter information

    • Definition

      typedef struct MI_DISP_HdmiParam_s

{

    MI_DISP_Csc_t stCsc;           /* color space */

    MI_U32 u32Gain;     /* current gain of HDMI signals. [0, 64). default:0x30 */

    MI_U32 u32Sharpness;

} MI_DISP_HdmiParam_t;

    • Member

      Member Description
      stCsc Color space conversion information definition
      u32Gain Signal strength gain
      u32Sharpness Definition of sharpness

    • Note

      • Currently supported chips include MSR930, MSR650x, Taiyaki series.

    • Related Data Type and Interface

      MI_DISP_Csc_t

      MI_DISP_GetHdmiParam

      MI_DISP_SetHdmiParam

    3.12. MI_DISP_LcdParam_t

    • Description

      Define the DISP LCD parameter information

    • Definition

      typedef struct MI_DISP_LcdParam_s

{

    MI_DISP_Csc_t stCsc;           /* color space */

    MI_U32 u32Sharpness;

} MI_DISP_LcdParam_t;

    • Member

      Member Description
      stCsc Color space conversion information definition
      u32Sharpness Sharpness definition

    • Note

      • Currently supported chips include Takoyaki series.

    • Related Data Type and Interface

      MI_DISP_Csc_t

      MI_DISP_GetLcdParam

      MI_DISP_SetLcdParam

    3.13. MI_DISP_CvbsParam_t

    • Description

      Define the DISP CVBS output image parameter

    • Definition

      typedef struct MI_DISP_CvbsParam_s

{

    MI_DISP_Csc_t stCsc;           /* color space */

    MI_U32 u32Sharpness;

} MI_DISP_CvbsParam_t;

    • Member

      Member Description
      stCsc Color conversion information definition
      u32Sharpness Sharpness definition

    • Related Data Type and Interface

      MI_DISP_Csc_t

      MI_DISP_GetCvbsParam

      MI_DISP_SetCvbsParam

    3.14. MI_DISP_ColorTemperature_t

    • Description

      Define the DISP color temperature parameter

    • Definition

      typedef struct
{
    MI_U16 u16RedOffset;
    MI_U16 u16GreenOffset;
    MI_U16 u16BlueOffset;

    MI_U16 u16RedColor;  // 00~FF, 0x80 is no change
    MI_U16 u16GreenColor;// 00~FF, 0x80 is no change
    MI_U16 u16BlueColor; // 00~FF, 0x80 is no change
}MI_DISP_ColorTemperature_t;

    • Member

      Member Description
      u16RedColor Red component definition
      u16GreenColor Green component definition
      u16BlueColor Blue component definition

    • Note

      • Currently supported chips include Takoyaki series.

    • Related Data Type and Interface

      MI_DISP_DeviceGetColorTempeture

      MI_DISP_DeviceSetColorTempeture

    3.15. MI_DISP_GammaParam_t

    • Description

      Define the DISP Gamma parameter

    • Definition

      typedef struct MI_DISP_GammaParam_s
{
    MI_BOOL bEn;
    MI_U16  u16EntryNum;
    union
    {
        MI_U8 * pu8ColorR;
        MI_PTR64    p64ColorR;
    };
    union
    {
        MI_U8 * pu8ColorG;
        MI_PTR64    p64ColorG;
    };
    union
    {
        MI_U8 * pu8ColorB;
        MI_PTR64    p64ColorB;
    };
} MI_DISP_GammaParam_t;

    • Member

      Member Description
      bEn Enable gamma adjustment
      u16EntryNum The number of members in gamma table
      pu8ColorR Pointer to red component gamma table
      p64ColorR padding
      pu8ColorG Pointer to green component gamma table
      p64ColorG padding
      pu8ColorB Pointer to blue component gamma table
      p64ColorB padding

    • Note

      • Currently supported chips include Takoyaki series.

    • Related Data Type and Interface

      MI_DISP_DeviceSetGammaParam

    3.16. MI_DISP_VideoLayerSize_t

    • Description

      Define the DISP video layer size

    • Definition

      typedef struct MI_DISP_VideoLayerSize_s

{

    MI_U32 u32Width;

    MI_U32 u32Height;

} MI_DISP_VideoLayerSize_t;

    • Member

      Member Description
      u32Width X-axis width
      u32Height Y-axis height

    • Related Data Type and Interface

      MI_DISP_SetVideoLayerAttr

      MI_DISP_GetVideoLayerAttr

    3.17. MI_DISP_VideoLayerAttr_t

    • Description

      Define the DISP video layer attribute

    • Definition

      typedef struct MI_DISP_VideoLayerAttr_s
{
    MI_DISP_VidWinRect_t   stDispWin;        /* Display resolution */
    MI_DISP_VideoLayerSize_t stLayerSize;        /* Canvas size of the video layer */
    MI_DISP_PixelFormat_e ePixFormat;         /* Pixel format of the video layer */
} MI_DISP_VideoLayerAttr_t;

    • Member

      Member Description
      stDispWin Input port display position
      stLayerSize Video layer size
      ePixFormat Input pixel data format

    • Related Data Type and Interface

      MI_DISP_SetVideoLayerAttr

      MI_DISP_GetVideoLayerAttr

    3.18. MI_DISP_RotateMode_e

    • Description

      Define the DISP rotation angle information

    • Definition

      typedef enum

{

    E_MI_DISP_ROTATE_NONE,

    E_MI_DISP_ROTATE_90,

    E_MI_DISP_ROTATE_180,

    E_MI_DISP_ROTATE_270,

    E_MI_DISP_ROTATE_NUM,

}MI_DISP_RotateMode_e;

    • Member

      Member Description
      E_MI_DISP_ROTATE_NONE Do not rotate
      E_MI_DISP_ROTATE_90 Rotate 90 degrees clockwise
      E_MI_DISP_ROTATE_180 Rotate 180 degrees clockwise
      E_MI_DISP_ROTATE_270 Rotate 270 degrees clockwise

    • Note

      • Currently supported chip series include Takoyaki/ Tiramisu/ Muffin.

      • Only Takoyaki supports rotation by 180 degrees.

    • Related Data Type and Interface

      MI_DISP_SetVideoLayerRotateMode

    3.19. MI_DISP_RotateConfig_t

    • Description

      Define the DISP rotation parameter

    • Definition

      typedef struct MI_DISP_RotateConfig_s

{

    MI_DISP_RotateMode_e eRotateMode;

}MI_DISP_RotateConfig_t;

    • Member

      Member Description
      eRotateMode rotation angle enum

    • Note

      • Currently supported chip series include Takoyaki/ Tiramisu/ Muffin.

      • Only Takoyaki supports rotation by 180 degrees.

    • Related Data Type and Interface

      MI_DISP_SetVideoLayerRotateMode

    3.20. MI_DISP_VidWinRect_t

    • Description

      Define the DISP window attribute

    • Definition

      typedef struct MI_DISP_VidWinRect_s

{

    MI_U16 u16X;

    MI_U16 u16Y;

    MI_U16 u16Width;

    MI_U16 u16Height;

} MI_DISP_VidWinRect_t;

    • Member

      Member Description
      u16X X-axis start point
      u16Y Y-axis start point
      u16Width X-axis width
      u16Height Y-axis height

    • Note

      • x, y, width and height of each window must be aligned with 2pixels.

      • Cropping cannot exceed the source area.

    • Related Data Type and Interface

      MI_DISP_SetZoomInWindow

    3.21. MI_DISP_InputPortAttr_t

    • Description

      Define the DISP input port attribute

    • Definition

      typedef struct MI_DISP_InputPortAttr_s

{

    MI_DISP_VidWinRect_t stDispWin;           /* rect of video out chn */

    MI_U16 u16SrcWidth;

    MI_U16 u16SrcHeight;

    MI_SYS_CompressMode_e eDecompressMode;

} MI_DISP_InputPortAttr_t;

    • Member

      Member Description
      stDispWin Specify input port output window position and size
      u16SrcWidth Specify input image width
      u16SrcHeight Specify input image height
      eDecompressMode Specify input decompression mode

    • Note

      • The Takoyaki/ Taiyaki/ Tiramisu/ Muffin/ Mochi series chips can can scale up for each port (scaling down is not supported), and the maximum magnification in the H/V direction is 16 times.

      • If the chip cannot scale up the port independently, u16SrcWidth should be equal to u16Width defined in stDispWin, and u16SrcHeight should be equal to u16Height defined in stDispWin.

      • For a video layer with multiple input ports, the display position of each port on the video layer can be set arbitrarily.

      • The display position of the input port cannot be superimposed with the enabled port (including Hide), but the disabled port can be superimposed

      • x, y, width and height of each window must be aligned with 2pixels.

      • About eDecompressMode, Mochi series chips support E_MI_SYS_COMPRESS_MODE_NONE/E_MI_SYS_COMPRESS_MODE_TO_6BIT, other chips only support E_MI_SYS_COMPRESS_MODE_NONE.

    • Related Data Type and Interface

      MI_DISP_SetInputPortAttr

      MI_DISP_GetInputPortAttr

    3.22. MI_DISP_Position_t

    • Description

      Define the DISP input port position

    • Definition

      typedef struct MI_DISP_Position_s

{

    MI_U16 u16X;

    MI_U16 u16Y;

} MI_DISP_Position_t;

    • Member

      Member Description
      u16X X-axis start point
      u16Y Y-axis start point

    • Related Data Type and Interface

      MI_DISP_GetInputPortDispPos

      MI_DISP_SetInputPortDispPos

    3.23. MI_DISP_SyncMode_e

    • Description

      Define the DISP sync mode

    • Definition

      typedef enum

{

    E_MI_DISP_SYNC_MODE_INVALID = 0,

    E_MI_DISP_SYNC_MODE_CHECK_PTS,

    E_MI_DISP_SYNC_MODE_FREE_RUN,

    E_MI_DISP_SYNC_MODE_NUM,

} MI_DISP_SyncMode_e;

    • Member

      Member Description
      E_MI_DISP_SYNC_MODE_INVALID Invalid sync mode
      E_MI_DISP_SYNC_MODE_CHECK_PTS Check the PTS sync mode
      E_MI_DISP_SYNC_MODE_FREE_RUN Bypass the PTS sync mode

    • Note

      • Currently supported chips include MSR930 and MSR650x.

    • Related Data Type and Interface

      MI_DISP_SetInputPortSyncMode

    3.24. MI_DISP_InputPortStatus_e

    • Description

      Define the DISP input port status type

    • Definition

      typedef enum

{

    E_MI_DISP_INPUTPORT_STATUS_INVALID = 0,

    E_MI_DISP_INPUTPORT_STATUS_PAUSE,

    E_MI_DISP_INPUTPORT_STATUS_RESUME,

    E_MI_DISP_INPUTPORT_STATUS_STEP,

    E_MI_DISP_INPUTPORT_STATUS_REFRESH,

    E_MI_DISP_INPUTPORT_STATUS_SHOW,

    E_MI_DISP_INPUTPORT_STATUS_HIDE,

    E_MI_DISP_ INPUTPORT_STATUS _NUM,

} MI_DISP_InputPortStatus_e;

    • Member

      Member Description
      E_MI_DISP_INPUTPORT_STATUS_INVALID Invalid status mode
      E_MI_DISP_INPUTPORT_STATUS_PAUSE Pause status
      E_MI_DISP_INPUTPORT_STATUS_RESUME Resume status
      E_MI_DISP_INPUTPORT_STATUS_STEP Step status
      E_MI_DISP_INPUTPORT_STATUS_REFRESH Refresh status
      E_MI_DISP_INPUTPORT_STATUS_SHOW Show status
      E_MI_DISP_INPUTPORT_STATUS_HIDE Hide status

    3.25. MI_DISP_QueryChannelStatus_t

    • Description

      Define the DISP input port status information

    • Definition

      typedef struct MI_DISP_QueryChannelStatus_s
{
    MI_BOOL bEnable;
    MI_DISP_InputPortStatus_e eStatus;
} MI_DISP_QueryChannelStatus_t;

    • Member

      Member Description
      bEnable Input port enable status
      eStatus Input port status type

    • Related Data Type and Interface

      MI_DISP_InputPortStatus_e

      MI_DISP_QueryInputPortStat

    3.26. MI_DISP_InitParam_t

    • Description

      DISP device initialization parameter.

    • Definition

      typedef struct MI_DISP_InitParam_s

{

    MI_U32 u32DevId;

    MI_U8 *u8Data;

} MI_DISP_InitParam_t;

    • Member

      Member Description
      u32DevId Device ID
      u8Data Data pointer buffer

    • Related Data Type and Interface

      MI_DISP_InitDev

    3.27. MI_DISP_WBC

    • Description

      Define the type of DISP_WBC.

    • Definition

      typedef MI_S32 MI_DISP_WBC

    3.28. MI_DISP_WBC_SourceType_e

    • Description

      The source type of the data captured by the video write-back device, used to distinguish whether it is from the video layer or the device.

    • Definition

      typedef enum {

    MI_DISP_WBC_SOURCE_DEV,

    MI_DISP_WBC_SOURCE_VIDEO,

}MI_DISP_WBC_SourceType_e;

    • Member

      Member Description
      MI_DISP_WBC_SOURCE_DEV The write back source is device (video + UI)
      MI_DISP_WBC_SOURCE_VIDEO The write back source is video layer (video only)

    • Related Data Type and Interface

      MI_DISP_SetWBCSource

      MI_DISP_GetWBCSource

    3.29. MI_DISP_WBC_Source_t

    • Description

      The write-back source of video write-back device.

    • Definition

      typedef struct MI_DISP_WBC_Source_s

{

    MI_DISP_WBC_SourceType_e eSourceType;

    MI_U32 u32SourceId;

}MI_DISP_WBC_Source_t;

    • Member

      Member Description
      eSourceType Write back source type
      u32SourceId Write back source device ID

    • Related Data Type and Interface

      MI_DISP_SetWBCSource

      MI_DISP_GetWBCSource

    3.30. MI_DISP_WBC_TargetSize_t

    • Description

      The target size of the video write-back device.

    • Definition

      typedef struct MI_DISP_WBC_TargetSize_s

{

    MI_U32 u32Width;

    MI_U32 u32Height;

}MI_DISP_WBC_TargetSize_t;

    • Member

      Member Description
      u32Width Width of write-back target
      u32Height Height of write-back target

    • Note

      • WBC supports zooming out, but not zooming in. If the target resolution is smaller than the source resolution, it will be automatically zooming out.

    • Related Data Type and Interface

      MI_DISP_SetWBCAttr

      MI_DISP_GetWBCAttr

    3.31. MI_DISP_WBC_Attr_t

    • Description

      Video write-back device attributes.

    • Definition

      typedef struct MI_DISP_WBC_Attr_s

{

    MI_DISP_WBC_TargetSize_t stTargetSize;

    MI_SYS_PixelFormat_e ePixFormat;

    MI_SYS_CompressMode_e eCompressMode;

}MI_DISP_WBC_Attr_t;

    • Member

      Member Description
      stTargetSize Write-back target size
      ePixFormat Pixel format of write-back image
      eCompressMode Compress mode

    • Note

      • eDecompressMode is only supported by Mochi series chips.

    • Related Data Type and Interface

      MI_DISP_SetWBCAttr

      MI_DISP_GetWBCAttr

    3.32. MI_DISP_PowerConfig_t

    • Description

      Output power config.

    • Definition

      typedef struct MI_DISP_PowerConfig_s
{
    MI_BOOL bEnable;
} MI_DISP_PowerConfig_t;

    • Member

      Member Description
      bEnable enable

    • Related Data Type and Interface

      MI_DISP_SetPowerConfig

    3.33. MI_DISP_MipiDsiPacketType_e

    • Description

      Mipidsi packet type.

    • Definition

      typedef enum
{
    E_MI_DISP_MIPIDSI_PACKET_TYPE_DCS = 0,
    E_MI_DISP_MIPIDSI_PACKET_TYPE_GENERIC = 1,
    E_MI_DISP_MIPIDSI_PACKET_TYPE_MAX
} MI_DISP_MipiDsiPacketType_e;

    • Member

      Member Description
      E_MI_DISP_MIPIDSI_PACKET_TYPE_DCS Display Command Set Type
      E_MI_DISP_MIPIDSI_PACKET_TYPE_GENERIC Generic Type

    • Related Data Type and Interface

      MI_DISP_WriteMipiDsiCmd

    3.34. MI_DISP_WriteMipiDsiCmd_t

    • Description

      Write mipidsi cmd config.

    • Definition

      typedef struct MI_DISP_WriteMipiDsiCmd_s
{
    MI_DISP_MipiDsiPacketType_e ePacketType;
    MI_U32 u32CmdBufSize;
    MI_PTR64 p64CmdBuf;
} MI_DISP_WriteMipiDsiCmd_t;

    • Member

      Member Description
      ePacketType Packet Type
      u32CmdBufSize cmd buffer size
      p64CmdBuf cmd buffer pointer

    • Related Data Type and Interface

      MI_DISP_WriteMipiDsiCmd

    3.35. MI_DISP_ReadMipiDsiCmd_t

    • Description

      Read mipidsi cmd config.

    • Definition

      typedef struct MI_DISP_ReadMipiDsiCmd_s
{
    MI_U8  u8RegAddr;
    MI_U32 u32CmdBufSize;
    MI_PTR64 p64CmdBuf;
} MI_DISP_ReadMipiDsiCmd_t;

    • Member

      Member Description
      u8RegAddr reg addr
      u32CmdBufSize cmd buffer size
      p64CmdBuf cmd buffer pointer

    • Related Data Type and Interface

      MI_DISP_ReadMipiDsiCmd

    4. DISP ERROR CODE

    The following table lists the DISP API error codes.

    Error Code Macro Definition Description
    0xA00F2001 MI_ERR_DISP_INVALID_DEVID Invalid Device ID
    0xA00F2002 MI_ERR_DISP_INVALID_CHNID Invalid Input Port ID
    0xA00F2003 MI_ERR_DISP_ILLEGAL_PARAM Illegal parameter
    0xA00F2006 MI_ERR_DISP_NULL_PTR Null pointer in function parameter
    0xA00F2008 MI_ERR_DISP_NOT_SUPPORT Operation not supported
    0xA00F2009 MI_ERR_DISP_NOT_PERMIT Operation not permitted
    0xA00F200C MI_ERR_DISP_NO_MEM No memory
    0xA00F2010 MI_ERR_DISP_SYS_NOTREADY System not ready
    0xA00F2012 MI_ERR_DISP_BUSY System busy
    0xA00F2040 MI_ERR_DISP_DEV_NOT_CONFIG Device not configured
    0xA00F2041 MI_ERR_DISP_DEV_NOT_ENABLE Device not enabled
    0xA00F2042 MI_ERR_DISP_DEV_ALREADY_ENABLED Device has been enabled already
    0xA00F2043 MI_ERR_DISP_DEV_ALREADY_BOUND Device has been bound already
    0xA00F2044 MI_ERR_DISP_DEV_NOT_BIND Device not bound
    0xA00F2045 MI_ERR_DISP_LAYER_NOT_ENABLE Video layer not enabled
    0xA00F2046 MI_ERR_DISP_LAYER_NOT_DISABLE Video layer not disabled
    0xA00F2047 MI_ERR_DISP_LAYER_NOT_CONFIG Video layer not configured
    0xA00F2048 MI_ERR_DISP_INPUTPORT_NOT_DISABLE Input port not disabled
    0xA00F2049 MI_ERR_DISP_INPUTPORT _NOT_ENABLE Input port not enabled
    0xA00F204A MI_ERR_DISP_INPUTPORT _NOT_CONFIG Input port not configured
    0xA00F204B MI_ERR_DISP_INPUTPORT _NOT_ALLOC Input port not allocated
    0xA00F204C MI_ERR_DISP_INVALID_PATTERN Invalid pattern
    0xA00F204D MI_ERR_DISP_INVALID_POSITION Invalid position
    0xA00F204E MI_ERR_DISP_WAIT_TIMEOUT Wait timeout
    0xA00F204F MI_ERR_DISP_INVALID_VIDEO_FRAME Invalid video frame
    0xA00F2050 MI_ERR_DISP_INVALID_RECT_PARA Invalid rectangle parameter
    0xA00F2051 MI_ERR_DISP_ INPUTPORT_SHOW_AREA_OVERLAP Input port area overlapped
    0xA00F2052 MI_ERR_DISP_INVALID_LAYERID Invalid video layer ID
    0xA00F2053 MI_ERR_DISP_LAYER_ALREADY_BOUND Video layer has been bound already
    0xA00F2054 MI_ERR_DISP_LAYER_NOT_BIND Video layer not bound

    5. PROCFS INTRODUCTION

    5.1. DISP cat

    • Debug info

      # cat /proc/mi_modules/mi_disp/mi_disp0

    • Debug info analysis

      Record the current usage status of DISP, device attribute, layer attribute, and inputport attribute. This information can be obtained dynamically, which is convenient for debugging and testing.

    • Parameter Description

      Parameter Description
      device info EnableCnt Dev Enable count
      IrqNum Interrupt Number
      IrqCnt Interrupt Count
      IrqCnt/Ms Interrupt count within a certain period of time, unit: ms
      Ips Interrupt count per second
      BgColor Background Color (YUYV accounts for 8bit)
      Interface Interface Type
      CVBS, YPBPR, VGA, BT656, BT1120, MCU, MCU_NOFLM, HDMI, LCD, BT656_H, BT656_L, TTL, MIPI_DSI, TTL_SPI, SRGB
      DevTiming Output Timing
      range: [E_MI_DISP_OUTPUT_PAL ~ E_MI_DISP_OUTPUT_USER]
      CscMatrix CSC Matrix selection
      range: [E_MI_DISP_CSC_MATRIX_BYPASS ~ E_MI_DISP_CSC_MATRIX_RGB_TO_BT709_PC]
      device info Luma [0 ~ 99], default 50
      Contrast [0 ~ 99], default 50
      Hue [0 ~ 99], default 50
      Saturation [0 ~ 99], default 50
      Sharpness [0 ~ 255], default 0
      Gain [0 ~ 255], default 0
      layer info LayerId The value range depends on the chip specifications.
      BindedDevID The value range depends on the chip specifications.
      LayerWidth Layer Width
      LayerHeight Layer Height
      LayDispWidth Layer display width
      LayDispHeight Layer display height
      Toleration PTS error tolerance threshold, in milliseconds
      rotatemode Parameter range: [E_MI_DISP_ROTATE_NONE~E_MI_DISP_ROTATE_270]
      port info PortId The value range depends on the chip specifications.
      enable 0: Disable
      1: Enable
      CurStatus Port status, range: [invalid, pause, resume, step, refresh, show, hide].
      The default is invalid.
      src_w The width of original image
      src_h The height of original image
      crop_x The starting abscissa of crop area
      crop_y The starting ordinate of crop area
      crop_w The width of crop area
      crop_h The height of crop area
      show_x The starting abscissa of the port on the layer
      show_y The starting ordinate of the port on the layer
      show_w The width of the port display
      show_h The height of the port display
      RecvBufCnt The count of buffs currently received
      RecvBuf_W The width of input image
      RecvBuf_H The height of input image
      Content_W The valid width of input image
      Content_H The valid height of input image
      RecvBufStride Stride of input image
      PixFmt Pixel format of input image
      syncmode Check PTS/Free Run
      Parameter range: [Invalid, CheckPts, FreeRun]
      RecvBufCom Video compression format
      OnScreenTask The Task currently being displayed, if it is NULL, it may be that no buff was sent to disp, or disp was not interrupted, or the cmdq of disp did not take effect.
      FiredTask Task to be displayed
      StepTaskCnt Task count to be processed step by step
      bClearAllTask Whether to clear all Task
      0: not clear
      1: clear all Task
      FinishCnt/Ms Tasks count finished in a certain period of time, unit: ms.
      fps Frame rate
      MaxIv/MinIv The maximum and minimum intervals for completing a task within a certain period of time, unit: ms.

    5.2. DISP echo

    Function
    Get the echo command supported by the current DISP and its specific usage form.
    Command echo help > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description None
    Example echo help > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Open/Close pts check of each port.
    Command echo checkframepts [layerid] [protid] [ON/OFF] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [layerid] Video layer id [portid] port id [ON/OFF] ON: open, OFF: close
    Example echo checkframepts 0 0 ON > /proc/mi_modules/mi_disp/mi_disp0
    Function
    dump frame data
    Command echo dumpframe [layerid] [portid] [path] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [layerid] Video layer id [portid] port id [path] Storage path of dumped data
    Example echo dumpframe 0 0 /mnt/ > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Stop single port of disp to get buff
    Command echo stopgetbuff [layerid] [portid] [ON/OFF] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [layerid] Video layer id [portid] port id [ON/OFF] ON:stop OFF:resume
    Example echo stopgetbuff 0 0 ON > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Set background color
    Command echo bgcolor [devid] [value] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [devid] Device id [value] Color value
    Example echo setbgcolor 0 255 > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Dynamically set screen effects
    Command echo csc [devid] [CscMatrix] [Contrast] [Hue] [Luma] [Saturation] [Sharpness] [Gain] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [devid] Device id [CscMatrix] Color matrix [Contrast] Contrast [Hue] Hue [Luma] Luma >[Saturation] Saturation [Sharpness] Sharpness [Gain] Gain
    Example echo csc 0 0 50 50 50 50 0 0 > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Debug color temperature
    Command echo colortemp [devid] [BlueOffset] [GreenOffset] [RedOffset] [BlueColor] [GreenColor] [RedColor] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [devid] Device id [Blue/Green/Redoffset] Not used [RedColor] R Portion (0-255) [GreenColor] G Portion (0-255) [BlueColor] B Portion (0-255)
    Example echo setcolortemp 0 50 50 50 50 50 50 > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Rotate the layer
    Command echo rotate [layerid] [0/ 1/ 2]> /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [layerid] Video layer id
    [0/ 1/ 2] rotate configuration
    0：E_MI_DISP_ROTATE_NONE, not rotate
    1：E_MI_DISP_ROTATE_90, rotate 90°
    2：E_MI_DISP_ROTATE_270, rotate 270°
    Example echo rotate 1 1 > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Crop the original data of a port
    Command echo crop [layerid] [portid] [x] [y] [width] [height]> /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [layerid] Video layer id [portid] port id [x] The starting abscissa of crop area [y] The starting ordinate of crop area [width] The width of crop area [height] The height of crop area
    Example echo crop 0 0 0 0 100 100 > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Hide a port
    Command echo hide [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [layerid] Video layer id [portid] port id
    Example echo hide 0 0 > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Show a port
    Command echo show [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [layerid] Video layer id [portid] port id
    Example echo show 0 0 > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Stop getting data for a port
    Command echo pause [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [layerid] Video layer id [portid] port id
    Example echo pause 0 0 > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Resume getting data for a port
    Command echo resume [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [layerid] Video layer id [portid] port id
    Example echo resume 0 0 > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Control a port to stop getting data after acquiring a frame of data
    Command echo step [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [layerid] Video layer id [portid] port id
    Example echo step 0 0 > /proc/mi_modules/mi_disp/mi_disp0
    Function
    Clear data of a port
    Command echo clear [layerid] [portid] > /proc/mi_modules/mi_disp/mi_disp0
    Parameter Description [layerid] Video layer id [portid] port id
    Example echo clear 0 0 > /proc/mi_modules/mi_disp/mi_disp0

    5.3. WBC cat

    • Debug info

      # cat proc/mi_modules/mi_disp/mi_wbc0

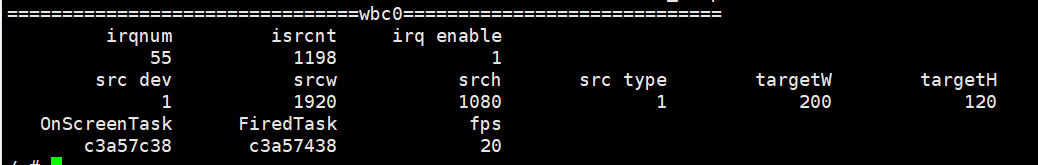

    • Debug info analysis

      Record the current use status and data attributes of WBC, and these information can be obtained dynamically to facilitate debugging and testing.

    • Parameter Description

      Parameter Description
      device info irqnum Interrupt Number
      Isrcnt Interrupt Count
      irq enable Interrupt Status
      0: disable
      1: enable
      src dev src device id
      srcw The width of data source
      srch The height of data source
      src type Data source type
      0: video+ui
      1: video
      targetW The width of data output
      targetH The height of data output
      OnScreenTask Task being output
      FiredTask Task to be output

    5.4. WBC echo

    Function
    Get the echo command supported by the current WBC and its specific usage form
    Command echo help > /proc/mi_modules/mi_disp/mi_wbc0
    Parameter Description None
    Example echo help > /proc/mi_modules/mi_disp/mi_wbc0
    Function
    Dump frame data
    Command echo dumpframe [path] > /proc/mi_modules/mi_disp/mi_wbc0
    Parameter Description [path] Storage path of dumped data
    Example echo dumpframe /mnt/ > /proc/mi_modules/mi_disp/mi_wbc0
