AEC Algorithm User Guide

1. OVERVIEW¶

1.1. Module Description¶

AEC (short for Acoustic Echo Cancellation) is a function used to suppress far-end echo.

Echo is common in conference systems, building intercom, security monitoring and other scenarios. When the far-end sound is played from the speaker, the microphone re-collects the sound played by the speaker and transmits it back to the far-end after a very small delay, which will cause an echo to be heard at the far-end.

1.2. Keyword¶

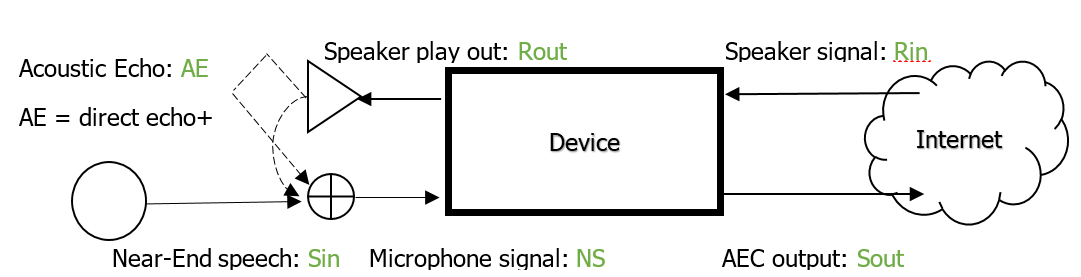

Far-end signal (Sin)

The signal source of the device speaker, or the signal from the remote.
Near-end signal (Rin)

The signal recorded by the microphone of the device, which may include acoustic echo and near-end talker signals.
Acoustic echo (AE)

The sound played from the speaker of the device is transmitted back to the microphone through a direct or indirect path, and the echo is generated. The far-end talker will hear his echo after a certain delay after speaking. This echo is claimed as an acoustic echo (AE).
Single talk

Only the speaker on the device side plays the far-end signal (Sin = AE + NS when NS =0)
Double talk

While the speaker on the device side is playing, the near-end talker also speaks into the microphone (Sin = AE + NS when NS≠0)

1.3. Note¶

In order to facilitate debugging and confirm the effect of the algorithm, the user application needs to implement replacement algorithm parameter and grab audio data.

2. API REFERENCE¶

2.1. API List¶

API name	Features
IaaAec_GetBufferSize	Get the memory size required for Aec algorithm running
IaaAec_Init	Initialize the memory required for the Aec algorithm
IaaAec_Config	Configure Aec algorithm
IaaAec_Reset	Reinitialize the memory of Aec algorithm
IaaAec_Free	Release Aec algorithm resources
IaaAec_Run	Aec algorithm processing
IaaAec_GetLibVersion	Get the version information of the Aec algorithm
IaaAec_SetRecursiveRatio	Set Aec recursive ratio for adjusting converge speed.
IaaAec_ADF_Run	Run Linear Aec algorithm.
IaaAec_NLP_Run	Run Non-Linear Aec algorithm.
IaaAec_GetAPIVersion	Get API version.
IaaAec_SetHandleId	Set Aec algorithm id.

2.2. IaaAec_GetBufferSize¶

Features

Get the memory size required for Aec algorithm running.

Syntax

unsigned int IaaAec_GetBufferSize(void);

Return value

Return value is the memory size required for Aec algorithm running.
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so/ libAEC_LINUX.a
Note

The interface only returns the required memory size, and the application and release of memory need to be processed by the application.

2.3. IaaAec_Init¶

Features

Initialize the memory required for the Aec algorithm.

Syntax

AEC_HANDLE IaaAec_Init (char* working_buffer_address,
AudioAecInit * aec_init);

Parameters

Parameter Name Description Input/Output

working_buffer_address Memory address used by Aec algorithm Input

aec_init Aec algorithm initialization structure pointer Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so / libAEC_LINUX.a
Note
- Aec algorithm only supports 8K/16K sampling rate.

2.4. IaaAec_Config¶

Features

Configure Aec algorithm.

Syntax

ALGO_AEC_RET IaaAec_Config(AEC_HANDLE handle,
AudioAecConfig *aec_config);

Parameters

Parameter Name Description Input/Output

handle Aec algorithm handle Input

aec_config Aec algorithm configuration parameter structure pointer Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so / libAEC_LINUX.a

2.5. IaaAec_Reset¶

Features

Reinitialize the memory of Aec algorithm.

Syntax

AEC_HANDLE IaaAec_Reset(char* working_buffer_address,
AudioAecInit * aec_init);

Parameters

Parameter Name Description Input/Output

working_buffer_address Memory address used by Aec algorithm Input

aec_init Aec algorithm initialization structure pointer Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so/ libAEC_LINUX.a
Note
- Reinitialize the Aec algorithm for the same algorithm handle (same memory address) (that is, reset the sampling rate and the number of near-end and far-end channels)
- After re-initializing the Aec algorithm, it needs to be reconfigured

2.6. IaaAec_Free¶

Features

Release Aec algorithm resources

Syntax

ALGO_AEC_RET IaaAec_Free(AEC_HANDLE handle);

Parameters

Parameter Name Description Input/Output

handle Aec algorithm handle Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so/ libAEC_LINUX.a
Note

Must call IaaAec_Free first, and then release the memory used by the Aec algorithm.

2.7. IaaAec_Run¶

Features

Aec algorithm processing

Syntax

ALGO_AEC_RET IaaAec_Run(AEC_HANDLE handle, short*
pss_audio_near_end, short* pss_audio_far_end);

Parameters

Parameter Name Description Input/Output

handle Algorithm handle Input

pss_audio_near_end Near-end data pointer Input/Output

pss_audio_far_end Far-end data pointer Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so/ libAEC_LINUX.a
Note
- The amount of near-end and far-end data must correspond to the point_number (the number of sampling points required for one IaaAec_Run) when calling IaaAec_Init.
- The result after AEC is output by pss_audio_near_end.
- If the input data is stereo, please arrange the left and right channel by turns.

Example

#include <stdio.h>
#include <string.h>
#include <sys/time.h>
#include <stdlib.h>

#include "AudioAecProcess.h"

/*  0:Fixed input file  1:User input file   */
#define IN_PARAMETER 1

float AVERAGE_RUN(int a)
{
    static unsigned int num = 0;
    static float avg = 0;
    if(0 == num)
        avg = 0;
    num++;
    avg = avg + ((float)a - avg) / ((float)num);
    return avg;
}

unsigned int _OsCounterGetMs(void)
{
    struct timeval t1;
    gettimeofday(&t1, NULL);
    unsigned int T = ((1000000 * t1.tv_sec) + t1.tv_usec) / 1000;
    return T;
}

int main(int argc, char *argv[])
{
    short in_output[1024];
    short input_far[1024];
    char src_file1[128] = {0};
    char src_file2[128] = {0};
    char dst_file[128] = {0};
    unsigned int workingBufferSize;
    char *workingBuffer = NULL;
    int counter = 0;
    ALGO_AEC_RET ret;
    int tempSize;
    unsigned int T0, T1;
    float avg;
    FILE *fpInFar, *fpOut, *fpInNear;
    AudioAecInit aec_init;
    AudioAecConfig aec_config;
    AEC_HANDLE handle;
    /*********************User change section start*******************/
    unsigned int supMode_band[6] = {20,40,60,80,100,120};
    unsigned int supMode[7] = {4,4,4,4,4,4,4};
    aec_init.point_number = 128;
    aec_init.nearend_channel = 1;
    aec_init.farend_channel = 1;
    aec_init.sample_rate = IAA_AEC_SAMPLE_RATE_16000;
    aec_config.delay_sample = 0;
    aec_config.comfort_noise_enable = IAA_AEC_FALSE;
    /*********************User change section end*******************/
    memcpy(&(aec_config.suppression_mode_freq[0]), supMode_band, sizeof(supMode_band));
    memcpy(&(aec_config.suppression_mode_intensity[0]), supMode, sizeof(supMode));
    //(1)IaaAec_GetBufferSize
    workingBufferSize = IaaAec_GetBufferSize();
    workingBuffer = (char*)malloc(workingBufferSize);
    if(NULL == workingBuffer)
    {
        printf("workingBuffer malloc failed !\n");
        return -1;
    }
    printf("workingBuffer malloc success !\n");
    //(2)IaaAec_Init
    handle = IaaAec_Init(workingBuffer, &aec_init);
    if (NULL == handle)
    {
        printf("AEC init failed !\r\n");
        return -1;
    }
    printf("AEC init success !\r\n");
    //(3)IaaAec_Config
    ret = IaaAec_Config(handle, &aec_config);
    if(ret)
    {
        printf("IaaAec_Config failed !\n");
        return -1;
    }
    printf("IaaAec_Config succeed !\n");

#if IN_PARAMETER
    if(argc < 4)
    {
        printf("Please enter the correct parameters!\n");
        return -1;
    }
    sscanf(argv[1], "%s", src_file1);
    sscanf(argv[2], "%s", src_file2);
    sscanf(argv[3], "%s", dst_file);
#else
    sprintf(src_file1, "%s", "./farend.wav");
    sprintf(src_file2, "%s", "./nearend.wav");
    if(argc < 2)
    {
        printf("Please enter the correct parameters!\n");
        return -1;
    }
    sscanf(argv[1], "%s", dst_file);
#endif

    fpInFar = fopen(src_file1, "rb");
    if(NULL == fpInFar)
    {
        printf("src_file1 open failed !\n");
        return -1;
    }
    printf("src_file1 open succeed !\n");
    fpInNear = fopen(src_file2, "rb");
    if(NULL == fpInNear)
    {
        printf("src_file2 open failed !\n");
        return -1;
    }
    printf("src_file2 open succeed !\n");
    fpOut = fopen(dst_file, "wb");
    if(NULL == fpOut)
    {
        printf("dst_file open failed !\n");
        return -1;
    }
    printf("dst_file open succeed !\n");
#if 1
    fread(in_output, sizeof(char), 44, fpInNear);  // Remove the 44 bytes header
    fwrite(in_output, sizeof(char), 44, fpOut);  // New file add header
    fread(input_far, sizeof(char), 44, fpInFar); // Remove the 44 bytes header
#endif
    tempSize = aec_init.point_number * aec_init.nearend_channel;
    while(fread(in_output, sizeof(short), tempSize, fpInNear))
    {
        tempSize = aec_init.point_number * aec_init.farend_channel;
        fread(input_far, sizeof(short), tempSize, fpInFar);
        counter++;
        T0  = (long)_OsCounterGetMs();
        //(4)IaaAec_Run
        ret = IaaAec_Run(handle, in_output, input_far);
        T1  = (long)_OsCounterGetMs();
        avg = AVERAGE_RUN(T1 - T0);
        if(0 == counter % 100)
        {
            printf("counter = %d\n", counter);
            printf("current time = %f\n", (float)counter * aec_init.point_number / aec_init.sample_rate);
            printf("process time = %lu(ms)\t", (long)(T1 - T0));
            printf("AVG is %.2f ms\n", avg);
        }
        if(ret < 0)
        {
            printf("IaaAec_Run failed !\n");
            break;
        }
        tempSize = aec_init.point_number * aec_init.nearend_channel;
        fwrite(in_output, sizeof(short), tempSize, fpOut);
    }
    //(5)IaaAec_Free
    IaaAec_Free(handle);
    fclose(fpInFar);
    fclose(fpInNear);
    fclose(fpOut);
    free(workingBuffer);
    printf("AEC end !\n");

    return 0;
}

2.8. IaaAec_GetLibVersion¶

Features

Get the version information of the Aec algorithm.

Syntax

ALGO_AEC_RET IaaAec_GetLibVersion(unsigned short *ver_year,

unsigned short *ver_date,

unsigned short *ver_time);

Parameters

Parameter Name	Description	Input/Output
ver_year	Year when Aec Algorithm Library was built	output
ver_date	Date when Aec Algorithm Library was built	output
ver_time	Date when Aec Algorithm Library was built	output

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so/ libAEC_LINUX.a

2.9. IaaAec_SetRecursiveRatio¶

Features

Set Aec recursive ratio for adjusting converge speed.

Syntax

ALGO_AEC_RET IaaAec_SetRecursiveRatio(AEC_HANDLE handle, unsigned int recursive_ratio);

Parameters

Parameter Name	Description	Input/Output
handle	Aec algorithm handle	Input
recursive_ratio	Recursive parameter input. Larger the value, Faster the converge speed. For the scenario of switching from double talk to single talk, decrease AEC over suppress near end signal. BUT echo suppress would be more aggressive. The discontinuity of background noise become worse. Range: 1~10.	Input

Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so/ libAEC_LINUX.a

2.10. IaaAec_ADF_Run¶

Features

Aec linear algorithm processing

Syntax

ALGO_AEC_RET IaaAec_ADF_Run(AEC_HANDLE handle, short* pss_audio_near_end, short* pss_audio_far_end);

Parameters

Parameter Name Description Input/Output

handle Algorithm handle Input

pss_audio_near_end Near-end data pointer Input/Output

pss_audio_far_end Far-end data pointer Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so/ libAEC_LINUX.a
Note
- The amount of near-end and far-end data must correspond to the point_number (the number of sampling points required for one IaaAec_ADF_Run) when calling IaaAec_Init.
- The result after linear AEC is output by pss_audio_near_end.
- If the input data is stereo, please arrange the left and right channel by turns.

2.11. IaaAec_NLP_Run¶

Features

Aec non-linear algorithm processing

Syntax

ALGO_AEC_RET IaaAec_NLP_Run(AEC_HANDLE handle, short* pss_audio_near_end);

Parameters

Parameter Name Description Input/Output

handle Algorithm handle Input

pss_audio_near_end Near-end data pointer Input/Output
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so/ libAEC_LINUX.a
Note
- The amount of near-end data must correspond to the point_number (the number of sampling points required for one IaaAec_NLP_Run) when calling IaaAec_Init.
- The result after non-linear AEC is output by pss_audio_near_end.
- If the input data is stereo, please arrange the left and right channel by turns.

2.12. IaaAec_GetAPIVersion¶

Features

Get API version.

Syntax

ALGO_AEC_RET IaaAec_GetAPIVersion(unsigned short* major, unsigned short* minor);

Parameters

Parameter Name Description Input/Output

major Return version output

minor Return version Output
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so/ libAEC_LINUX.a

2.13. IaaAec_SetHandleId¶

Features

Set Aec algorithm id.

Syntax

ALGO_AEC_RET IaaAec_SetHandleId(AEC_HANDLE handle, int id);

Parameters

Parameter Name Description Input/Output

handle Algorithm handle Input

id Aec algorithm handle id
Range: [0,100] Input
Return value

Return value Result

0 Successful

Non-zero Failed, refer to error code
Dependency
- Header: AudioAecProcess.h
- Library: libAEC_LINUX.so/ libAEC_LINUX.a

3. AEC DATA TYPE¶

3.1. AEC data type list¶

The AEC module related data types are defined as follows:

DATA TYPE	Description
AudioAecInit	The initialization parameter structure of the Aec algorithm
AudioAecConfig	the configuration parameter structure of the Aec algorithm
IAA_AEC_SAMPLE_RATE	AEC algorithm supported sampling rate type
IAA_AEC_BOOL	The Boolean type used internally in the Aec algorithm
AEC_HANDLE	The handle type of the Aec algorithm

3.2. AudioAecInit¶

Description

Define the initialization parameter structure of the Aec algorithm.

Definition

typedef struct

{

    unsigned int point_number;

    unsigned int nearend_channel;

    unsigned int farend_channel;

    IAA_AEC_SAMPLE_RATE sample_rate;

}AudioAecInit;

Member

Member name	Description
point_number	The number of sampling points processed by the Aec algorithm once. The default value is 128. User can use following command to check `strings libAEC_LINUX.so \\| grep PN`
nearend_channel	The near-end channel number ( the microphone channel number). User can set mono or stereo. Range: [1, 2]
farend_channel	The far-end channel number (the speaker channel number). User can set mono or stereo. Range: [1, 2]
sample_rate	Sampling rate processed by Aec algorithm

Note
- If the input data is stereo, User need to intersect the left and right channels. For example, L/R/L/R/L/R...
- IaaAec_Run reads the length of the near-end data pointer as

  $point_number \times nearend_channel \times 2 $ bytes

  Reads the length of the far-end data pointer as

  $point_number \times farend_channel \times 2 $ bytes
- If it is set to stereo channels, AEC will average the two channels into one channel and copy the processed result to the two channels. If you need to separate the two channels, please initialize two handles and execute IaaApc_Run separately.
Related data types and interfaces

IaaAec_Init

IaaAec_Reset

3.3. AudioAecConfig¶

Description

Define the configuration parameter structure of the Aec algorithm

Definition

typedef struct

{

    IAA_AEC_BOOL comfort_noise_enable;

    short delay_sample;

    unsigned int suppression_mode_freq[6];

    unsigned int suppression_mode_intensity[7];

}AudioAecConfig;

Member

Member name	Description
comfort_noise_enable	Add comfort noise after AEC to avoid the muting part of the paragraph after echo cancellation, which makes users feel disconnected. If noise reduction is turned on after AEC, it is recommended to turn on comfort noise to help NR converge noise.
delay_sample	Echo delay samples between left and right channels When Stereo cost down is turned on, you can set the sample delay number according to the relative position of the microphone, reducing the amount of calculation required for the dual-channel. Default value : 0 Unit : the number of samples Value ranges: -9-9
suppression_mode_freq	The frequency band division of AEC processing divides the highest frequency that can be resolved by different sampling rates into 128 equal parts. Setting six values, which can cut out seven segments to set different AEC intensities. Value ranges: 1-127
suppression_mode_intensity	Set seven intensities respectively in the seven paragraphs cut by the suppression_mode_freq. Value ranges: 0-25

Note
- comfort_noise_enable

  After enabling the parameter, the AEC algorithm will add some comfort noise when there is no sound. This function can be enabled when you require a stable noise floor or when AEC is too clean that causes the NR convergence time is too long.
- delay_sample

  Due to the placement of the microphone and the speaker, the distance between the microphones, etc., the time points when the left and right channels receive the echo are not consistent, and the echo delay between the two channels is different.

  This value indicates how many sampling points the left channel receives the echo earlier than the right channel. You can adjust this value to align the left and right channel data. When setting, please use the left channel as a reference. For example, the echo of the left channel is 4 samples faster than the right, s16DelaySample is set to 4, otherwise it is set to -4.
- suppression_mode_freq

  This array divides the highest frequency of the current sampling rate into 7 frequency bands for processing. The following is the conversion formula of array elements and frequency range:

  $<span><span class="MathJax_Preview">residual\ Echo\ Frequency\ Range/(sampleRate/2) \times pointNumber(128)</span><script type="math/tex">residual\ Echo\ Frequency\ Range/(sampleRate/2) \times pointNumber(128)$

  The array requires that each element must be greater than the previous element.
- suppression_mode_intensity

  This array represents the echo cancellation intensity of each frequency band, and each element corresponds to the 7 frequency bands divided by u32AecSupfreq. The greater the intensity, the more details are eliminated and the more unnatural the sound.
Related data types and interfaces

IaaAec_Config

3.4. IAA_AEC_SAMPLE_RATE¶

Description

AEC algorithm supported sampling rate type.

Definition

typedef enum

{

    IAA_AEC_SAMPLE_RATE_8000 = 8000 ,

    IAA_AEC_SAMPLE_RATE_16000 = 16000 ,

    IAA_AEC_SAMPLE_RATE_32000 = 32000 ,

    IAA_AEC_SAMPLE_RATE_48000 = 48000 ,

}IAA_AEC_SAMPLE_RATE;

Member

Member name	Description
IAA_AEC_SAMPLE_RATE_8000	8K sampling rate
IAA_AEC_SAMPLE_RATE_16000	16K sampling rate
IAA_AEC_SAMPLE_RATE_32000	32K sampling rate
IAA_AEC_SAMPLE_RATE_48000	48K sampling rate

Related data types and interfaces

AudioAecInit

3.5. IAA_AEC_BOOL¶

Description

Define the Boolean type used internally in the Aec algorithm.

Definition

typedef enum

{

    IAA_AEC_TRUE = 1,

    IAA_AEC_FALSE = 0,

}IAA_AEC_BOOL;

Member

Member name Description

IAA_AEC_TRUE True

IAA_AEC_FALSE False
Related data types and interfaces

AudioAecConfig

3.6. AEC_HANDLE¶

Description

Define the handle type of the Aec algorithm.
Definition
```
typedef void* AEC_HANDLE;
```
Related data types and interfaces

IaaAec_Init

IaaAec_Config

IaaAec_Reset

IaaAec_Free

IaaAec_Run

4. ERROR CODE¶

AEC API error codes are shown as follow:

Error code	Macro definition	Description
0x00000000	ALGO_AEC_RET_SUCCESS	AEC runs successfully
0x10000401	ALGO_AEC_RET_INIT_ERROR	AEC has not been initialized
0x10000402	ALGO_AEC_RET_INVALID_HANDLE	Invalid HANDLE
0x10000403	ALGO_AEC_RET_INVALID_SAMPLE_RATE	Sampling rate is not supported
0x10000404	ALGO_AEC_RET_INVALID_POINT_NUMBER	Points per frame are not supported
0x10000405	ALGO_AEC_RET_INVALID_CHANNEL	Channel number is not supported
0x10000406	ALGO_AEC_RET_INVALID_ENABLE	Calling is not supported
0x10000407	ALGO_AEC_RET_INVALID_SUP_BAND	Invalid AEC suppression band parameter setting
0x10000408	ALGO_AEC_RET_INVALID_SUP_MODE	Invalid AEC suppression strength parameter setting
0x10000409	ALGO_AEC_RET_INVALID_COMFORT_NOISE	Invalid AEC comfort noise parameter setting
0x10000410	ALGO_AEC_RET_INVALID_DELAY_SAMPLE	Invalid AEC delay sample number setting
0x10000411	ALGO_AEC_RET_INVALID_RECURSIVE_RATIO	Invalid AEC recursive parameter setting
0x10000412	ALGO_AEC_RET_API_CONFLICT	Other APIs are running
0x10000413	ALGO_AEC_RET_INVALID_CALLING	Incorrect API calling sequence

Parameter Name	Description	Input/Output
working_buffer_address	Memory address used by Aec algorithm	Input
aec_init	Aec algorithm initialization structure pointer	Input

Parameter Name	Description	Input/Output
handle	Algorithm handle	Input
pss_audio_near_end	Near-end data pointer	Input/Output
pss_audio_far_end	Far-end data pointer	Input

Return value	Result
0	Successful
Non-zero	Failed, refer to error code

Return value	Result
0	Successful
Non-zero	Failed, refer to error code

Return value	Result
0	Successful
Non-zero	Failed, refer to error code

Return value	Result
0	Successful
Non-zero	Failed, refer to error code
