SPI USER GUIDE

REVISION HISTORY¶

Revision No.	Description	Date
1.0	Initial release	04/18/2023
1.1	Modify chip selection related instructions & Chapter 7 FAQ	04/08/2025

1. OVERVIEW¶

Serial Peripheral Interface (SPI), referred to as SPI, is a high-speed synchronous serial interface technology launched by Motorola. It is mainly used in EEPROM, Flash, real-time clock (RTC), analog-to-digital converter (ADC), digital signal processor (DSP) and other devices.

The brief framework of SPI driver is shown in the figure above. Sigmaster driver registers the controller and device to SPI Core. The user APP interacts with the underlying hardware through the file interface created by SPI device to realize the read and write functions.

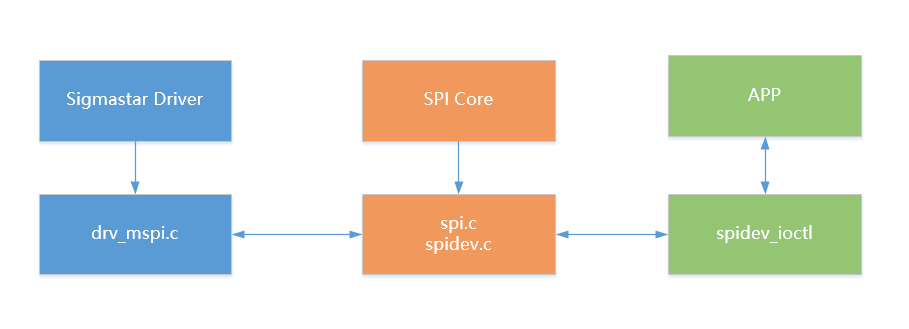

Figure 1-1: SPI Brief Framework

MSPI, or Master SPI device, is an IP provided by SigmaStar specifically for use as a SPI communication master device. It can communicate with various external SPI slave devices and meet the needs of most SPI communication protocol devices.

2. KEYWORD DESCRIPTION¶

MISO / SDO: Master input slave output. (data comes from the slave)
MOSI / SDI: Master output slave input. (data comes from the master)
SCLK / SCK: Serial clock signal, generated by the master and sent to the slave.
CS / SS: Slave Select chip select signal, sent by the master to control which slave to communicate with, usually a low-level valid signal.
CPOL / CKP: Clock polarity, indicating the high and low levels of the clock in the default state.
CPHA / CKE: Clock phase, indicating the specific phase of the clock signal when collecting data.
SPI Mode: The configuration of the SPI clock polarity and phase can output 4 SPI modes.

SPI Mode CPOL CPHA

0 [00] 0 0

1 [01] 0 1

2 [10] 1 0

3 [11] 1 1

3. Functional Description¶

MSPI (Master SPI) can only be used as a master device, not a slave device.
The hardware supports 2 groups of MSPI and Motorola SPI standard timing. The register bank of MSPI and the maximum software chip select supported are as follows:

MSPI Bus bank addr cs_num

0 1110H 2

1 1119H 2
Supports full-duplex read and write, half-duplex read and write in FIFO mode, and only supports half-duplex read and write in DMA mode.
Supports 4-wire communication (MISO + MOSI + SCLK + CS) and 3-wire communication. (MOSI + SCLK + CS)
8-byte read and write buffer (FIFO mode), byte transmission 1-bit to 16-bit configurable bit width.
Support GPIO chip selection, which needs to be added from dtsi. For detailed methods, see 6.2.3. cs-ext section.

Source Clock: 12M, 104M, 108M, 144M, the actual SPI communication frequency selectable gear is 8 gears for each Source Clock division(The allocation coefficients are 2, 4, 8, 16, 32, 64, 128, 256), there are 32 gears in total, so the SPI communication frequency range is 46875K~72MHz. The target frequency can be set by assigning the max_speed_hz variable in the struct mspi_setup structure (refer to 6.3.1. User-mode reading and writing SPI section); and the actual communication frequency will select the gear closest to the target frequency but less than the target frequency. The frequency gear table is as follows.

NO.	SPI Clock Rate
1	46875
2	93750
3	187500
4	375000
5	421861
6	421875
7	562500
8	750000
9	843723
10	843750
11	1125000
12	1500000
13	1687446
14	1687500
15	2250000
16	3000000
17	3374892
18	3375000
19	4500000
20	6000000
21	6749785
22	6750000
23	9000000
24	13499571
25	13500000
26	18000000
27	26999143
28	27000000
29	36000000
30	53998287
31	54000000
32	72000000

4. HARDWARE CONNECTION INTRODUCTION¶

MSPI only supports one master and multiple slaves architecture. As the name implies, there can be only one master device and one or more slave devices on one bus. The slave selection signal line is often called the chip select signal line, also known as CS and SS, and is represented by SS below. When multiple SPI slave devices are connected to the SPI host, the other signal lines SCLK, MOSI and MISO of the device are connected in parallel to the same SPI bus at the same time, that is, no matter how many slave devices there are, they only use these three lines together; and each slave device has an independent SS signal line, which occupies a pin of the host, that is, there are as many chip select signal lines as there are slave devices. There is no device address in the SPI protocol. It uses the SS signal line for addressing. When the host wants to select a slave device, it sets the SS signal line of the slave device to a low level (the default is a low level), and the slave device is selected, that is, the chip select is valid, and then the host starts SPI communication with the selected slave device. Therefore, SPI communication starts with the SS line being set to a low level and ends with the SS line being pulled high.

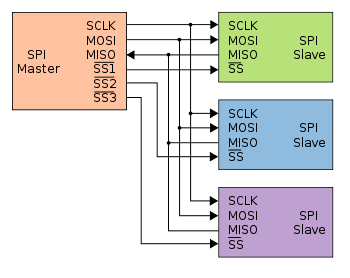

Figure 4-1: Mspi_connect

5. UBOOT USAGE INTRODUCTION¶

5.1. Uboot Config Configuration¶

The configurations that need to be selected when compiling Uboot are as follows:

SigmaStar drivers->

    <*> SigmaStar MSPI->


Device drivers->

    Generic Driver Options->

        <*> Enable Driver Model

Device drivers->

    <*> SPI Support->

        <*> Enable Driver Model for SPI drivers

Command line interface->

    Device access commands->

        <*> sspi - Command to access spi device

5.2. Uboot DTS Configuration¶

spi0: spi0@1F222000 {
    compatible = "sstar,mspi";
    reg = <0x1F222000 0x200>;
    mspi-group = <0>;
    use-dma = <0>;
    cs-num = <2>;
    cs-ext = <PAD_UNKNOWN>;
    4to3-mode;
    clk-out-mode = <27000000>;
    status = "okay";
};

Attribute	Description	Remark
compatible	Used to match the driver for driver registration, must be consistent with the code.	Modification prohibited.
reg	Used to specify the address of the SPI register bank.	No modification required.
mspi-group	Used to specify the serial number of the SPI peripheral number.	No modification required.
use-dma	Used to specify whether to enable DMA mode.	Can be modified as needed.
cs-num	Used to specify the number of cs pads provided by the Engine.	Used with cs-ext.
cs-ext	Used to specify the pad index to be used in addition to the cs provided by the Engine.	Can be modified as needed.
4to3-mode	Used to specify whether to enable 4 Wires as 3 Wires.	Can be modified as needed.
clk-out-mode	Used to specify whether to enable clk-out-mode.	Can be modified as needed.
status	Used to select whether to enable the SPI master driver.	Can be modified as needed.

5.3. Uboot CMD Parameter Description and Example Screenshot¶

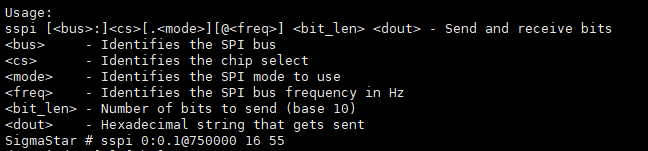

Figure 6-1: SPI-5

Parameter	Setting Value	Description
1	sspi	Command name.
2	0:0.1@750000	SPI bus: CS: SPI mode: frequency.
3	16	The length of the data sent is 16 bits.
4	55	The hexadecimal data sent is 0x55.

6. KERNEL USAGE INTRODUCTION¶

6.1. Kernel Config Configuration¶

The configurations you need to select when compiling the Kernel are as follows:

Device drivers->

    [*] SStar SoC platform drivers->

         <*> SStar MSPI driver

Device drivers->

    [*] SPI support->

         <*>   User mode SPI device driver support

6.2. Dtsi Note Description¶

spi0: spi@1f222000 {
        compatible = "sstar,mspi";
        mspi-group = <0>;
        clocks = <&CLK_mspi0>;
        reg = <0x0 0x1F222000 0x0 0x200>;
        #address-cells = <1>;
        #size-cells = <0>;
        interrupts = <GIC_SPI INT_IRQ_MSPI_0 IRQ_TYPE_LEVEL_HIGH>;
        dma-enable;
        cs-num = <1>;
        //cs-ext = <PAD_UNKNOWN>;
        //4to3-mode;
        //clk-out-mode = <27000000>;
        status = "ok";

        spidev0@0 {
            compatible = "lwn,bk4";
            reg = <0>;
        };
        spidev0@1 {
            compatible = "lwn,bk4";
            reg = <1>;
        };
    };

spi1: spi@1f223200 {
        compatible = "sstar,mspi";
        mspi-group = <1>;
        clocks = <&CLK_mspi1>;
        reg = <0x0 0x1F223200 0x0 0x200>;
        #address-cells = <1>;
        #size-cells = <0>;
        interrupts = <GIC_SPI INT_IRQ_MSPI_1 IRQ_TYPE_LEVEL_HIGH>;
        dma-enable;
        cs-num = <1>;
        //cs-ext = <PAD_UNKNOWN>;
        //4to3-mode;
        //clk-out-mode = <27000000>;
        status = "ok";

        spidev0@0 {
            compatible = "lwn,bk4";
            reg = <0>;
        };
        spidev0@1 {
            compatible = "lwn,bk4";
            reg = <1>;
        };
    };

The configuration attributes supported by the SPI master driver are as follows:

Attribute	Description	Remark
compatible	Used to match the driver for driver registration, which must be consistent with the code.	Modification prohibited.
reg	Used to specify the address of the SPI register bank.	No modification required.
interrupts	Used to specify the hardware interrupt number and attributes to be used.	No modification required.
clocks	Used to specify the clock source to be used.	No modification required.
mspi-group	Used to specify the serial number of the SPI peripheral number.	No modification required.
dma-enable	Used to specify whether to enable DMA mode, the comment indicates fifo mode.	Can be modified as needed.
clk-out-mode	Used to specify whether to enable clk-out-mode.	Can be modified as needed.
cs-num	Used to specify the number of cs pads provided by the Engine.	Used with cs-ext.
cs-ext	Used to specify the pad index to be used in addition to the cs provided by the Engine.	Can be modified as needed.
4to3-mode	Used to specify whether to enable 4 Wires as 3 Wires.	Can be modified as needed.
status	Used to select whether to enable the SPI master driver.	Can be modified as needed.
spidev	Used to configure the number of nodes of the spidev device.	Can be modified as needed.

6.2.1 DMA Mode¶

SigmaStar SPI Master supports two basic communication modes: fifo mode and dma mode. When the SPI Master is in fifo mode, the SPI Master driver writes the data to be sent into the SPI Master's send buffer and reads the received data from the receive buffer. The send buffer and receive buffer are registers in the SPI Master peripheral, and the capacity of the send buffer and receive buffer is 8 bytes each. Since the SPI Master works in fifo mode, the software needs to participate in the operation of the send buffer and receive buffer, so the waveform will be affected by software scheduling, and there will be a certain interval between each transmission.

When the SPI Master is in dma mode, the driver only needs to set the address of the data to be sent and the address where the received data needs to be stored to the SPI Master DMA-related registers, and the SPI Master will automatically send and receive data continuously. This process does not require software participation. Therefore, when the SPI Master works in dma mode, the SPI waveform continuity is better.

When the amount of data sent or received during the communication between the SPI Master and the SPI Device is small, you can consider using fifo mode, which has higher work efficiency. When the SPI Master and SPI Device communicate, the amount of data sent or received is large, such as receiving SPI Sensor data, etc. If fifo mode is used for such large-scale data communication, the system CPU usage will be very high, affecting system efficiency. In the scenario of large-scale data communication, dma mode can be considered.

[Note] Currently, SigmaStar SPI Master dma mode only supports half-duplex working mode, and the sending and receiving of SPI Master share the same dma channel. When the device needs to use full-duplex communication, only fifo mode can be used. The dma-enable attribute specifies whether to use fifo mode or dma mode in half-duplex mode. When the Device driver needs to use full-duplex communication, the Master driver will automatically switch to fifo mode. When dma mode is turned on, full-duplex can be enabled through the transmission parameters, so if you want to use full-duplex mode, you can also specify the dma-enable attribute.

6.2.2 cs-num¶

The maximum value of the hardware preset cs number, cs-num = n, the software chip select number is the MSPI chip select 0 ~ n-1; if you want to use the MSPI software chip select cs0, cs1, you need to configure cs-num = 2.

6.2.3 cs-ext¶

The function of adding additional cs pins implemented by the driver. When the hardware preset cs pins are not enough, you can configure additional cs pins in dtsi as an expansion. The cs-ext chip select number starts from the value of cs-num. For example, if cs-num = 2, the first cs-ext pin is cs2. The method to configure additional cs is to open the cs-ext property under the dtsi node and configure the pad id to be expanded as cs. At the same time, it is recommended to configure the corresponding pad as GPIO MODE in xxx-padmux.dtsi. The following is to use PAD_SAR_ADC17 as an expansion of cs:

<PAD_SPI0_CK            PINMUX_FOR_SPI0_MODE_1        MDRV_PUSE_SPI0_CK>,
<PAD_SPI0_DI            PINMUX_FOR_SPI0_MODE_1        MDRV_PUSE_SPI0_DI>,
<PAD_SPI0_DO            PINMUX_FOR_SPI0_MODE_1        MDRV_PUSE_SPI0_DO>,
<PAD_SPI0_CZ            PINMUX_FOR_SPI0_MODE_1        MDRV_PUSE_SPI0_CZ>,
<PAD_PM_INTOUT          PINMUX_FOR_SPI0_CZ1_MODE_1    MDRV_PUSE_SPI0_CZ2>,
<PAD_I2C0_SCL           PINMUX_FOR_GPIO_MODE          MDRV_PUSE_SPI0_CZ3>,

6.2.4 clk-out-mode¶

clk-out-mode is a special mode supported by SigmaStar SPI Master. When SPI Master is in clk-out-mode, MOSI and MISO of SPI Master no longer send or receive data according to the given data, and the Clock signal of SPI Master will continuously output square waves. The application scenario of this function is to use the clock output by SPI Master as the working clock of other devices. The value of clk-out-mode attribute is used to specify the frequency of the output clock. To configure clk-out-mode, you only need to turn on the clk-out-mode attribute in dtsi and configure the corresponding waveform frequency to be output:

clk-out-mode = <3750000>; //Enable clk-out-mode to output 3.75M frequency waveform

The selectable output frequency is the same as the normal operating frequency of MSPI, refer to the Frequency Range Table.

6.2.5 4 to 3 Mode¶

The SPI Master 3-wire mode of some platforms does not support dma mode. If you need 3-wire dma mode communication, you can enable 4 to 3 mode. In terms of hardware, short-circuit the MOSI and MISO of the Master and connect them to the SDAT of the Device, as shown below:

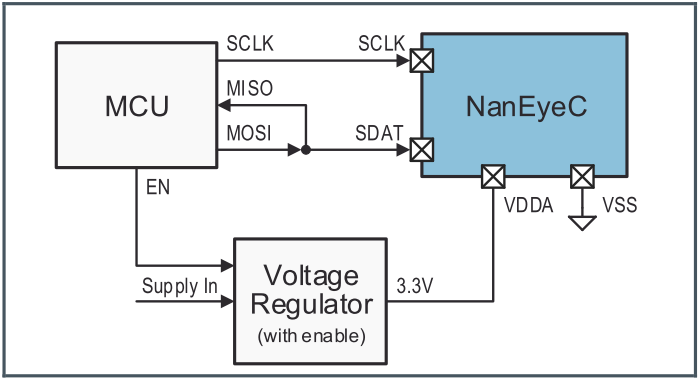

Figure 7-1: 4to3 Mode

When the driver is reading data, MOSI will automatically switch to GPIO Input Mode so as not to interfere with the waveform input of MISO, thereby achieving the goal of using the four-wire mode as the three-wire mode. If you want to use this function, just turn on the 4to3-mode attribute in the dtsi node, that is

4to3-mode; // Enable 4to3-mode

Note: The pins of MSPI in 4to3 mode cannot be used as other modes. MISO in 3-wire mode can be used as other functions, provided that the mode has a higher priority than MSPI, such as gpio.

6.2.6. spidev¶

As shown in 6.2. Dts configuration above, if there is a spidev child node under the spi0 node, the reg attribute indicates the chip select number. Then when we turn on CONFIG_SPI_SPIDEV, we can see spidev0.0 (mspi0 cs0) and spidev1.0 (mspi1 cs0) in the /dev/ directory, two nodes, namely spidev##bus.##cs. If the sum of the chip select numbers of cs-num and cs-ext is configured to be 2, spidev0.1 (mspi0 cs1) and spidev1.1 (mspi1 cs1) will be generated.

6.3. PADMUX Configuration¶

The padmux configuration method of MSPI in Uboot and Kernel environments is the same. You only need to add the following code to the corresponding padmux.dtsi according to the selected pins. Taking MSPI0 as an example, each PADMUX mode requires the configuration of 4 pins:

// MODE 1
<PAD_GPIOE_14  PINMUX_FOR_MSPI0_MODE_1 MDRV_PUSE_SPI0_CK>;
<PAD_GPIOE_16  PINMUX_FOR_MSPI0_MODE_1 MDRV_PUSE_SPI0_DI>;
<PAD_GPIOE_17  PINMUX_FOR_MSPI0_MODE_1 MDRV_PUSE_SPI0_DO>;
<PAD_GPIOE_15  PINMUX_FOR_MSPI0_MODE_1 MDRV_PUSE_SPI0_CZ>;

The first column is the pin index number, which can be found in /drivers/sstar/inlcude/{chipname}/gpio.h;

The second column is the mode definition. In the m_hal_gpio_st_padmode_info_tbl array in /drivers/sstar/gpio/{chipname}/hal_pinmux.c, the multiplexing relationship of all pins is listed. To check which multiplexing functions the pin supports, you can query the array;

The third column is the index name of the pin and the matching mode, which can be found in /drivers/sstar/include/drv_puse.h.

6.4. Module usage introduction¶

The kernel comes with a set of Device Driver and user programs for testing MSPI Master: drivers/spi/spidev.c and tools/spi/spidev_test.c.

6.4.1. Read and write SPI in user mode¶

To use the kernel's built-in test program spidev_test.c, you need to modify the configuration file to open the CONFIG_SPI_SPIDEV option and configure the spidev subnode in dts. The kernel will eventually generate spidevX.X files in the /dev folder.

User-mode test case, execute make in the tools/spi/ directory to obtain the executable file spidev_test.

Common operations of spidev_test are:

Parameter	Description
-D	Used to select the device node for the operation, such as: /dev/spidev0.0, the default is: /dev/spidev1.1.
-s	Used to select the spi clock rate, the unit is Hz.
-H	Used with -O to select the spi communication timing.
-O	Used with -H to select the spi communication timing.
-C	Used to specify that CS is active high.
-L	Used to specify the byte order as LSB.
-3	Used to specify the communication mode as 3-wire mode.
-v	Used to specify the printed data content to be sent & received.
-i	Used to specify the file to be sent. (binary file)
-o	Used to specify the path to save the received data into a file. (binary file)
-p	Used to specify the data to be sent, such as: "1234\xde\xad".

The functions supported by the current driver are listed in the table above. For specific usage, please refer to the help command: spidev_test help. Parameters can be combined freely, please adjust as needed.

The spidev_test core send/receive function example is as follows:

static void transfer(int fd, uint8_t const *tx, uint8_t const *rx, size_t len)
{
    int ret;
    int out_fd;
    struct spi_ioc_transfer tr = {
        .tx_buf = (unsigned long)tx,
        .rx_buf = (unsigned long)rx,
        .len = len,
        .delay_usecs = delay,
        .speed_hz = speed,
        .bits_per_word = bits,
        };

    if (mode & SPI_TX_OCTAL)
        tr.tx_nbits = 8;
    else if (mode & SPI_TX_QUAD)
        tr.tx_nbits = 4;
    else if (mode & SPI_TX_DUAL)
        tr.tx_nbits = 2;
    if (mode & SPI_RX_OCTAL)
        tr.rx_nbits = 8;
    else if (mode & SPI_RX_QUAD)
        tr.rx_nbits = 4;
    else if (mode & SPI_RX_DUAL)
        tr.rx_nbits = 2;
    if (!(mode & SPI_LOOP)) {
    if (mode & (SPI_TX_OCTAL | SPI_TX_QUAD | SPI_TX_DUAL))
            tr.rx_buf = 0;
    else if (mode & (SPI_RX_OCTAL | SPI_RX_QUAD | SPI_RX_DUAL))
            tr.tx_buf = 0;
    }

    ret = ioctl(fd, SPI_IOC_MESSAGE(1), &tr);
    if (ret < 1)
        pabort("can't send spi message");

    if (verbose)
        hex_dump(tx, len, 32, "TX");

    if (output_file) {
        out_fd = open(output_file, O_WRONLY | O_CREAT | O_TRUNC, 0666);
        if (out_fd < 0)
            pabort("could not open output file");

        ret = write(out_fd, rx, len);
        if (ret != len)
            pabort("not all bytes written to output file");

        close(out_fd);
    }

    if (verbose)
        hex_dump(rx, len, 32, "RX");
}

When .rx_buff is not null and .tx_buff is null in struct spi_ioc_transfer tr, MSPI Master performs half-duplex read operation; when .rx_buff is null and .tx_buff is not null, half-duplex write operation is performed; when .rx_buff and .tx_buff are not null, even if dma mode is turned on, full-duplex read and write operation of fifo mode is performed. The corresponding waveform diagram is as follows:

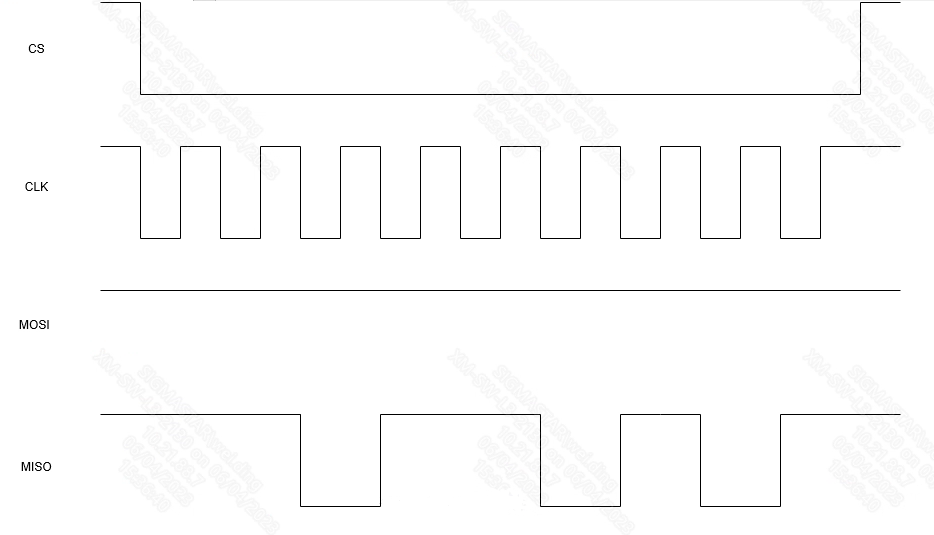

Figure 7-2: Waveform Diagram

In the figure, MOSI corresponds to the data in .tx_buff, and MISO corresponds to the data in .rx_buff.

6.4.2. Read and write SPI in kernel mode¶

For kernel-mode reading and writing of MSPI, refer to the implementation of /drivers/spi/spidev.c, encapsulate the interface to build and initialize the structures spi_transfer and spi_message, and then call the kernel interface spidev_sync():

spidev_sync_read(struct spidev_data *spidev, size_t len)
{
    struct spi_transfer t = {
            .rx_buf     = spidev->rx_buffer,
            .len        = len,
            .speed_hz   = spidev->speed_hz,
        };
    struct spi_message  m;

    spi_message_init(&m);
    spi_message_add_tail(&t, &m);
    return spidev_sync(spidev, &m);
}

spidev_sync_write(struct spidev_data *spidev, size_t len)
{
    struct spi_transfer t = {
            .tx_buf     = spidev->tx_buffer,
            .len        = len,
            .speed_hz   = spidev->speed_hz,
        };
    struct spi_message  m;

    spi_message_init(&m);
    spi_message_add_tail(&t, &m);
    return spidev_sync(spidev, &m);
}

7. FAQ¶

7.1 SPI communication cannot capture waveform¶

Check whether the driver is loaded normally and whether there is an error during the startup process.
Check whether the padmux configuration is correct.
Check whether the hardware circuit is abnormal, configure the pin to GPIO output mode, and use a voltmeter to measure whether the GPIO high and low levels can jump normally.

7.2 SPI cannot read device data¶

Check whether the clock rate configured by mspi is greater than the maximum clock supported by the peripheral.
Check whether the data pin is connected incorrectly, DO of MSPI is MISO, and DI is MOSI.
Capture the sent waveform to see if it meets the waveform required by the peripheral.
Is the peripheral normal.

7.3 The waveform is messy¶

Check whether the voltage matches
The pin drive capability may be insufficient, increase the pin drive capability.

SPI Mode	CPOL	CPHA
0 [00]	0	0
1 [01]	0	1
2 [10]	1	0
3 [11]	1	1

MSPI Bus	bank addr	cs_num
0	1110H	2
1	1119H	2
