MI AI API

---

REVISION HISTORY

Revision No.	Description	Date
3.50	Initial release	12/04/2020
3.51	Audio new architecture	07/19/2021

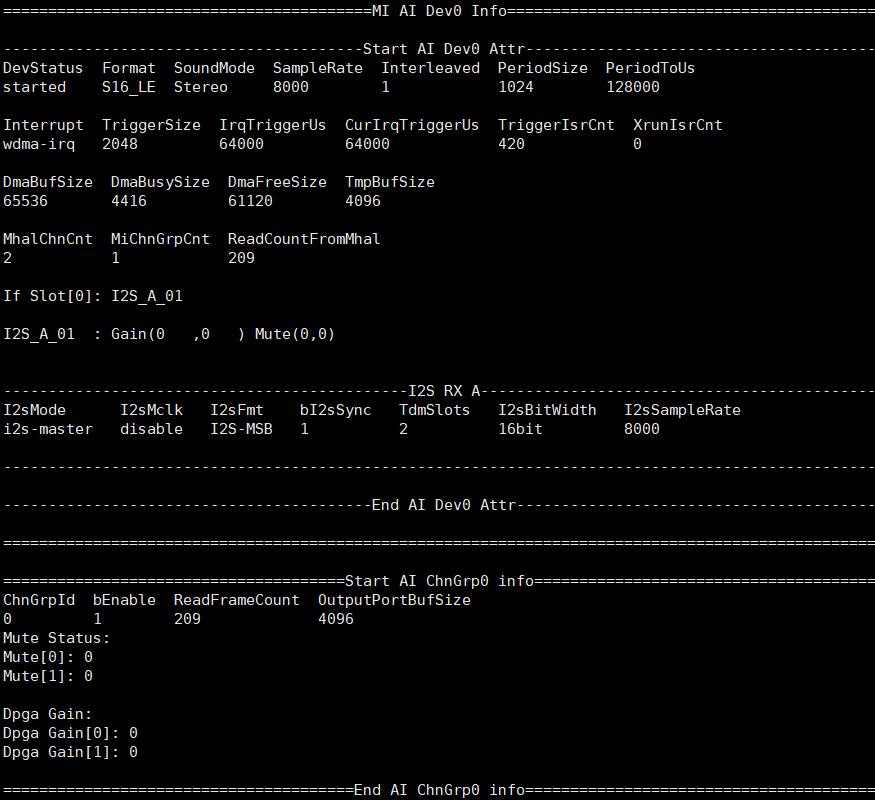

	Added procfs introduction	08/25/2021
3.52	Added MI_AI_GetAttr	09/08/2021
	Modified version: Audio 3.0 Version starts from 3.50(3.0 to 3.49 are Audio 2.0 versions)	12/29/2021
3.53	Added Mochi info	02/17/2022
3.54	Added Maruko info	03/29/2022
	Modified config file format of MI_AI_OpenWithCfgFile	05/19/2022
3.55	Added Souffle info	02/28/2023
	Synchronize Muffin/Mochi/Maruko/Souffle API Doc;Update some inaccuracies in the documentation	06/10/2023
	Added description of MI_AI_OpenWithCfgFile and modified error description	11/21/2023
	Added Insmod Parameter, MODPARAM.json and Amic usage instructions	07/03/2023
	Added interface singen support for each chip series	12/06/2023
	Add Pcupid information, add chip difference summary, development process, device tree information, and example introduction	04/22/2025

---

1. Overview

1.1. Module Description

Audio Input (AI) is mainly used to configure and enable audio input devices, read Audio data, and adjust volume/mute.

Keyword:

• Device (Audio input device)

  AI Device refers to WDMA of audio codec. Device is an abstraction of DMA in audio codec by audio3.0. WDMA in audio codec and AI Device have a one-to-one correspondence. For example, AI Device0 corresponds to WDMA1 in audio codec, AI Device1 corresponds to WDMA2 in audio codec, and so on. The data streams of audio3.0 are all connected in series with DMA as the center.

• Channel Group (Audio input channel group)

  AI Channel Group refers to a collection of multiple physical channels. The number of physical channels in the set is determined by the Sound Mode of the AI Device. The meaning of Channel Group is to ensure the synchronization of related multiple physical channel data. For example, to make a 4Mic beamforming algorithm, the 4 physical channels must ensure data synchronization. The solution is to operate the 4 physical channels as a whole. This is the meaning of Channel Group. How many Channel Groups the AI Device shares is determined by the number of physical channels connected to the AI Device and the Sound Mode. Channel Group Number = (the number of physical channels connected to the Device - the number of physical channels connected to the Device of Echo) / Sound Mode.

• Interface (Audio input peripherals)

  AI Interface is an abstraction of audio input peripheral interfaces in audio codec, such as Amic/Dmic/I2S/HDMI interfaces.

• Attach

  AI Attach refers to mounting Interface to the MUX corresponding to WDMA, that is, associating Device with Interface. For AI Device, Attach is to set the MUX corresponding to WDMA, select which Interface data can pass through the MUX, and WDMA will do the subsequent data transfer. AI Device does not support dynamic Attach Interface.

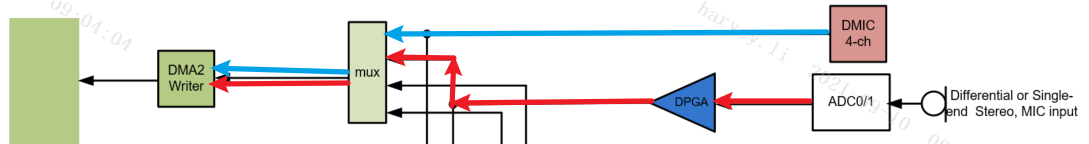

  The following figure is the result of attaching Dmic and ADC to WDMA2. MUX selects Dmic and ADC0/1 as two data sources and connects to WDMA2, so that WDMA2 can receive data from Dmic and ADC0/1.



• Echo

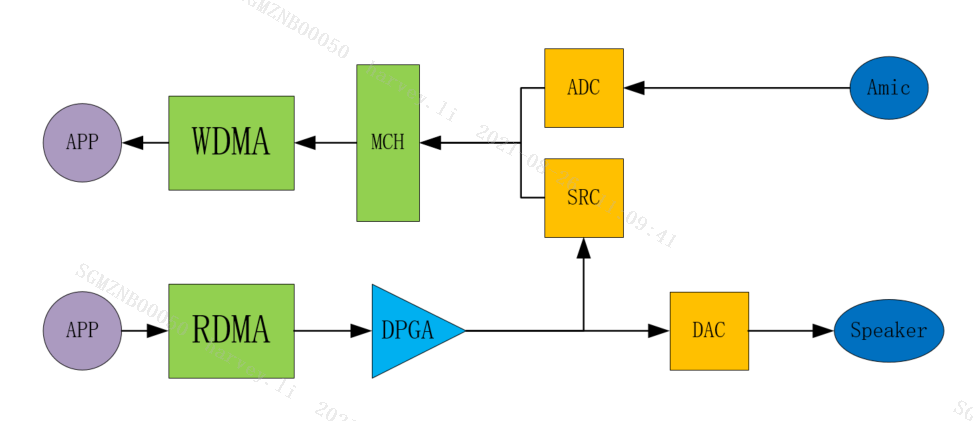

  AI Echo refers to the AEC reference data provided by the audio codec. It can be seen from the audio codec block diagram that the input of SRC is the signal output by RDMA and amplified by DPGA, and the output of SRC is the signal after re-sampling the input, which can be sent to WDMA through Multi Channel as the echo reference data of the AEC algorithm. For AI Device, Echo represents the output signal of SRC in the audio codec block diagram. For AO Device, Echo means to connect the output of AO Device to the input of SRC. The following figure shows the data flow of AI Device and AO Device using Echo at the same time with a simple block diagram. The application can obtain the aligned AEC far end and near end data.



• Sound Mode

  AI Sound Mode refers to how many physical channels a channel group consists of, and how many Channel Groups a Device has depends on the number of physical channels on the attach and the Sound Mode.

  Channel Group Number = (Physical Channels on Attach - Echo Channels on Attach) / Sound Mode.

• Gain

  AI Gain in audio3.0 architecture is divided into two categories: one is the Gain associated with Device, which is generally implemented by DPGA; the other is the unique Gain of Interface. Currently, the Interface with Gain has ADC and Dmic interfaces. For AI, if the Interface itself does not have an independent Interface Gain and is not connected to Dpga, the Gain setting cannot be performed. For details, see the Codec block diagram of the chip.

• Format

  What data format is used to represent an audio sample. Currently, only S16_LE format (PCM Linear 16bit (Little Endian)) is supported.

• Sample Rate

  The frequency the recording device samples the analog signal per unit time. The higher the sampling frequency, the more realistic and natural the waveform of the mechanical wave.

• Period Size

  For AI Device, Period Size represents the amount of data contained in each AI buffer (number of samples).

• Interleave

  For AI Device, whether Interleave is turned on or not determines how MI_AI stores the data of the Channel Group. If Interleave is turned on, the data of each physical channel in the Channel Group is stored interleaved by sample. If Interleave is closed, the data of each physical channel in the Channel Group is stored separately.

• I2S parameter

  1. I2S Mode

     I2S Mode determines the working mode of I2S, whether it is standard I2S mode or Tdm I2S mode (2Channel or multi-channel), Master or Slave (Master provides synchronous clock, Slave receives synchronous clock). Generally speaking, there are no restrictions on the working mode, as long as it can match the external Codec clock.

  2. I2S BitWidth

     The bit width of I2S sending and receiving data, currently support 16/32bit(The Souffle series only supports 16 bits), but the hardware can only process 16bit, which means that when the bit width is 32bit, the lower 16bit is invalid data.

  3. I2S Format

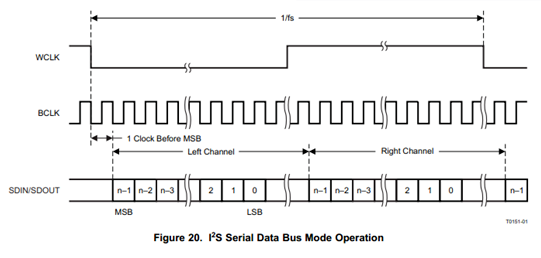

     I2S Format is the alignment of I2S. Currently, only I2S Philips and Left-justified alignment are supported. The following figure shows the waveforms of these two formats.

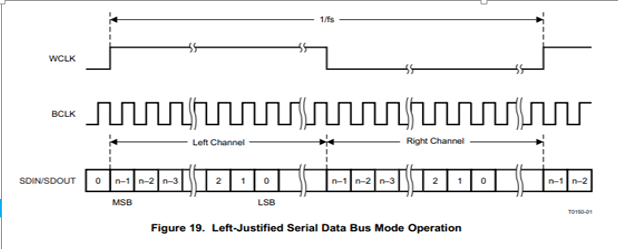

     I2S Philips alignment format, the first data bit of the sample data appears after the first BCLK (serial clock) of the WCLK (left and right channel switching clock) transition. In the left-aligned format, the first data bit of the sample data appears in the first BCLK (serial clock) of the WCLK (left and right channel switching clock) transition, and the polarity of WCLK is opposite to the alignment format of I2S Philips.

  4. I2S Sample Rate

     The sample frequency of I2S transmission and reception.

  5. Mclk

     Mclk, called the master clock, also called the system clock (System Clock), is generally 256 or 384 times the sample rate. The function is to enable better synchronization between systems, but it is not necessary. Currently 12.288M, 16.384M, 18.432M, 24.576M, 24M, 48M, etc. are supported(See data types for details on which MCLK are supported).

  6. bSyncClock/4-Wire/6-Wire Mode

     There are two wiring methods for SigmaStar's I2S. One is the 4-Wire mode, including RX_WCK, RX_BCK, RX_SDI, TX_SDO four wires. In this mode, TX does not have an independent clock, and all clocks are provided by RX. Therefore, in this mode, TX needs to rely on RX to use. TX cannot be used alone, and the parameters of I2S TX must be consistent with I2S RX. The other is 6-Wire mode, including RX_WCK, RX_BCK, RX_SDI, TX_WCK, TX_BCK, TX_SDO six wires. In this mode, RX and TX are independent and not related. The choice of 4-Wire/6-Wire Mode needs to be decided according to specific scenarios.

     If bSyncClock in the MI API I2S parameter is TRUE, 4-Wire Mode is used, and FALSE is 6-Wire Mode. The RX and TX belonging to the same group of I2S cannot be set to 4-Wire Mode on one side and 6-Wire Mode on the other side.

  7. Slot

     Slot represents the number of channels transmitted by I2S. Currently, 2 slots are supported in I2S mode, and 4/8 slots (Mochi series and Souffle series chips support 16 slots) are supported in Tdm mode.

• PCM

  The standard I2S (2Chn) protocol is one of the most commonly used PCM protocols. PCM can transmit multi-channel data, such as 4channel, 8channel, 16channel, etc, which is the TDM protocol (different from the standard I2S (2chn) protocol in a specific format). Generally used to transmit mono data is also often referred to as PCM (except for the commonly used standards I2S and TDM, others are collectively referred to as PCM). In addition to the standard I2S (2chn) setting of Sigmastar Audio, other Timing including 1Chn PCM related Settings are uniformly set in the parameters of TDM mode.

1.2. Basic Structure

For the audio subsystem of the Pcupid chip, please refer to the introduction in 1.2.6. Pcupid Series.

1.2.1 Audio Codec Device Description

• DMA

  Direct Memory Access, DMA transfer copies data from one address space to another address space, and provides high-speed data transfer between peripherals and memory or between memory and memory. When the CPU initializes this transfer action, the transfer action itself is realized and completed by the DMA controller. The DMA transmission method does not require the CPU to directly control the transmission, and there is no interrupt processing method to retain the scene and restore the scene process. The hardware opens a channel for direct data transmission for RAM and IO devices, which greatly improves the efficiency of the CPU.

• WDMA

  Direct Memory Access Writer.

• RDMA

  Direct Memory Access Reader.

• MUX

  MUX is the multiplexer data selector. In the process of multiplexing data transmission, any circuit that can be multiplexed out according to needs. The Mux in front of WDMA selects multiple data sources for WDMA, which can support the selection of 1/ 2/ 4 data sources (the data sources can be the same or different),but the Souffle series chips support a maximum of 8 data sources of 16Chn. Each data source has two channels, that is, the selection of 2/ 4/ 8/ 16 channels data is written to DRAM by WDMA, which acts as a multiplexer. However, the Mux, which is close to the output peripheral interface (such as I2S TX/HDMI/DAC, etc.), realizes the function of selecting one or selecting more.

• DPGA

  Digital Programmable Gain Amplifier, is a very versatile amplifier, and its amplification factor can be controlled by a program as needed.

• DMIC

  Digital Microphone Interface, audio codec only provides DMIC interface, not a complete DMIC. The DMIC interface provides the clock signal required for DMIC work, and receives the PDM signal from the DMIC.

• ADC

  Analog Digital Conversion, the electronic component that convert analog signals into digital signals.

• I2S

  Inter-IC Sound integrated circuit built-in audio bus, is a bus standard developed by Philips for audio data transmission between digital audio devices. Sigmastar's I2S bus only supports the standard I2S data format and the left-justified I2S data format. At the same time, it also supports TDM (Time-Division Multiplexing) technology, which interleaves different signals in different time periods and transmits them along the same channel, which can support 4/8/16 (Mochi series chips support 16 slots) channel data transmission.

• DAC

  Digital Analog Conversion, the electronic component that convert digital signals into analog signals.

• SRC

  Sample Rate Convert.

• HDMI

  HDMI (High Definition Multimedia Interface), an AO output interface, is a fully digital video and audio transmission interface that can transmit uncompressed audio and video signals.

• Mixer

  Mixer, uses an algorithm of linear superposition and averaging (if the volume of one audio channel is particularly low, the volume of the entire mixing result will be pulled down), and the sampling rate of the output can be set after mixing.

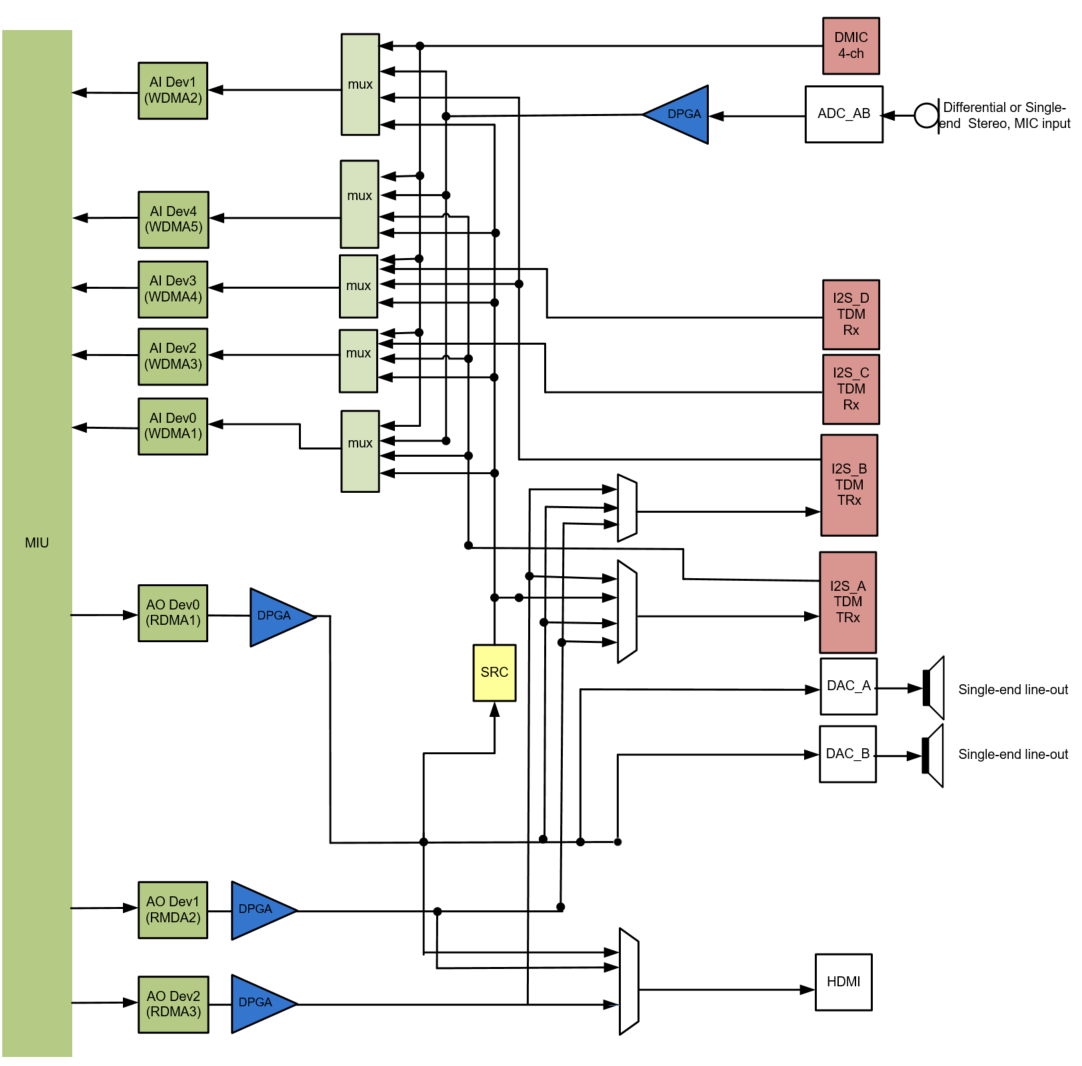

1.2.2. Muffin series

The audio codec of Muffin series chips has the following resources:

• WDMA * 5

• RDMA * 3

• DMIC interface (support 4Chn DMIC signal) * 1

• ADC (support 2Chn Amic/Linein) * 2

• I2S-TDM RX * 4

• I2S-TDM TX * 2

• DAC (support 2Chn Lineout) * 2

• SRC * 1

• HDMI TX * 1

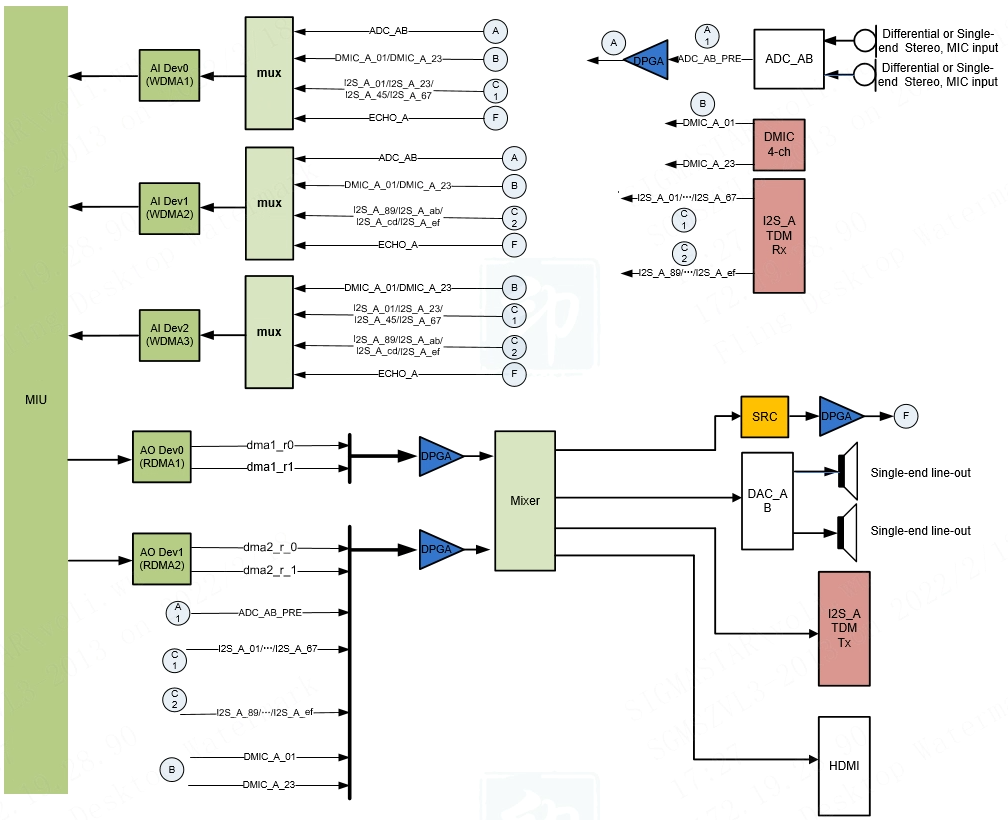

1.2.3. Mochi series

The audio codec of Mochi series chips has the following resources:

• WDMA * 3

• RDMA * 2

• DMIC interface (support 4Chn DMIC signal) * 1

• ADC (support 2Chn Amic/Linein) * 2

• I2S-TDM RX (16 slot) * 1

• I2S-TDM TX (16 slot, but there are only two channels of valid data) * 1

• DAC (support 2Chn Lineout) * 2

• SRC * 1

• HDMI TX * 1

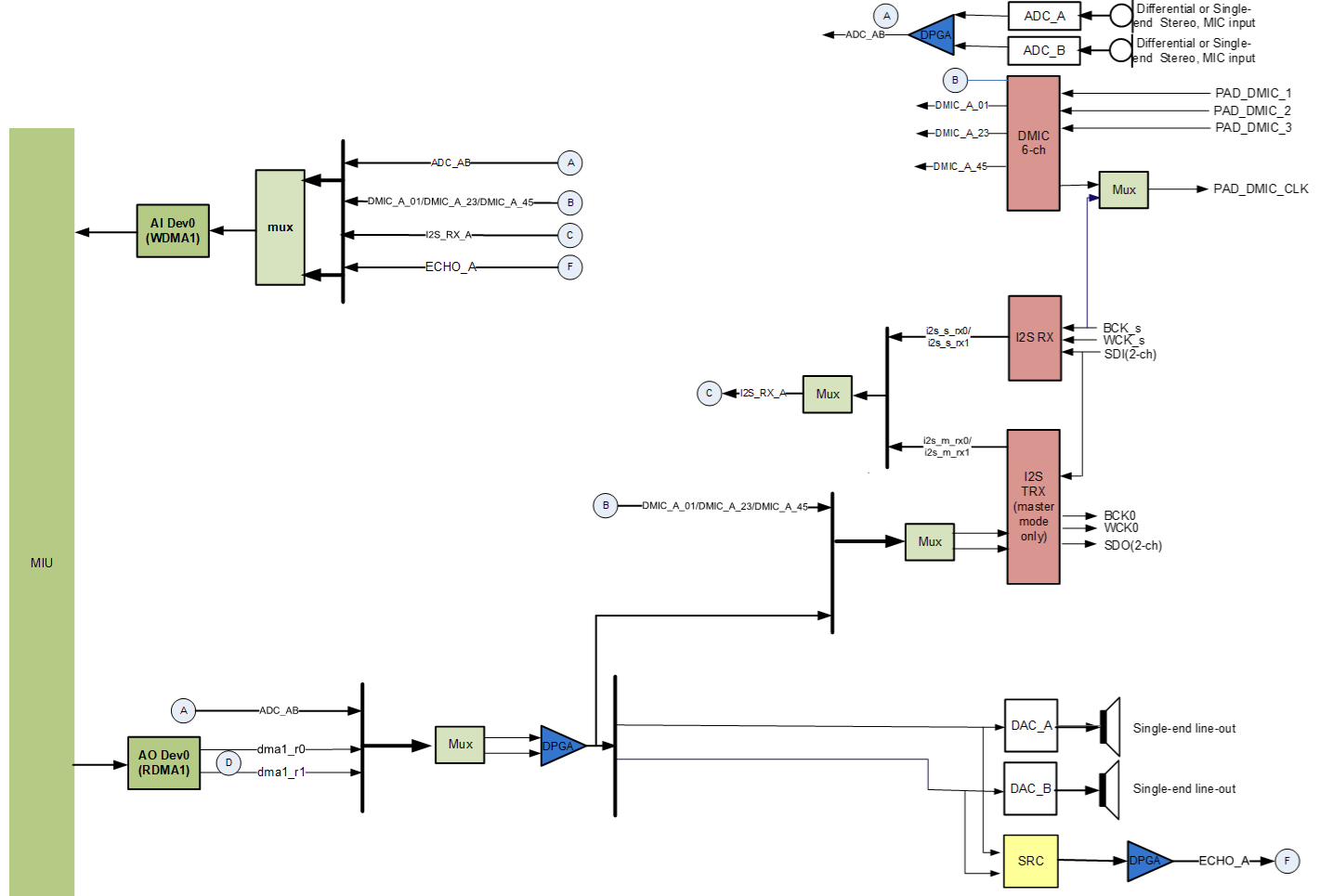

1.2.4. Maruko series

The audio codec of Maruko series chips has the following resources:

• WDMA * 1

• RDMA * 1

• DMIC interface (support 6Chn DMIC signal) * 1

• ADC (support 2Chn Amic/Linein) * 2

• I2S RX(2 slot) * 2

• I2S TX(2 slot) * 1

• DAC (support 2Chn Lineout) * 2

• SRC * 1

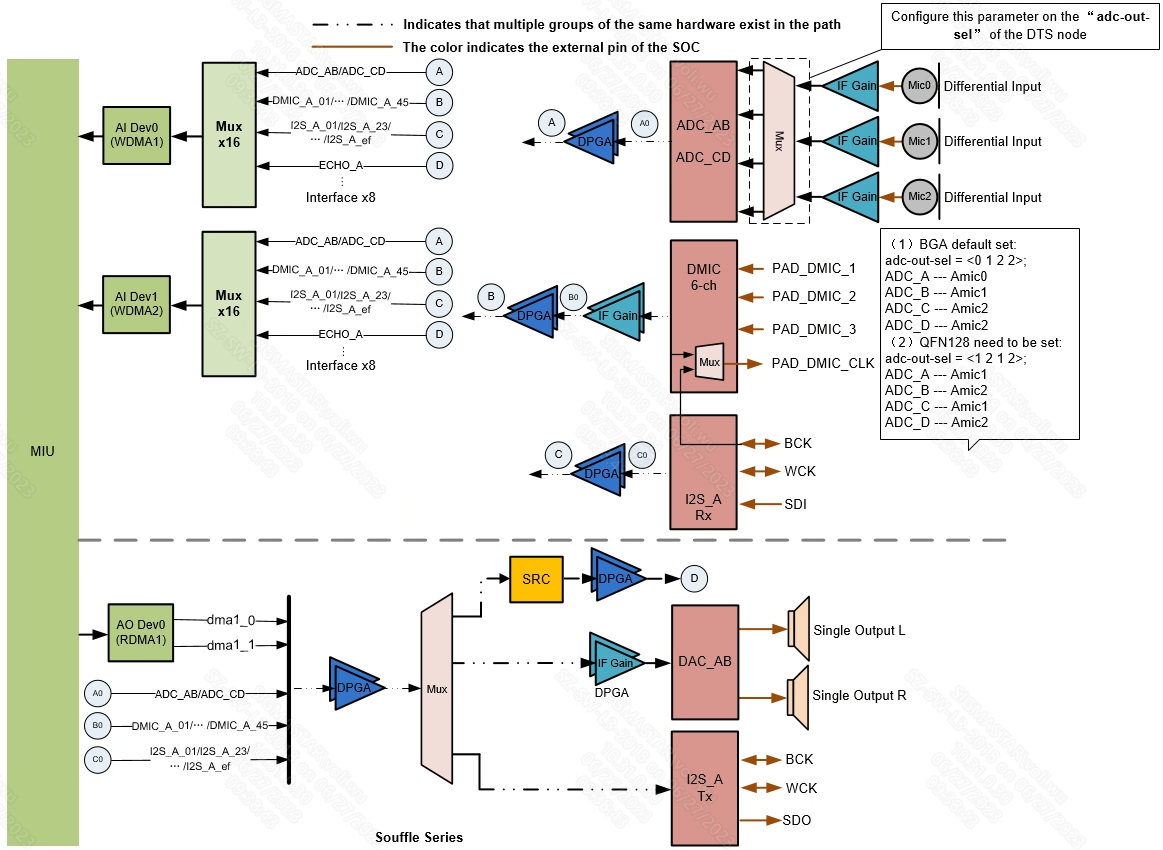

1.2.5. Souffle series

The audio codec of Souffle series chips has the following resources:

• WDMA * 2

• RDMA * 1

• DMIC interface (support 6Chn DMIC signal;DMIC CLK can be shared with I2S_RX BCK) * 1

• ADC (support 3Chn Amic/Linein,Differential Input) * 3

• I2S-TDM RX (16 slot) * 1

• I2S-TDM TX (16 slot) * 1

• DAC (support 2Chn Lineout Single Output) * 2

• SRC(2 physical channels) * 1

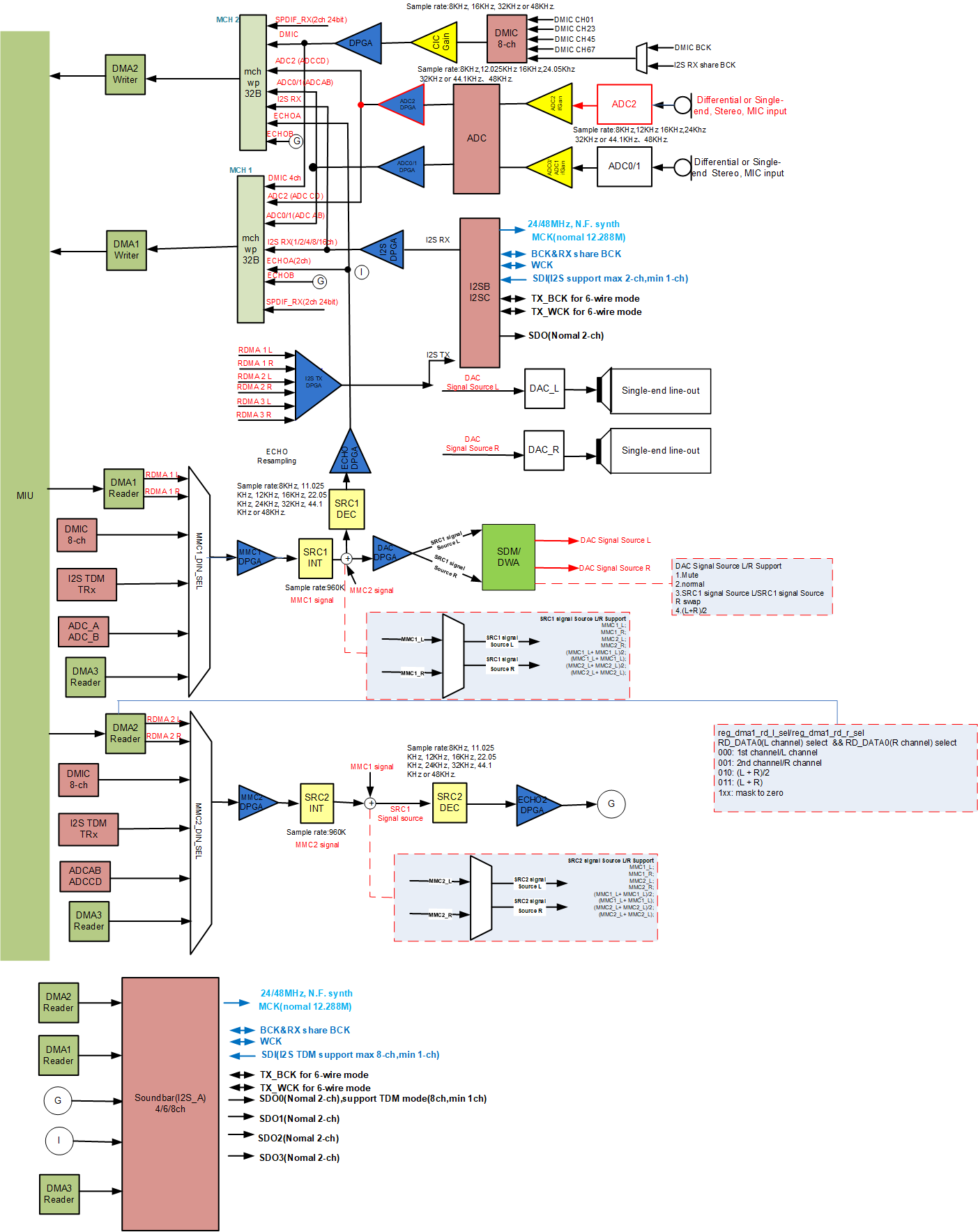

1.2.6. Pcupid series

The audio codec of Pcupid series chips has the following resources:

• WDMA * 2

• RDMA * 3

• DMIC interface (support 8Chn DMIC signal) * 1

• ADC (support 2Chn Amic/Linein) * 2

• I2S-TDM RX * 3

• I2S-TDM TX * 3

• DAC (support 2Chn Lineout) * 2

• SRC * 2

---

1.3. Function Introduction

Audio In mainly supports the following functions:

• Convert analog audio signals into digital streams through ADC, compatible with single-ended and differential inputs

• Support I2S/PDM/TDM/HDMI-RX/SPDIF-RX digital interface input

• Multi-channel PDM interface supports digital microphone array access

• Provide -64dB~+64dB range gain control

• Built-in fifth-order digital filter for anti-aliasing and digital high-pass filter

• Support 16/24/32bit bit width

1.3.1 DMA

• Data bit width: Support 16/24/32bit data access

• Multi-channel support:

  • WDMA supports up to 16 channels

1.3.2 ADC

• ADC Features:

  • Input mode: Multiple single-end or multiple differential

1.3.3 I2S

• I2S master interface:

  • Receiving channel: multi-channel input

  • Bit width support: 16/24/32bit

  • Sampling rate range:

    RX: 8/16/32/44.1/48/96/192KHZ

  • Working mode: RX supports master and slave modes, TDM mode

1.3.4. SPDIF-RX

• Protocol support:

  • IEC-60958

  • IEC-61937

• Audio Format:

  • Uncompressed mode:

    • Maximum 24bit bit width

    • Support 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 192KHz sampling rates

  • Compression mode:

    • Fixed 16-bit bit width

    • Support AC-3/MPEG/DTS/AAC formats

• Channel status: Support consumer applications format

1.3.5. DMIC

• Basic parameters:

  • Number of channels: 2, 4, 6, 8 channels

  • Bit width mode: Support 16/32bit

  • Sampling rate range: 8/16/32/48KHZ

  • PDM protocol: Master receiving mode

• Clock Configuration:

  Target Sample Rate	Supported Clock Rates
  48kHz	4.8/2.4MHz
  32kHz	4.8/2.4MHz
  16kHz	4.8/2.4/1.2/0.8MHz
  8kHz	2.4/1.2/0.6MHz

1.3.6. DPGA

• Gain Range: -63.875dB ~ + 64dB

• Adjustment accuracy: 0.125dB /Step

• Fading step size: 1/ 2/ 4/ 8/ 16/ 32/ 64/ 128

---

1.4. Application scenarios

MI_AI can be applied to the following scenarios:

1. Pure Linux scenario

   In the Linux environment, it supports development based on the API interface provided by MI_AI, and is also compatible with the standard ALSA interface for audio development. For ALSA development, please refer to Audio Development Guide.

2. Pure RTOS scenario

   In the RTOS environment, applications can be developed based on the API interface provided by MI_AI.

3. Dualos scenario

   In the dualOS environment, applications running on the Linux side or the RTOS side are all developed based on the MI_AI API.

1.5. Chip Differences

For the audio subsystem of the Pcupid chip, please refer to the introduction in 1.2.6. Pcupid Series.

1.5.1. Muffin series

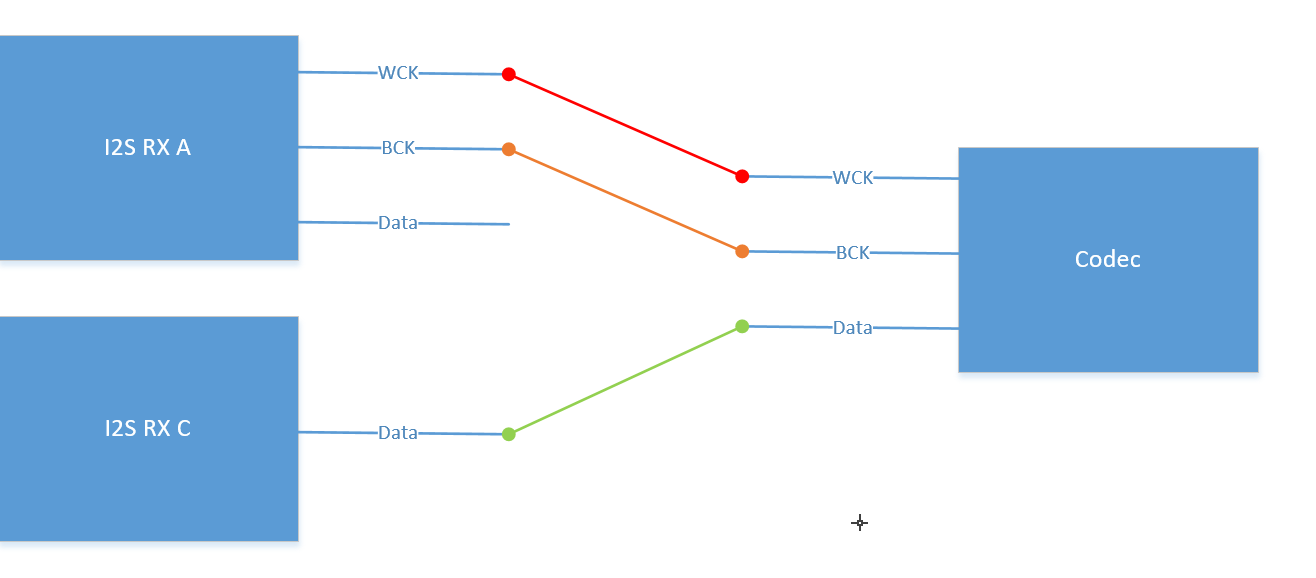

Muffin series chips have I2S RX * 4, but I2S RX C and I2S RX D have two modes, one is called share mode and the other is called slave mode. In share mode, I2S RX C and I2S RX A share I2S Clock (Wck and Bck), and I2S RX D and I2S RX B share I2S Clock (Wck and Bck). When both I2S RX A and I2S RX C need to be used at the same time The I2S parameters of the I2S must be completely consistent. The Codec that is connected to the I2S RX C needs to connect the I2S Clock pins (Wck and Bck) to the I2S Clock (Wck and Bck) of the I2S RX A, and the Data pin to the Data of the I2S RX C. Then, the hardware solution is shown in the figure below. Slave mode, I2S RX C and I2S RX D have independent clocks, but they can only be used as slaves. These two modes can be set by i2s-rx-mode under the dts sound node, 0 is slave mode, and 1 is share mode.

1.5.2. Mochi series

The Mochi series chip I2S supports a maximum of 16 slots, and the sampling rate is newly added to support 96K/192K. Note: In the usage scenario of I2S, the maximum I2S BCK cannot exceed 30MHz (eg: BCK=16bit * 16slots * 192K=49.152M or BCK=32bit * 16slots * 192K=98.304M, the usage of BCK > 30MHz is not supported). MUX currently supports up to 8 channels, so if you need to use I2S RX 16slot, you need to attach 16-channel data to two DMAs.

1.5.3. Maruko series

Maruko series chips, although there are two sets of I2S RX, but two sets of I2S RX cannot be used at the same time. Here are two sets of I2S RX usage scenarios:

• I2S RX:

• External codec transmits non-I2S signals, which need to be adjusted to Wck and Bck, such as receiving PCM signals.

• Need to synchronize with Dmic Share clock to achieve Dmic and I2S RX.

• External codec works in master mode.

• I2S TRX:

• Need to use I2S TX.

The I2S RX is selected by using the i2s-pcm under the dts sound node. 1 is I2S RX and 0 is I2S TRX. In addition, whether I2S RX and Dmic share clock are configured through dmic-bck-share. 1 is the share clock, and 0 is the independent clock.

1.5.4. Souffle series

BGA supports 3Chn Amic/Linein Differential Input, and QFN128 supports only 2Chn Amic/Linein Differential Input(Mic1 and Mic2). When used QFN128 encapsulation, you need to modify the DTS node "adc-out-sel = <1 2 1 2>", Refer to the Souffle series chip block diagram.

Souffle series chip I2S supports up to 16slot, 96K/192K sampling rate and 1Chn PCM, but does not support 32bit wide transceiver. Compared with the old SOC, it supports MCLK output with more frequency.

Currently, MUX supports a maximum of 16channels and can attach 16channels to the same DMA.

I2S RX 'BCK' supports Dmic 'CLK' share clock. Whether to configure I2S RX with Dmic share clock through 'dmic-bck-share' in dts. '1' indicates the share clock and '0' indicates the independent clock.

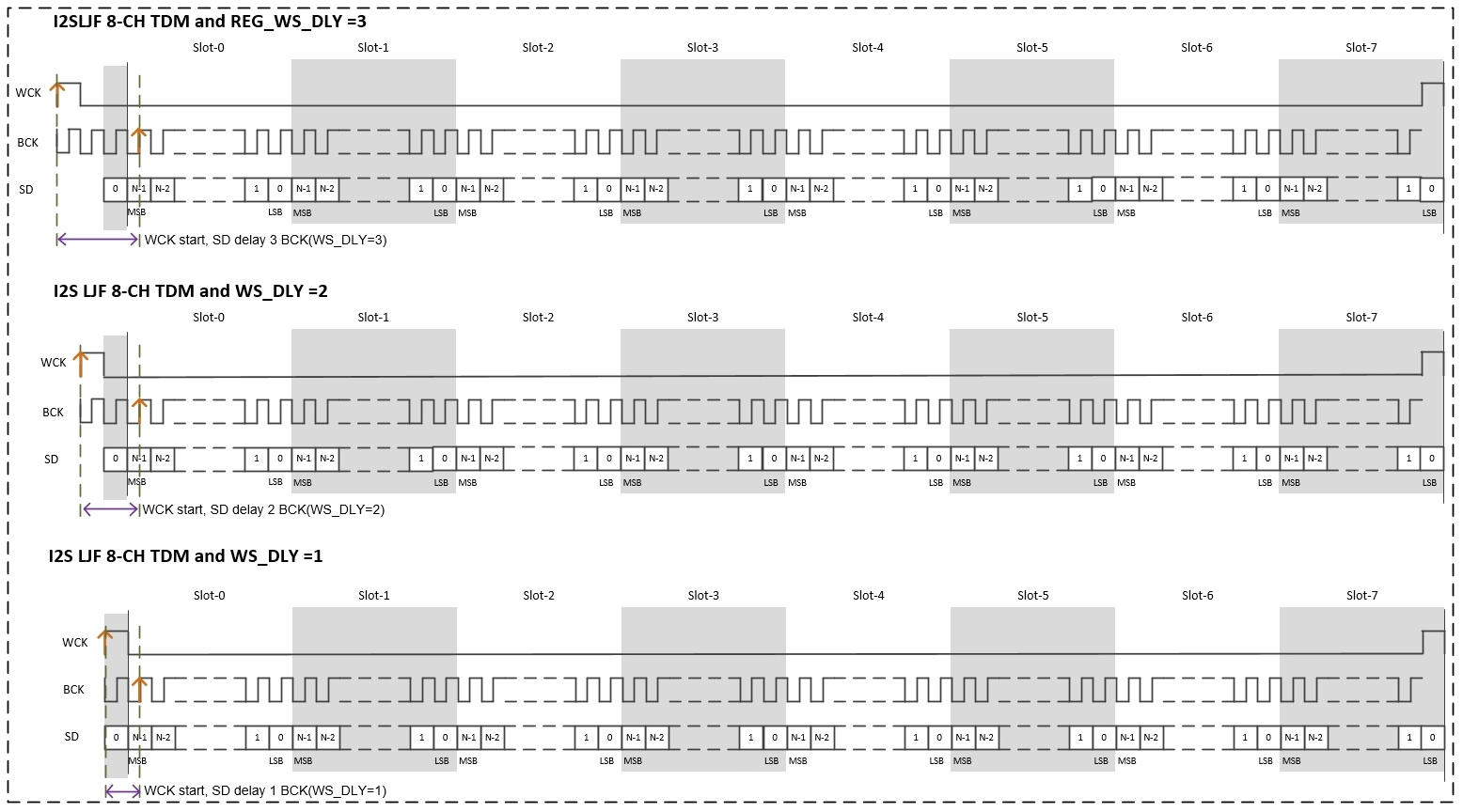

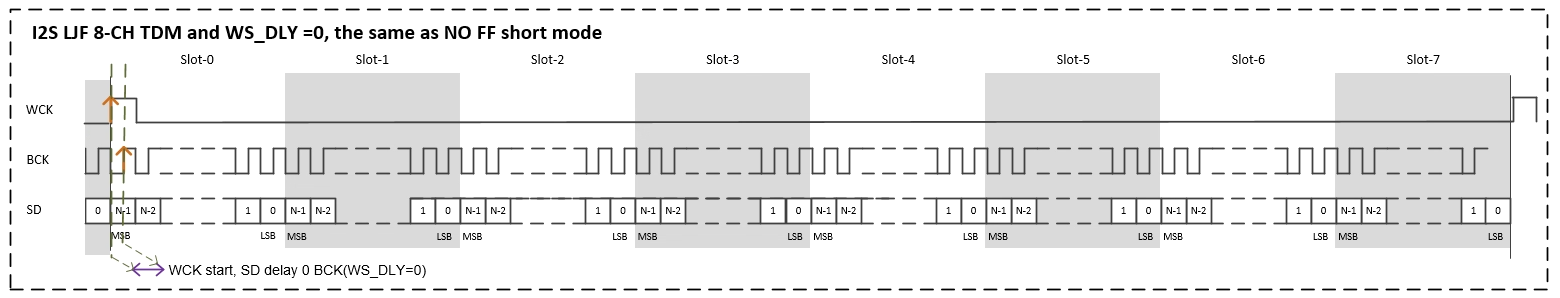

I2S supports short FF mode(which is configured through 'the i2s-rx-short-ff-mode/i2s-tx-short-ff-mode' node in dts) and supports WS_DLY=1~3, where WS_DLY=0 means NO short FF mode. The figures below respectively show the corresponding sequences of NO short-FF-mode and short-FF-mode.

Note: In the usage scenario of I2S, the maximum BCK of I2S cannot exceed 30MHz(e.g. BCK=16bit * 16slots * 192K=49.152M, BCK > 30MHz usage is not supported).

1.5.5. Pcupid Series

The I2S of the Pcupid series chips supports a maximum of 8 slots, sampling rates of 96K/192K, 1-channel PCM, and transceiving with 16/24/32-bit widths.

WDMA0 currently supports a maximum of 16 channels and allows attaching 16 channels of audio data to the same DMA simultaneously. WDMA1 currently supports a maximum of 8 channels and allows attaching 8 channels of audio data to the same DMA simultaneously.

I2S RX0 'BCK' supports sharing a clock with Dmic 'CLK'. Whether I2S RX0 shares a clock with Dmic is configured via dmic-bck-share, where 1 indicates clock sharing and 0 indicates independent clocks.

I2S supports the short FF mode (configured via the nodes i2s-rx-short-ff-mode/i2s-tx-short-ff-mode in the DTS), and supports WS_DLY = 1~3, where WS_DLY = 0 means no short FF mode.

1.5.6. Summary of Differences

The following table outlines the hardware differences between different chip series:

Function	Pcupid	Tiramisu	Mochi	Muffin	Maruko	Opera	Souffle
WDMA	2	2	2	5	1	2	2
ADC	3	3	2	2	2	3	3
I2S_RX	2 8ch 16/24/32bit 8k~192k	1 8ch 16bit	1 8ch 16bit	3 8ch 16bit	1 8ch 16bit	2 16ch 16bit 8/16/32/44.1/48k	1 16ch 16bit
SPDIF_RX	1 24bit 32k~192k	N	N	N	N	N	N
HDMI_RX	N	N	N	N	N	1 2ch 16bit 32/44.1/48k	N
DMIC	8ch	4ch	4ch	4ch	6ch	8ch	6ch
RDMA	3	2	2	3	1	2	2
DAC	2	2	2	2	2	2	2
I2S_TX	3 2ch 16/24/32bit	1	1 2ch 16bit	3 2ch 16bit	1 2ch 16bit	2 2ch 16bit	1 2ch 16bit
SPDIF_TX	N	N	N	N	N	1	N
HDMI_TX	N	N	N	N	N	N	N
ECHO	Y	Y	Y	Y	Y	Y	Y

---

1.6. Development Process

1.6.1. Compilation Configuration

1. Enter the alkaid project root directory, make menuconfig



2. Press Enter to enter the Sdk Config sub-option



3. Press Enter to enter the Interface Compile Config sub-option



4. Use the spacebar to select the aio and ai submodules and recompile the project

   After compilation is complete, mi_ai.ko will be generated under sdk/interface/src/ai, and mi_aio.ko will be generated under sdk/interface/src/aio. At the same time, release mi_ai.h, mi_ai_datatype.h and mi_aio_datatype.h to the project/release directory. In a pure Linux environment, it will be packaged into images by default.

1.6.2. Device Tree

1.6.2.1 Linux DTS

The Linux device tree is used to describe the hardware platform and its peripheral properties. The file is located in linux/arch/{arm}/boot/dts/{chipName}.dtsi, and the audio related file is sound:

sound: sound {
    compatible = "sstar,audio";
    interrupts=<GIC_SPI INT_IRQ_BACH IRQ_TYPE_LEVEL_HIGH>;
    clocks = <&CLK_au_sys_384>, <&CLK_aupll_384m>, <&CLK_au_sys_dyn_384>;

    // I2S RX0 TDM
    i2s-rx0-tdm-mode    = <2>;  // 1:master       2:slave
    i2s-rx0-tdm-fmt     = <1>;  // 1:i2s justify  2:left justify
    i2s-rx0-tdm-wiremode = <2>; // 1:4wire        2:6 wire
    i2s-rx0-channel  = <2>;
    i2s-rx0-tdm-ws-pgm = <0>; // 0: OFF  1: ON
    i2s-rx0-tdm-ws-width = <0>; // value: 0~31 (width = value + 1)
    i2s-rx0-tdm-ws-inv = <0>; // 0: normal  1: inverse WCK
    i2s-rx0-tdm-bck-inv = <0>; // 0: normal  1: inverse BCK
    i2s-rx0-tdm-ch-swap = <0 0 0 0>; // 0: OFF  1: ON
    i2s-rx0-short-ff-mode = <0>;

    // dmic bck mode
    /* select (sampling rate, output clock)
            0:         not select
            1:(8k,            600kHz)     low-power
            2:(8k,            1200kHz)
            3:(8k,            2400kHz)
            4:(16k,           800kHz)     low-power
            5:(16k,           1200kHz)
            6:(16k,           2400kHz)
            7:(16k,           4800kHz)
            8:(32k,           2400kHz)
            9:(32k,           4800kHz)
            a:(48k,           2400kHz)
            b:(48k,           4800kHz) */
    dmic-bck-mode = <3 6 9 11>;
    dmic-bck-ext-mode = <0>;

    // hpf default level
    hpf-adc1-level = <1 20>;//1:Enable HPF  0:Disable HPF; 20:cutoff frequency;
    hpf-adc2-level = <1 20>;
    hpf-dmic-level = <1 20>;

    adc-out-sel = <0 1 2 2>;

    debug-level = <0>;

    status = "okay";
};

The properties of the device tree configuration are as follows:

Attribute	Description	Note
interrupts	Specify hardware interrupt number	Modification prohibited
clocks	Specify clock source	Modification prohibited
i2s-tdm-mode	Master-slave mode	1: Master mode 2: Slave mode
i2s-tdm-fmt	I2S format	1: Standard format 2: Left-aligned format
i2s-tdm-wiremode	Configure I2S wiring mode	1: 4-wire mode 2: 6-wire mode
i2s-channel	Configure the number of I2S channels	Value range: 1, 2, 4, 8
i2s-tdm-ws-pgm	TDM programmable mode	0: OFF, width attribute is not effective, WCK duty cycle is fixed to 50% 1: ON, WCK width is (width+1)*bclk
i2s-tdm-ws-width	Configure the width of tdm WCK	0~31 (width = value + 1)
i2s-tdm-ws-inv	I2S wck inversion	0: Do not invert 1: Invert
i2s-tdm-bck-inv	I2S bck inversion	0: Do not invert 1: Invert
i2s-tdm-ch-swap	Configure rx i2s channel swap	<0 0 0 0> <0 1 0 0> <1 0 0 0> <1 1 0 0>
i2s-short-ff-mode	short FF mode	0: Disable 1: Enable
adc-out-sel	Select ADC path	ADC path binds ADC hardware
dmic-bck-mode	Configure dmic bck	Can be modified as needed
dmic-bck-ext-mode	Configure dmic bck source	0: dmic internal clock 1: I2S BCK
hpf-adc1-level	ADC0/1 High pass filter level	switch: 0: Do not use this level 1: Use this level freq: cutoff frequency(0~sample rate/32)
hpf-adc2-level	ADC2 High pass filter level	switch: 0: Do not use this level 1: Use this level freq: cutoff frequency(0~sample rate/32)
hpf-dmic-level	High pass filter level	switch: 0: Do not use this level 1: Use this level freq: cutoff frequency(0~sample rate/32)
debug-level	Control dump level	0x00000001: debug fot test 0x00000002: Dump dma LOG information 0x00000004: Dump analog part information 0x00000008: Dump I2S information 0x00000010: Dump DMIC information 0x00000020: Dump interrupt information 0x00000040: Dump delay 0x00000080: Dump attach path information 0x00000100: Dump power information 0x00000200: Dump Clock information 0x00000400: Dump pcm data 0x00000800: Dump SPDIF information

• ADC channel selection

  adc-out-sel = <ADC0_CHN>, <ADC1_CHN>, <ADC2_CHN>, <ADC3_CHN>;

  adc channel	value	description
  ADC0_CHN	0/½	Channel bind ADC<value>
  ADC1_CHN	0/½	Channel bind ADC<value>
  ADC2_CHN	0/½	Channel bind ADC<value>
  ADC3_CHN	0/1	0: Copy ADC2_CHN 1: Fixed to 0

• dmic bck mode

  dmic-bck-mode = <8k> , <16k> , <32k> , <48k>

  value	sample rate	dmic bck
  0	NA	no select
  1	8k	600Khz (low-power)
  2	8k	1200Khz
  3	8k	2400Khz
  4	16k	800Khz(low-power)
  5	16k	1200Khz
  6	16k	2400Khz
  7	16k	4800Khz
  8	32k	2400Khz
  9	32k	4800Khz
  a	48k	2400Khz
  b	48k	4800Khz

1.6.2.2 RTOS SYS

{chipName}_xxx.sys file is used to describe the properties of peripheral hardware. The property values contained in the peripheral node can be used to configure the peripheral, similar to the Linux device tree. The file is located in sc/driver/sysdriver/sysdesc/hal/{chipName}/pub, and the audio related file is sound:

<sound>
    [compatible_str] "sstar,audio";
    [interrupts_u8] INT_IRQ_BACH;
    [camclk_u16] CAMCLK_upll_480m, CAMCLK_bachpll_384m, CAMCLK_aupll_384m;
    [debug_level_u32] 0x0000;
    [adc_out_sel_u8] 0, 1, 2, 1;
    [dmic_bck_mode_u8] 3, 6, 8, 10;
    [dmic_bck_ext_mode_u8] 0;
    [hpf_adc1_level_u8] 1, 20;
    [hpf_adc2_level_u8] 1, 20;
    [hpf_dmic_level_u8] 1, 20;

The properties supported by the RTOS audio driver are as follows:

Properties	Description	Notes
interrupts_u8	Specify hardware interrupt number	Modification prohibited
camclk_u16	Specify clock source	Modification prohibited
debug_level_u32	Debug log level	Can be modified as needed
adc_out_sel_u8	Select ADC path	ADC path binds ADC hardware
dmic_bck_mode_u8	Configure dmic bck	Can be modified as needed
dmic_bck_ext_mode_u8	Configure dmic bck source	0: dmic internal clock 1: I2S BCK
hpf_adc1_level_u8	ADC0/1 high pass filter level	Can be modified as needed
hpf_adc2_level_u8	ADC2 high pass filter level	Can be modified as needed
hpf_dmic_level_u8	High pass filter level	Can be modified as needed

• debug level

  Property name	Description	Value range
  debug-level	Control Dump level	0x00000001: debug fot test 0x00000002: Dump dma LOG information 0x00000004: Dump analog part information 0x00000008: Dump I2S information 0x00000010: Dump DMIC information 0x00000020: Dump interrupt information 0x00000040: Dump delay 0x00000080: Dump attach path information 0x00000100: Dump power information 0x00000200: Dump Clock information 0x00000400: Dump pcm data 0x00000800 : Dump SPDIF information

• ADC channel selection

  [adc_out_sel_u8] <ADC0_>, <ADC1>, <ADC2>, <ADC3>;

  adc channel	value	description
  ADC0_CHN	0/½	Channel bind ADC<value>
  ADC1_CHN	0/½	Channel bind ADC<value>
  ADC2_CHN	0/½	Channel bind ADC<value>
  ADC3_CHN	0/1	0: Copy ADC2_CHN 1: Fixed to 0

• dmic bck mode

  [dmic_bck_mode_u8] <8k> , <16k> , <32k> , <48k>

  value	sample rate	dmic bck
  0	NA	no select
  1	8k	600Khz (low-power)
  2	8k	1200Khz
  3	8k	2400Khz
  4	16k	800Khz(low-power)
  5	16k	1200Khz
  6	16k	2400Khz
  7	16k	4800Khz
  8	32k	2400Khz
  9	32k	4800Khz
  a	48k	2400Khz
  b	48k	4800Khz

• High pass filter

  [hpf_adc1_level_u8] <switch>, <freq>;

  Property name	Description	Value range
  hpf_adc1_level_u8	Set the high pass filter of adc0/1 path	switch: 0: Do not use this level 1: Use this level freq: cutoff frequency(0~sample rate/32)
  hpf_adc2_level_u8	Set the high pass filter of adc2 path	switch: 0: Do not use this level 1: Use this level freq: cutoff frequency(0~sample rate/32)
  hpf_dmic_level_u8	Set the high pass filter of the dmic path	switch: 0: Do not use this level 1: Use this level freq: cutoff frequency(0~sample rate/32)

1.6.3. Interface call

1. MI_AI_Open : Open AI device
2. MI_AI_GetI2SConfig : Configure i2s properties
3. MI_AI_AttachIf : Attach peripherals to DMA devices
4. MI_AI_SetIfGain : Set peripheral gain
5. MI_AI_SetGain : Set digital gain
6. MI_AI_EnableChnGroup : Enable channel group
7. MI_AI_Read : Read audio data
8. MI_AI_ReleaseData : Release the audio data buffer space
9. MI_AI_DisableChnGroup : Disable channel group
10. MI_AI_Close : Close the AI device

---

1.7. Example Introduction

This section introduces the use of the Audio In interface based on 1.6.3. Interface Call. The following example code implements the complete process of initialization, configuration, data recording and resource release of the audio input subsystem.

/* SigmaStar trade secret */
/* Copyright (c) [2019~2020] SigmaStar Technology.
All rights reserved.

Unless otherwise stipulated in writing, any and all information contained
herein regardless in any format shall remain the sole proprietary of
SigmaStar and be kept in strict confidence
(SigmaStar Confidential Information) by the recipient.
Any unauthorized act including without limitation unauthorized disclosure,
copying, use, reproduction, sale, distribution, modification, disassembling,
reverse engineering and compiling of the contents of SigmaStar Confidential
Information is unlawful and strictly prohibited. SigmaStar hereby reserves the
rights to any and all damages, losses, costs and expenses resulting therefrom.
*/

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <sys/time.h>
#include <pthread.h>
#include <signal.h>
#include "mi_sys.h"
#include "mi_ai.h"
#include "st_common_audio.h"
#include "st_common.h"

MI_S32 ST_AddWaveHeader(WaveFileHeader_t *tWavHead, SoundMode_e enSoundMode, SampleRate_e enSampleRate, MI_U32 u32Len)
{
    tWavHead->chRIFF[0] = 'R';
    tWavHead->chRIFF[1] = 'I';
    tWavHead->chRIFF[2] = 'F';
    tWavHead->chRIFF[3] = 'F';

    tWavHead->chWAVE[0] = 'W';
    tWavHead->chWAVE[1] = 'A';
    tWavHead->chWAVE[2] = 'V';
    tWavHead->chWAVE[3] = 'E';

    tWavHead->chFMT[0] = 'f';
    tWavHead->chFMT[1] = 'm';
    tWavHead->chFMT[2] = 't';
    tWavHead->chFMT[3] = 0x20;
    tWavHead->dwFMTLen = 0x10;

    if (enSoundMode == E_SOUND_MODE_MONO)
    {
        tWavHead->wave.wChannels = 0x01;
    }
    else if (enSoundMode == E_SOUND_MODE_STEREO)
    {
        tWavHead->wave.wChannels = 0x02;
    }

    tWavHead->wave.wFormatTag      = 0x1;
    tWavHead->wave.wBitsPerSample  = 16; // 16bit
    tWavHead->wave.dwSamplesPerSec = enSampleRate;
    tWavHead->wave.dwAvgBytesPerSec =
        (tWavHead->wave.wBitsPerSample * tWavHead->wave.dwSamplesPerSec * tWavHead->wave.wChannels) / 8;
    tWavHead->wave.wBlockAlign = 1024;
    tWavHead->chDATA[0]        = 'd';
    tWavHead->chDATA[1]        = 'a';
    tWavHead->chDATA[2]        = 't';
    tWavHead->chDATA[3]        = 'a';
    tWavHead->dwDATALen        = u32Len;
    tWavHead->dwRIFFLen        = u32Len + sizeof(WaveFileHeader_t) - 8;

    return MI_SUCCESS;
}

MI_S32 ST_Common_CheckMkdirOutFile(char *pFilePath) // file path and file name
{
    MI_S32 s32Ret = MI_SUCCESS;
    MI_U16 u16size;
    MI_U8  i;
    char   FilePath[256];
    char * p = NULL;

    strcpy(FilePath, pFilePath);

    p = strrchr(FilePath, '/'); // get file path
    if (p)
    {
        *(p + 1) = '\0';
    }
    u16size = strlen(FilePath);
    ST_INFO("ST_CheckMkdirOutFile FilePath: %s ,u16size = %d \n", FilePath, u16size);

    // filepath is exist
    s32Ret = access(pFilePath, 0);
    if (s32Ret == 0)
    {
        goto EXIT;
    }

    // skip the first '/', e.g:/tmp/stable_m6
    for (i = 1; i < u16size; i++)
    {
        if (FilePath[i] == '/')
        {
            FilePath[i] = '\0';
            s32Ret      = access(FilePath, 0);
            if (s32Ret != MI_SUCCESS)
            {
                s32Ret = mkdir(FilePath, 0777);
                if (s32Ret != MI_SUCCESS)
                {
                    ST_ERR("FilePath %s mkdir fail\n", FilePath);
                    goto EXIT;
                }
            }
            FilePath[i] = '/';
        }
    }
    s32Ret = access(FilePath, 0);
    if (u16size > 0 && s32Ret != 0)
    {
        s32Ret = mkdir(FilePath, 0777);
        if (s32Ret != MI_SUCCESS)
        {
            printf("[%s]:%d FilePath %s mkdir fail\n", __FUNCTION__, __LINE__, FilePath);
            goto EXIT;
        }
    }

EXIT:
    return s32Ret;
}

MI_U32 ST_DumpAIData(char *pDumpFileName, MI_AUDIO_DEV AiDevId, MI_U8 u8ChnGrpId)
{
    MI_AI_Data_t     stMicFrame;
    MI_AI_Data_t     stEchoFrame;
    MI_S32           s32Ret;
    struct timeval   beforeWriteFile, afterWriteFile, lastRead, nowRead, baseRead;
    MI_S64           beforeWriteFileUs = 0, afterWriteFileUs = 0, lastReadUs = 0, nowReadUs = 0;
    MI_U8            u8DumpFileIdx  = 0;
    FILE *           AiChnFd        = NULL;
    MI_U32           u32MicDumpSize = 0;
    WaveFileHeader_t stWavHead      = {0};

    // write header format
    AiChnFd = fopen((char *)pDumpFileName, "w+");
    if (NULL == AiChnFd)
    {
        printf("Failed to open output file [%s].\n", pDumpFileName);
        return -1;
    }
    ST_AddWaveHeader(&stWavHead, E_SOUND_MODE_MONO, E_MI_AUDIO_SAMPLE_RATE_8000, u32MicDumpSize);
    s32Ret = fwrite(&stWavHead, sizeof(WaveFileHeader_t), 1, AiChnFd);
    if (s32Ret != 1)
    {
        printf("Failed to write dump wav head.\n");
        fclose(AiChnFd);
        return -1;
    }

    // accept 10 seconds of audio
    gettimeofday(&nowRead, NULL);
    gettimeofday(&lastRead, NULL);
    gettimeofday(&baseRead, NULL);
    while ((nowRead.tv_sec - baseRead.tv_sec) < 10)
    {
        memset(&stMicFrame, 0, sizeof(MI_AI_Data_t));
        memset(&stEchoFrame, 0, sizeof(MI_AI_Data_t));

        s32Ret = MI_AI_Read(AiDevId, u8ChnGrpId, &stMicFrame, &stEchoFrame, -1);

        if (MI_SUCCESS == s32Ret)
        {
            gettimeofday(&nowRead, NULL);
            nowReadUs  = nowRead.tv_sec * 1000000 + nowRead.tv_usec;
            lastReadUs = lastRead.tv_sec * 1000000 + lastRead.tv_usec;
            printf("######## Ai Device %d ChnGrp %d cost time of getting one frame:%lldms ########\n", AiDevId,
                   u8ChnGrpId, (nowReadUs - lastReadUs) / 1000);
            lastRead = nowRead;
            /* save mic file data */
            gettimeofday(&beforeWriteFile, NULL);
            fwrite(stMicFrame.apvBuffer[0], 1, stMicFrame.u32Byte[0], AiChnFd);
            gettimeofday(&afterWriteFile, NULL);

            beforeWriteFileUs = beforeWriteFile.tv_sec * 1000000 + beforeWriteFile.tv_usec;
            afterWriteFileUs  = afterWriteFile.tv_sec * 1000000 + afterWriteFile.tv_usec;
            if (afterWriteFileUs - beforeWriteFileUs > 10 * 1000)
            {
                printf("Ai Device %d ChnGrp %d Chn %d cost time of writing one frame:%lldms.\n", AiDevId, u8ChnGrpId,
                       u8DumpFileIdx, (afterWriteFileUs - beforeWriteFileUs) / 1000);
            }
            u32MicDumpSize += stMicFrame.u32Byte[0];

            s32Ret = MI_AI_ReleaseData(AiDevId, u8ChnGrpId, &stMicFrame, &stEchoFrame);
            if (s32Ret != MI_SUCCESS)
            {
                printf("%s:%d MI_AI_ReleaseData s32Ret:%d\n", __FUNCTION__, __LINE__, s32Ret);
            }
        }
        else
        {
            printf("Failed to get frame from Ai Device %d ChnGrp %d, error:0x%x\n", AiDevId, u8ChnGrpId, s32Ret);
        }
    }

    // write data size in header
    ST_AddWaveHeader(&stWavHead, E_SOUND_MODE_MONO, E_MI_AUDIO_SAMPLE_RATE_8000, u32MicDumpSize);
    fseek(AiChnFd, 0, SEEK_SET);
    s32Ret = fwrite(&stWavHead, sizeof(WaveFileHeader_t), 1, AiChnFd);
    if (s32Ret != 1)
    {
        printf("Failed to write dump wav head.\n");
        fclose(AiChnFd);
        return -1;
    }
    fclose(AiChnFd);
    return NULL;
}

MI_S32 main(int argc, char **argv)
{
    // init sys
    MI_SYS_Init(0);

    // init ai
    MI_AI_Attr_t stAiDevAttr;
    MI_AI_Attr_t *pstAiDevAttr = &stAiDevAttr;
    MI_AUDIO_DEV stAiDevId  = 0;
    MI_U8        stChnGrpId = 0;
    MI_AI_If_e   enAiIf[]   = {E_MI_AI_IF_ADC_AB, E_MI_AI_IF_ECHO_A};
    MI_S16 s8dpgaGain[] = {-10};
    memset(&stAiDevAttr, 0x0, sizeof(MI_AI_Attr_t));

    pstAiDevAttr->enFormat      = E_MI_AUDIO_FORMAT_PCM_S16_LE;
    pstAiDevAttr->enSoundMode   = E_MI_AUDIO_SOUND_MODE_MONO;
    pstAiDevAttr->enSampleRate  = E_MI_AUDIO_SAMPLE_RATE_8000;
    pstAiDevAttr->u32PeriodSize = 1024;
    pstAiDevAttr->bInterleaved  = TRUE;

    MI_AI_Open(stAiDevId, pstAiDevAttr);

    MI_AI_AttachIf(stAiDevId, aenAiIfs, u8AiIfSize);
    MI_AI_SetIfGain(aenAiIfs[0], 10, 10);
    MI_AI_SetGain(stAiDevId, stChnGrpId, s8dpgaGain, sizeof(s8dpgaGain) / sizeof(s8dpgaGain[0]));

    // enable ai chngroup
    MI_AI_EnableChnGroup(stAiDevId, stChnGrpId);

    // dump ai data
    MI_SYS_ChnPort_t stChnOutputPort;
    memset(&stChnOutputPort, 0x0, sizeof(stChnOutputPort));
    stChnOutputPort.eModId    = E_MI_MODULE_ID_AI;
    stChnOutputPort.u32DevId  = stAiDevId;
    stChnOutputPort.u32ChnId  = stChnGrpId;
    stChnOutputPort.u32PortId = 0;
    MI_SYS_SetChnOutputPortDepth(0, &stChnOutputPort, 3, 5);

    char *output_file = "out/audio/ai_dump.wav";
    printf("output_file = %s\n", output_file);
    ST_Common_CheckMkdirOutFile(output_file);

    ST_DumpAIData(output_file, stAiDevId, stChnGrpId);

    // deinit ai
    MI_AI_DisableChnGroup(stAiDevId, stChnGrpId);
    MI_AI_Close(stAiDevId);

    // deinit sys
    MI_SYS_Exit(0);

    return 0;
}

The main process of the example code:

1. System Initialization :

   • Call MI_SYS_Init(0); to initialize the system.

2. Audio input device configuration :

   • Create and configure the MI_AI_Attr_t structure stAiDevAttr, set the audio format to PCM 16-bit little endian, mono, sample rate to 8000 Hz, period size to 1024, and interleaved mode to true.

3. Open audio input device :

   • Use MI_AI_Open(stAiDevId, pstAiDevAttr); to open the audio input device with device ID 0.

4. Set audio input interface and gain :

   • Bind the audio input interfaces E_MI_AI_IF_ADC_AB and E_MI_AI_IF_ECHO_A through the MI_AI_AttachIf function.
   • Use MI_AI_SetIfGain to set the peripheral gain to 10.
   • Use MI_AI_SetGain to set the device digital gain to -10.

5. Enable audio input channel group :

   • Call MI_AI_EnableChnGroup(stAiDevId, stChnGrpId); to enable the channel group, with the channel group ID being 0.

6. Set channel output port depth :

   • Set the channel output port depth using MI_SYS_SetChnOutputPortDepth.

7. Record and save audio data :

   • Specify the output file path out/audio/ai_dump.wav.
   • Call ST_Common_CheckMkdirOutFile to create the directory and file.
   • Use the MI_AI_Read function to read the audio data and dump the audio data into the specified WAV file.

8. Disable and release resources :

   • Call MI_AI_DisableChnGroup to disable the channel group.
   • Use MI_AI_Close(stAiDevId); to disable the audio input device and release resources.

2. API reference

Audio Input (AI) mainly implements functions such as configuring and enabling audio input devices and acquiring audio frame data.

API Name	Features
MI_AI_Open	Enable audio input device
MI_AI_OpenWithCfgFile	Enable the audio input device and initialize it according to the config file
MI_AI_Close	Close AI devices
MI_AI_AttachIf	Mount peripherals to AI device
MI_AI_EnableChnGroup	Enable AI channel group
MI_AI_DisableChnGroup	Disable AI channel group
MI_AI_Read	Read audio data
MI_AI_ReleaseData	Release audio data
MI_AI_SetGain	Set the volume of the AI channel group
MI_AI_GetGain	Get the volume of the AI channel group
MI_AI_SetMute	Set the mute parameters of the AI channel group
MI_AI_GetMute	Get the mute parameters of the AI channel group
MI_AI_SetIfGain	Set AI peripheral volume
MI_AI_GetIfGain	Get AI peripheral volume
MI_AI_SetIfMute	Set AI peripheral mute parameters
MI_AI_GetIfMute	Get AI peripheral mute parameters
MI_AI_SetI2SConfig	Set I2S RX config info
MI_AI_GetI2SConfig	Get I2S RX config info
MI_AI_DupChnGroup	Sync status of AI channel group
MI_AI_InitDev	Initialize the AI device
MI_AI_DeInitDev	De-Initialize the AI device
MI_AI_GetAttr	Get AI device attributes

2.1. MI_AI_Open

• Features

  Enable audio input device.

• Syntax

  MI_S32 MI_AI_Open(MI_AUDIO_DEV AiDevId, const MI_AI_Attr_t *pstAttr);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input
  pstAttr	Device property pointer	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  Audio input device attributes include data format, sound mode, sampling rate, audio data samples, and interleaving mode.

  • Audio data format (MI_AUDIO_Format_e)

    The data format of the sampled samples. Only S16_LE is supported.(Pcupid supports S16_LE/S24_LE/S32_LE)

  • Audio sound mode (MI_AUDIO_SoundMode_e)

    The physical channels included in the channel group.

    MONO: 1 channel group contains 1 physical channel;

    STEREO: 1 channel group contains 2 physical channels;

    4CH: 1 channel group contains 4 physical channels;

    6CH: 1 channel group contains 6 physical channels;

    8CH: 1 channel group contains 8 physical channels.

  • Audio sampling rate (MI_AUDIO_SampleRate_e)

    The number of samples in one second. The higher the sampling rate, the smaller the distortion, but the amount of data processed also increases.

  • Audio data samples(u32PeriodSize)

    The number of samples contained in the audio data read each time. When the audio sampling rate is high, it is recommended to increase u32PeriodSize accordingly. If the collected sound is not continuous, please increase u32PeriodSize and buffer size.

  • Interlaced mode (bInterleaved)

    Whether the interleaving mode is enabled determines the data arrangement of each physical channel in the channel group. Take for example when the sound mode is 4CH, the following is described with Sx instead of the xth sample. When the interleaving mode is enabled, the data of the 4 physical channels are interleaved, such as Chn0S0 Chn1S0 Chn2S0 Chn3S0 Chn0S1 Chn1S1 Chn2S1 Chn3S1……;

    When the interleaving mode is disabled, the data of the 4 physical channels are arranged in the order of the channels. As follows:

    Chn0S0 Chn0S1 Chn0S2 Chn0S3 …… Chn0Sn

    Chn1S0 Chn1S1 Chn1S2 Chn1S3 …… Chn1Sn

    Chn2S0 Chn2S1 Chn2S2 Chn2S3 …… Chn2Sn

    Chn3S0 Chn3S1 Chn3S2 Chn3S3 …… Chn3Sn

• Example

  The simple example is as follow:

  1. MI_AI_Attr_t stAiSetAttr = {0};
  2. MI_AUDIO_DEV AiDevId = 0;
  3. stAiSetAttr.enFormat = E_MI_AUDIO_FORMAT_PCM_S16_LE;
  4. stAiSetAttr.enSoundMode = E_MI_AUDIO_SOUND_MODE_MONO;
  5. stAiSetAttr.enSampleRate = E_MI_AUDIO_SAMPLE_RATE_8000;
  6. stAiSetAttr.u32PeriodSize = 1024;
  7. stAiSetAttr.bInterleaved = TRUE;
  8. ExecFunc(MI_AI_Open(AiDevId, &stAiSetAttr), MI_SUCCESS);


  The detailed example is as follows:

  1.  MI_AI_Attr_t stAiSetAttr = {0};
  2.  MI_AI_Attr_t stAiGetAttr = {0};
  3.  MI_AUDIO_DEV AiDevId = 0;
  4.  MI_AI_If_e enAiIf[] = {E_MI_AI_IF_ADC_AB};
  5.  MI_AI_Data_t stAiChFrame;
  6.  MI_AI_Data_t stAecFrame;
  7.  MI_U8 u8ChnGrpId = 0;
  8.  MI_SYS_ChnPort_t stAiChnOutputPort;
  9.  MI_S16 s16DpgaGain[] = {-10};
  10.
  11. // Set the Format of AI Device to S16_LE
  12. stAiSetAttr.enFormat = E_MI_AUDIO_FORMAT_PCM_S16_LE;
  13.
  14. // Set the Sound Mode to Mono, one Channel Group corresponds to one physical channel
  15. stAiSetAttr.enSoundMode = E_MI_AUDIO_SOUND_MODE_MONO;
  16.
  17. // Set the sample rate of AI Device to 8KHz
  18. stAiSetAttr.enSampleRate = E_MI_AUDIO_SAMPLE_RATE_8000;
  19.
  20. // Set each AI Buffer to contain 1024 sampling samples
  21. stAiSetAttr.u32PeriodSize = 1024;
  22.
  23. // Set the data arrangement form of AI buffer
  24. stAiSetAttr.bInterleaved = TRUE;
  25.
  26. // Open AI Device
  27. ExecFunc(MI_AI_Open(AiDevId, &stAiSetAttr), MI_SUCCESS);
  28.
  29. // Get device attributes
  30. ExecFunc(MI_AI_GetAttr(AiDevId, &stAiGetAttr), MI_SUCCESS);
  31.
  32. // Attach ADC0/1 to WDMA1
  33. ExecFunc(MI_AI_AttachIf(AiDevId, enAiIf, sizeof(enAiIf) / sizeof(enAiIf[0])), MI_SUCCESS);
  34.
  35. // Set output depth
  36. memset(&stAiChnOutputPort, 0, sizeof(stAiChnOutputPort));
  37. stAiChnOutputPort.eModId = E_MI_MODULE_ID_AI;
  38. stAiChnOutputPort.u32DevId = AiDevId;
  39. stAiChnOutputPort.u32ChnId = u8ChnGrpId;
  40. stAiChnOutputPort.u32PortId = 0;
  41. ExecFunc(MI_SYS_SetChnOutputPortDepth(0, &stAiChnOutputPort, 4, 8), MI_SUCCESS);
  42.
  43. // Set Interface gain of ADC0/1
  44. ExecFunc(MI_AI_SetIfGain(E_MI_AI_IF_ADC_AB, 18, 0), MI_SUCCESS);
  45.
  46. // Set DPGA gain of ADC0/1
  47. ExecFunc(MI_AI_SetGain(AiDevId, u8ChnGrpId, s16DpgaGain, sizeof(s16DpgaGain) / sizeof(s16DpgaGain[0])), MI_SUCCESS);
  48.
  49.
  50. // Enable Channel Group
  51. ExecFunc(MI_AI_EnableChnGroup(AiDevId, u8ChnGrpId), MI_SUCCESS);
  52.
  53. // Get audio frame data
  54. MI_AI_Read(AiDevId, u8ChnGrpId, &stAiChFrame, &stAecFrame, -1);
  55.
  56. // do something
  57.
  58. // Release audio frame data
  59. MI_AI_ReleaseData(AiDevId, u8ChnGrpId, &stAiChFrame, &stAecFrame);
  60.
  61. // Disable Channel Group
  62. ExecFunc(MI_AI_DisableChnGroup(AiDevId, u8ChnGrpId), MI_SUCCESS);
  63.
  64. // Close AI Device
  65. ExecFunc(MI_AI_Close(MI_AI_DEV_1), MI_SUCCESS);


2.2. MI_AI_OpenWithCfgFile

• Features

  Enable the audio input device and initialize it according to the config file.

• Syntax

  MI_S32 MI_AI_OpenWithCfgFile(MI_AUDIO_DEV AiDevId, const char *pCfgPath);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input
  pCfgPath	Path of config file	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • This interface is equivalent to the combination of MI_AI_Open and MI_AI_AttachIf.

  • If the audio input device is enabled, it returns success.

  • On Muffin/Mochi series SOC, the configuration file is in INI format. On Maruko/Souffle/Pcupid series SOC, the configuration file is in JSON format.

  • In the dual os environment, the configuration file must provide an absolute path.

  • The INI config file template is as follow:

    1. ; Device attr section
    2. [DEV]
    3. ; enFormat determines the data format of the sample, only supports S16_LE now.
    4. ; 0[S16_lE]
    5. enFormat = 0
    6. ; enSoundMode determines the channel count of Channel Group.
    7. ; 1[Mono] 2[Stereo] 4[4Chn] 6[6Chn] 8[8Chn]
    8. enSoundMode = 2
    9. ; enSampleRate determines the sample rate of AI Device.
    10. ; 8000[8KHz] 16000[16KHz] 32000[32KHz] 48000[48KHz]
    11. enSampleRate = 8000
    12. ; u32PeriodSize determines the count of sample in a AI Buffer
    13. u32PeriodSize = 1024
    14. ; bInterleaved determines the data arrangement mode of each channel.
    15. ; if bInterleaved = 1, Data on each channel is interleaved, Otherwise, data on each channel is stored separately.
    16. bInterleaved = 0
    17. ; attach interface
    18. ; 1[ADC_AB] 2[ADC_CD] 3[DMIC_A_01] 4[DMIC_A_23]
    19. ; 5[I2S_A_01] 6[I2S_A_23] 7[I2S_A_45] 8[I2S_A_67] 9[I2S_A_89] 10[I2S_A_ab] 11[I2S_A_cd] 12[I2S_A_ef]
    20. ; 13[I2S_B_01] 14[I2S_B_23] 15[I2S_B_45] 16[I2S_B_67] 17[I2S_B_89] 18[I2S_B_ab] 19[I2S_B_cd] 20[I2S_B_ef]
    21. ; 21[I2S_C_01] 22[I2S_C_23] 23[I2S_C_45] 24[I2S_C_67] 25[I2S_C_89] 26[I2S_C_ab] 27[I2S_C_cd] 28[I2S_C_ef]
    22. ; 29[I2S_D_01] 30[I2S_D_23] 31[I2S_D_45] 32[I2S_D_67] 33[I2S_D_89] 34[I2S_D_ab] 35[I2S_D_cd] 36[I2S_D_ef]
    23. ; 37[ECHO_A] 38[HDMI_A]
    24. aenAiIfs={1,5}
    25.
    26. ; I2S RX attr section
    27. ; It is not necessarywhen you're not using I2S RX
    28. [I2S_A]
    29. ; enMode determines the working mode of I2S Rx
    30. ; 0[I2S Master] 1[I2S Slave] 2[Tdm Master] 3[Tdm Slave]
    31. enMode = 0
    32. ; enBitWidth determines the bit with of I2S Rx
    33. ; 0[16 bit] 1[32bit]
    34. enBitWidth = 0
    35. ; enFormat determines the waveform alignment of I2S Rx
    36. ; 0[I2S Philips] 1[I2S Left-justify]
    37. enFormat = 0
    38. ; enSampleRate determines the sample rate of I2S Rx
    39. ; 8000[8KHz] 16000[16KHz] 32000[32KHz] 48000[48KHz]
    40. enSampleRate = 8000
    41. ; enMclk determines the frequency of Mclk
    42. ; 0[disable Mclk] 1[12.288M] 2[16.384M] 3[18.432M] 4[24.576M] 5[24M] 6[48M]
    43. enMclk = 0
    44. ; bSyncClock: 1[4-wire mode] 0[6-wire mode]
    45. bSyncClock = 0
    46. ; u32TdmSlots determines the slot number of I2S Rx
    47. u32TdmSlots = 2


    AI template.ini

  • The JSON config file template is as follows:

    1.  {
    2.      "DEV":{
    3.          "enFormat":0,
    4.          "enSoundMode":2,
    5.          "enSampleRate":8000,
    6.          "u32PeriodSize":1024,
    7.          "bInterleaved":0,
    8.          "aenAiIfs":[1,5]
    9.      },
    10.     "I2S_A":{
    11.         "enMode":0,
    12.         "enBitWidth":0,
    13.         "enFormat":0,
    14.         "enSampleRate":8000,
    15.         "enMclk":0,
    16.         "bSyncClock":0,
    17.         "u32TdmSlots":2
    18.     }
    19. }
    20.


    The “DEV” node contains parameters required by MI_AI_Open and MI_AI_AttachIf. “enFormat”, “enSoundMode”, “enSampleRate”, “u32PeriodSize”, and “bInterleaved” are the configuration information required by MI_AI_Open, please refer to the description of MI_AI_AttachIf. “aenAiIfs” is the configuration information required by MI_AI_AttachIf, please refer to MI_AI_If_e for details. The “I2S_A” node contains configuration information required by MI_AI_SetI2SConfig, please refer to MI_AUDIO_I2sConfig_t for details.

    AI template.json

    The value of the config item is consistent with the parameters given to the MI API. enFormat = 0 means AI Device uses S16_LE format, enSoundMode = 1 means Sound Mode uses Mono, enSampleRate = 8000 means AI Device uses 8KHz sample rate, u32PeriodSize = 1024 means one AI Buffer contains 1024 sample points, bInterleaved = 1 means that the channel group data arrangement is arranged in an interlaced manner, and aenAiIfs={1} means that ADC0/1 is attached to WDMA. If you need to use I2S RX, you also need to set the parameters of I2S RX. The above configuration works on I2S_A, enMode = 0 means using I2S Master mode, enBitWidth = 0 means I2S receiving bit width is 16bit, enFormat = 0 means aligning according to I2S Philips mode, enSampleRate = 8000 means that the sample rate of I2S RX is 8KHz, enMclk = 0 means that Mclk is not used, bSyncClock = 1 means 4-wire mode, and u32TdmSlots means receiving 2-channel data.

• Example

  1. char *path = "/tmp/Dev0Cfg.json"; // char *path = "/tmp/Dev0Cfg.ini";
  2. ExecFunc(MI_AI_OpenWithCfgFile(AiDevId, path), MI_SUCCESS);


2.3. MI_AI_Close

• Features

  Close AI devices.

• Syntax

  MI_S32 MI_AI_Close(MI_AUDIO_DEV AiDevId);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • If the AI device is already closed, it will return Success directly.

• Example

  The simple example is as follows:

  1. ExecFunc(MI_AI_Close(MI_AI_DEV_1), MI_SUCCESS);


  Please refer to MI_AI_Open for the detailed example.

2.4. MI_AI_AttachIf

• Features

  Mount peripherals to AI device.

• Syntax

  MI_S32 MI_AI_AttachIf(MI_AUDIO_DEV AiDevId, const MI_AI_If_e aenAiIfs[], MI_U8 u8AiIfSize);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input
  aenAiIfs	AI Interface array, peripheral information that needs to be mounted to the AI device; An element of the array represents the peripherals mounted on two adjacent physical channels	Input
  U8AiIfSize	Size of the interface array, the maximum is (MI_AI_MAX_CHN_NUM/2)	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • This interface can only be called after MI_AI_Open succeeds.

  • If you need to mount the I2S RX to the AI device, please call MI_AI_SetI2SConfig first to initialize the I2S RX.

  • If you want to get echo reference data, the AI module needs to attach E_MI_AI_IF_ECHO_A, and the AO module needs to attach E_MI_AO_IF_ECHO_A. In the AI module, E_MI_AI_IF_ECHO_A must be attached with an interface other than E_MI_AI_IF_ECHO_A, and must be placed after the interface other than E_MI_AI_IF_ECHO_A.

  • When the number of attached interface channels(minus the number of channels of E_MI_AI_IF_ECHO_A) is less than or not divisible by the audio sound mode(MI_AUDIO_SoundMode_e), an error is returned.

• Example

  The simple example is as follow:

  1. MI_AI_If_e enAiIf[] = {E_MI_AI_IF_ADC_AB, E_MI_AI_IF_ADC_CD};
  2. ExecFunc(MI_AI_AttachIf(AiDevId, enAiIf, sizeof(enAiIf) / sizeof(enAiIf[0])), MI_SUCCESS);


  Please refer to MI_AI_Open for the detailed example.

2.5. MI_AI_EnableChnGroup

• Features

  Enable AI channel group.

• Syntax

  MI_S32 MI_AI_EnableChnGroup(MI_AUDIO_DEV AiDevId, MI_U8 u8ChnGrpIdx);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input
  AiChn	AI channel group number. Total audio input channels group = (the physical channels of the AI device attached to the peripheral – the physical channels occupied by the echo) / the sound mode of the AI device AI channel group number range: [0, total audio input channel group-1]	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • This interface can only be called after MI_AI_Open and MI_AI_AttachIf succeed.

  • If the AI channel group has been enabled, it will return success directly.

  • The operation of the AI channel group does not support multiple processes. If a process is enabled, it can only be used and disabled here.

• Example

  The simple example is as follow:

  1. ExecFunc(MI_AI_EnableChnGroup(AiDevId, 0), MI_SUCCESS);


  Please refer to MI_AI_Open for the detailed example.

2.6. MI_AI_DisableChnGroup

• Features

  Disable AI channel group.

• Syntax

  MI_S32 MI_AI_DisableChnGroup(MI_AUDIO_DEV AiDevId, MI_U8 u8ChnGrpIdx);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input
  u8ChnGrpIdx	AI channel group number. Range: [0, Channel Group Number-1] Channel Group Number = (the number of physical channels on attach-the number of Echo channels on attach) / Sound Mode	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • If the AI channel group has been disabled, it will return success directly.

  • The operation of the AI channel group does not support multiple processes. If a process is enabled, it can only be used and disabled here.

• Example

  The simple example is as follow:

  1. ExecFunc(MI_AI_DisableChnGroup(AiDevId, 0), MI_SUCCESS);


  Please refer to MI_AI_Open for the detailed example.

2.7. MI_AI_Read

• Features

  Read audio data.

• Syntax

  MI_S32 MI_AI_Read(MI_AUDIO_DEV AiDevId, MI_U8 u8ChnGrpIdx, MI_AI_Data_t *pstData, MI_AI_Data_e *pstEchoRefData, MI_S32 s32TimeoutMs);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input
  u8ChnGrpIdx	AI channel group number. Range: [0, Channel Group Number-1] Channel Group Number = (the number of physical channels on attach-the number of Echo channels on attach) / Sound Mode	Input
  pstData	Audio data structure pointer	Output
  pstEchoRefData	Echo reference data structure pointer	Output
  s32TimeoutMs	Timeout for getting data: -1: blocking mode, waiting for no data; 0 means non-blocking mode, when there is no data, it will return an error; >0: blocking s32TimeoutMs milliseconds, and it will report an error and return when it times out.	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • This interface can only be called after MI_AI_Open / MI_AI_AttachIf / MI_AI_EnableChnGroup succeed.

  • To obtain the echo reference data, AO must attach 'E_MI_AO_IF_ECHO_A' and AI must attach 'E_MI_AI_IF_ECHO_A', Otherwise, the echo reference data is invalid. The number of physical channels through which the App can get ECHO data is only 2 channels. When the AI is configured in Interleaved Mode, each channel group corresponds to the echo reference data of 1 stereo(total of 2 channels) regardless of the current Sound Mode. The echo reference data obtained by each channel group is exactly the same. When the AI is configured in Non-Interleaved Mode, no matter what sound mode is configured, each channel group corresponds to the echo reference data of two MONO (total of 2 channels), and the echo reference data obtained by each channel group is the same data.

  • If you need to obtain an echo reference data, pstEchoRefData cannot be a null pointer. If you do not want to get the echo reference data pstEchoRefData, you can set it to a null pointer.

  • s32TimeoutMs value must be greater than equal to -1, -1 is equal to the data acquired using the blocking mode, the data acquired is equal to non-blocking mode 0, is greater than 0, the blocking s32TimeoutMs milliseconds, and no data timeout then return error.

  • This interface supports select operations. It is recommended to use the select/poll operation instead of timeout parameter.

• Example

  The simple example is as follow:

  1. MI_AI_Data_t stAiChFrame;

  2. MI_AI_Data_t stAecFrame;

  3. MI_AI_Read(AiDevId, AiChnGroup, &stAiChFrame, &stAecFrame, -1);


  Please refer to MI_AI_Open for the detailed example.

2.8. MI_AI_ReleaseData

• Features

  Release audio data.

• Syntax

  MI_S32 MI_AI_ReleaseData(MI_AUDIO_DEV AiDevId, MI_U8 u8ChnGrpIdx, MI_AI_Data_t *pstData, MI_AI_Data_t *pstEchoRefData);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input
  u8ChnGrpIdx	AI channel group number. Range: [0, Channel Group Number-1] Channel Group Number = (the number of physical channels on attach-the number of Echo channels on attach) / Sound Mode	Input
  pstData	Audio data structure pointer	Input
  pstEchoRefData	Echo reference data structure pointer	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Example

  The simple example is as follow:

  1. MI_AI_ReleaseData(AiDevId, AiChnGroup, &stAiChFrame, &stAecFrame);


  Please refer to MI_AI_Open for the detailed example.

2.9. MI_AI_SetGain

• Features

  Set the volume of the AI channel group.

• Syntax

  MI_S32 MI_AI_SetGain(MI_AUDIO_DEV AiDevId, MI_U8 u8ChnGrpIdx, const MI_S16 as16Gains[], MI_U8 u8GainSize);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input
  u8ChnGrpIdx	AI channel group number. Range: [0, Channel Group Number-1] Channel Group Number = (the number of physical channels on attach-the number of Echo channels on attach) / Sound Mode	Input
  as16Gains	Volume array An element of the array represents the volume of a physical channel	Input
  u8GainSize	Sze of the volume array, the maximum is the physical channel corresponding to Sound Mode	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • In version 3.55 and later, the data type of all volume Gain values was changed from S8 to S16, as in the old function prototype: MI_S32 MI_AI_SetGain(MI_AUDIO_DEV AiDevId, MI_U8 u8ChnGrpIdx, const MI_S8 as8Gains[], MI_U8 u8GainSize); Same as above for other API related to volume Gain.

  • To set the volume of the AI channel group, you must first enable the AI device and mount the peripheral.

  • Only the channels corresponding to E_MI_AI_IF_ADC_AB support this setting for Muffin series chips.

  • Souffle/Pcupid series chip E_MI_AI_IF_ADC_AB/E_MI_AI_IF_ADC_CD/E_MI_AI_IF_DMIC_A_01 /... /E_MI_AI_IF_DMIC_A_45/ E_MI_AI_IF_I2S_A_01/... /E_MI_AI_IF_I2S_A_ef supports this setting.

  • The Gain value of Souffle/Pcupid series chips is different from that of other series chips. The Gain value is not the corresponding Db value, but a mapping relationship with the range [-508, 512] corresponding to [-63.5Db, 64Db], where 0 corresponds to 0Db and 0.125dB/step.

  • Except for the Souffle/Pcupid series chips, as16Gains is set in the range of [-60Db, 30Db], 1dB/step.

• Example

  The simple example is as follow:

  1. MI_S16 s16DpgaGain[] = {-10};
  2. ExecFunc(MI_AI_SetGain(AiDevId, u8ChnGroupIdx, s16DpgaGain, sizeof(s16DpgaGain) / sizeof(s16DpgaGain[0])), MI_SUCCESS);


  Please refer to MI_AI_Open for the detailed example.

2.10. MI_AI_GetGain

• Features

  Get the volume of the AI channel group.

• Syntax

  MI_S32 MI_AI_GetGain(MI_AUDIO_DEV AiDevId, MI_U8 u8ChnGrpIdx, MI_S16 as16Gains[], MI_U8 *pu8GainSize);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input
  u8ChnGrpIdx	AI channel group number. Range: [0, Channel Group Number-1] Channel Group Number = (the number of physical channels on attach-the number of Echo channels on attach) / Sound Mode	Input
  as16Gains	Volume array An element of the array represents the volume of a physical channel Range: [-60, 30]	Output
  pu8GainSize	Sze of the volume array, the maximum is the physical channel corresponding to Sound Mode	Output

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai,so

• Note

  • To get the volume of the AI channel group, you must first enable the AI device and mount the peripheral.

  • Only the channels corresponding to E_MI_AI_IF_ADC_AB support this setting for Muffin series chips.

  • All input interfaces of Souffle series chips are supported, the same as MI_AI_SetGain.

• Example

  The simple example is as follow:

  1. MI_S16 s16DpgaGain[MI_AI_MAX_CHN_NUM];
  2. MI_U8 u8Size;
  3. memset(&s16DpgaGain, 0x0, sizeof(s16DpgaGain));
  4. ExecFunc(MI_AI_GetGain(AiDevId, u8ChnGroupIdx, s16DpgaGain, &u8Size), MI_SUCCESS);


  Please refer to MI_AI_Open for the detailed example.

2.11. MI_AI_SetMute

• Features

  Set the mute parameters of the AI channel group.

• Syntax

  MI_S32 MI_AI_SetMute(MI_AUDIO_DEV AiDevId, MI_U8 u8ChnGrpIdx, const MI_BOOL abMutes[], MI_U8 u8MuteSize);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	Audio device ID	Input
  u8ChnGrpIdx	AI channel group number. Range: [0, Channel Group Number-1] Channel Group Number = (the number of physical channels on attach-the number of Echo channels on attach) / Sound Mode	Input
  abMutes	Mute parameter array An element of the mute parameter array represents the mute parameter of a physical channel	Input
  u8MuteSize	Sze of the mute parameter array, the maximum is the physical channel corresponding to Sound Mode	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • To set the mute parameters of the AI channel group, you must first enable the AI device and mount the peripheral.

• Example

  1. MI_BOOL bDpgaMute[] = {TRUE, FALSE};
  2. ExecFunc(MI_AI_SetMute(AiDevId, u8ChnGroupIdx, bDpgaMute, sizeof(bDpgaMute) / sizeof(bDpgaMute[0])), MI_SUCCESS);


2.12. MI_AI_GetMute

• Features

  Get the mute parameters of the AI channel group.

• Syntax

  MI_S32 MI_AI_GetMute(MI_AUDIO_DEV AiDevId, MI_U8 u8ChnGrpIdx, MI_BOOL abMutes[], MI_U8 *pu8MuteSize);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input
  u8ChnGrpIdx	AI channel group number. Range: [0, Channel Group Number-1] Channel Group Number = (the number of physical channels on attach-the number of Echo channels on attach) / Sound Mode	Input
  abMutes	Mute parameter array An element of the mute parameter array represents the mute parameter of a physical channel	Input
  pu8MuteSize	Size of the mute parameter array, the maximum is the physical channel corresponding to Sound Mode	Output

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • To get the mute parameters of the AI channel group, you must first enable the AI device and mount the peripheral.

• Example

  1. MI_BOOL bDpgaMute[MI_AI_MAX_CHN_NUM];
  2. MI_U8 u8Size;
  3. memset(&bDpgaMute, 0x0, sizeof(bDpgaMute));
  4. ExecFunc(MI_AI_GetMute(AiDevId, u8ChnGroupIdx, s16DpgaGain, &u8Size), MI_SUCCESS);


2.13. MI_AI_SetIfGain

• Features

  Set AI peripheral volume.

• Syntax

  MI_S32 MI_AI_SetIfGain(MI_AI_If_e enAiIf, MI_S16 s16LeftIfGain, MI_S16 s16RightIfGain);


• Parameter

  Parameter Name	Description	Input/Output
  enAiIf	AI peripherals	Input
  s16LeftIfGain	Left channel volume	Input
  s16RightIfGain	Right channel volume	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • Only E_MI_AI_IF_ADC_AB/E_MI_AI_IF_ADC_CD/E_MI_AI_IF_DMIC_A_01/E_MI_AI_IF_DMIC_A_23/ E_MI_AI_IF_DMIC_A_45/E_MI_AI_IF_DMIC_A_67 supports this setting.

  • The volume range supported by E_MI_AI_IF_ADC_AB/E_MI_AI_IF_ADC_CD: Muffin/Mochi/Souffle/Pcupid[0, 19], corresponding to 0~57Db, 3dB/step; Maruko[0, 21], corresponding to -6~57Db, 3dB/step.

  • The volume range supported by E_MI_AI_IF_DMIC_A_01/E_MI_AI_IF_DMIC_A_23/ E_MI_AI_IF_DMIC_A_45/E_MI_AI_IF_DMIC_A_67 is [0,6], corresponding to 0~36dB, 6dB/step.

• Example

  The simple example is as follow:

  1. ExecFunc(MI_AI_SetIfGain(E_MI_AI_IF_ADC_AB, 18, 18), MI_SUCCESS);
  2. ExecFunc(MI_AI_SetIfGain(E_MI_AI_IF_ADC_CD, 18, 18), MI_SUCCESS);
  3. ExecFunc(MI_AI_SetIfGain(E_MI_AI_IF_DMIC_A_01, 4, 4), MI_SUCCESS);
  4. ExecFunc(MI_AI_SetIfGain(E_MI_AI_IF_DMIC_A_23, 4, 4), MI_SUCCESS);


  Please refer to MI_AI_Open for the detailed example.

2.14. MI_AI_GetIfGain

• Features

  Get AI peripheral volume.

• Syntax

  MI_S32 MI_AI_GetIfGain(MI_AI_If_e enAiIf, MI_S16 *ps16LeftIfGain, MI_S16 *ps16RightIfGain);


• Parameters

  Parameter Name	Description	Input/Output
  enAiIf	AI peripherals	Input
  ps16LeftIfGain	Left channel volume pointer	Output
  ps16RightIfGain	Right channel volume pointer	Output

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • Only E_MI_AI_IF_ADC_AB/E_MI_AI_IF_ADC_CD/E_MI_AI_IF_DMIC_A_01/E_MI_AI_IF_DMIC_A_23/ E_MI_AI_IF_DMIC_A_45/E_MI_AI_IF_DMIC_A_67 supports this setting.

• Example

  1. MI_S16 s16IfLeftGain, s16IfRightGain;
  2. ExecFunc(MI_AI_GetIfGain(E_MI_AI_IF_ADC_AB, &s16IfLeftGain, &s16IfRightGain), MI_SUCCESS);
  3. ExecFunc(MI_AI_GetIfGain(E_MI_AI_IF_ADC_CD, &s16IfLeftGain, &s16IfRightGain), MI_SUCCESS);
  4. ExecFunc(MI_AI_GetIfGain(E_MI_AI_IF_DMIC_A_01, &s16IfLeftGain, &s16IfRightGain), MI_SUCCESS);
  5. ExecFunc(MI_AI_GetIfGain(E_MI_AI_IF_DMIC_A_23, &s16IfLeftGain, &s16IfRightGain), MI_SUCCESS);


2.15. MI_AI_SetIfMute

• Features

  Set AI peripheral mute parameters.

• Syntax

  MI_S32 MI_AI_SetIfMute(MI_AI_If_e enAiIf, MI_BOOL bLeftMute, MI_BOOL bRightMute);


• Parameters

  Parameter Name	Description	Input/Output
  enAiIf	AI peripherals	Input
  bLeftMute	Left channel mute parameter	Input
  bRightMute	Right channel mute parameter	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • No input peripheral supports this setting.

• Example

  1. ExecFunc(MI_AI_SetIfMute(E_MI_AI_IF_ADC_AB, TRUE, FALSE), MI_SUCCESS);
  2. ExecFunc(MI_AI_SetIfMute(E_MI_AI_IF_ADC_CD, TRUE, FALSE), MI_SUCCESS);
  3. ExecFunc(MI_AI_SetIfMute(E_MI_AI_IF_DMIC_A_01, TRUE, FALSE), MI_SUCCESS);
  4. ExecFunc(MI_AI_SetIfMute(E_MI_AI_IF_DMIC_A_23, TRUE, FALSE), MI_SUCCESS);


2.16. MI_AI_GetIfMute

• Features

  Get AI peripheral mute parameters.

• Syntax

  MI_S32 MI_AI_GetIfMute(MI_AI_If_e enAiIf, MI_BOOL *pbLeftMute, MI_BOOL *pbRightMute);


• Parameters

  Parameter Name	Description	Input/Output
  enAiIf	AI peripherals	Input
  pbLeftMute	Left channel mute parameter pointer	Output
  pbRightMute	Right channel mute parameter pointer	Output

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Example

  1. MI_BOOL bIfLeftMute, bIfRightMute;
  2. ExecFunc(MI_AI_GetIfMute(E_MI_AI_IF_ADC_AB, &bIfLeftMute, &bIfRightMute), MI_SUCCESS);
  3. ExecFunc(MI_AI_GetIfMute(E_MI_AI_IF_ADC_CD, &bIfLeftMute, &bIfRightMute), MI_SUCCESS);
  4. ExecFunc(MI_AI_GetIfMute(E_MI_AI_IF_DMIC_A_01, &bIfLeftMute, &bIfRightMute), MI_SUCCESS);
  5. ExecFunc(MI_AI_GetIfMute(E_MI_AI_IF_DMIC_A_23, &bIfLeftMute, &bIfRightMute), MI_SUCCESS);


2.17. MI_AI_SetI2SConfig

• Features

  Set I2S RX config info.

• Syntax

  MI_S32 MI_AI_SetI2SConfig(MI_AI_If_e enAiI2SIf, const MI_AUDIO_I2sConfig_t *pstConfig);


• Parameters

  Parameter Name	Description	Input/Output
  enAiI2Sif	Audio I2S RX input peripheral	Input
  pstConfig	Audio I2S RX config information	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • A group of I2S RX only needs to be configured once. For example, after using E_MI_AI_IF_I2S_A_01, I2S_A has been initialized, and then using other interfaces belonging to I2S_A, there is no need to configure I2S_A, unless the configuration parameters of I2S_A are changed.

  • The enSampleRate in MI_AUDIO_I2sConfig_t must be the same as the enSampleRate in MI_AI_Attr_t, otherwise attach will report an error.

• Example

  1.  MI_AUDIO_I2sConfig_t stAiI2sACfg;
  2.  memset(&stAiI2sACfg, 0x0, sizeof(stAiI2sACfg));
  3.  stAiI2sACfg.enMode = E_MI_AUDIO_I2S_MODE_I2S_MASTER;
  4.  stAiI2sACfg.enFormat = E_MI_AUDIO_I2S_FMT_I2S_MSB;
  5.  stAiI2sACfg.enSampleRate = E_MI_AUDIO_SAMPLE_RATE_8000;
  6.  stAiI2sACfg.enMclk = E_MI_AUDIO_I2S_MCLK_0;
  7.  stAiI2sACfg.bSyncClock = TRUE;
  8.  stAiI2sACfg.u32TdmSlots = 2;
  9.  stAiI2sACfg.enBitWidth = E_MI_AUDIO_BIT_WIDTH_16;
  10. ExecFunc(MI_AI_SetI2SConfig(E_MI_AI_IF_I2S_A_01, &stAiI2sACfg), MI_SUCCESS);


2.18. MI_AI_GetI2SConfig

• Features

  Get I2S RX config info.

• Syntax

  MI_S32 MI_AI_GetI2SConfig(MI_AI_If_e enAiI2SIf, MI_AUDIO_I2sConfig_t *pstConfig);


• Parameters

  Parameter Name	Description	Input/Output
  enAiI2Sif	Audio I2S RX input peripheral	Input
  pstConfig	Audio I2S RX config information	Output

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Example

  1. MI_AUDIO_I2sConfig_t stAiI2sACfg;
  2. memset(&stAiI2sACfg, 0x0, sizeof(stAiI2sACfg));
  3. ExecFunc(MI_AI_GetI2SConfig(E_MI_AI_IF_I2S_A_01, &stAiI2sACfg), MI_SUCCESS);


2.19. MI_AI_DupChnGroup

• Features

  Sync status of AI channel group.

• Syntax

  MI_S32 MI_AI_DupChnGroup(MI_AUDIO_DEV AiDevId, MI_U8 u8ChnGrpIdx)


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	AI device number	Input
  u8ChnGrpIdx	AI channel group number. Range: [0, Channel Group Number-1] Channel Group Number = (the number of physical channels on attach-the number of Echo channels on attach) / Sound Mode	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • This is only used for dual os. It is used to synchronize the state of the AI channel group when the initialized AI channel group under RTOS is switched to Linux.

2.20. MI_AI_InitDev

• Features

  Initialize the AI device.

• Syntax

  MI_S32 MI_AI_InitDev(MI_AI_InitParam_t *pstInitParam);


• Parameters

  Parameter Name	Description	Input/Output
  pstInitParam	Device initialization parameters	Input

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • It must be used in pairs with MI_AI_DeInitDev, and cannot be called repeatedly, otherwise it returns to fail.

  • Only used to reinitialize the AI module after the STR state is enabled.

2.21. MI_AI_DeInitDev

• Features

  De-Initialize the AI device.

• Syntax

  MI_S32 MI_AI_DeInitDev(void);


• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.a/libmi_ai.so

• Note

  • This function must be called after the device is initialized, otherwise, it returns to fail.

  • If it is not called before the app exits, the device will be automatically deinitialized internally

  • It must be used in pairs with MI_AI_InitDev , and cannot be called repeatedly, otherwise it returns to fail.

2.22. MI_AI_GetAttr

• Features

  Get audio input device attributes.

• Syntax

  MI_S32 MI_AI_GetAttr(MI_AUDIO_DEV AiDevId, MI_AI_Attr_t *pstAttr);


• Parameters

  Parameter Name	Description	Input/Output
  AiDevId	Audio input device ID	Input
  pstAttr	Audio input device attributes	Output

• Return value

  • Zero: Successful

  • Non-zero: Failed, see error code for details

• Dependency

  • Header: mi_ai.h

  • Library: libmi_ai.so/libmi_ai.a

• Note

  • This function must be called after opening the device successfully, otherwise it will return failed.

3. AI Data type

The AI module related data types are defined as follows:

Data type	Definition
MI_AUDIO_DEV	Define the audio input/output device number
MI_AUDIO_Format_e	Define audio data format
MI_AUDIO_SoundMode_e	Define audio sound mode
MI_AUDIO_SampleRate_e	Define audio sample rate
MI_AI_Attr_t	Define AI device attribute structure
MI_AI_If_e	Define AI peripherals
MI_AI_MAX_CHN_NUM	Define the maximum number of physical channels supported by AI devices
MI_AI_Data_t	Define audio structure
MI_AUDIO_I2sMode_e	Define the working mode of audio I2S RX/TX
MI_AUDIO_I2sBitWidth_e	Define the bit width of audio I2S RX/TX
MI_AUDIO_I2sFormat_e	Define the data transmission format of audio I2S RX/TX
MI_AUDIO_I2sMclk_e	Define the mclk frequency of audio I2S RX/TX
MI_AUDIO_I2sConfig_t	Define I2S RX/TX config info
MI_AI_InitParam_t	AI device initialization parameters

3.1. MI_AUDIO_DEV

• Description

  Define the audio input/output device number.

• Definition

  typedef MI_S32 MI_AUDIO_DEV


3.2. MI_AUDIO_Format_e

• Description

  Define audio data format.

• Definition

  typedef enum
  {
      E_MI_AUDIO_FORMAT_INVALID = -1,
      E_MI_AUDIO_FORMAT_PCM_S16_LE = 0,
      E_MI_AUDIO_FORMAT_PCM_S24_LE,
      E_MI_AUDIO_FORMAT_PCM_S32_LE,
  } MI_AUDIO_Format_e;


• Member

  Member Name	Description
  E_MI_AUDIO_FORMAT_INVALID	Illegal data format
  E_MI_AUDIO_FORMAT_PCM_S16_LE	PCM Linear 16bit (Little Endian)
  E_MI_AUDIO_FORMAT_PCM_S24_LE	PCM Linear 24bit (Little Endian)
  E_MI_AUDIO_FORMAT_PCM_S32_LE	PCM Linear 32bit (Little Endian)

• Related data types and interfaces

  MI_AI_Attr_t

3.3. MI_AUDIO_SoundMode_e

• Description

  Define audio sound mode.

• Definition

  typedef enum
  {
  ​     E_MI_AUDIO_SOUND_MODE_MONO = 1,
  ​     E_MI_AUDIO_SOUND_MODE_STEREO = 2,
  ​     E_MI_AUDIO_SOUND_MODE_4CH = 4,
  ​     E_MI_AUDIO_SOUND_MODE_6CH = 6,
  ​     E_MI_AUDIO_SOUND_MODE_8CH = 8,
  ​     E_MI_AUDIO_SOUND_MODE_10CH = 10,
  ​     E_MI_AUDIO_SOUND_MODE_12CH = 12,
  ​     E_MI_AUDIO_SOUND_MODE_14CH = 14,
  ​     E_MI_AUDIO_SOUND_MODE_16CH = 16,
  }MI_AUDIO_SoundMode_e


• Member

  Member Name	Description
  E_MI_AUDIO_SOUND_MODE_MONO	MONO
  E_MI_AUDIO_SOUND_MODE_STEREO	STEREO
  E_MI_AUDIO_SOUND_MODE_4CH	4-channels
  E_MI_AUDIO_SOUND_MODE_6CH	6-channels
  E_MI_AUDIO_SOUND_MODE_8CH	8-channels
  E_MI_AUDIO_SOUND_MODE_10CH	10-channels
  E_MI_AUDIO_SOUND_MODE_12CH	12-channels
  E_MI_AUDIO_SOUND_MODE_14CH	14-channels
  E_MI_AUDIO_SOUND_MODE_16CH	16-channels

• Note

  • The header file determines which Sound Mode are supported on different SOC.

• Related data types and interfaces

  MI_AI_Attr_t

3.4. MI_AUDIO_SampleRate_e

• Description

  Define audio sample rate.

• Definition

  typedef enum
  {
  ​     E_MI_AUDIO_SAMPLE_RATE_8000 = 8000,
  ​     E_MI_AUDIO_SAMPLE_RATE_11052 = 11025,
  ​     E_MI_AUDIO_SAMPLE_RATE_12000 = 12000,
  ​     E_MI_AUDIO_SAMPLE_RATE_16000 = 16000,
  ​     E_MI_AUDIO_SAMPLE_RATE_22050 = 22050,
  ​     E_MI_AUDIO_SAMPLE_RATE_24000 = 24000,
  ​     E_MI_AUDIO_SAMPLE_RATE_32000 = 32000,
  ​     E_MI_AUDIO_SAMPLE_RATE_44100 = 44100,
  ​     E_MI_AUDIO_SAMPLE_RATE_48000 = 48000,
  ​     E_MI_AUDIO_SAMPLE_RATE_96000 = 96000,
  ​     E_MI_AUDIO_SAMPLE_RATE_192000 = 192000,
  }MI_AUDIO_SampleRate_e;


• Member

  Member Name	Description
  E_MI_AUDIO_SAMPLE_RATE_8000	8kHz sample rate
  E_MI_AUDIO_SAMPLE_RATE_11025	11.025kHz sample rate
  E_MI_AUDIO_SAMPLE_RATE_12000	12kHz sample rate
  E_MI_AUDIO_SAMPLE_RATE_16000	16kHz sample rate
  E_MI_AUDIO_SAMPLE_RATE_22050	22.05kHz sample rate
  E_MI_AUDIO_SAMPLE_RATE_24000	24kHz sample rate
  E_MI_AUDIO_SAMPLE_RATE_32000	32kHz sample rate
  E_MI_AUDIO_SAMPLE_RATE_44100	44.1kHz sample rate
  E_MI_AUDIO_SAMPLE_RATE_48000	48kHz sample rate
  E_MI_AUDIO_SAMPLE_RATE_96000	96kHz sample rate
  E_MI_AUDIO_SAMPLE_RATE_192000	192kHz sample rate

• Note

  • Except I2S RX which supports 8/16/32/48/96/192kHz, and I2S RX can only be attached separately when using 96/192kHz, other AI peripherals only support 8/16/32/48kHz.

  • Muffin's I2S RX only supports 8/16/32/48/96 kHz.

• Related data types and interfaces

  MI_AI_Attr_t

3.5. MI_AI_Attr_t

• Description

  Define AI device attribute structure.

• Definition

  typedef struct MI_AUDIO_Attr_s
  {
      MI_AUDIO_Format_e enFormat;
      MI_AUDIO_SoundMode_e enSoundMode;
      MI_AUDIO_SampleRate_e enSampleRate;
      MI_U32 u32PeriodSize;
      MI_BOOL bInterleaved;
  }MI_AI_Attr_t;


• Member

  Member Name	Description
  enFormat	Audio data format. Static attributes.
  enSoundMode	Audio sound mode. Static attributes. The sound mode determines how many physical channels a channel group corresponds to.
  enSampleRate	Audio sampling rate. Static attributes.
  u32PeriodSize	Audio data samples. Static attributes.
  bInterleaved	Whether the audio data is in interlace mode. Static attributes.
  E_MI_AUDIO_SAMPLE_RATE_192000	192kHz sample rate

• Related data types and interfaces

  MI_AI_Open

3.6. MI_AI_If_e

• Description

  Define AI peripherals.

• Definition

  typedef enum
  {
      E_MI_AI_IF_NONE = 0,
      E_MI_AI_IF_ADC_AB = 1,
      E_MI_AI_IF_ADC_CD = 2,
      E_MI_AI_IF_DMIC_A_01 = 3,
      E_MI_AI_IF_DMIC_A_23 = 4,
      E_MI_AI_IF_I2S_A_01 = 5,
      E_MI_AI_IF_I2S_A_23 = 6,
      E_MI_AI_IF_I2S_A_45 = 7,
      E_MI_AI_IF_I2S_A_67 = 8,
      E_MI_AI_IF_I2S_A_89 = 9,
      E_MI_AI_IF_I2S_A_ab = 10,
      E_MI_AI_IF_I2S_A_cd = 11,
      E_MI_AI_IF_I2S_A_ef = 12,
      E_MI_AI_IF_I2S_B_01 = 13,
      E_MI_AI_IF_I2S_B_23 = 14,
      E_MI_AI_IF_I2S_B_45 = 15,
      E_MI_AI_IF_I2S_B_67 = 16,
      E_MI_AI_IF_I2S_B_89 = 17,
      E_MI_AI_IF_I2S_B_ab = 18,
      E_MI_AI_IF_I2S_B_cd = 19,
      E_MI_AI_IF_I2S_B_ef = 20,
      E_MI_AI_IF_I2S_C_01 = 21,
      E_MI_AI_IF_I2S_C_23 = 22,
      E_MI_AI_IF_I2S_C_45 = 23,
      E_MI_AI_IF_I2S_C_67 = 24,
      E_MI_AI_IF_I2S_C_89 = 25,
      E_MI_AI_IF_I2S_C_ab = 26,
      E_MI_AI_IF_I2S_C_cd = 27,
      E_MI_AI_IF_I2S_C_ef = 28,
      E_MI_AI_IF_I2S_D_01 = 29,
      E_MI_AI_IF_I2S_D_23 = 30,
      E_MI_AI_IF_I2S_D_45 = 31,
      E_MI_AI_IF_I2S_D_67 = 32,
      E_MI_AI_IF_I2S_D_89 = 33,
      E_MI_AI_IF_I2S_D_ab = 34,
      E_MI_AI_IF_I2S_D_cd = 35,
      E_MI_AI_IF_I2S_D_ef = 36,
      E_MI_AI_IF_ECHO_A = 37,
      E_MI_AI_IF_HDMI_A = 38,
      E_MI_AI_IF_DMIC_A_45 = 39,
      E_MI_AI_IF_DMIC_A_67 = 40,
      E_MI_AI_IF_SPDIF_A = 41,
      E_MI_AI_IF_MAX,
  } MI_AI_If_e;


• Member

  Member Name	Description
  E_MI_AI_IF_NONE	None
  E_MI_AI_IF_ADC_AB	ADC0/ 1
  E_MI_AI_IF_ADC_CD	ADC2/ 3
  E_MI_AI_IF_DMIC_A_01	DMIC Chn0 and Chn1
  E_MI_AI_IF_DMIC_A_23	DMIC Chn2 and Chn3
  E_MI_AI_IF_I2S_A_01	I2S RX A Chn0 and Chn1
  E_MI_AI_IF_I2S_A_23	I2S RX A Chn2 and Chn3
  E_MI_AI_IF_I2S_A_45	I2S RX A Chn4 and Chn5
  E_MI_AI_IF_I2S_A_67	I2S RX A Chn6 and Chn7
  E_MI_AI_IF_I2S_A_89	I2S RX A Chn8 and Chn9
  E_MI_AI_IF_I2S_A_ab	I2S RX A Chn10 and Chn11
  E_MI_AI_IF_I2S_A_cd	I2S RX A Chn12 and Chn13
  E_MI_AI_IF_I2S_A_ef	I2S RX A Chn14 and Chn15
  E_MI_AI_IF_I2S_B_01	I2S RX B Chn0 and Chn1
  E_MI_AI_IF_I2S_B_23	I2S RX B Chn2 and Chn3
  E_MI_AI_IF_I2S_B_45	I2S RX B Chn4 and Chn5
  E_MI_AI_IF_I2S_B_67	I2S RX B Chn6 and Chn7
  E_MI_AI_IF_I2S_B_89	I2S RX B Chn8 and Chn9
  E_MI_AI_IF_I2S_B_ab	I2S RX B Chn10 and Chn11
  E_MI_AI_IF_I2S_B_cd	I2S RX B Chn12 and Chn13
  E_MI_AI_IF_I2S_B_ef	I2S RX B Chn14 and Chn15
  E_MI_AI_IF_I2S_C_01	I2S RX C Chn0 and Chn1
  E_MI_AI_IF_I2S_C_23	I2S RX C Chn2 and Chn3
  E_MI_AI_IF_I2S_C_45	I2S RX C Chn4 and Chn5
  E_MI_AI_IF_I2S_C_67	I2S RX C Chn6 and Chn7
  E_MI_AI_IF_I2S_C_89	I2S RX C Chn8 and Chn9
  E_MI_AI_IF_I2S_C_ab	I2S RX C Chn10 and Chn11
  E_MI_AI_IF_I2S_C_cd	I2S RX C Chn12 and Chn13
  E_MI_AI_IF_I2S_C_ef	I2S RX C Chn14 and Chn15
  E_MI_AI_IF_I2S_D_01	I2S RX D Chn0 and Chn1
  E_MI_AI_IF_I2S_D_23	I2S RX D Chn2 and Chn3
  E_MI_AI_IF_I2S_D_45	I2S RX D Chn4 and Chn5
  E_MI_AI_IF_I2S_D_67	I2S RX D Chn6 and Chn7
  E_MI_AI_IF_I2S_D_89	I2S RX D Chn8 and Chn9
  E_MI_AI_IF_I2S_D_ab	I2S RX D Chn10 and Chn11
  E_MI_AI_IF_I2S_D_cd	I2S RX D Chn12 and Chn13
  E_MI_AI_IF_I2S_D_ef	I2S RX D Chn14 and Chn15
  E_MI_AI_IF_ECHO_A	SRC data (Echo)
  E_MI_AI_IF_HDMI_A	HDMI RX
  E_MI_AI_IF_DMIC_A_45	(Some support)DMIC Chn4 and Chn5
  E_MI_AI_IF_DMIC_A_67	(Some support)DMIC Chn6 and Chn7
  E_MI_AI_IF_SPDIF_A	SPDIF RX

• Related data types and interfaces

  MI_AI_AttachIf

  MI_AI_SetIfGain

  MI_AI_GetIfGain

  MI_AI_SetIfMute

  MI_AI_GetIfMute

  MI_AI_SetI2SConfig

  MI_AI_GetI2SConfig

3.7. MI_AI_MAX_CHN_NUM

• Description

  Define the maximum number of physical channels supported by AI devices.

• Definition

  #define MI_AI_MAX_CHN_NUM 16


• Note

  • The 'MI_AI_MAX_CHN_NUM' value is different on different SOC,Refer to the header file.

3.8. MI_AI_Data_t

• Description

  Define audio structure.

• Definition

  typedef struct MI_AI_Data_s
  {
      void *apvBuffer[MI_AI_MAX_CHN_NUM];
      MI_U32 u32Bytes[MI_AI_MAX_CHN_NUM];
      MI_U64 u64Pts;
      MI_U64 u64Seq;
  }MI_AI_Data_t;


• Member

  Member Name	Description
  apvBuffer	Audio data address,AI device enables the interleaved mode, and the data is stored in apvBuffer[0]. AI device disables the interleaving mode, and the data is arranged in apvBuffer in order
  u32Bytes	Audio data length, One-to-one correspondence with apvBuffer
  u64Pts	Audio data timestamp,µs
  u64Seq	Audio data sequence number

• Related data types and interfaces

  MI_AI_Read

  MI_AI_ReleaseData

3.9. MI_AUDIO_I2sMode_e

• Description

  Define the working mode of audio I2S RX/TX.

• Definition

  typedef enum
  {
      E_MI_AUDIO_I2S_MODE_I2S_MASTER,
      E_MI_AUDIO_I2S_MODE_I2S_SLAVE,
      E_MI_AUDIO_I2S_MODE_TDM_MASTER,
      E_MI_AUDIO_I2S_MODE_TDM_SLAVE,
  } MI_AUDIO_I2sMode_e;


• Member

  Member Name	Description
  E_MI_AUDIO_I2S_MODE_I2S_MASTER	I2S master mode
  E_MI_AUDIO_I2S_MODE_I2S_SLAVE	I2S slave mode
  E_MI_AUDIO_I2S_MODE_TDM_MASTER	TDM master mode
  E_MI_AUDIO_I2S_MODE_TDM_SLAVE	TDM slave mode

• Note

  Determine whether to support the master/slave mode according to different chips.

• Related data types and interfaces

  MI_AUDIO_I2sConfig_t

3.10. MI_AUDIO_I2sBitWidth_e

• Description

  Define the bit width of audio I2S RX/TX.

• Definition

  typedef enum
  {
      E_MI_AUDIO_BIT_WIDTH_16,
      E_MI_AUDIO_BIT_WIDTH_24,
      E_MI_AUDIO_BIT_WIDTH_32,
  } MI_AUDIO_I2sBitWidth_e;


• Member

  Member Name	Description
  E_MI_AUDIO_BIT_WIDTH_16	I2S bit width is 16
  E_MI_AUDIO_BIT_WIDTH_24	I2S bit width is 24
  E_MI_AUDIO_BIT_WIDTH_32	I2S bit width is 32

• Note

  • At present, I2S supports 32bit sequential data reception, when I2S is configured as 32bit, that is, the high level is effective and the data arrangement must be guaranteed in 1,3,5,7,...,slots.

• Related data types and interfaces

  MI_AUDIO_I2sConfig_t

3.11. MI_AUDIO_I2sFormat_e

• Description

  Define the data transmission format of audio I2S RX/TX.

• Definition

  typedef enum
  {
      E_MI_AUDIO_I2S_FMT_I2S_MSB,
      E_MI_AUDIO_I2S_FMT_LEFT_JUSTIFY_MSB,
  } MI_AUDIO_I2sFormat_e;


• Member

  Member Name	Description
  E_MI_AUDIO_I2S_FMT_I2S_MSB	I2S standard format; Highest priority
  E_MI_AUDIO_I2S_FMT_LEFT_JUSTIFY_MSB	I2S left-justified format; Highest priority

• Related data types and interfaces

  MI_AUDIO_I2sConfig_t

3.12. MI_AUDIO_I2sMclk_e

• Description

  Define the mclk frequency of audio I2S RX/TX.

• Definition

  typedef enum
  {
      E_MI_AUDIO_I2S_MCLK_0,
      E_MI_AUDIO_I2S_MCLK_12_288M,
      E_MI_AUDIO_I2S_MCLK_16_384M,
      E_MI_AUDIO_I2S_MCLK_18_432M,
      E_MI_AUDIO_I2S_MCLK_24_576M,
      E_MI_AUDIO_I2S_MCLK_24M,
      E_MI_AUDIO_I2S_MCLK_48M,
      E_MI_AUDIO_I2S_MCLK_22_5792M,
      E_MI_AUDIO_I2S_MCLK_32_768M,
      E_MI_AUDIO_I2S_MCLK_36_864M,
      E_MI_AUDIO_I2S_MCLK_49_152M,
      E_MI_AUDIO_I2S_MCLK_76_8M,
  } MI_AUDIO_I2sMclk_e;


• Member

  Member Name	Description
  E_MI_AUDIO_I2S_MCLK_0	Turn off MCLK
  E_MI_AUDIO_I2S_MCLK_12_288M	Set MCLK to 12.88M
  E_MI_AUDIO_I2S_MCLK_16_384M	Set MCLK to 16.384M
  E_MI_AUDIO_I2S_MCLK_18_432M	Set MCLK to 18.432M
  E_MI_AUDIO_I2S_MCLK_24_576M	Set MCLK to 24.576M
  E_MI_AUDIO_I2S_MCLK_24M	Set MCLK to 24M
  E_MI_AUDIO_I2S_MCLK_48M	Set MCLK to 48M
  E_MI_AUDIO_I2S_MCLK_22_5792M	Set MCLK to 22.5792M
  E_MI_AUDIO_I2S_MCLK_32_768M	Set MCLK to 32.768M
  E_MI_AUDIO_I2S_MCLK_36_864M	Set MCLK to 36.864M
  E_MI_AUDIO_I2S_MCLK_49_152M	Set MCLK to 49.152M
  E_MI_AUDIO_I2S_MCLK_76_8M	Set MCLK to 76.8M

• Note

  The header file determines which MCLK are supported on different SOC.

• Related data types and interfaces

  MI_AUDIO_I2sConfig_t

3.13. MI_AUDIO_I2sConfig_t

• Description

  Define I2S RX/TX config info.

• Definition

  typedef struct MI_AUDIO_I2sConfig_s
  {
      MI_AUDIO_I2sMode_e enMode;
      MI_AUDIO_I2sBitWidth_e enBitWidth;
      MI_AUDIO_I2sFormat_e enFormat;
      MI_AUDIO_SampleRate_e enSampleRate;
      MI_AUDIO_I2sMclk_e enMclk;
      MI_BOOL bSyncClock;
      MI_U32 u32TdmSlots;
  } MI_AUDIO_I2sConfig_t;


• Member

  Member Name	Description
  enMode	I2S working mode
  enBitWidth	I2S data bit width.
  enFormat	I2S transmission data format.
  enSampleRate	I2S sampling rate.
  enMclk	I2S mclk frequency.
  bSyncClock	Whether I2S RX and I2S TX share the clock.
  u32TdmSlots	Number of I2S TDM slots (valid only in TDM mode)

• Note

  Souffle/Pcupid series chips support 1Chn PCM. To use this function, enMode must work in E_MI_AUDIO_I2S_MODE_TDM_MASTER and E_MI_AUDIO_I2S_MODE_TDM_SLAVE mode, and u32TdmSlots must be set to 1.

• Related data types and interfaces

  MI_AI_SetI2SConfig

  MI_AI_GetI2SConfig

3.14. MI_AI_InitParam_t

• Description

  AI device initialization parameters.

• Definition

  typedef struct MI_AI_InitParam_s
  {
      MI_AUDIO_DEV AiDevId;
      MI_U8 *u8Data;
  } MI_AI_InitParam_t;


• Member

  Member Name	Description
  AiDevId	AI device number
  u8Data	Initialization parameter pointer (reserved)

• Related data types and interfaces

  MI_AI_InitDev

4. Error Code

The AI API error codes are shown in the table below:

Error Code	Definition	Description
0xA0042001	MI_AI_ERR_INVALID_DEVID	Invalid audio input device number
0xA0042002	MI_AI_ERR_INVALID_CHNGRPID	Invalid audio input channel group number
0xA0042003	MI_AI_ERR_ILLEGAL_PARAM	Invalid audio input parameter setting
0xA0042006	MI_AI_ERR_NULL_PTR	Input parameter empty indicator error
0xA0042007	MI_AI_ERR_NOT_CONFIG	Audio input device properties are not set
0xA0042008	MI_AI_ERR_NOT_SUPPORT	Operation is not supported
0xA0042009	MI_AI_ERR_NOT_PERM	Operation not allowed
0xA004200C	MI_AI_ERR_NOMEM	Failed to allocate memory
0xA004200D	MI_AI_ERR_NOBUF	Insufficient audio input buffer
0xA004200E	MI_AI_ERR_BUF_EMPTY	Audio input buffer is empty
0xA004200F	MI_AI_ERR_BUF_FULL	Audio input buffer is full
0xA0042010	MI_AI_ERR_SYS_NOTREADY	Audio input system is not initialized
0xA0042012	MI_AI_ERR_BUSY	Audio input system is busy
0xA0042017	MI_AI_ERR_NOT_ENABLED	Audio input device or channel is not enabled

5. PROCFS AND DEBUG INTRODUCTION

5.1. Cat

• Debug info

  # cat proc/mi_modules/mi_ai/mi_ai0




• Debug info analysis

  Record the current AI usage status and device/channel group attributes, and can dynamically obtain information, which is convenient for debugging and testing.

• Parameter description

  Parameter		Description
  AI Device Attr	DevStatus	AI device status uninit: uninit opened: opened successfully
  	Format	Audio format (Bit width and size end, etc) Currently only support S16_LE (16bit, small end mode)
  	SoundMode	Sound mode: mono stereo SOUND_MODE_4CH: 4channel SOUND_MODE_6CH: 6channel SOUND_MODE_8CH: 8channel ... SOUND_MODE_16CH: 16channel
  	SampleRate	8k/16k/32k/48k
  	Interleaved	Whether it is interleaved mode
  	PeriodSize	AI data per frame
  	PeriodToUs	(Some support)APP takes a frame data corresponding to the time,Us
  	Interrupt	(Some support)Interrupt type:hw-timer/wdma-irq
  	TriggerSize	(Some support)Config DMA trigger size，64bytes alignment;When hw-timer is used, this parameter is invalid
  	IrqTriggerUs	(Some support)Interrupt type:hw-timer/wdma-irq,Theoretical trigger time,Us
  	CurIrqTriggerUs	(Some support)Interrupt type:hw-timer/wdma-irq,Current actual trigger time,Us
  	TriggerIsrCnt	(Some support)Interrupt type:hw-timer/wdma-irq,Total trigger count
  	XrunIsrCnt	(Some support)Number of times Xrun interrupts occurred
  	DmaBufSize	DMA buffer size
  	DmaBusySize	DMA buffer busy size
  	DmaFreeSize	DMA buffer free size
  	TmpBufSize	TMP buffer size（Not heap alloc）
  	MhalChnCnt	Channel count of Mhal device
  	MiChnGrpCnt	MI channel group count
  	ReadCountFromMhal	Frame count read by AI from Mhal
  	If slot[IfIdx]: interface type	[IfIdx]: Interface index interface type: Interface type
  	[interface type]: Gain(Leftgain,RightGain) Mute(LeftMute,RightMute)	[interface type]: Interface type Gain(Leftgain,RightGain) Mute(LeftMute,RightMute)
  AI I2S Status	I2sMode	I2S Rx workmode (Only valid when interface is I2S Rx) i2s-master i2s-slave tdm-master tdm-slave
  	I2sMclk	I2S Rx Mclk frequency (Only valid when interface is I2S Rx) disable: not use Mclk Other values are the current Mclk frequency
  	I2sFmt	I2S Rx data format (Only valid when interface is I2S Rx) I2S-MSB: I2S format LEFT-MSB: I2S left-justified format
  	bI2sSync	Whether I2S RX and TX share clock (Only valid when interface is I2S Rx) 1: 4 wire mode, RX and TX share clock 0: 6 wire mode, RX and TX have indepentent clock
  	TdmSlots	I2S Rx TDM slot number (Only valid when the device is I2S Rx and in TDM mode)
  	I2sBitWidth	I2S RX bit width (Only valid when the device is I2S Rx and the chips support TDM mode)
  AI ChnGrp info	ChnGrpId	MI channel group ID
  	bEnable	Whether to enable
  	ReadFrameCount	Frame count read by the corresponding channel group
  	OutputPortBufSize	(Some support)Each Channel Group applies for OutputPortBuf Size through SYS
  	Mute Status	DPGA Mute info
  	Mute[PhyChnIdx]:bMute	[PhyChnIdx]: channel index in channel group bMute: mute status
  	Dpga Gain	DPGA gain info
  	Dpga Gain[PhyChnIdx]:Gain	[PhyChnIdx]: channel index in channel group Gain

5.2. Echo

Features	Dynamically enable/disable AI device to dump mhal pcm data
Command	echo dump_mhal_chn [Path] [ON/on/1, OFF/off/0] > /proc/mi_modules/mi_ai/mi_ai[ID]
Parameter Description	[Path] Path to dump file [ON/on/1, OFF/off/0] Enable or not [ID] AI device ID
Example	echo dump_mhal_chn /tmp 1 > /proc/mi_modules/mi_ai/mi_ai0

Featur	Dynamically enable/disable AI device to dump mi pcm data
Command	echo dump_mi_chn [ChnGrpId] [Path] [ON/on/1, OFF/off/0] > /proc/mi_modules/mi_ai/mi_ai[ID]
Parameter Description	[ChnGrpId] channel group ID [Path] Path to dump file [ON/on/1, OFF/off/0] Enable or not [ID] AI device ID
Example	echo dump_mi_chn 0 /tmp 1 > /proc/mi_modules/mi_ai/mi_ai0

Features	Dynamically set AI DPGA gain
Command	echo set_dpga_gain [ChnGrpId] [ChnId] [Gain] > /proc/mi_modules/mi_ai/mi_ai[ID]
Parameter Description	[ChnGrpId] channel group ID [ChnId] channel index in channel group [Gain] AI digital gain
Example	echo set_dpga_gain 0 0 -10 > /proc/mi_modules/mi_ai/mi_ai0

Features	Dynamically set AI Interface gain
Command	echo set_inf_gain [If] [LeftGain] [RightGain] > /proc/mi_modules/mi_ai/mi_ai[ID]
Parameter Description	[If] AI Interface [LeftGain] [RightGain]
Example	echo set_inf_gain 1 18 18 > /proc/mi_modules/mi_ai/mi_ai0

Features	Dynamically set AI DPGA mute mode
Command	echo set_dpga_mute [ChnGrpId] [ChnId] [Mute] > /proc/mi_modules/mi_ai/mi_ai[ID]
Parameter Description	[ChnGrpId] channel group ID [ChnID] channel index in channel group [Mute] AI DPGA mute
Example	echo set_dpga_mute 0 0 1 > /proc/mi_modules/mi_ai/mi_ai0

Features	Dynamically set AI Interface mute mode
Command	echo set_inf_mute [If] [LeftMute] [RightMute] > /proc/mi_modules/mi_ai/mi_ai[ID]
Parameter Description	[If] AI Interface [LeftMute] [RightMute]
Example	echo set_inf_mute 1 0 1 > /proc/mi_modules/mi_ai/mi_ai0

Function	Dynamically enable/disable Singen of AI Device
Command	echo singen [SinGen Index] [Enable] > /proc/mi_modules/mi_ai/mi_ai[ID]
Parameter description	[SinGen Index] Singen ID [Enable] enable/disable Singen
Example	echo singen 0 1 > /proc/mi_modules/mi_ai/mi_ai0

The interface singen support for each chip series is as follow:

Interface Singen	Muffin	Mochi	Maruko	Souffle	Pcupid
DMIC_A	Y	Y	Y	Y	Y
ADC_AB	N	N	Y	Y	Y
ADC_CD	N	N	Y	Y	Y
I2S_RX_A	N	N	N	Y	Y
I2S_RX_B	N	N	N	Y	Y
I2S_RX_C	N	N	N	Y	Y

5.3. MI User Mode Debug

Function	Before run the APP, run the export command to dump the MI user mode AI record data and Echo data by specifying environment variables
Description	[MI_AI_DUMP_ENABLE] enable dump MI user mode AI Record and Echo data [MI_AI_DUMP_PATH] dump file path
Example	export MI_AI_DUMP_ENABLE=1 export MI_AI_DUMP_PATH=/mnt

6. Insmod Parameter And MODPARAM.json INTRODUCTION

6.1. Parameter Name, Support Chip And Usage

parameter name	use insmod parameter chip	use MODPARAM.json parameter chip	default	whether support it	function
ThreadPriority	Muffin/Mochi	Maruko/Souffle/Pcupid	98	Y	AI thread priority
DmaBufferSize	Muffin/Mochi	Maruko/Souffle/Pcupid	calculate the value	Y	Modify AI DMA Buffer size
bUsedDmaInterrupt	NA	Souffle/Pcupid	1	Y	Select interrupt source: hw-timer/wdma-irq (default:wdma-irq)

6.2. Insmod Parameter Usage

Example:

insmod mi_ai.ko ThreadPriority=99
insmod mi_ai.ko DmaBufferSize=32 # Unit:K, 4K align.

6.3. MODPARAM.json Parameter Usage

Example: vim /config/modparam.json:

{
    "E_MI_MODULE_ID_AI" :
    {
        "ThreadPriority" : 99,
        "DmaBufferSize" : 32, // Unit:K, 4K align.
        "bUsedDmaInterrupt" : 0
    }
}
