MI VIF API¶

REVISION HISTORY¶

Revision No.	Description	Date
3.0	Initial release	12/04/2020
3.1	Added Muffin flow char	07/16/2021
3.2	Added procfs introduction	08/25/2021
3.3	Updated MI_VIF_GroupIdMask_e E_MI_VIF_GROUPMASK_ID up to 7 Updated char flow note info	12/22/2021
3.4	Added Mochi information	02/17/2022
3.5	Added Maruko information	03/21/2022
3.6	Updated Pipe count of all chips in Section 1.2; Added Pipe description in Section 1.3 Added Field type parameters in Section 3.12 Updated cat information description in Section 5.1; Updated echo command in Section 5.2	07/08/2022
3.7	Added Opera flow chart and information section 1.2.5 Added the CompressMode parameter supported by Opera in section 2.9 Added DCG HDR type in section 3.6, Updated cat information description in section 5.1; Updated echo command in Section 5.2	10/27/2022
3.8	Added COMP and COMPVS HDR type in section 3.6	01/11/2023
3.9	Added Souffle flow chart and information in section 1.2.6 Added the CompressMode parameter supported by Souffle in section 2.9; Added section 2.16, specify function MI_VIF_CustFunction Added eHDRFusionTpye/u8HDRExposureMask/stMetaDataAttr specification in section 3.10; Added section 3.19 to specify HDR fusion type; Added section 3.20 to specify HDR exposure type; Added 3.21 and 3.22 to specify Metadata enum and structure; Added section 3.23 to specify VIF customer command ID; Added section 3.24 to specify Putdata structure	03/14/2023
3.10	Updated cat debug information in Section 5.1 Added Section 6 MODPARAM INTRODUCTION	04/17/2023
3.11	Added "SET IR STATUS" customer command description in section 3.23	06/28/2023
3.12	Added Iford information	12/22/2023
3.13	Added group attributes	02/19/2024
3.14	Added new structure description about AOV function	06/07/2024
3.15	Added bDevEnableFrameStartPts in sections 6.1 and 6.2	04/03/2025
3.16	Restructure the documentation according to the standard template	04/24/2025
3.17	Back to mainline,Added new structure description about AiIsp function, Added api and sample code for aov,Add 5.3. cat debug_hal	05/13/2025
3.18	Supplement the field descriptions of the modparam.json configuration document related to multi-sensor VIF	08/18/2025

1. OVERVIEW¶

1.1. MODULE DESCRIPTION¶

MI_VIF is a device driver used for binding and enabling video input channels. It abstracts the differences in protocols and hardware among various video input devices, allowing upper-layer applications to operate without needing to consider specific sensor types. With simple configuration based on requirements, users can easily set up a pipeline for receiving video stream

KEYWORD:

sensor pad

sensor hardware interface location
VIF Group

The VIF IP's internal hardware architecture is responsible for processing video streams from the corresponding sensor pad
VIF Device

Channels within the VIF Group enable the transmission of video streams through different channels
Linear mode

Single VIF Device mode
HDR mode

To support HDR from the sensor, which contains both long and short exposure data, this configuration will occupy two or more VIF Devices.
realtime

VIF directly connects with downstream hardware
framemode

VIF data is first buffered in DRAM before being transferred to downstream modules

1.2. BASIC ARCHITECTURE¶

The MI_VIF module is primarily designed to receive video streams from front-end sensors. The VIF hardware contains multiple VIF groups, each maintaining a fixed correspondence with specific sensor pads (as shown in Figure 1-1).The VIF group's sensor interface types are hardware-configured, mandating specific pad/group assignments for particular standards (BT656/BT1120, etc.). Each group integrates multiple internal devices for concurrent multi-channel signal reception from the sensor.

The VIF module routes incoming data through configurable output ports to different destinations based on application scenarios. In Frame Mode, it supports transferring both Bayer and YUV422 format data to system memory. When bound to the ISP in real-time mode, it exclusively processes Bayer format data, while real-time binding with the SCL only permits YUV422 data transmission.

Figure 1‑1 VIF Architecture

Figure 1-2 illustrates the application development approach using the MI_VIF API

Figure 1-2 MI_VIF Usage Methodology

1.3. FUNCTIONAL DESCRIPTION¶

MI_VIF supports the following features:

Receiving sensor output of different interface types
Controlling the output video frame rate
Cropping the output image
FBC (Frame Buffer Compression) compression of data
CRC (Cyclic Redundancy Check) verification of data
Outputting fixed-pattern images

1.4. APPLICATION SCENARIOS¶

MI_VIF currently supports the following deployment environments, all of which allow development using the MI_VIF API:

Pure Linux environment
Pure RTOS environment
Dual-OS environment

1.5. CHIP DIFFERENCES¶

The MI_VIF API maintains consistent behavior across different chips, primary hardware differences between chips include: number of underlying VIF groups and devices, and supported sensor interface types.

please refernece #### 1.5.7. Iford

1.5.1. Tiramisu¶

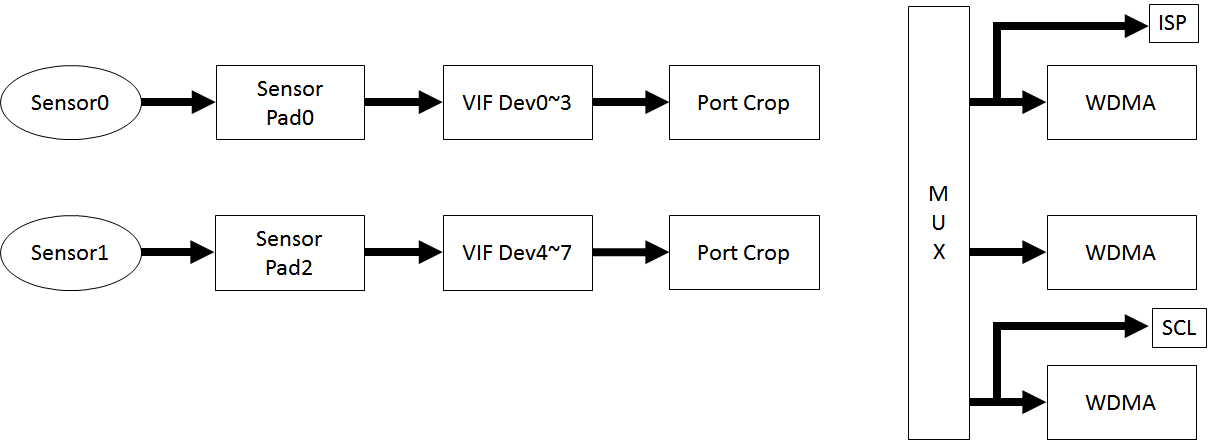

Tiramisu hardware quantity and layout are shown in the figure below.

Supported Interfaces	Associated Sensor Pad
BT656	0, 2
MIPI	0, 1, 2, 3

Tiramisu has two output ports with the following respective functions:

PortId	Input Pixel Format	Output Pixel Format	Crop	scaling	Output Mode
0	Native sensor format	1. Native sensor format 2. YUV422→12-bit Bayer conversion	Not supported	Not supported	1. DRAM output. 2. Any device supports realtime output to MI_ISP, but only one can be used at a time. 3. Any device supports yuv422 realtime output to MI_SCL, but only one can be used at a time.
1	YUV422 only	12-bit Bayer only	Supported	Only scaling down is supported. When the height is scaled down, the maximum width is 960.	DRAM output only

1.5.2. Muffin¶

Muffin hardware quantity and layout are shown in the figure below.

Supported Interfaces	Associated Sensor Pad
BT656	0, 1, 2, 3, 4, 5, 6, 7
BT1120	0, 1, 4, 5
MIPI	0, 1, 2, 3, 4, 5, 6, 7
LVDS	0, 2, 4, 6

Muffin has one output port with the following function:

PortId	Input Pixel Format	Output Pixel Format	Crop	scaling	Output Mode
0	Native sensor format	1. Native sensor format 2. YUV422→12-bit Bayer conversion	Not supported	Not supported	1. DRAM output. 2. Device0-15 support realtime output to MI_ISP Dev0, but only one can be used at a time; Device16-31 support realtime output to MI_ISP Dev1, but only one can be used at a time. 3. Device0-15 support YUV422 realtime output to MI_SCL Dev, but only one can be used at a time. Device16-31 support YUV422 realtime output to MI_SCL Dev6, but only one can be used at a time.

1.5.3. Mochi¶

Mochi hardware quantity and layout are shown in the figure below.

Supported Interfaces	Associated Sensor Pad
BT656	0, 1, 2, 3
BT1120	0, 1

Mochi has one output port with the following function:

PortId	Input Pixel Format	Output Pixel Format	Crop	scaling	Output Mode
0	YUV422 only	YUV422 only	Not supported	Not supported	1. Dram output. 2. Any device supports yuv realtime output to MI_SCL Dev0, but only one can be used at a time.

1.5.4. Maruko¶

Maruko hardware quantity and layout are shown in the figure below.

Supported Interfaces	Associated Sensor Pad
BT656	1
MIPI	0, 2

Maruko has one output port with the following function:

PortId	Input Pixel Format	Output Pixel Format	Crop	scaling	Output Mode
0	Native sensor format	Native sensor format	Not supported	Not supported	1. Dram output. 2. Any device supports realtime output to MI_ISP Dev0, but only one can be used at a time. 3. Any device supports yuv422 realtime output to MI_SCL Dev2, but only one can be used at a time.

1.5.5. Opera¶

Opera hardware quantity and layout are shown in the figure below.

Supported Interfaces	Associated Sensor Pad
BT656	0, 1
BT1120	0
MIPI	0, 1, 2, 3

Opera has one output port with the following function:

PortId	Input Pixel Format	Output Pixel Format	Crop	scaling	Output Mode
0	Native sensor format	Native sensor format	Not supported	Not supported	1. Dram output. 2. Any device supports realtime output to MI_ISP Dev0, but only one can be used at a time. 3. Any device supports yuv422 realtime output to MI_SCL Dev2, but only one can be used at a time.

1.5.6. Souffle¶

Souffle hardware quantity and layout are shown in the figure below.

Supported Interfaces	Associated Sensor Pad
BT656	0, 1
BT1120	0
MIPI	0, 1, 2, 3

Souffle has one output port with the following function:

PortId	Input Pixel Format	Output Pixel Format	Crop	scaling	Output Mode
0	Native sensor format	Native sensor format	Not supported	Not supported	1. Dram output. 2. Any device supports realtime output to MI_ISP Dev0, but only one can be used at a time. 3. Any device supports yuv422 realtime output to MI_SCL Dev2, but only one can be used at a time.

1.5.7. Iford¶

Iford hardware quantity and layout are shown in the figure below.

Supported Interfaces	Associated Sensor Pad
MIPI	0, 2

Iford has one output port with the following function:

PortId	Input Pixel Format	Output Pixel Format	Crop	scaling	Output Mode
0	Native sensor format	Native sensor format	Supported	Not supported	1. Dram output. 2. Any device supports realtime output to MI_ISP Dev0, but only one can be used at a time. 3. YUV422 format real-time output to MI_SCL Dev2 is not supported.

1.5.8. pCupid¶

pCupid hardware quantity and layout are shown in the figure below.

Supported Interfaces	Associated Sensor Pad
BT656	0
parallel	0
MIPI	0, 2

pCupid has one output port with the following function:

PortId	Input Pixel Format	Output Pixel Format	Crop	scaling	Output Mode
0	Native sensor format	Native sensor format	Supported	Not supported	1. Dram output. 2. Any device supports realtime output to MI_ISP Dev0, but only one can be used at a time.

1.5.9. Jaguar1¶

Jaguar1 hardware quantity and layout are shown in the figure below.

Supported Interfaces	Associated Sensor Pad
BT656	0, 1
BT1120	0
MIPI	0, 1, 2, 3

Jaguar1 has one output port with the following function:

PortId	Input Pixel Format	Output Pixel Format	Crop	scaling	Output Mode
0	Native sensor format	Native sensor format	Not supported	Not supported	1. Dram output. 2. Any device supports realtime output to MI_ISP Dev0, but only one can be used at a time. 3. Any device supports yuv422 realtime output to MI_SCL Dev2, but only one can be used at a time.

1.6. WORKING PRINCIPLE¶

The VIF can be divided into frame mode and realtime bind based on its binding relationship with the downstream module. For these two modes, users can choose according to the memory and bandwidth requirements in their actual usage scenarios. Compared to realtime mode, frame mode has higher memory and bandwidth demands. Therefore, it is recommended to use VIF realtime mode under conditions of limited memory and bandwidth.

1.6.1 FRAME MODE¶

When the VIF is bound to the downstream module in frame mode, each device's output port in the VIF first writes data to the corresponding location in DRAM. The downstream module (typically the ISP) then reads from the designated memory address.

vif-isp frame mode

1.6.2 REALTIME¶

The VIF also supports direct hardware-connected data transmission to downstream modules, implemented in two modes: VIF-ISP realtime binding and VIF-SCL realtime binding.

1.6.2.1 VIF-ISP REALTIME¶

In VIF-ISP realtime binding under linear mode (non-HDR mode), VIF data bypasses DRAM and is sent directly to the ISP for internal processing. However, in HDR mode, the long-exposure data path still goes through DRAM. This working mode only supports Bayer format image transmission.

vif-isp realtime mode

1.6.2.2 VIF-SCL REALTIME¶

In VIF-SCL realtime binding mode, the VIF bypasses the ISP module completely without performing any image signal processing, transmitting data directly to the SCL module. This operating mode only supports YUV format image transmission.

vif-scl realtime mode

1.7. DEVELOPMENT WORKFLOW¶

1.7.1 COMPILATION CONFIGURATION¶

enter alkaid project root directory, make menuconfig
press Enter to choose Sdk Config sub-options
press Enter to choose Interface Compile Config sub-options
Press the spacebar to select the VIF submodule and recompile the project.

Upon successful compilation, mi_vif.ko will be generated at sdk/interface/src/vif. Header file mi_vif.h and mi_vif_datatype.h will be release to project/release. In pure linux environment they are automatically packaged into system images by default. While in dualos environment, they are excluded from default image packaging (requires manual compilation and installation)

1.7.2 API CALL FLOW¶

MI_VIF API Calling Sequence

The MI_VIF interface invocation follows these steps:

Configure VIF Group parameters (interface type, operation mode, etc.) and create the specified VIF group
Set VIF Device parameters (window size, pixel format, etc.)
Enable the target VIF Device
Configure VIF OutputPort parameters (window size, pixel format, compression mode, etc.)
Enable the target VIF OutputPort
Disable the VIF OutputPort
Disable the VIF Device
Destroy the VIF Group
Terminate the application

1.8. SAMPLE CODE¶

This example demonstrates the development workflow based on the MI_VIF API.

#include <stdio.h>
#include "mi_sys.h"
#include "mi_vif.h"
#include "mi_sensor.h"
#include "mi_vif_datatype.h"
#include <string.h>

int main(int argc, char **argv)
{
    MI_SNR_PADID eSnrPadId = 0;
    MI_VIF_GROUP GroupId = 0;
    MI_S32 s32Ret = 0;
    MI_VIF_DEV vifDev =0;
    MI_VIF_PORT vifPort = 0;

    MI_SYS_ChnPort_t stChnPort;
    MI_VIF_GroupAttr_t stGroupAttr;
    MI_VIF_DevAttr_t stVifDevAttr;
    MI_VIF_OutputPortAttr_t stVifPortInfo;

    memset(&stGroupAttr, 0x0, sizeof(MI_VIF_GroupAttr_t));
    stGroupAttr.eIntfMode = E_MI_VIF_MODE_MIPI;

    memset(&stVifDevAttr, 0x0, sizeof(MI_VIF_DevAttr_t));
    stVifDevAttr.stInputRect.u16X = 0;
    stVifDevAttr.stInputRect.u16Y = 0;
    stVifDevAttr.stInputRect.u16Width = 1920;
    stVifDevAttr.stInputRect.u16Height = 1080;
    stVifDevAttr.eInputPixel = (MI_SYS_PixelFormat_e)47;

    memset(&stVifPortInfo, 0, sizeof(MI_VIF_OutputPortAttr_t));
     stVifPortInfo.stCapRect.u16X = 0;
    stVifPortInfo.stCapRect.u16Y = 0;
    stVifPortInfo.stCapRect.u16Width =  1920;
    stVifPortInfo.stCapRect.u16Height = 1080;
    stVifPortInfo.stDestSize.u16Width = 1920;
    stVifPortInfo.stDestSize.u16Height = 1080;
    stVifPortInfo.ePixFormat = (MI_SYS_PixelFormat_e)47;

    memset(&stChnPort, 0x0, sizeof(MI_SYS_ChnPort_t));
    stChnPort.eModId=E_MI_MODULE_ID_VIF;
    stChnPort.u32DevId=vifDev;
    stChnPort.u32ChnId=0;
    stChnPort.u32PortId=vifPort;

    MI_SYS_Init(0);

    s32Ret = MI_SNR_Enable(eSnrPadId);
    if(s32Ret != MI_SUCCESS)
    {
        printf("enable sensor:%d failed\n", eSnrPadId);
        goto EXIT;
    }

    s32Ret = MI_VIF_CreateDevGroup(GroupId, &stGroupAttr);
    if(s32Ret != MI_SUCCESS)
    {
        printf("create group id:%d failed\n", GroupId);
        goto EXIT;
    }
    s32Ret = MI_VIF_SetDevAttr(vifDev, &stVifDevAttr);
    if(s32Ret != MI_SUCCESS)
    {
        printf("set vif dev:%d failed\n",vifDev);
        goto EXIT;
    }

    s32Ret = MI_VIF_EnableDev(vifDev);
    if(s32Ret != MI_SUCCESS)
    {
        printf("enable vif dev:%d failed\n",vifDev);
        goto EXIT;
    }

    s32Ret = MI_VIF_SetOutputPortAttr(vifDev, vifPort, &stVifPortInfo);
    if(s32Ret != MI_SUCCESS)
    {
        printf("set vif dev:%d port:%d failed\n",vifDev,vifPort);
        goto EXIT;
    }

    s32Ret = MI_VIF_EnableOutputPort(vifDev, vifPort);
    if(s32Ret != MI_SUCCESS)
    {
        printf("enable vif dev:%d port:%d  failed\n",vifDev,vifPort);
        goto EXIT;
    }

    s32Ret = MI_SYS_SetChnOutputPortDepth(0, &stChnPort, 1, 4);
    if(s32Ret != MI_SUCCESS)
    {
        printf("set vif port depth failed\n");
        goto EXIT;
    }

    s32Ret = MI_VIF_DisableOutputPort(vifDev, vifPort);
    if(s32Ret != MI_SUCCESS)
    {
        printf("disable vif dev:%d port:%d failed\n",vifDev,vifPort);
        goto EXIT;
    }

    s32Ret = MI_VIF_DisableDev(vifDev);
    if(s32Ret != MI_SUCCESS)
    {
        printf("disable vif dev:%d failed\n",vifDev);
        goto EXIT;
    }
    s32Ret = MI_VIF_DestroyDevGroup(GroupId);
    if(s32Ret != MI_SUCCESS)
    {
        printf("destroy vif group:%d failed\n",GroupId);
        goto EXIT;
    }

    s32Ret = MI_SNR_Disable(eSnrPadId);
    if(s32Ret != MI_SUCCESS)
    {
        printf("enable sensor:%d failed\n", eSnrPadId);
        goto EXIT;
    }
    MI_SYS_Exit(0);
EXIT:
    return s32Ret;
}

2. API REFERENCE¶

This function module provides the following API:

API Name	Function
MI_VIF_CreateDevGroup	Create a Group corresponding to Device
MI_VIF_DestroyDevGroup	Destroy Group
MI_VIF_SetDevGroupAttr	Set Group attributes
MI_VIF_GetDevGroupAttr	Get Group attributes
MI_VIF_SetDevAttr	Set device attribute
MI_VIF_GetDevAttr	Get device attribute
MI_VIF_EnableDev	Enable device
MI_VIF_DisableDev	Disable device
MI_VIF_GetDevStatus	Get device status
MI_VIF_SetOutputPortAttr	Set output port attribute
MI_VIF_GetOutputPortAttr	Get output port attribute
MI_VIF_EnableOutputPort	Enable output port
MI_VIF_DisableOutputPort	Disable output port
MI_VIF_Query	Query VIF channel port interrupt counts, average frame rate, etc.
MI_VIF_CallBackTask_Register	Register callback interface with VIF
MI_VIF_CallBackTask_UnRegister	Unregister callback interface with VIF

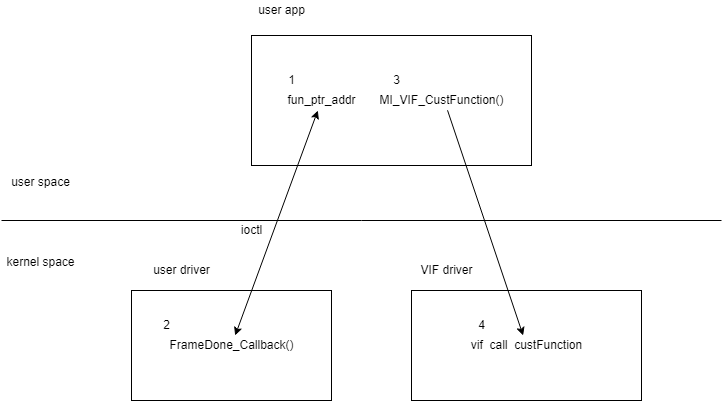

MI_VIF_CustFunction	Provide Vif customer function

2.1. MI_VIF_CreateDevGroup¶

Description

Create a Group corresponding to Device

Syntax

MI_S32 MI_VIF_CreateDevGroup(MI_VIF_GROUP GroupId, MI_VIF_GroupAttr_t *pstGroupAttr)

Parameters

Parameter Name Description Input/Output

GroupId Group ID Input

pstGroupAttr Group attributes, static attributes. Input
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Note
- When MI VIF and back-end module have both real-time and FrameMode connections, such as ISP Bayer Realitme, SCL Dev2 YUV Realitme, and other Devs have Frame mode connections, priority should be given to create DevGroup with real-time connection and bind back-end module.
- Before Creating DevGroup, make sure that the sensor flows out successfully. That is, if you use our Mi sensor, you need to ensure MI_SNR_Enable. If you use your user sensor, you need to ensure that the user's own sensor has been initialized.
- Ifackel supports obtaining 3A statistics from the VIF side. If the VIF is connected to the ISP in FrameMode, when Create DevGroup, you need to assign a fixed value (E_MI_VIF_METADATA_AE_STAT | E_MI_VIF_METADATA_AF_STAT) to the variable stMetaDataAttr.u32MetaDataTypeMask on the VIF side to enable the VIF 3A statistics module. In Realtime, you need to assign 0 to the variable stMetaDataAttr.u32MetaDataTypeMask to disable the VIF 3A statistics module.
- Ifackel Chip supports AI ISP function, to enable the AI ISP function, the variable stGroupAttr.stAiIspAttr.stVifAiBnrAttr.eAiSourceType and stGroupAttr.stAiIspAttr.stVifAiHdrAttr.bAiHdrEn should be set relavant value.
- If AI and no-AI scene switching is expected in the usage scenario, it is recommended that when initializing the VIF, you first configure AI enablement, that is, configure variables stGroupAttr.stAiIspAttr.stVifAiBnrAttr, such as settings ai bnr source type to linear mode or hdr fusion or hdr long-expo. The purpose of configuring AI enablement first is to handle AI and no_AI scenes during the outflow process. When switching, you can dynamically switch the AI configuration on the VIF side without destroying or re-initializing the VIF. On the contrary, if you initialize the VIF according to the no-AI configuration and switch to the AI scene during the outflow process, you need to destroy and re-initialize the VIF.
- Group Id Device Id

  0 Device0~3

  1 Device4~7

  2 Device8~11

  3 Device12~15

  4 Device16~19

  5 Device20~23

  6 Device24~27

  7 Device28~31

Example

#define ST_MAX_VIF_DEV_PERGROUP (4)
#define ST_MAX_VIF_OUTPORT_NUM (2)

MI_VIF initialization process:

MI_S32 ST_VifModuleInit(MI_VIF_GROUP groupId)
{
    MI_VIF_DEV vifDev =0;
    MI_VIF_PORT vifPort = 0;
    MI_SNR_PADID SnrPadId = 0;
    MI_U32 u32PlaneId = 0;
    MI_U16 vifDevIdPerGroup=0;

    MI_SNR_PADInfo_t  stPad0Info;
    MI_SNR_PlaneInfo_t stSnrPlane0Info;
    memset(&stPad0Info, 0x0, sizeof(MI_SNR_PADInfo_t));
    memset(&stSnrPlane0Info, 0x0, sizeof(MI_SNR_PlaneInfo_t));

    MI_VIF_GroupAttr_t stGroupAttr;
    memset(&stGroupAttr, 0x0, sizeof(MI_VIF_GroupAttr_t));

    STCHECKRESULT(MI_SNR_GetPadInfo(SnrPadId, &stPad0Info));
    STCHECKRESULT(MI_SNR_GetPlaneInfo(SnrPadId, u32PlaneId, &stSnrPlane0Info));

    stGroupAttr.eIntfMode = E_MI_VIF_MODE_MIPI;
    stGroupAttr.eWorkMode = E_MI_VIF_WORK_MODE_1MULTIPLEX;
    stGroupAttr.eHDRType = E_MI_VIF_HDR_TYPE_OFF;
    if(stGroupAttr.eIntfMode == E_MI_VIF_MODE_BT656)
        stGroupAttr.eClkEdge = (MI_VIF_ClkEdge_e)stPad0Info.unIntfAttr.stBt656Attr.eClkEdge;
    else
        stGroupAttr.eClkEdge = E_MI_VIF_CLK_EDGE_DOUBLE;

    stGroupAttr.stMetaDataAttr.u32MetaDataTypeMask       = E_MI_VIF_METADATA_AE_STAT | E_MI_VIF_METADATA_AF_STAT;
    stGroupAttr.stAiIspAttr.stVifAiBnrAttr.eAiSourceType = E_MI_VIF_AI_BNR_SOURCE_TYPE_LINEAR;
    stGroupAttr.stAiIspAttr.stVifAiHdrAttr.bAiHdrEn      = FALSE;

    STCHECKRESULT(MI_VIF_CreateDevGroup(groupId, &stGroupAttr));

    for(vifDevIdPerGroup=0; vifDevIdPerGroup< ST_MAX_VIF_DEV_PERGROUP; vifDevIdPerGroup++)
    {
        MI_VIF_DevAttr_t stVifDevAttr;
        memset(&stVifDevAttr, 0x0, sizeof(MI_VIF_DevAttr_t));

        vifDev = groupId*ST_MAX_VIF_DEV_PERGROUP+vifDevIdPerGroup;
        stVifDevAttr.stInputRect.u16X = stSnrPlane0Info.stCapRect.u16X;
        stVifDevAttr.stInputRect.u16Y = stSnrPlane0Info.stCapRect.u16Y;
        stVifDevAttr.stInputRect.u16Width = stSnrPlane0Info.stCapRect.u16Width;
        stVifDevAttr.stInputRect.u16Height = stSnrPlane0Info.stCapRect.u16Height;
        if(stSnrPlane0Info.eBayerId = E_MI_SYS_PIXEL_BAYERID_MAX)
        {
            stVifDevAttr.eInputPixel = stSnrPlane0Info.ePixel;
        }
        else
            stVifDevAttr.eInputPixel = (MI_SYS_PixelFormat_e)RGB_BAYER_PIXEL(stSnrPlane0Info.ePixPrecision, stSnrPlane0Info.eBayerId);

        printf("setchnportattr (%d,%d,%d,%d) \n", stVifDevAttr.stInputRect.u16X, stVifDevAttr.stInputRect.u16Y, stVifDevAttr.stInputRect.u16Width, stVifDevAttr.stInputRect.u16Height);
        STCHECKRESULT(MI_VIF_SetDevAttr(vifDev, &stVifDevAttr));
        STCHECKRESULT(MI_VIF_EnableDev(vifDev));

        for(vifPort=0; vifPort< ST_MAX_VIF_OUTPORT_NUM; vifPort++)
        {
            MI_VIF_OutputPortAttr_t stVifPortInfo;
            memset(&stVifPortInfo, 0, sizeof(MI_VIF_OutputPortAttr_t));

            stVifPortInfo.stCapRect.u16X = stSnrPlane0Info.stCapRect.u16X;
            stVifPortInfo.stCapRect.u16Y = stSnrPlane0Info.stCapRect.u16Y;
            stVifPortInfo.stCapRect.u16Width =  stSnrPlane0Info.stCapRect.u16Width;
            stVifPortInfo.stCapRect.u16Height = stSnrPlane0Info.stCapRect.u16Height;
            stVifPortInfo.stDestSize.u16Width = stSnrPlane0Info.stCapRect.u16Width;
            stVifPortInfo.stDestSize.u16Height = stSnrPlane0Info.stCapRect.u16Height;
            printf("sensor bayerid %d, bit mode %d \n", stSnrPlane0Info.eBayerId, stSnrPlane0Info.ePixPrecision);
            if(stSnrPlane0Info.eBayerId = E_MI_SYS_PIXEL_BAYERID_MAX)
            {
                stVifPortInfo.ePixFormat = stSnrPlane0Info.ePixel;
            }
            else
                stVifPortInfo.ePixFormat = (MI_SYS_PixelFormat_e)RGB_BAYER_PIXEL(stSnrPlane0Info.ePixPrecision, stSnrPlane0Info.eBayerId);
            stVifPortInfo.eFrameRate = E_MI_VIF_FRAMERATE_FULL;

            STCHECKRESULT(MI_VIF_SetOutputPortAttr(vifDev, vifPort, &stVifPortInfo));
            STCHECKRESULT(MI_VIF_EnableOutputPort(vifDev, vifPort));
        }
    }
    return MI_SUCCESS;
}

MI_VIF deinitialization process:

MI_S32 ST_VifModuleUnInit(MI_VIF_GROUP groupId)
{
    MI_VIF_DEV vifDev = 0;
    MI_VIF_PORT vifPort=0;
    MI_U16 vifDevIdPerGroup=0;
    for(vifDevIdPerGroup=0; vifDevIdPerGroup< ST_MAX_VIF_DEV_PERGROUP; vifDevIdPerGroup++)
    {
        vifDev = groupId*ST_MAX_VIF_DEV_PERGROUP+vifDevIdPerGroup;

        for(vifPort=0; vifPort< ST_MAX_VIF_OUTPORT_NUM; vifPort++)
        {
            STCHECKRESULT(MI_VIF_DisableOutputPort(vifDev, vifPort));
        }
        STCHECKRESULT(MI_VIF_DisableDev(vifDev));
    }

    STCHECKRESULT(MI_VIF_DestroyDevGroup(groupId));

    return MI_SUCCESS;
}

Related APIs

MI_VIF_DestroyDevGroup

2.2. MI_VIF_DestroyDevGroup¶

Description

Destroy the group corresponding to the device.

Syntax

MI_S32 MI_VIF_DestroyDevGroup(MI_VIF_GROUP GroupId)

Parameters

Parameter Name Description Input/Output

GroupId Group ID Input
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Note

At first, use MI_VIF_DisableOutputPort to disable all the output ports on device, the use MI_VIF_DisableDev to disable all the devices on group.
Example

See the example of MI_VIF_CreateDevGroup.
Related APIs

MI_VIF_CreateDevGroup

2.3. MI_VIF_SetDevGroupAttr¶

Description

Set Group attributes.

Syntax

MI_S32 MI_VIF_SetDevGroupAttr(MI_VIF_GROUP GroupId, MI_VIF_GroupAttr_t *pstGroupAttr)

Parameters

Parameter Name Description Input/Output

GroupId Group ID Input

pstGroupAttr Group attributes Output
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Related APIs

MI_VIF_GroupAttr_t

MI_VIF_CreateDevGroup

2.4. MI_VIF_GetDevGroupAttr¶

Description

Get Group attributes.

Syntax

MI_S32 MI_VIF_GetDevGroupAttr(MI_VIF_GROUP GroupId, MI_VIF_GroupAttr_t *pstGroupAttr)

Parameters

Parameter Name Description Input/Output

GroupId Group ID Input

pstGroupAttr Group attributes Output
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Related APIs

MI_VIF_CreateDevGroup

2.5. MI_VIF_SetDevAttr¶

Description

Set VIF device attributes.

Syntax

MI_S32 MI_VIF_SetDevAttr(MI_VIF_DEV DevId, MI_VIF_DevAttr_t *pstDevAttr)

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input

pstDevAttr VIF device attribute pointer, static attribute. Input
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Note
- Make sure that the VIF device is disabled before calling. If the VIF device is enabled, you can use MI_VIF_DisableDev to disable it.
- pstDevAttr is mainly used to configure the video input format of the specified VIF device.
- eInputPixel only supports YUV422_YUYV/YVYU/UYVY/VYUY and bayer formats, please refer to CHIP DIFFERENCES for details, and set according to chip specifications.
Example

See the example of MI_VIF_CreateDevGroup.
Related APIs

MI_VIF_GetDevAttr

2.6. MI_VIF_GetDevAttr¶

Description

Get VIF device attribute.

Syntax

MI_S32 MI_VIF_GetDevAttr(MI_VIF_DEV DevId, MI_VIF_DevAttr_t *pstDevAttr)

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input

pstDevAttr VIF device attribute pointer. Output
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Related APIs

MI_VIF_SetDevAttr

2.7. MI_VIF_EnableDev¶

Description

Enable VIF device.

Syntax

MI_S32 MI_VIF_EnableDev(MI_VIF_DEV DevId);

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Note
- Enable must be after device attribute have be configured, or fail will be returned
- Calling again is available, fail will not be returned.
Example

Please refer to MI_VIF_SetDevAttr.
Related APIs

MI_VIF_DisableDev

2.8. MI_VIF_DisableDev¶

Description

Disable VIF device.

Syntax

MI_S32 MI_VIF_DisableDev(MI_VIF_DEV DevId);

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Note
- Disable all the output ports on device before disable the VIF device.
- Calling again is available, fail will not be returned.
Example

See the example of MI_VIF_CreateDevGroup
Related APIs

MI_VIF_EnableDev

2.9. MI_VIF_GetDevStatus¶

Description

Get device status.

Syntax

MI_S32 MI_VIF_GetDevStatus(MI_VIF_DEV DevId, MI_VIF_DevStatus_t *pstVifDevStatus)

Parameters

Parameter Description Input/Output

DevId VIF device ID Input

pstVifDevStatus Device status Output
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a

2.10. MI_VIF_SetOutputPortAttr¶

Description

Set VIF channel Output port attributes.·

Syntax

MI_S32 MI_VIF_SetOutputPortAttr(MI_VIF_DEV DevId, MI_VIF_PORT PortId, MI_VIF_OutputPortAttr_t *pstAttr);

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input

PortId Port ID Input

pstAttr VIF device port attribute pointer Input
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a

Note

MI_VIF_SetOutputPortAttr is used for setting port attribute in default, such as CapSize, DestSize, FrameRate, ect.
Port 0 does not support crop and scaling, so cap and dest size must be equal to input size in MI_VIF_SetDevAttr.
The input of port1 only supports YUV format, so only YUVsensor can use port1, which supports crop and scaling down, and the output only supports 12bit bayer format.
When Port1 height is scaling down, the maximum output width is 960.
Tiramisu/Muffin/Mochi/Opera series chips: eFrameRate setting is not supported.
Tiramisu/Muffin/Opera/Souffle series chips: port0 supports output 12-bit Bayer format, which can be sent to MI_ISP for 3DNR.

Mochi series chip: supports output YUV422 format, which can be sent to MI_ISP for 3DNR.

Chip	Compress support pixel	Support compress mode	Note
Tiramisu	Bayer 10/12bit	E_MI_SYS_COMPRESS_MODE_TO_8BIT	None
Muffin	Bayer 10/12bit	E_MI_SYS_COMPRESS_MODE_TO_8BIT	None
Mochi	YUV422 UYVY	E_MI_SYS_COMPRESS_MODE_TO_6BIT E_MI_SYS_COMPRESS_MODE_SFBC0	DI mode does not support SFBC0 compress mode.
Maruko	Bayer 10/12bit	E_MI_SYS_COMPRESS_MODE_TO_8BIT	None
Opera	Bayer 10/12bit	E_MI_SYS_COMPRESS_MODE_TO_8BIT	None
Souffle	Bayer 10/12bit	E_MI_SYS_COMPRESS_MODE_TO_8BIT	None
Iford	Bayer 10/12bit	E_MI_SYS_COMPRESS_MODE_TO_8BIT	None

Example

See the example of MI_VIF_CreateDevGroup.
Related APIs

MI_VIF_GetOutputPortAttr

2.11. MI_VIF_GetOutputPortAttr¶

Description

Get VIF channel Output port attributes.

Syntax

MI_S32 MI_VIF_GetOutputPortAttr(MI_VIF_DEV DevId, MI_VIF_PORT PortId, MI_VIF_OutputPortAttr_t *pstAttr)

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input

PortId Port ID Input

pstAttr VIF device port attribute pointer Output
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Related APIs

MI_VIF_SetOutputPortAttr

2.12. MI_VIF_EnableOutputPort¶

Description

Enable VIF Output port.

Syntax

MI_S32 MI_VIF_EnableOutputPort(MI_VIF_DEV DevId, MI_VIF_PORT PortId)

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input

PortId Port ID Input
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Note
- The channel attributes must be set first, and the VIF device bound channel must be enabled.
- The VIF channel can be enabled repeatedly without returning failure.
Example

See the example of MI_VIF_SetDevAttr.
Related APIs

MI_VIF_DisableOutputPort

2.13. MI_VIF_DisableOutputPort¶

Description

Disable VIF Output port.

Syntax

MI_S32 MI_VIF_DisableOutputPort(MI_VIF_DEV DevId, MI_VIF_PORT PortId)

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input

PortId Port ID Input
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Note
- The VIF channel port stops collecting video input data after being disabled. And if the backend has been bound, the backend will no longer receive video images.
- The VIF channel can be disabled repeatedly without returning failure.
Example

See the example of MI_VIF_CreateDevGroup.
Related APIs

MI_VIF_EnableOutputPort

2.14. MI_VIF_Query¶

Description

Query VIF channel port interrupt counts, average frame rate, etc.

Syntax

MI_S32 MI_VIF_Query(MI_VIF_DEV DevId, MI_VIF_PORT PortId, MI_VIF_DevPortStat_t *pstStat)

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input

PortId Port ID Input

pstStat Channel information structure pointer. Output
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Note
- This API can be used to query interrupt counts, channel enable/disable status, interrupt loss counts, VB fail counts, height/width of image
- Frame rate got via this API is average frame rate over 1 second, VIF could calculate average frame rate every second, the precision of this value is not exact
- User could query interrupt loss counts via this API. If this loss counts increase at all time, it meant VIF is abnormal.
- This interface is only supported by chips after Tiramisu.

2.15. MI_VIF_CallBackTask_Register¶

Description

Register callback interface with VIF

Syntax

MI_S32 MI_VIF_CallBackTask_Register(MI_VIF_DEV DevId, MI_VIF_CallBackParam_t *pstCallBackParam);

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input

pstCallBackParam Arguments Input
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Note
- Currently, this interface only supports kernel mode calls
- This interface must be called in pair with MI_VIF_CallBackTask_UnRegister

Example

MI_S32 _mi_vif_framestart1(MI_U64 u64Data)
{
    DBG_ERR("DATA %llu \n", u64Data);
    return 0;
}
MI_S32 _mi_vif_framestart2(MI_U64 u64Data)
{
    DBG_ERR("DATA %llu \n", u64Data);
    return 0;
}

static MS_S32 _mi_vif_testRegVifCallback(void)
{
    MI_VIF_CallBackParam_t stCallBackParam1;
    MI_VIF_CallBackParam_t stCallBackParam2;
    MI_VIF_DEV u32DevId = 0;
    memset(&stCallBackParam1, 0x0, sizeof(MI_VIF_CallBackParam_t));
    memset(&stCallBackParam2, 0x0, sizeof(MI_VIF_CallBackParam_t));
    stCallBackParam1.eCallBackMode = E_MI_VIF_CALLBACK_ISR;
    stCallBackParam1.eIrqType = E_MI_VIF_IRQ_FRAMESTART;
    stCallBackParam1.pfnCallBackFunc = _mi_vif_framestart1;
    stCallBackParam1.u64Data = 11;
    MI_VIF_CallBackTask_Register(u32DevId,&stCallBackParam1);
    stCallBackParam2.eCallBackMode = E_MI_VIF_CALLBACK_ISR;
    stCallBackParam2.eIrqType = E_MI_VIF_IRQ_FRAMESTART;
    stCallBackParam2.pfnCallBackFunc = _mi_vif_framestart2;
    stCallBackParam2.u64Data = 22;
    MI_VIF_CallBackTask_Register(u32DevId,&stCallBackParam2);
    return 0;
}
static MS_S32 _mi_vif_testUnRegVifCallback(void)
{
    MI_VIF_CallBackParam_t stCallBackParam1;
    MI_VIF_CallBackParam_t stCallBackParam2;

    MI_VIF_DEV u32DevId = 0;
    memset(&stCallBackParam1, 0x0, sizeof(MI_VIF_CallBackParam_t));
    memset(&stCallBackParam1, 0x0, sizeof(MI_VIF_CallBackParam_t));
    stCallBackParam1.eCallBackMode = E_MI_VIF_CALLBACK_ISR;
    stCallBackParam1.eIrqType = E_MI_VIF_IRQ_FRAMESTART;
    stCallBackParam1.pfnCallBackFunc = _mi_vif_framestart1;
    stCallBackParam1.u64Data = 33;
    MI_VIF_CallBackTask_UnRegister(u32DevId,&stCallBackParam1);
    stCallBackParam2.eCallBackMode = E_MI_VIF_CALLBACK_ISR;
    stCallBackParam2.eIrqType = E_MI_VIF_IRQ_FRAMESTART;
    stCallBackParam2.pfnCallBackFunc = _mi_vif_framestart2;
    stCallBackParam2.u64Data = 44;
    MI_VIF_CallBackTask_UnRegister(u32DevId,&stCallBackParam2);
    return 0;
}

Related topic

MI_VIF_CallBackTask_UnRegister

2.16. MI_VIF_CallBackTask_UnRegister¶

Description

Unregister callback interface with VIF

Syntax

MI_S32 MI_VIF_CallBackTask_UnRegister(MI_VIF_DEV DevId, MI_VIF_CallBackParam_t *pstCallBackParam);

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input

pstCallBackParam Arguments Input
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a
Note
Currently, this interface only supports kernel mode calls
This interface must be called in pair with MI_VIF_CallBackTask_Register
Example

Refer to MI_VIF_CallBackTask_Register example.
Related topic

MI_VIF_CallBackTask_Register

2.17. MI_VIF_CustFunction¶

Description

Provide Vif customer function.

Syntax

MI_S32 MI_VIF_CustFunction(MI_VIF_DEV DevId, MI_VIF_CustCmd_e eCmdId, MI_U32 u32DataSize, void *pCustData);

Parameters

Parameter Name Description Input/Output

DevId VIF device ID Input

eCmdId Customer Command ID Input

u32DataSize Customer Data Size Input

pCustData Customer Data Address Input
Return Value
- MI_SUCCESS(0): Successful
- Non-zero: Failed, see error code for details
Dependence
- Header: mi_vif_datatype.h, mi_vif.h
- Library: libmi_vif.a

3. VIF DATA TYPE¶

VIF module relative data type definition:

Data type	description
MI_VIF_GROUP	Define device group ID
MI_VIF_IntfMode_e	Define interface mode of video Input device
MI_VIF_WorkMode_e	Define working mode of video Input device
MI_VIF_FrameRate_e	Define relation between Output fps and Input fps
MI_VIF_ClkEdge_e	Define clock edge received from video Input device
MI_VIF_HDRType_e	Define HDR type of video Input device
MI_VIF_MclkSource_e	Set Senor clock drive
MI_VIF_GroupIdMask_e	Device group mask
MI_VIF_SNRPad_e	Define SensorPad Id
MI_VIF_GroupAttr_t	Define Group attributes
MI_VIF_DevAttr_t	Define attribute of video Input device.
MI_VIF_OutputPortAttr_t	Define VIF output port attributes
MI_VIF_DevPortStat_t	Define VIF output port information structure
MI_VIF_DevStatus_t	Define VIF device current status
MI_VIF_CALLBK_FUNC	Define callback function type
MI_VIF_CallBackMode_e	Define callback mode
MI_VIF_IrqType_e	Define hardware interrupt type
MI_VIF_CallBackParam_t	Define callback parameters
MI_VIF_HDRFusionType_e	Define HDR fusion type
MI_VIF_HDRExposureType_e	Define HDR exposure type
MI_VIF_MetaDataType_e	Define VIF extra function type
MI_VIF_MetaDataAttr_t	Define VIF extra function structure
MI_VIF_CustCmd_e	Define VIF customer command id
MI_VIF_PutDataAttr_t	Define VIF input data structure
MI_VIF_FrameEndInfo_t	Define the structure that VIF uses as input in FrameEnd Callback
MI_VIF_SleepModeParams_t	Define the parameter structure for VIF to control the Sensor to enter and exit Sleep Mode
MI_VIF_ShutterGainParams_t	Define the parameter structure for VIF to control AE of Sensor
MI_VIF_ForceFrameParams_t	Define the setting parameters of VIF to force the sensor to exit sleep mode
MI_VIF_AiIspAttr_t	Define AiIsp attribute configuration
MI_VIF_AiBnrAttr_t	Define AiBnr case attribute configuration
MI_VIF_AiHdrAttr_t	Define AiHdr case attribute configuration
MI_VIF_AiBnrSourceType_e	Define AI BNR source type

3.1. MI_VIF_GROUP¶

Description

Define device group ID.
Definition
```
typedef MI_U32 MI_VIF_GROUP;
```
Related Type

MI_VIF_CreateDevGroup

3.2. MI_VIF_IntfMode_e¶

Description

Define interface mode of video Input device

Definition

typedef enum

{

    E_MI_VIF_MODE_BT656 = 0,

    E_MI_VIF_MODE_DIGITAL_CAMERA,

    E_MI_VIF_MODE_BT1120_STANDARD,

    E_MI_VIF_MODE_BT1120_INTERLEAVED,

    E_MI_VIF_MODE_MIPI,

    E_MI_VIF_MODE_LVDS,

    E_MI_VIF_MODE_NUM

} MI_VIF_IntfMode_e;

Member

Member name	Description
E_MI_VIF_MODE_BT656	Input data protocol is standard BT.656, port data Input mode is compound mode of brightness and color, quantity mode is single
E_MI_VIF_MODE_DIGITAL_CAMERA	Input data protocol is Digital camera 6, port data Input mode is compound mode of brightness and color, quantity mode is single
E_MI_VIF_MODE_BT1120_STANDARD	Input data protocol is standard BT.1120(BT.656+ double quantity), port data Input mode is division mode of brightness and color, quantity mode is double
E_MI_VIF_MODE_BT1120_INTERLEAVED	Input data protocol is BT.1120 interleave mode, port data Input mode is division mode of brightness and color, quantity mode is double
E_MI_VIF_MODE_MIPI	Input data protocol is MIPI
E_MI_VIF_MODE_LVDS	Input data protocol is LVDS

Note

The current interface mode can be obtained from eintfmode in MI_SNR_GetPadInfo.
Related Type

MI_VIF_GroupAttr_t

3.3. MI_VIF_WorkMode_e¶

Description

Define working mode of video Input device

Definition

typedef enum

{

    /* BT656 multiple ch mode */

    E_MI_VIF_WORK_MODE_1MULTIPLEX,

    E_MI_VIF_WORK_MODE_2MULTIPLEX,

    E_MI_VIF_WORK_MODE_4MULTIPLEX,

    E_MI_VIF_WORK_MODE_MAX

} MI_VIF_WorkMode_e;

member

Member name	Description
E_MI_VIF_WORK_MODE_1MULTIPLEX	1 way compound working mode.
E_MI_VIF_WORK_MODE_2MULTIPLEX	2 way compound working mode.
E_MI_VIF_WORK_MODE_4MULTIPLEX	4 way compound working mode.

Note

For example, E_MI_VIF_WORK_MODE_4MULTIPLEX means that there are 4 mixed video signals in the Sensor Pad corresponding to the Group, if the number of mixed signals in the SensorPad does not match the compound working mode of the Group, it will cause abnormal signals collected by the Group.
Related Type

MI_VIF_GroupAttr_t

3.4. MI_VIF_FrameRate_e¶

Description

Define relation between Output fps and Input fps.

Definition

typedef enum

{

    E_MI_VIF_FRAMERATE_FULL = 0,

    E_MI_VIF_FRAMERATE_HALF,

    E_MI_VIF_FRAMERATE_QUARTR,

    E_MI_VIF_FRAMERATE_OCTANT,

    E_MI_VIF_FRAMERATE_THREE_QUARTERS,

    E_MI_VIF_FRAMERATE_NUM,

} MI_VIF_FrameRate_e;

member

Member name	Description
E_MI_VIF_FRAMERATE_FULL	Source over target is 1:1 Output.
E_MI_VIF_FRAMERATE_HALF	Source over target is 2:1 Output.
E_MI_VIF_FRAMERATE_QUARTER	Source over target is 4:1 Output.
E_MI_VIF_FRAMERATE_OCTANT	Source over target is 8:1 Output.
E_MI_VIF_FRAMERATE_THREE_QUARTERS	Source over target is 4:3 Output.

Note

This function is reserved. Control frame rate output can be set by MI_SYS_BindChnPort2.
Related Type

MI_VIF_OutputPortAttr_t

3.5. MI_VIF_ClkEdge_e¶

Description

Define clock edge received from video Input device

Definition

typedef enum

{

    E_MI_VIF_CLK_EDGE_SINGLE_UP = 0,

    E_MI_VIF_CLK_EDGE_SINGLE_DOWN,

    E_MI_VIF_CLK_EDGE_DOUBLE,

    E_MI_VIF_CLK_EDGE_NUM

} MI_VIF_ClkEdge_e;

member

Member name	Description
E_MI_VIF_CLK_EDGE_SINGLE_UP	Clock single edge mode, sampling in up edge
E_MI_VIF_CLK_EDGE_SINGLE_DOWN	lock single edge mode, sampling in down edge
E_MI_VIF_CLK_EDGE_DOUBLE	VIF do sampling in double edge for double edge data

Related Type

MI_VIF_GroupAttr_t

3.6. MI_VIF_HDRType_e¶

Description

Define HDR type of video Input device

Definition

typedef enum

{

    E_MI_VIF_HDR_TYPE_OFF,

    E_MI_VIF_HDR_TYPE_VC, //virtual channel mode HDR,vc0-long, vc1-short

    E_MI_VIF_HDR_TYPE_DOL,

    E_MI_VIF_HDR_TYPE_COMP, //compressed HDR mode

    E_MI_VIF_HDR_TYPE_LI, //Line interlace HDR

    E_MI_VIF_HDR_TYPE_COMPVS,

    E_MI_VIF_HDR_TYPE_DCG, //Dual conversion gain HDR

    E_MI_VIF_HDR_TYPE_MAX

} MI_VIF_HDRType_e;

member

Member name	Description
E_MI_VIF_HDR_TYPE_OFF	HDR off
E_MI_VIF_HDR_TYPE_VC	virtual channel mode HDR,vc0-long, vc1-short
E_MI_VIF_HDR_TYPE_DOL	Digital Overlap High Dynamic Range
E_MI_VIF_HDR_TYPE_COMP	Long and Short exposure are merged by sesnor, and isp controls the gain vaule of two frames
E_MI_VIF_HDR_TYPE_LI	Line interlace HDR
E_MI_VIF_HDR_TYPE_COMPVS	compressed HDR + Very short
E_MI_VIF_HDR_TYPE_DCG	Dual conversion gain HDR

Note
- HDR type is related to the sensor. You can obtain the HDR type supported by the current sensor through ehdrmode of MI_SNR_GetPadInfo.
- The realization of HDR function requires MI_VIF and MI_VPE modules to set the same HDR type.
- DCG HDR type and COMPVS HDR type are temporarily not supported.
- Opera series chip support COMP HDR type.
Related Type

MI_VIF_GroupAttr_t

3.7. MI_VIF_MclkSource_e¶

Description

Set Senor clock drive.

Definition

typedef enum

{

    E_MI_VIF_MCLK_12MHZ,

    E_MI_VIF_MCLK_18MHZ,

    E_MI_VIF_MCLK_27MHZ,

    E_MI_VIF_MCLK_36MHZ,

    E_MI_VIF_MCLK_54MHZ,

    E_MI_VIF_MCLK_108MHZ,

    E_MI_VIF_MCLK_MAX

}MI_VIF_MclkSource_e;

Member

Member name	Description
E_MI_VIF_MCLK_12MHZ	12M clk type
E_MI_VIF_MCLK_18MHZ	18M clk type
E_MI_VIF_MCLK_27MHZ	27M clk type
E_MI_VIF_MCLK_36MHZ	36M clk type
E_MI_VIF_MCLK_54MHZ	54M clk type
E_MI_VIF_MCLK_108MHZ	108M clk type

Note
- Set mclk from the sensor driver first.
- If there is no sensor driver and the main control chip is needed to output mclk, then this parameter can be used.
Related Type

MI_VIF_GroupAttr_t

3.8. MI_VIF_GroupIdMask_e¶

Description

Device group mask.

Definition

typedef enum
{
    E_MI_VIF_GROUPMASK_ID0  = 0x0001,
    E_MI_VIF_GROUPMASK_ID1  = 0x0002,
    E_MI_VIF_GROUPMASK_ID2  = 0x0004,
    E_MI_VIF_GROUPMASK_ID3  = 0x0008,
    E_MI_VIF_GROUPMASK_ID4  = 0x0010,
    E_MI_VIF_GROUPMASK_ID5  = 0x0020,
    E_MI_VIF_GROUPMASK_ID6  = 0x0040,
    E_MI_VIF_GROUPMASK_ID7  = 0x0080,
    E_MI_VIF_GROUPMASK_ID_MAX = 0xffff
} MI_VIF_GroupIdMask_e;

Note

In a multi-sensor splicing scene, two sensor images need to be output simultaneously, so you need to create a group, and put the two group id masks together to achieve this.
Related Type

MI_VIF_GroupAttr_t

3.9. MI_VIF_SNRPad_e¶

Description

Define SensorPad Id.

Definition

typedef enum
{
    E_MI_VIF_SNRPAD_ID_0 = 0,
    E_MI_VIF_SNRPAD_ID_1 = 1,
    E_MI_VIF_SNRPAD_ID_2 = 2,
    E_MI_VIF_SNRPAD_ID_3 = 3,
    E_MI_VIF_SNRPAD_ID_4 = 4,
    E_MI_VIF_SNRPAD_ID_5 = 5,
    E_MI_VIF_SNRPAD_ID_6 = 6,
    E_MI_VIF_SNRPAD_ID_7 = 7,
    E_MI_VIF_SNRPAD_ID_MAX,
    E_MI_VIF_SNRPAD_ID_NA = 0xFF,
}MI_VIF_SNRPad_e;

Member

Member name	Description
E_MI_VIF_SNRPAD_ID_0	Corresponding hardware device Sensor0
E_MI_VIF_SNRPAD_ID_1	Corresponding hardware device Sensor1
E_MI_VIF_SNRPAD_ID_2	Corresponding hardware device Sensor2
E_MI_VIF_SNRPAD_ID_3	Corresponding hardware device Sensor3
E_MI_VIF_SNRPAD_ID_4	Corresponding hardware device Sensor4
E_MI_VIF_SNRPAD_ID_5	Corresponding hardware device Sensor5
E_MI_VIF_SNRPAD_ID_6	Corresponding hardware device Sensor6
E_MI_VIF_SNRPAD_ID_7	Corresponding hardware device Sensor7
E_MI_VIF_SNRPAD_ID_MAX	Exceed the maximum Sensor Num
E_MI_VIF_SNRPAD_ID_NA	Invalid sensor id

Note
- In default, VIF Group0 corresponding to Sensor0, Group2 corresponding to Sensor1, Group6 corresponding to Sensor5.
- Tiramisu/ Mochi has 4 pad(0-3), Muffin has 8 pad(0-7). See CHIP DIFFERENCES for details.
Related Type

MI_VIF_GroupAttr_t

MI_VIF_DevStatus_t

3.10. MI_VIF_GroupAttr_t¶

Description

Define Group attributes.

Definition

typedef struct MI_VIF_GroupAttr_s

{

    MI_VIF_IntfMode_e       eIntfMode;

    MI_VIF_WorkMode_e       eWorkMode;

    MI_VIF_HDRType_e        eHDRType;

    MI_VIF_HDRFusionType_e  eHDRFusionTpye;

    MI_U8                   u8HDRExposureMask;

    MI_VIF_ClkEdge_e        eClkEdge; //BT656

    MI_VIF_MclkSource_e     eMclk;

    MI_SYS_FrameScanMode_e  eScanMode;

    MI_U32                  u32GroupStitchMask;  //multi vif dev bitmask by MI_VIF_GroupIdMask_e

    MI_VIF_MetaDataAttr_t   stMetaDataAttr;

    MI_VIF_AiIspAttr_t      stAiIspAttr;

} MI_VIF_GroupAttr_t;

Member

Member name	Description
eIntfMode	Interface mode
eWorkMode	Working mode
eHDRType	HDR type
eHDRFusionTpye	HDR fusion type
u8HDRExposureMask	HDR exposure type bitmask, composed of MI_VIF_HDRExposureType_e bitmask.
eClkEdge	Clock edge mode (rising edge sampling, falling edge sampling, double edge sampling).
eMclk	Type of clock output to sensor
eScanMode	Frame scan mode (sequential, interlace Scanning)
u32GroupStitchMask	Multiple GroupId stitched output, composed of MI_VIF_GroupIdMask_e bitmask.
stMetaDataAttr	Extra function switch and attributes (include PDAF/Header not compress/STA).
stAiIspAttr	AiIsp attribute configuration.

Note

Tiramisu, Muffin: eScanMode only support E_MI_SYS_FRAME_SCAN_MODE_PROGRESSIVE.

u8HDRExposureMask : useless in 2Frame HDR, MI vif will set to LS(long/short) exposure inside. In 3Frame HDR, mask have 4 combinations, likes LMS(long/medium/short)/LM/LS/MS, only supported in Souffle.
Related Type

MI_VIF_CreateDevGroup

MI_VIF_DestroyDevGroup

MI_VIF_SetDevGroupAttr

MI_VIF_GetDevGroupAttr

3.11. MI_VIF_DevAttr_t¶

Description

Define attribute of video Input device.

Definition

typedef struct MI_VIF_DevAttr_s

{

    MI_SYS_PixelFormat_e eInputPixel;

    MI_SYS_DataPrecision_e eDataPrecision;

    MI_SYS_WindowRect_t stInputRect;

    MI_SYS_FieldType_e eField;

    MI_BOOL bEnH2T1PMode;

    } MI_VIF_DevAttr_t;

member

Member name	Description
eInputPixel	Input pixel format
eDataPrecision	Input pixel bit width
stInputRect	Collect the input range
eField	Frame field selection is only used in interlaced mode. It is recommended to select the bottom field when capturing a single field. In sequential mode, it must be set to E_MI_SYS_FIELDTYPE_NONE. Value: 0 No Field / 1 Top Field / 2 Bottom Field / 3 Both Fields
bEnH2T1PMode	Enable the function of reducing the collection by half in the horizontal direction.

Note
- In bayer format, the pixel format setting is as following:

  stVifDevAttr.eInputPixel =(MI_SYS_PixelFormat_e)RGB_BAYER_PIXEL(stSnrPlane0Info.ePixPrecision, stSnrPlane0Info.eBayerId);
- The eDataPrecision param is only used when DVP interface runs YUV sensor. For example, when inputting 8 bit YUV, please set eDataPrecision to E_MI_SYS_DATA_PRECISION_8BPP, which will notify VIF that the number of data pins is 8.
- When the input format is YUV, the bEnH2T1Pmode can be used, otherwise return an error.
Related Type

MI_VIF_SetDevAttr

MI_VIF_GetDevAttr

3.12. MI_VIF_OutputPortAttr_t¶

Description

Define VIF output port attributes.

Definition

typedef struct MI_VIF_OutputPortAttr_s
{
    MI_SYS_WindowRect_t     stCapRect;
    MI_SYS_WindowSize_t     stDestSize;
    MI_SYS_PixelFormat_e    ePixFormat;
    MI_VIF_FrameRate_e      eFrameRate;
    MI_SYS_CompressMode_e   eCompressMode;
} MI_VIF_OutputPortAttr_t;

member

sub ports only support stDestSize, enDstFrameRate, other attributes will be ignored.

Member name	Description
stCapRect	coordinates and width and height of capturing region(based on original device image).
stDestSize	Destination image size. Must to be configured, the size cannot over outside ADC Input image, or VIF hardware may be abnormal.
ePixFormat	Pixel storage format support, can support YUV422 packet/bayer.
eFrameRate	The ratio between the target frame rate and the input frame rate. If frame rate control is not performed, this value is set to 0. It can output in proportions of 1:1, 2:1, 4:1, 8:1, 4:3, etc. This function is reserved. Control frame rate output can be set by MI_SYS_BindChnPort2.
eCompressMode	Picture compression mode, only use when vif bind isp by framemode, for saving buffer. Default 0, no compression. Muffin can use E_MI_SYS_COMPRESS_MODE_TO_8BIT, for FBC. Mochi can use E_MI_SYS_COMPRESS_MODE_TO_6BIT (for YUV FBC) or E_MI_SYS_COMPRESS_MODE_SFBC0 (SFBC).

Related Type

MI_VIF_SetOutputPortAttr

MI_VIF_GetOutputPortAttr

3.13. MI_VIF_DevPortStat_t¶

Description

Define VIF channel information structure.

Definition

typedef struct MI_VIF_DevPortStat_s

{

    MI_BOOL bEnable;

    MI_U32 u32IntCnt;

    MI_U32 u32FrameRate;

    MI_U32 u32LostInt;

    MI_U32 u32VbFail;

    MI_U32 u32PicWidth;

    MI_U32 u32PicHeight;

} MI_VIF_DevPortStat_t;

member

Member name	Description
bEnable	Channel enable.
u32IntCnt	Interrupt count.
u32FrameRate	Average fps every 1s, the precision is not perfect.
u32LostInt	Interrupt loss count.
u32VbFail	VB fail count.
u32PicWidth	Picture width.
u32PicHeight	Picture height.

Note
- Interrupt count can be used to detect no interrupt
- Fps is average fps every 1s, VIF calculate average fps every 1s, the precision is not perfect.
- If interrupt loss count increased all the time, it meant VIF is abnormal
Related Type

MI_VIF_Query

3.14. MI_VIF_DevStatus_t¶

Description

Define VIF device current status.

Definition

typedef struct MI_VIF_VIFDevStatus_s

{

    MI_VIF_GROUP GroupId;

    MI_BOOL bGroupCreated;

    MI_U32 bDevEn;

    MI_VIF_SNRPad_e eSensorPadID;

    MI_U32 u32PlaneID;

} MI_VIF_DevStatus_t;

Member

Member Name	Description
GroupId	Device Group number
bGroupCreated	Group current Create status
bDevEn	VIF Dev current enable status
eSensorPadID	VIF Dev bound SensorPad
u32PlaneID	VIF Dev bound PlaneId

Related data types and interfaces

MI_VIF_GetDevStatus

3.15. MI_VIF_CALLBK_FUNC¶

Description

Define callback function type

Definition

typedef MI_S32 (*MI_VIF_CALLBK_FUNC)(MI_U64 u64Data);

Related data types and interfaces

MI_VIF_CallBackParam_t

3.16. MI_VIF_CallBackMode_e¶

Description

Define callback mode.

Definition

typedef enum

{

    E_MI_VIF_CALLBACK_ISR,

    E_MI_VIF_CALLBACK_MAX,

} MI_VIF_CallBackMode_e;

Member

Member Name Description

E_MI_VIF_CALLBACK_ISR Hardware interrupt mode callback

E_MI_VIF_CALLBACK_MAX Callback mode Max
Related data types and interfaces

MI_VIF_CallBackParam_t

3.17. MI_VIF_IrqType_e¶

Description

Define hardware interrupt type

Definition

typedef enum

{

    E_MI_VIF_IRQ_FRAMESTART, //frame start irq

    E_MI_VIF_IRQ_FRAMEEND, //frame end irq

    E_MI_VIF_IRQ_LINEHIT, //frame line hit irq

    E_MI_VIF_IRQ_MAX,

} MI_VIF_IrqType_e;

Member

Member Name Description

E_MI_VIF_IRQ_FRAMESTART VIF frame start interrupt type

E_MI_VIF_IRQ_FRAMEEND VIF frame done interrupt type

E_MI_VIF_IRQ_LINEHIT VIF frame line count hit type
Note
- E_MI_VIF_IRQ_FRAMESTART: Signal of the first pixel in each frame
- E_MI_VPE_IRQ_ISPFRAMEDONE: Signal of the last pixel in each frame
- E_MI_VIF_IRQ_LINEHIT:Signal of the set line coming in each frame
Related data types and interfaces

MI_VIF_CallBackParam_t

3.18. MI_VIF_CallBackParam_t¶

Description

Define callback parameters.

Definition

typedef struct MI_VIF_CallBackParam_s

{

    MI_VIF_CallBackMode_e eCallBackMode;

    MI_VIF_IrqType_e eIrqType;

    MI_VIF_CALLBK_FUNC pfnCallBackFunc;

    MI_U64 u64Data;

} MI_VIF_CallBackParam_t;

Member

Member Name Description

eCallBackMode Call back mode

eIrqType Hardware interrupt type

pfnCallBackFunc Callback function

u64Data Callback function parameters
Related data types and interfaces

MI_VIF_CallBackTask_Register

MI_VIF_CallBackTask_UnRegister

3.19. MI_VIF_HDRFusionType_e¶

Description

Define HDR fusion type.

Definition

typedef enum
{
    E_MI_VIF_HDR_FUSION_TYPE_NONE,
    E_MI_VIF_HDR_FUSION_TYPE_2T1,
    E_MI_VIF_HDR_FUSION_TYPE_3T1,
    E_MI_VIF_HDR_FUSION_TYPE_MAX
} MI_VIF_HDRFusionType_e;

Member

Member Name	Description
E_MI_VIF_HDR_FUSION_TYPE_NONE	Not represent any fusion type
E_MI_VIF_HDR_FUSION_TYPE_2T1	2Frame HDR mode
E_MI_VIF_HDR_FUSION_TYPE_3T1	3Frame HDR mode
E_MI_VIF_HDR_FUSION_TYPE_MAX	HDR fusion mode Enum Max value

Note
- E_MI_VIF_HDR_FUSION_TYPE_2T1: 2Frame HDR with long/short exposure, internal default value even not set this fusion type when open HDR.
- E_MI_VIF_HDR_FUSION_TYPE_3T1: 3Frame HDR, for long/medium/short exposure, only supported in Souffle.
Related data types and interfaces

MI_VIF_GroupAttr_t

MI_VIF_CreateDevGroup

3.20. MI_VIF_HDRExposureType_e¶

Description

Define HDR exposure type.

Definition

typedef enum
{
    E_MI_VIF_HDR_EXPOSURE_TYPE_NONE,
    E_MI_VIF_HDR_EXPOSURE_TYPE_SHORT   = 0x01,
    E_MI_VIF_HDR_EXPOSURE_TYPE_MEDIUM  = 0x02,
    E_MI_VIF_HDR_EXPOSURE_TYPE_LONG    = 0x04,
    E_MI_VIF_HDR_EXPOSURE_TYPE_MAX
} MI_VIF_HDRExposureType_e;

Member

Member Name	Description
E_MI_VIF_HDR_EXPOSURE_TYPE_NONE	Not represent any HDR exposure
E_MI_VIF_HDR_EXPOSURE_TYPE_SHORT	HDR Short exposure
E_MI_VIF_HDR_EXPOSURE_TYPE_MEDIUM	HDR Medium exposure
E_MI_VIF_HDR_EXPOSURE_TYPE_LONG	HDR Long exposure
E_MI_VIF_HDR_EXPOSURE_TYPE_MAX	HDR exposure Enum Max Value

Note
- In 2Frame HDR, MI VIF will force to 0x1+0x4(short/long) exposure inside.
- E_MI_VIF_HDR_EXPOSURE_TYPE_MEDIUM: only support in Souffle.
Related data types and interfaces

MI_VIF_GroupAttr_t

MI_VIF_CreateDevGroup

3.21. MI_VIF_MetaDataType_e¶

Description

Define VIF extra function type.

Definition

typedef enum
{
    E_MI_VIF_METADATA_NONE,
    E_MI_VIF_METADATA_PDAF       = 0x01,
    E_MI_VIF_METADATA_HEADER     = 0x02,
    E_MI_VIF_METADATA_AE_STAT    = 0x04,
    E_MI_VIF_METADATA_AWB_STAT   = 0x08,
    E_MI_VIF_METADATA_AF_STAT    = 0x10,
    E_MI_VIF_METADATA_HISTO_STAT = 0x20,
    E_MI_VIF_METADATA_MAX
} MI_VIF_MetaDataType_e;

Member

Member Name	Description
E_MI_VIF_METADATA_NONE	Not represent any function
E_MI_VIF_METADATA_PDAF	PDAF function
E_MI_VIF_METADATA_HEADER	Header not compress function
E_MI_VIF_METADATA_AE_STAT	STA function AE statistics
E_MI_VIF_METADATA_AWB_STAT	STA function AWB statistics
E_MI_VIF_METADATA_AF_STAT	STA function AF statistics
E_MI_VIF_METADATA_HISTO_STAT	STA function HISTO statistics
E_MI_VIF_METADATA_MAX	Metadata enum Max value

Related data types and interfaces

MI_VIF_MetaDataAttr_t

3.22. MI_VIF_MetaDataAttr_t¶

Description

Define VIF extra function structure.

Definition

typedef struct MI_VIF_MetaDataAttr_s
{
    MI_U32              u32MetaDataTypeMask;
    MI_SYS_WindowRect_t stCropRect; // For header usage only
} MI_VIF_MetaDataAttr_t;

Member

Member Name Description

u32MetaDataTypeMask Extra function onoff Mask value

stCropRect Crop window of Header not compress function
Related data types and interfaces

MI_VIF_GroupAttr_t

MI_VIF_CreateDevGroup

3.23. MI_VIF_CustCmd_e¶

Description

Define VIF customer command id.

Definition

typedef enum
{
    E_MI_VIF_CUSTCMD_PUTNUCDATA,
    E_MI_VIF_CUSTCMD_SETIRSTATUS,
    E_MI_VIF_CUSTCMD_FRAMEEND_NOTIFY,
    E_MI_VIF_CUSTCMD_SLEEPPARAM_SET,
    E_MI_VIF_CUSTCMD_SHUTTER_GAIN_SET,
    E_MI_VIF_CUSTCMD_FORCEFRAMEPARAM_SET,
    E_MI_VIF_CUSTCMD_MAX
} MI_VIF_CustCmd_e;

Member

Member Name	Description	Data Type
E_MI_VIF_CUSTCMD_PUTNUCDATA	Customized command for VIF to set NUC buffer	MI_VIF_PutDataAttr_t
E_MI_VIF_CUSTCMD_SETIRSTATUS	Customized command for VIF to set IR status	MI_U8
E_MI_VIF_CUSTCMD_FRAMEEND_NOTIFY	Customized command for VIF to set function pointer of FrameEnd Callback	void*
E_MI_VIF_CUSTCMD_SLEEPPARAM_SET	Customized command for VIF to set the parameters of controlling the Sensor to enter sleep mode	MI_VIF_SleepModeParams_t
E_MI_VIF_CUSTCMD_SHUTTER_GAIN_SET	Customized command for VIF to set the parameters of controlling sensor exposure	MI_VIF_ShutterGainParams_t
E_MI_VIF_CUSTCMD_FORCEFRAMEPARAM_SET	force sensor exit sleep mode immediately	MI_VIF_ForceFrameParams_t
E_MI_VIF_CUSTCMD_MAX	Max value of customized command	NA

Note
- E_MI_VIF_CUSTCMD_PUTNUCDATA: This command only use when Input is Thermal Sensor, customer will process NUC correction algorithm by AD data get from Thermal Sensor, then put NUC data into VIF by this command, and VIF will transfer this NUC data to Thermal Sensor.
- E_MI_VIF_CUSTCMD_SETIRSTATUS: This command is for Windows Hello function, customer will set IR status(ON:1 OFF:0) to VIF by this cmd, then VIF will put this IR flag into buffer info, so customer can get IR status when they get output buffer.
- E_MI_VIF_CUSTCMD_FRAMEEND_NOTIFY: In the AOV scene, it is used to register the the callback function of Frame End. VIF will call the registered function in the Frame End interrupt.
- E_MI_VIF_CUSTCMD_SLEEPPARAM_SET: In the AOV scene, it is used to set the parameters of controlling the number of frames that the Sensor needs to stream out before entering the Sleep mode through VIF.
- E_MI_VIF_CUSTCMD_SHUTTER_GAIN_SET: In AOV scene, it is used to set the shutter and gain values of the sensor through VIF.
- E_MI_VIF_CUSTCMD_FORCEFRAMEPARAM_SET: Before using this command , you need to call E_MI_VIF_CUSTCMD_SLEEPPARAM_SET to set variable bSleepEnable to true.
Related data types and interfaces

MI_VIF_CustFunction

3.24. MI_VIF_PutDataAttr_t¶

Description

Define VIF input data structure.

Definition

typedef struct MI_VIF_PutDataAttr_s
{
    MI_U32 u32Stride;
    MI_U32 u32Buffsize;
    MI_PHY phyAddr;
} MI_VIF_PutDataAttr_t;

Member

Member Name Description

u32Stride Input data byte count of one line

u32Buffsize Input data buffer size

phyAddr Input data buffer address
Related data types and interfaces

MI_VIF_CustFunction

3.25. MI_VIF_FrameEndInfo_t¶

Description

FrameEnd interrupt in the FrameEnd Callback registered by Cusfuntion will pass this structure as an input parameter.

Definition

typedef struct MI_VIF_FrameEndInfo_s
{
    MI_BOOL bDoneFlag;
    MI_U32  u32FrameCnt;
    MI_VIF_DEV vifDevId;
} MI_VIF_FrameEndInfo_t;

Member

Member Name Description

bDoneFlag Flag to determine if it is the last Frame

u32FrameCnt FrameEnd count value

vifDevId vif device id of frame done
Related data types and interfaces

MI_VIF_CustFunction

Usage and sample code

The usage of this command is shown in the figure

Declare the address of the function pointer in the user app
In the user driver, bind the frameDone_Callback function in the driver to the address passed in step 1 through ioctl.
Call MI_VIF_CustFunction in the user app.
Inside the VIF, the function bound in the user driver will be automatically called when the frame is done

Here is a simple example code for using the command:

//user driver
static int Misc_Control_FrameDone_CallBack(MI_VIF_FrameEndInfo_t *pstVifFrameEndInfo)
{
    printk("Here to get updated info from vif when frameDone\n");
    printk("vifDevId: %d doneFlag:%d frameCnt:%d\n", pstVifFrameEndInfo->vifDevId,
        pstVifFrameEndInfo->bDoneFlag, pstVifFrameEndInfo->u32FrameCnt);
}

static long misc_control_dev_ioctl(struct file *file, unsigned int cmd, unsigned long arg)
{
    int ret = 0;
    switch (cmd)
    {
        case IOCTL_MISC_CONTROL_INIT:
        {
            unsigned long fun_ptr_addr = 0;
            if (copy_from_user(&fun_ptr_addr, (int __user *)arg, sizeof(fun_ptr_addr)))
            {
                return -EFAULT;
            }
            //bind user app callback func addr with specific func in user driver

            fun_ptr_addr = Misc_Control_FrameDone_CallBack;

            if (copy_to_user((int __user *)arg, &stCallback_Param, sizeof(Misc_Callback_Param_t)))
            {
                return -EFAULT;
            }

            else
            {
                return -EFAULT;
            }
        }
    }
    return 0;
}

//user app
void main()
{
    unsigned long fun_ptr_addr ;
    ioctl(dev_fd, IOCTL_MISC_CONTROL_INIT, &fun_ptr_addr);
    MI_VIF_CustFunction(vifDevId, (MI_VIF_CustCmd_e)E_MI_VIF_CUSTCMD_FRAMEEND_NOTIFY, sizeof(unsigned long),
                            &callback_param.fun_ptr_addr);
}

For more details and usage, please refer to sdk/verify/sample_code/internal/aov/light_misc_control_api.h

3.26. MI_VIF_SleepModeParams_t¶

Description

Define the parameter structure for VIF to control the Sensor to enter and exit Sleep Mode.

Definition

typedef struct MI_VIF_SleepModeParams_s
{
    MI_BOOL bSleepEnable;
    MI_U32  u32FrameCntBeforeSleep;
} MI_VIF_SleepModeParams_t;

Member

Member Name Description

bSleepEnable Whether to enable VIF to control the Sensor to enter Sleep mode

u32FrameCntBeforeSleep Frame count for VIF to control the Sensor to enter Sleep mode
Related data types and interfaces

MI_VIF_CustFunction

Usage and sample code

void *aov_thread(void* args)
{
    MI_VIF_SleepModeParams_t stSleepParam;

    while(!bExit)
    {
        if(status == wakeup)
            stSleepParam.bSleepEnable = TRUE;
            stSleepParam.u32FrameCntBeforeSleep = 1;
            MI_VIF_CustFunction(u32VifDevId, E_MI_VIF_CUSTCMD_SLEEPPARAM_SET, sizeof(MI_VIF_SleepModeParams_t), &stSleepParam);

            //wait frame done
            ......

            //enter suspend
            system("echo mem >/sys/power/state");

    }

    // Disable sleep mode
    stSleepParam.bSleepEnable = FALSE;
    MI_VIF_CustFunction(u32VifDevId, E_MI_VIF_CUSTCMD_SLEEPPARAM_SET, sizeof(ST_Common_SNRSleepParam_t), &stSleepParam);
}

int main()
{
    pthread_t pthread;

    //init and run the pipeline
    pipeline_init_and_run();

    pthread_create(&pthread, NULL, aov_thread, NULL);
    pthread_join(&pthread, NULL);

}

For more details and usage, please refer to sdk/verify/sample_code/source/iford/aov/aov_demo/st_sample_aov.c

3.27. MI_VIF_ShutterGainParams_t¶

Description

Define the parameter structure for VIF to control AE of Sensor.

Definition

typedef struct MI_VIF_ShutterGainParams_s
{
    MI_U32 u32ShutterTimeUs;
    MI_U32 u32AeGain;
} MI_VIF_ShutterGainParams_t;

Member

Member Name Description

u32ShutterTimeUs Set the Shutter value of Sensor, unit: us

u32AeGain Set the Gain value of Sensor, unit: 1024

Related data types and interfaces

MI_VIF_CustFunction - Usage and sample code

MI_VIF_ShutterGainParams_t stSnrParam;
MI_U32 u32Gain = 1;
stSnrParam.u32ShutterTimeUs = 1000;
stSnrParam.u32AeGain        = u32Gain x 1024;
MI_VIF_CustFunction(0, E_MI_VIF_CUSTCMD_SHUTTER_GAIN_SET, sizeof(MI_VIF_ShutterGainParams_t), &stSnrParam);

For more details and usage, please refer to sdk/verify/sample_code/internal/aov/st_common_aov.c

3.28. MI_VIF_ForceFrameParams_t¶

Description

Define the setting parameters of VIF to force the sensor to exit sleep mode

Definition

typedef struct MI_VIF_ForceFrameParams_s
{
    MI_U32  u32ForceFrameCnt;
    MI_U32  u32DropCnt;
} MI_VIF_ForceFrameParams_t;

Member

Member Name Description

u32ForceFrameCnt frame counts before sensor entering sleep mode

u32DropCnt frame counts dropped by VIF

Usage and sample code

void Do_fastAe()
{
    // configure sensor to enable sleep mode & consecutive frames cnt (to 2)
    MI_VIF_SleepModeParams_t stVifSleepParam;
    stVifSleepParam.bSleepEnable           = TRUE;
    stVifSleepParam.u32FrameCntBeforeSleep = 2;
    MI_VIF_CustFunction(u32VifDevId, E_MI_VIF_CUSTCMD_SLEEPPARAM_SET, sizeof(MI_VIF_SleepModeParams_t),
                        &stVifSleepParam);

    // wait sensor enter sleep mode
    // config to small pic (switch on fast ae)
    ......

    MI_VIF_ForceFrameParams_t stVifSleepDisableParam;
    stVifSleepDisableParam.u32ForceFrameCnt = 4;
    stVifSleepDisableParam.u32DropCnt       = 3;
    MI_VIF_CustFunction(u32VifDevId, E_MI_VIF_CUSTCMD_FORCEFRAMEPARAM_SET, sizeof(MI_VIF_ForceFrameParams_t),
                        &stVifSleepDisableParam);

    //wait sensor stream out done
    //configure sensor to enable sleep mode & consecutive frames cnt (to 1)
    ......

}

For more details and usage, please refer to sdk/verify/sample_code/internal/fast_ae/fast_ae.c

3.29. MI_VIF_AiIspAttr_t¶

Description

Define AiIsp attribute configuration

Definition

typedef struct MI_VIF_AiIspAttr_s {
    MI_VIF_AiBnrAttr_t stVifAiBnrAttr;
    MI_VIF_AiHdrAttr_t stVifAiHdrAttr;
} MI_VIF_AiIspAttr_t;

Member

Member Name Description

stVifAiBnrAttr Define AiBnr case attribute configuration

stVifAiHdrAttr Define AiHdr case attribute configuration
Related data types and interfaces

MI_VIF_GroupAttr_t

3.30. MI_VIF_AiBnrAttr_t¶

Description

Define AiBnr case attribute configuration

Definition

typedef struct MI_VIF_AiBnrAttr_s {
    MI_VIF_AiBnrSourceType_e eAiSourceType;
} MI_VIF_AiBnrAttr_t;

Member

Member Name Description

eAiSourceType Define AI BNR source type
Related data types and interfaces

MI_VIF_AiIspAttr_t

3.31. MI_VIF_AiHdrAttr_t¶

Description

Define AiHdr case attribute configuration

Definition

typedef struct MI_VIF_AiHdrAttr_s {
    MI_BOOL bAiHdrEn;
} MI_VIF_AiHdrAttr_t;

Member

Member Name Description

bAiHdrEn Enable or disable aihdr function
Related data types and interfaces

MI_VIF_AiIspAttr_t

3.32. MI_VIF_AiBnrSourceType_e¶

Description

Define AI BNR source type

Definition

typedef enum
{
    E_MI_VIF_AI_BNR_SOURCE_TYPE_NONE,
    E_MI_VIF_AI_BNR_SOURCE_TYPE_LINEAR,
    E_MI_VIF_AI_BNR_SOURCE_TYPE_HDR_FUSION,
    E_MI_VIF_AI_BNR_SOURCE_TYPE_HDR_LONG,
    E_MI_VIF_AI_BNR_SOURCE_TYPE_MAX
} MI_VIF_AiBnrSourceType_e;

Member

Member Name	Description
E_MI_VIF_AI_BNR_SOURCE_TYPE_LINEAR	Do AI for linear mode case
E_MI_VIF_AI_BNR_SOURCE_TYPE_HDR_FUSION	Do AI work after ISP HDR fusion
E_MI_VIF_AI_BNR_SOURCE_TYPE_HDR_LONG	Do AI work for long exposure frame

Related data types and interfaces

MI_VIF_AiBnrAttr_t

4. VIF ERROR CODE¶

VIF API error code is defined in following table:

Error code	Macro definition	Description
0xA0062001	MI_ERR_VIF_INVALID_DEVID	Video Input device ID invalid
0xA0062002	MI_ERR_VIF_INVALID_CHNID	Video Input channel ID invalid
0xA0062003	MI_ERR_VIF_INVALID_PARA	Video Input parameter invalid
0xA0062006	MI_ERR_VIF_INVALID_NULL_PTR	Null pointer invalid
0xA0062007	MI_ERR_VIF_FAILED_NOTCONFIG	Video device or channel attribute is not configured
0xA0062008	MI_ERR_VIF_NOT_SUPPORT	Operation is not supported
0xA0062009	MI_ERR_VIF_NOT_PERM	Operation is not permitted
0xA006200C	MI_ERR_VIF_NOMEM	Memory allocation fail
0xA006200E	MI_ERR_VIF_BUF_EMPTY	Buffer empty
0xA006200F	MI_ERR_VIF_BUF_FULL	Buffer full
0xA0062010	MI_ERR_VIF_SYS_NOTREADY	Video Input system is not ready
0xA0062012	MI_ERR_VIF_BUSY	Video Input system is busy
0xA0062080	MI_ERR_VIF_INVALID_PORTID	Video Input port ID invalid
0xA0062081	MI_ERR_VIF_FAILED_DEVNOTENABLE	Video Input device is not enable
0xA0062082	MI_ERR_VIF_FAILED_DEVNOTDISABLE	Video Input device is not disable
0xA0062083	MI_ERR_VIF_FAILED_PORTNOTENABLE	Video Input channel is not enable
0xA0062084	MI_ERR_VIF_FAILED_PORTNOTDISABLE	Video Input channel is not disable
0xA0062085	MI_ERR_VIF_CFG_TIMEOUT	Video configure timeout
0xA0062086	MI_ERR_VIF_NORM_UNMATCH	Video norm of ADC and VIU unmatched
0xA0062087	MI_ERR_VIF_INVALID_WAYID	Video way ID invalid
0xA0062088	MI_ERR_VIF_INVALID_PHYCHNID	Video physical channel ID invalid
0xA0062089	MI_ERR_VIF_FAILED_NOTBIND	Video channel is not bound
0xA006208A	MI_ERR_VIF_FAILED_BINDED	Video channel is bound

5. PROCFS INTRODUCTION¶

5.1. cat¶

Debug Information

#cat /proc/mi_modules/mi_vif/mi_vif0

----------------------------------dump Group Attr--------------------------------------------------
groupId  Intf       Work  Clkedge   Hdr  HdrFusion  ExposureMask    NUC  MetaDataType       MetaCrop
0  MIPI 1MULTIPLEX        2   OFF       NONE             0    0             0(0,0,   0,   0)

----------------------------------dump Dev Attr--------------------------------------------------
Dev  FsCnt  ActiveTime         incrop       infmt  capsel    rstcnt  NucRdmaDone
0    745        32ms(0,0,3840,2160)    RG_10BPP       0( 0, 0, 0)            0
Dev  AsyncCnt  EnqCnt  BarCnt  CheckCnt  DequCnt  DropCnt  NucEnqCnt  Mask
0      1438     709     708      2130      706        0          0     0

-------------------------------------dump pipe attr-----------------------------------------------
PipeId  PortId  DevId  Hdn           crop       Dest  Pixel  wkmode  Compress
12       0      0    0(0,0,3840,2160)(3840x2160)     45       1         0

-------------------------------------dump outport attr-----------------------------------------------
Dev  Port  wFsNum  wLCNum  wDoneNum  Dvcnt  Oscnt  LostFrame
0     0     711       0       706      0      0          3

Dev  Port       Cap_size  Dest_size       Fmt  Rate  CRC  Atom       MetaInfo  OutCount  Addr0Cnt  FailCount  EnqFailCount  Fps
0     0(0,0,3840,2160)(3840,2160)  RG_10BPP     0    0     2  c0000000005a3       706         1          1             0    30.04

Dev  Port   Recv_size    Out_size SubOut_size  FifoDepth  WInactive
0     0 (3856,2180) ( 300,2160) (   0,   0)          1          0

Debug Information Analysis

Record the current VIF usage status and Group/ Dev/ pipe/ outport attributes, you can get this information dynamically, which is convenient for debugging and testing.

Parameter Description

Parameter		Description
Group Attr	GroupId	Group ID
	input	input ID
	Intf	Protocol for entering data, please refer toMI_VIF_IntfMode_e
	Work	Work mode, please refer toMI_VIF_WorkMode_e
	Clkedge	Clock edge trigger mode, please refer toMI_VIF_ClkEdge_e
	Hdr	Hdr type, please refer to MI_VIF_HDRType_e
	HdrFusion	Hdr fusion type, please refer to MI_VIF_HDRFusionType_e
	ExposureMask	Hdr exposure bitmask, please refer to MI_VIF_HDRExposureType_e
	NUC	if using NUC Sensor, use NUC flow
	MetaDataType	vif extra function using status bitmask, please refer to MI_VIF_MetaDataType_e
	MetaDataCrop	Crop window of Header not compress function, please refer to MI_VIF_MetaDataAttr_t
Dev Attr	Dev	Dev ID
	FsCnt	Interrupt count of Frame start
	chn	channel ID, actually used device id
	FsCnt	Interrupt count of Frame start
	FsInt	Interval between two Frame start(unit:us)
	Active	timing of active data transmission
	FdCnt	Interrupt count of Frame done
	incrop	Input Corp Size, please refer toMI_VIF_DevAttr_t stInputRect
	infmt	Input pixel format, please refer toMI_VIF_DevAttr_t eInputPixel
	capsel	Field type, please refer toMI_VIF_DevAttr_t Field
	rstcnt	Reset count, corresponding to (Fifo, Wdma, Fifo_Wdma)
	NucRdmaDone	Nuc rdma done count
	AsyncCnt/EnqCnt/ BarCnt/CheckCnt/ DequCnt	MI internal Callback interface execution times
	DropCnt	Drop frame count
	NucEnqCnt	nuc buffer count queued by app to mi vif, also buffer count which queue to nuc rdma
channel Attr	Dev	Dev ID
	PipeId	Pipe id
	Port	Port ID
	Chn	>channel ID, actually used device id
	Output	Output ID, VIF internal pipe ID
	Hdn	H2T1PMode enable, please refer toMI_VIF_DevAttr_t bEnH2T1PMode
	crop	output crop size (Height will divide 2 in DI Mode)
	Dest	output size (Height will divide 2 in DI Mode)
	Pixel	Mhal output Pixel, transferred by MI pixel
	wkmode	Pipe work mode, 0: Realtime，1: FrameMode
	Compress	Please refer to MI_VIF_OutputPortAttr_t eCompressMode
OutPort Attr	Dev	Device id
	Port	Port id
	Output	Output ID, VIF internal pipe ID
	FsNum	Count of Wdma Frame start Interrupt
	FsInt	Interval of Wdma Frame start Interrupt(unit:us)
	LCNum	Count of Wdma Line Count hit
	DoneNum	Count of Wdma Done
	DvCnt	Count of Wdma Double vsync
	OsCnt	Count of Wdma Oversize
	LostFrame	Lost count of Wdma Frame start Interrupt
	TaskId	Current Wdma used fifo customer id
	BufAddr	Current Wdma used buffer addr
	Cap_size	Port Crop Size, please refer to MI_VIF_OutputPortAttr_t stCapRect
	Dest_size	Output size, please refer to MI_VIF_OutputPortAttr_t stDestSize
	Fmt	Output pixel format, please refer toMI_VIF_OutputPortAttr_t ePixFormat
	Rate	Frame rate type, please refer toMI_VIF_OutputPortAttr_t eFrameRate
	CRC	CRC on/off status
	Atom	The number of buffers held by driver
	MetaInfo	Frame id
	OutCount	Output frame count, only done frame, not include drop frame
	Addr0Cnt	Frame address 0 count, means skip frame count
	FailCount	Failed to get outputbuffer count
	EnqFailCount	Count which failed to queue buffer to wdma
	Fps	Frame per second
	Recv_size	Vif hardware received size
	Out_size	Port0 wdma size setting
	SubOut_size	Port1 wdma size setting
	FifoDepth	Buffer count in wdma fifo
	WdmaInactive	Wdma is active or not, 0: active, 1: inactive

5.2. echo¶

Echo help can view available commands:

# echo help >/proc/mi_modules/mi_vif/mi_vif0

     dump           [devid portid /path cnt DumpDrop];

     initatom       [devid InitAtom];

     erasebuffer    [devid portid bEraseBuffer];

     devmask        [devid bMask];

     enport         [devid portid bEn];

     cfgport        [devid portid crop(x,y,width,height) dest(width,height) pixel];

     resethw        [devid eResetType(0:FIFO 1:wdma 2:AFIFO_WDMA_GROUP 3:FIFO_WDMA_DEV)];

     fpsth      [devid portid FpsTh FpsFloatTh];

     ptsth      [devid portid ptsmax ptsmin];

     fifofull   [devid cnt];

     crc        [devid enable];

     patgen     [grouid w h fps fmt chn fieldEn hdren En];

     datagen        [grouid En];

     forcedeque     [devid portid curwrite validcnt wdmainactive], curwrite !=0, will use validcnt/wdmainactive param;

     debuglv        [devid level] buffer debug(0x1), check_loop(0x2), check_isr(0x4), check_flow(0x8), check_latency(0x80);

     changebuf      [devid portid changecnt (bdump, mode) ];once(0), once_vfs_pps(1), constant(2), constant_vfs_pps(3)

Function	Dump frame to the specified path.
Command	echo dump [devid portid path cnt dumpdrop] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id portid: port id path: Dumped path cnt: optional, frame count need to be dumped, default 1 dumpdrop: optional, only dump frame need to be dropped, default FALSE
Example	echo dump 0 0 /tmp > /proc/mi_modules/mi_vif/mi_vif0 echo dump 0 0 /tmp 2 1 > /proc/mi_modules/mi_vif/mi_vif0

Function	Set the number of vif atoms.
Command	echo initatom [devid portid InitAtom] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id portid: port id InitAtom: The maximum number of buffers held by the Driver
Example	echo initatom 0 0 2 > /proc/mi_modules/mi_vif/mi_vif0

Function	Erase vif buffer
Command	echo erasebuffer [devid portid bEraseBuffer] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id portid: port id EraseBuffer: Enable to erase buffer
Example	echo erasebuffer 0 0 1 > /proc/mi_modules/mi_vif/mi_vif0

Function	Set Dev Mask
Command	echo devmask [devid bMask] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id bmask: Enable mask
Example	echo devmask 0 1 > /proc/mi_modules/mi_vif/mi_vif0

Function	Enable output port
Command	echo enport [devid portid bEn] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id portid: port id bEn: enable
Example	echo enport 0 0 1 > /proc/mi_modules/mi_vif/mi_vif0

Function	Set output port attribute
Command	echo cfgport [devid portid crop(x,y,width,height) dest(width,height) pixel compress] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id portid: port id crop(x,y,width,height): output port crop position dest(width,height): output size Pixel: output port pixel format compress: compress mode
Example	echo cfgport 0 0 0 0 1280 720 1280 720 14 5 > /proc/mi_modules/mi_vif/mi_vif0

Function	Reset vif
Command	echo resethw [devid eResetType] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id eResetType: reset position. 0:FIFO; 1:wdma; 2:AFIFO_WDMA_GROUP; 3:FIFO_WDMA_DEV
Example	echo resethw 0 3 > /proc/mi_modules/mi_vif/mi_vif0

Function	Set fps threshold. When fps less than threshold, warning will be reported.
Command	echo fpsth [devid portid FpsTh FpsFloatTh] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id portid: port id FpsTh: fps integer threshold FpsFloatTh: fps decimal threshold
Example	echo enport 0 0 29 98 > /proc/mi_modules/mi_vif/mi_vif0

Function	Set pts interval threshold. When pts is not in the range of threshold, warning will be reported.
Command	echo ptsth [devid portid ptsmin ptsmax] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id portid: port id ptsmin: pts interval min threshold(us) ptsmax: pts interval max threshold(us)
Example	echo ptsth 0 0 25000 40000 > /proc/mi_modules/mi_vif/mi_vif0

Function	Trigger fifo full reset flow
Command	echo fifofull [devid bNeedReset] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id bNeedReset: set 1 to trigger fifo full reset flow
Example	echo fifofull 0 1 > /proc/mi_modules/mi_vif/mi_vif0

Function	Enable CRC check
Command	echo crc [devid portid enable] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id portid: port id enable: set 1 to enable CRC
Example	echo crc 0 0 1 > /proc/mi_modules/mi_vif/mi_vif0

Function	Set MI VIF debug level
Command	echo debuglv [devid debuglevel] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id debuglevel: MI VIF debug level, default 0, off 0x0001 Mhal_Buff_Dbg 0x0002 CHECK_LOOP 0x0004 CHECK_ISR 0x0008 CHECK_FLOW 0x0080 CHECK_LATENCY
Example	echo debuglv 0 3 > /proc/mi_modules/mi_vif/mi_vif0

Function	Enable VIF pattern gen
Command	echo patgen [group width height fps pixel multi bFieldEn bHdrEn Enable] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	Group: group ID Width: pattern width Height: pattern height Fps: output frame per second Pixel: pattern pixel format Multi: can be set to 1chn/2chn/4chn, the same as BT656 multichn concept bFieldEn: enable DI mode Enable: enable pattern
Example	echo patgen 0 1280 720 25 14 4 0 1 1 > /proc/mi_modules/mi_vif/mi_vif0

Function	Enable VIF data gen
Command	echo datagen [group Enable] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	group: group ID Enable: enable data gen
Example	echo datagen 0 1 > /proc/mi_modules/mi_vif/mi_vif0

Function	Force deque vif buffer, used for debugging when the buffer is stuck in vif.
Command	echo forcedeque [devid portid CurrentWriteAddr ValidCnt WdmaInactive] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id Portid: port id CurrentWriteAddr: address which WMDA is writing ValidCnt: buffer count which stay in WDMA FIFO WdmaInactive: wdma status, 0: active, 1: inactive
Example	echo forcedeque 0 0 0 0 1 > /proc/mi_modules/mi_vif/mi_vif0

Function	Change VIF output buffer randomly
Command	echo changebuf [devid portid cnt bdump mode] > /proc/mi_modules/mi_vif/mi_vif0
Parameter Description	devid: device id portid: port id Cnt: buffer count which need to be changed bdump: optional, dump change buffer or not, default FALSE not dump Mode: optional, different mode to change buffer, default mode 0 0: Only change buffer by the count which user set 1: For SFBC0 compress, only change count which user set, but change position within SFBC0 PPS header 2: Change every output buffer, and not refer to parameter “cnt” 3: Change every output buffer, change position include 50% SFBC0 PPS and 50% Non-PPS, and not refer to parameter “cnt”
Example	echo changebuf 0 0 3 > /proc/mi_modules/mi_vif/mi_vif0 echo changebuf 0 0 3 1 2 > /proc/mi_modules/mi_vif/mi_vif0

5.3. cat debug_hal¶

5.3.1. vif_ints¶

Debug Information

#cat /proc/mi_modules/mi_vif/debug_hal/vif0/vif_ints

== VIF3 INTS @:218128070 ==
== VIF CH-0 ==
CH State:                       : WORKING
Interval(us)                    : 33336
FramePeriod(us)                 : 33334
VREF_FALLING                    : 3737 @:218108268
LINE_CNT_0                      : 3736 @:218106814
LINE_CNT_1                      : 3737 @:218108269
TOTAL_PIX_CNT                   : 3736 @:218106939

== VIF WDMA-0(0) p0 aff0 ==
WDMA State:                     : WORKING
FrameStart                      : 0 @:0
LINE_CNT                        : 0 @:0
FrameDone                       : 0 @:0

== VIF FIFO-0 ==
Aff State:                      : WORKING
AFF Count:                      : 0 @:0

== VIF FIFO-1 ==
Aff State:                      : READY
AFF Count:                      : 0 @:0

== VIF FIFO-2 ==
Aff State:                      : READY
AFF Count:                      : 0 @:0

== VIF FIFO-3 ==
Aff State:                      : READY
AFF Count:                      : 0 @:0

Debug Information Analysis

Record the frame cycle, current state of VIF Channel/Wdma/Aff, and related interrupt count.

Parameter Description

Parameter		Description
VIF CH	CH State	CH current state
	Interval(ns)	Frame interval time
	VREF_FALLING	VSYNC interrupt count and display the timestamp of the most recent interrupt
	LINE_CNT_0	Total line count hit 0 interrupt count and display the timestamp of the most recent interrupt
	LINE_CNT_1	Total line count hit 1 interrupt count and display the timestamp of the most recent interrupt
	TOTAL_PIX_CNT	Total pixel count hit interrupt count and display the timestamp of the most recent interrupt
VIF WDMA	WDMA State	Wdma current state
	FrameStart	Frame start interrupt count and display the timestamp of the most recent interrupt
	LINE_CNT	Line count hit interrupt count and display the timestamp of the most recent interrupt
	FrameDone	Frame done interrupt count and display the timestamp of the most recent interrupt
VIF FIFO	Aff State	Afifo current state
VIF FIFO	AFF Count	Fifo full interrupt count and display the timestamp of the most recent interrupt

5.3.2. vif_info¶

Debug Information

/  # cat /proc/mi_modules/mi_vif/debug_hal/vif0/vif_info
== VIF0 INFO @:10772957883 ==
== VIF CH=0 ==
CH State:: WORKING
[vg:0 link:FRAME_WDMA]--[chn:0]--[afifo:0]--[pipe:0(0)]--[wdma:0(0)]--[end]
CH_EN: 1
SRC: MIPI0
INPUT_FMT: RGB
PIX_FMT: 10 bits
CROP_EN: 1
CROP_START_X: 0 - 3839
CROP_START_Y: 0 - 2159
PIXEL_CNT: 3840
LINE_CNT: 2160
TOTAL_PIXEL_CNT: 3864
TOTAL_LINE_CNT: 2192

Debug Information Analysis

Record the basic VIF settings obtained from the register.

Parameter Description

Parameter	Description
CH State	CH current state
vg	Group ID
link	Link mode: E_VIF_LINK_PATH_TYPE_FRAME_WDMA E_VIF_LINK_PATH_TYPE_REAL_ISP E_VIF_LINK_PATH_TYPE_REAL_SCL
CH_EN	Enable the current VIF channel ID
SRC	VIF source selection
INPUT_FMT	Data format
PIX_FMT	Output bitwidth
CROP_EN	Enable to crop
CROP_START_X	Read cropped horizontal data
CROP_START_Y	Read cropped vertical data
PIXEL_CNT	Cropped pixel count of VIF
LINE_CNT	Cropped line count of VIF
TOTAL_PIXEL_CNT	Total pixel count of VIF
TOTAL_LINE_CNT	Total line count of VIF

6. MODPARAM INTRODUCTION¶

6.1. json file sample¶

{
    "E_MI_MODULE_ID_SYS" :
    {
        "cmdQBufSize" : 400
    },
    "E_MI_MODULE_ID_VIF" :
    {
        "u32threadPriority" : 98,
        "u32DevDebugLevel":  [0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],
        "bDevEnableFrameStartPts" : [false,false,false,false,false,false,false,false,false,false,false,false,false,false,false,false],
        "u32PatGen" : [0,0,0,0,0,0,0,0,0],
        "vif_clk" : 288000000,
        "u8MulSnrRtVifGroupCnt" : 3,
        "u8MulSnrRtVifGroupPhyMap" : [ 0, 0, 1],
        "VifGroupSensorSelect" : [
            {
                "gpio" : [ {"no" : 55, "pol" : 0} ]
            },
            {
                "gpio" : [ {"no" : 55, "pol" : 1} ]
            },
            {
                "na" : [ ]
            }
        ]
    }
}

modparam.json file is under /config, parameters under section "E_MI_MODULE_ID_VIF" will be loaded when vif initialize.

modparam.json could only fill parameters which you need, others will be default value inside MI vif.

"u32PatGen"：[vif_grouid, pattern_gen_width, pattern_gen_height, patgen_gen_fps, pixfmt, pattern_gen_chn_num(1-multi/2-multi/4-multi), fieldEn(0:progressive format, 1;interlace format), hdr_mode_en, pattern_gen_en].

6.2. VIF parameters and description¶

Parameters	Default	Support platform	Customer configuration	Function
u32threadPriority	98	All Chip	N	Configure mi vif thread priority
u32DevDebugLevel	0	All Chip	Y	Configure mi vif debug log level
bDevEnableFrameStartPts	false	Ifackel and later chips	Y	Configure whether each dev in mi vif records and passes FrameStartPts, with the array index corresponding to the dev ID
u32PatGen	0,0,0,0,0,0,0,0,0	Ifado/Iford/Pcupid/Souffle/Iford/Ifackel/Jaguar1	N	Configure vif group pattern gen attribute
vif_clk	288000000	Ifado/Iford/Pcupid/Souffle/Iford/Ifackel/Jaguar1	Y	Configure vif back-end clk(from isp clk)
VifGroupSensorSelect	NULL	Ifado/Ifackel	Y	Describe the structure for switching between virtual Groups, representing the virtual VIF Group ID, with the corresponding Json structure representing the settings required to switch to that virtual VIF Group.Child node 'gpio' describes the GPIO settings for switching to a virtual group, with no gpio number and pol gpio polarity. If there is no switching requirement, use 'na' instead
u8MulSnrRtVifGroupCnt	0	Ifado/Ifackel	Y	The number of virtual VIF groups
u8MulSnrRtVifGroupPhyMap	NULL	Ifado/Ifackel	Y	The mapping relationship between the virtual VIF Group ID and the physical Group ID is set. The array index represents the virtual VIF Group ID, and the corresponding value represents the mapped physical Group

6.3. PARAMETER USAGE EXAMPLE¶

6.3.1. u32DevDebugLevel¶

This parameter controls the debug level for each MI_VIF device. Debug levels can be combined using bitwise OR operations. The level definitions are as follows:

debug level	meaning
0x0001	enable MI_VIF internal buffer check log
0x0002	enable MI_VIF internal buffer transmission log
0x0004	enable MI_VIF internal interrupt log
0x0008	enable MI_VIF internal flow log
0x0080	enable MI_VIF latency check log

"u32DevDebugLevel":0, disable all MI_VIF debug level
"u32DevDebugLevel":9, enable buffer check and buffer transmission level
"u32DevDebugLevel":143, enable all MI_VIF debug level

6.3.2. vif_clk¶

This parameter config vif backend clock(from isp).

"vif_clk":288000000, isp clk is 288M

6.3.3. bUseReset¶

This parameter controls whether to reset the VIF upon FIFO full condition.

"bUseReset":0, do not reset when fifo full
"bUseReset":1, reset when fifo full

6.3.4. bCrcEnable¶

This parameter controls the CRC verification switch for VIF data integrity checking.

"bCrcEnable":0, disable VIF CRC
"bCrcEnable":1, enable VIF CRC

6.3.5. u8CompressMode¶

This parameter controls the FBC (Frame Buffer Compression) enable/disable switch for the VIF module, VIF FBC only supports to compress 12bit/pixel to 8bit/pixel

"u8CompressMode":0, disable VIF FBC
"u8CompressMode":4, enable VIF FBC

Group Id	Device Id
0	Device0~3
1	Device4~7
2	Device8~11
3	Device12~15
4	Device16~19
5	Device20~23
6	Device24~27
7	Device28~31

Parameter Name	Description	Input/Output
DevId	VIF device ID	Input
pstDevAttr	VIF device attribute pointer, static attribute.	Input

Member Name	Description
E_MI_VIF_CALLBACK_ISR	Hardware interrupt mode callback
E_MI_VIF_CALLBACK_MAX	Callback mode Max

Member Name	Description
E_MI_VIF_IRQ_FRAMESTART	VIF frame start interrupt type
E_MI_VIF_IRQ_FRAMEEND	VIF frame done interrupt type
E_MI_VIF_IRQ_LINEHIT	VIF frame line count hit type

Member Name	Description
eCallBackMode	Call back mode
eIrqType	Hardware interrupt type
pfnCallBackFunc	Callback function
u64Data	Callback function parameters

Member Name	Description
u32MetaDataTypeMask	Extra function onoff Mask value
stCropRect	Crop window of Header not compress function

Member Name	Description
u32Stride	Input data byte count of one line
u32Buffsize	Input data buffer size
phyAddr	Input data buffer address

Member Name	Description
bDoneFlag	Flag to determine if it is the last Frame
u32FrameCnt	FrameEnd count value
vifDevId	vif device id of frame done

Member Name	Description
bSleepEnable	Whether to enable VIF to control the Sensor to enter Sleep mode
u32FrameCntBeforeSleep	Frame count for VIF to control the Sensor to enter Sleep mode

Member Name	Description
u32ShutterTimeUs	Set the Shutter value of Sensor, unit: us
u32AeGain	Set the Gain value of Sensor, unit: 1024

Member Name	Description
u32ForceFrameCnt	frame counts before sensor entering sleep mode
u32DropCnt	frame counts dropped by VIF

Member Name	Description
stVifAiBnrAttr	Define AiBnr case attribute configuration
stVifAiHdrAttr	Define AiHdr case attribute configuration
