SGS APC ALGORITHM USER GUIDE

---

REVISION HISTORY

Revision No.	Description	Date
1.0	Initial release	09/09/2020
1.1	Modified API	10/15/2020
1.2	Add parameter in AGC config	12/17/2020
1.3	Add parameter in ANR config	08/03/2021
1.4	Add frequency domain DRC in AGC module	08/05/2021
1.5	Add IaaApc_GetVadOut function	08/10/2021
1.6	Add IaaApc_ApplyDigitalGain function	04/06/2022
1.7	Add IaaApc_Enhance_NNBFMode, IaaApc_SetCompressionRatioCurve, IaaApc_NrEstimateReferAec, APC_BF_HANDLE	07/21/2022
1.71	Modified structure description in AudioProcessInit	08/16/2022
1.8	Add IaaApc_FilterDesign, IaaApc_FilterApply, IaaEq_FilterDesign, IaaEq_FilterApply	08/17/2022
1.9	Add IaaAnr_Enhance_NNBFMode	09/27/2022
1.91	More detail for stereo data arrangement	10/25/2022
1.92	More detail for ANR filter mode 5	12/12/2022
1.93	Update tunable anr_intensity for ANR filter mode 5	03/07/2023
2.0	Add IaaApc_GetAPIVersion, IaaApc_SetHandleId, IaaAnr_SetHandleId, IaaEq_SetHandleId, IaaAgc_SetHandleId	03/24/2023
2.01	Revise IaaApc_Enhance_NNBFMode to IaaApc_EnhanceNNBFMode and IaaAnr_Enhance_NNBFMode to IaaAnr_EnhanceNNBFMode	04/17/2023
2.1	Add IaaApc_GetJsonFileSize, IaaApc_NrReadJson, IaaAnr_GetJsonFileSize and IaaAnr_ReadJson function	07/25/2023
2.2	Add IaaApc_EnableComfortNoise, IaaAnr_EnableComfortNoise, IaaEq_EnableComfortNoise and IaaAgc_EnableComfortNoise function	10/12/2023
2.21	Add frequency domain Agc setting function detail	10/23/2023
2.3	Add auto smooth API and comfort noise apply API	02/22/2024
2.31	Add more detail about IIR filter setting	02/22/2024
2.4	Add IaaApc_SwitchReadFromJson, IaaApc_InitReadFromJson, IaaApc_ConfigReadFromJson, IaaApc_SetAgcReadFromJson, IaaApc_FilterDesignReadFromJson, IaaAnr_InitReadFromJson, IaaAnr_ConfigReadFromJson, IaaEq_GetJsonFileSize, IaaEq_InitReadFromJson, IaaEq_ConfigReadFromJson, IaaEq_FilterDesignReadFromJson, IaaAgc_GetJsonFileSize, IaaAgc_InitReadFromJson, IaaAgc_ConfigReadFromJson, IaaAgc_SetAgcReadFromJson	04/15/2024
2.41	Update typesetting and description in API	04/19/2024
2.5	Add IaaAnr_NrEstimateReferAec	05/22/2024
2.51	Add more detail about Hpf user_mode setting and description of IaaApc_GetVadOut	06/03/2024
2.6	Add IaaApc_FilterFreqz and IaaEq_FilterFreqz	07/11/2024
2.61	Update ANR config constrain and description of ANR filter mode 5	09/11/2024
2.7	Add IaaApc_OptionReadFromJson and structure of AudioApcOption for applying IaaApc_ApplyDigitalGain through json file	09/11/2024
2.8	Add IaaApc_ReadJson through json file	09/16/2024
2.9	Add IaaEq_ReadJson and IaaAgc_ReadJson through json file	10/08/2024
2.91	Update description of IaaApc_NrEstimateReferAec and IaaAnr_NrEstimateReferAec	01/08/2025
2.92	Update description of AgcGainInfo and AudioAgcConfig	01/13/2025
2.93	Update description of anr_filter_mode 6	03/31/2025
2.94	Update file description and copyright	04/19/2025
2.95	Remove copyright and update file description	05/15/2025
2.96	Fix enum type IAA_HPF_FREQ order as description	07/24/2025
2.97	Fix formatting and textual errors	10/28/2025
2.98	Remove ANR5v1.2.4 description	10/29/2025
2.99	Add and update description of Chapter 1	11/21/2025

---

1. OVERVIEW

---

1.1. Module Description

APC (Audio Process Chain) is an algorithm combination including noise reduction, equalizer and automatic gain control. The main purpose of APC is to improve audio quality. The internal algorithm connection process of APC is ANR → EQ/HPF → AGC. Improve SNR by eliminating noise, then adjust EQ/HPF according to the curve required by the customer, and finally gain or attenuate the output volume through AGC.

Keyword

• AGC

  AGC(Automatic Gain Control), used to control digital signal output.

• EQ

  EQ(Equalizer), used to gain or attenuate specific frequency bands.

• ANR

  ANR(Acoustic Noise Reduction), used to remove the continued and fixed frequency noise in the environment.

• HPF

  HPF(High-Pass Filtering).

Note

In order to facilitate debugging and confirm the effect of the algorithm, the user application needs to implement replacement algorithm parameter and grab audio data.

---

1.2. Basic Structure

After the APC algorithm completes memory allocation and parameter setup, the input signal buffer becomes the sole runtime requirement. The APC applies the configured parameters and algorithm to the buffer contents and commits the processed output directly back to the original buffer location.

---

1.3. Function Introduction

ANR :

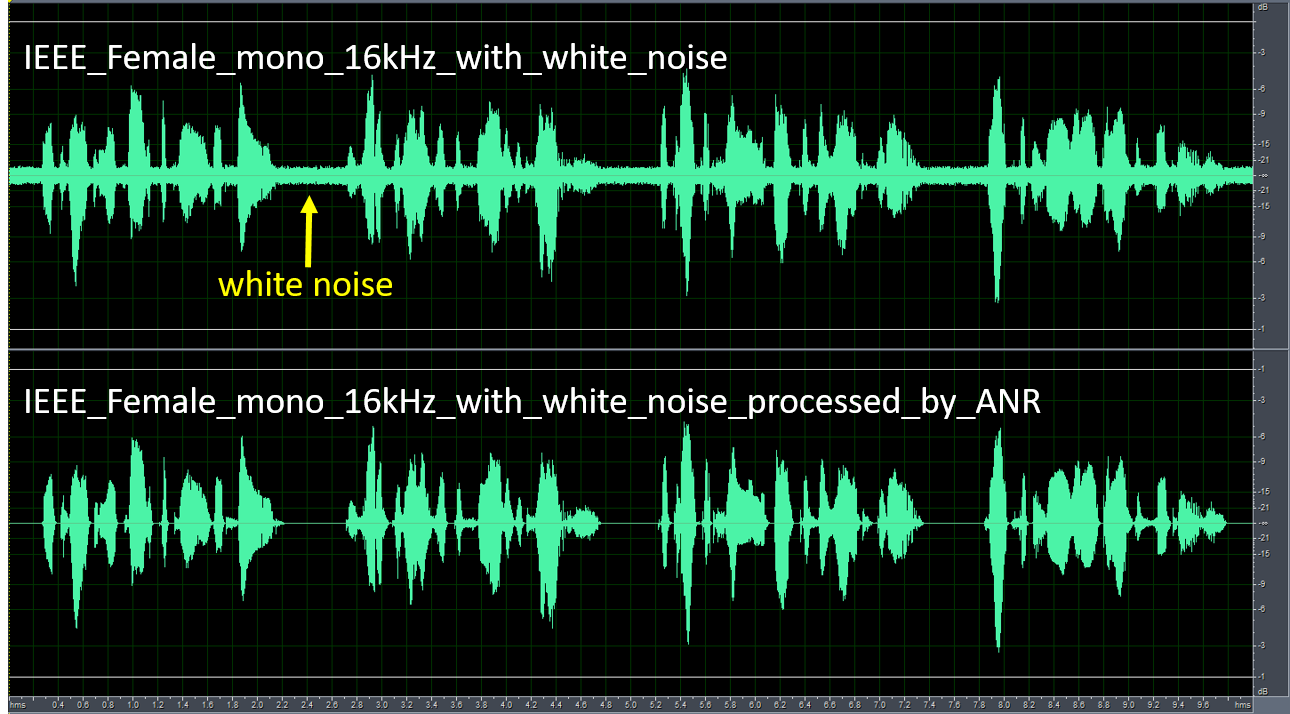

To suppress non-speech steady-state noise in the input signal and improve the signal-to-noise ratio (SNR).

EQ :

To apply energy gain or attenuation to specific frequency bands, adjusting the relative amplitude across bands to improve overall audio quality.

HPF :

To permit only signal components above the configured cutoff frequency to pass, while attenuating all components below that threshold.

AGC :

To compute the input signal energy based on the configured compression curve parameters, automatically adjust the gain, and apply it to the input signal to maintain signal stability.

---

1.4. Application Scenarios

APC is commonly applied in conference systems, building intercoms, security monitoring, and consumer electronic products, delivering low-noise, high-quality, and stable audio performance across diverse environments.

---

1.5. Chip Difference Description

Across different chip series, the APC algorithm demonstrates consistent performance with no observable differences.

---

1.6. Example Introduction

Use the APC API to obtain the memory size required by the APC algorithm, initialize the APC algorithm handle, configure parameters to the APC handle, execute the APC algorithm, and release the APC algorithm resources.

    #include <stdio.h>
    #include <unistd.h>
    #include <fcntl.h>
    #include <string.h>
    #include <time.h>
    #include <stdlib.h>
    #ifndef OS_WINDOWS
    #include <sys/ioctl.h>
    #endif
    #include <sys/types.h>
    #include <sys/stat.h>
    #include <sys/time.h>

    #include "AudioProcess.h"


    #define USE_MALLOC          (1)
    #define USE_JSON            (0)
    #define FILTER_ENABLE       (0)
    #define FREQ_AGC_ENABEL     (1)

    unsigned int WorkingBuffer2[1] = {0};

    typedef unsigned char                uint8;
    typedef unsigned short               uint16;
    typedef unsigned long                uint32;

    float AVERAGE_RUN(int a)
    {
        static unsigned int num = 0;
        static float avg = 0;
        if(num == 0) avg = 0;
        num++;
        avg = avg + ((float)a - avg) / ((float)num);
        return avg;
    }
    unsigned int _OsCounterGetMs(void)
    {
        struct  timeval t1;
        gettimeofday(&t1,NULL);
        unsigned int T = ( (1000000 * t1.tv_sec)+ t1.tv_usec )/1000;
        return T;
    }

    int main(int argc, char *argv[])
    {
        short input[1024];
        unsigned int T0, T1;
        float avg = 0;
        float peak = 0;
        char input_file[512];
        char output_file[512];
        int counter=0;
        int intensity_band[6] = {3,24,40,64,80,128};
        int intensity[7] = {0,30,0,30,0,30,0};
        short eq_table[129]  = { 1, 1, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5, -5    };
        memset (eq_table,0,sizeof(short)*129);
        short compression_ratio_input[_AGC_CR_NUM] = {-65,-55,-48,-25,-18,-12,0};
        short compression_ratio_output[_AGC_CR_NUM] = {-65,-50,-27,-12,-1,-1,-1};
    #if FREQ_AGC_ENABEL
        int freqBand[_AGC_FREQ_BAND_NUM] = {3000,6000,8000};
        int compressionRatioArrayLowInput[_AGC_CR_NUM] = {-80,-60,-40,-20,0,0,0};
        int compressionRatioArrayLowOutput[_AGC_CR_NUM] = {-5,-5,-5,-5,-5,-5,-5};
        int compressionRatioArrayMidInput[_AGC_CR_NUM] = {-80,-60,-40,-20,0,0,0};
        int compressionRatioArrayMidOutput[_AGC_CR_NUM] = {-80,-60,-40,-20,0,0,0};
        int compressionRatioArrayHighInput[_AGC_CR_NUM] = {-80,-60,-40,-20,0,0,0};
        int compressionRatioArrayHighOutput[_AGC_CR_NUM] = {-80,-60,-40,-20,0,0,0};
    #endif

        AudioApcBufferConfig apc_switch;
        memset(&apc_switch,0,sizeof(AudioApcBufferConfig));
        apc_switch.anr_enable = 1;
        apc_switch.eq_enable = 1;
        apc_switch.dr_enable = 0;
        apc_switch.vad_enable = 0;
        apc_switch.agc_enable = 1;

        int buffersize = IaaApc_GetBufferSize(&apc_switch);
        if(buffersize == 0){
            printf("IaaApc_GetBufferSize() error.\t\n");
            return -1;
        }
        else{
            printf("IaaApc_GetBufferSize() succeed.\t\n");
        }
    #if USE_MALLOC
        char *working_buf_ptr = (char*)malloc(buffersize);
    #else
        char working_buf_ptr[512*1000];
    #endif

    #if USE_JSON
        unsigned int use_anr_intl_json = 1;
        char anr_intl_json_file[512];
        sprintf(anr_intl_json_file,"%s","./../sample/data/AnrInternalJson.json");
        int anr_intl_buffersize = IaaApc_GetJsonFileSize(anr_intl_json_file);
        if(anr_intl_buffersize == 0){
            printf("IaaApc_GetJsonFileSize() error. Can not load json file [%s]\t\n", anr_intl_json_file);
            use_anr_intl_json = 0;
        }
        else{
            printf("IaaApc_GetJsonFileSize() succeed.\t\n");
        }
    #if USE_MALLOC
        char *anr_intl_json_buf_ptr = (char*)malloc(anr_intl_buffersize);
    #else
        char anr_intl_json_buf_ptr[512*1000];
    #endif
    #endif

    #if USE_JSON
        unsigned int use_apc_intl_json = 1;
        char apc_intl_json_file[512];
        sprintf(apc_intl_json_file,"%s","./../sample/data/ApcInternalJson.json");
        int apc_intl_buffersize = IaaApc_GetJsonFileSize(apc_intl_json_file);
        if(apc_intl_buffersize == 0){
            printf("IaaApc_GetJsonFileSize() error. Can not load json file [%s]\t\n", apc_intl_json_file);
            use_apc_intl_json = 0;
        }
        else{
            printf("IaaApc_GetJsonFileSize() succeed.\t\n");
        }
    #if USE_MALLOC
        char *apc_intl_json_buf_ptr = (char*)malloc(apc_intl_buffersize);
    #else
        char apc_intl_json_buf_ptr[512*1000];
    #endif
    #endif

        FILE * fin, * fout;
        int ret1;
        AudioProcessInit apc_init;
        AudioAnrConfig anr_config;
        AudioEqConfig eq_config;
        AudioHpfConfig hpf_config;
        AudioAgcConfig agc_config;
        APC_HANDLE handle;
        memset(&apc_init,0,sizeof(AudioProcessInit));
        memset(&anr_config,0,sizeof(AudioAnrConfig));
        memset(&eq_config,0,sizeof(AudioEqConfig));
        memset(&hpf_config,0,sizeof(AudioHpfConfig));
        memset(&agc_config,0,sizeof(AudioAgcConfig));
        int PN=128;
        apc_init.point_number = PN;
        apc_init.channel = 1;
        apc_init.sample_rate = IAA_APC_SAMPLE_RATE_16000;

        handle = IaaApc_Init((char *)working_buf_ptr, &apc_init, &apc_switch);
        if(handle==NULL){
            printf("IaaApc_Init() error.\t\n");
            return -1;
        }
        else{
            printf("IaaApc_Init() succeed.\t\n");
        }

        /******ANR Config*******/
        anr_config.anr_enable = apc_switch.anr_enable;
        anr_config.user_mode = 1;
        anr_config.anr_filter_mode = 0;
        memcpy(anr_config.anr_intensity_band, intensity_band, 6*sizeof(int));
        memcpy(anr_config.anr_intensity, intensity, 7*sizeof(int));
        anr_config.anr_smooth_level = 10;
        anr_config.anr_converge_speed = 2;
        /******EQ Config********/
        eq_config.eq_enable =apc_switch.eq_enable;
        eq_config.user_mode = 1;
        memcpy(eq_config.eq_gain_db, eq_table,_EQ_BAND_NUM*sizeof(short));
        /******HPF Config********/
        hpf_config.hpf_enable = apc_switch.eq_enable;
        hpf_config.user_mode =1;
        hpf_config.cutoff_frequency = AUDIO_HPF_FREQ_150;
        /******AGC Config********/
        agc_config.agc_enable = apc_switch.agc_enable;
        agc_config.user_mode = 1;
        agc_config.gain_info.gain_max  = 40;
        agc_config.gain_info.gain_min  = -10;
        agc_config.gain_info.gain_init = 12;
        agc_config.drop_gain_max = 36;
        agc_config.gain_step = 1;
        agc_config.attack_time = 1;
        agc_config.release_time = 1;
        agc_config.noise_gate_db = -80;
        memcpy(agc_config.compression_ratio_input, compression_ratio_input,_AGC_CR_NUM*sizeof(short));
        memcpy(agc_config.compression_ratio_output, compression_ratio_output,_AGC_CR_NUM*sizeof(short));
        agc_config.noise_gate_attenuation_db = 0;
        agc_config.drop_gain_threshold = -5;

        if(IaaApc_Config(handle,&anr_config,&eq_config,&hpf_config,NULL,NULL,&agc_config) != -0){
            printf("IaaApc_Config() error.\t\n");
            return -1;
        }
        else{
            printf("IaaApc_Config() succeed.\t\n");
        }

        // IaaApc_EnableComfortNoise(handle, 1, -50);

    #if USE_JSON
        if(apc_switch.anr_enable && use_anr_intl_json){
            if(IaaApc_NrReadJson(handle, anr_intl_json_buf_ptr, anr_intl_json_file, anr_intl_buffersize) != 0){
                printf("IaaApc_NrReadJson() error.\t\n");
                return -1;
            }
            else{
                printf("IaaApc_NrReadJson() succeed.\t\n");
            }
        }
    #endif

    #if USE_JSON
        if(use_apc_intl_json){
            if(IaaApc_ReadJson(handle, apc_intl_json_buf_ptr, apc_intl_json_file, apc_intl_buffersize) != 0){
                printf("IaaApc_ReadJson() error.\t\n");
                return -1;
            }
            else{
                printf("IaaApc_ReadJson() succeed.\t\n");
            }
        }
    #endif

    #if FILTER_ENABLE
        float h[512];
        //filter 1
        AudioFilterConfig filter_design;
        filter_design.q_factor = 5;
        filter_design.f0 = 1000;
        filter_design.type = EQ_NOTCH_FILTER;
        filter_design.gain = -10;
        //filter 2
        AudioFilterConfig filter_design2;
        filter_design2.q_factor = 5;
        filter_design2.f0 = 5000;
        filter_design2.type = EQ_NOTCH_FILTER;
        filter_design2.gain = -10;
        //filter 3
        AudioFilterConfig filter_design3;
        filter_design3.q_factor = 5;
        filter_design3.f0 = 500;
        filter_design3.type = EQ_NOTCH_FILTER;
        filter_design3.gain = -10;

        if(IaaApc_FilterDesign(handle, 1, &filter_design) != 0){
            printf("IaaEq_FilterDesign() error.\t\n");
            return -1;
        }
        if(IaaApc_FilterDesign(handle, 2, &filter_design2) != 0){
            printf("IaaEq_FilterDesign() error.\t\n");
            return -1;
        }
        if(IaaApc_FilterDesign(handle, 3, &filter_design3) != 0){
            printf("IaaEq_FilterDesign() error.\t\n");
            return -1;
        }
        IaaApc_FilterFreqz(handle,h);
    #endif


    #if FREQ_AGC_ENABEL
        if(agc_config.user_mode == 2){
            IaaApc_SetAgcFreqBand(handle, freqBand);
            IaaApc_SetLowFreqCompressionRatioCurve(handle, compressionRatioArrayLowInput, compressionRatioArrayLowOutput);
            IaaApc_SetMidFreqCompressionRatioCurve(handle, compressionRatioArrayMidInput, compressionRatioArrayMidOutput);
            IaaApc_SetHighFreqCompressionRatioCurve(handle, compressionRatioArrayHighInput, compressionRatioArrayHighOutput);
        }
    #endif

        AudioProcessInit apc_init_cpy;
        AudioAnrConfig anr_config_cpy;
        AudioEqConfig eq_config_cpy;
        AudioHpfConfig hpf_config_cpy;
        AudioAgcConfig agc_config_cpy;
        memset(&apc_init_cpy,0,sizeof(AudioProcessInit));
        memset(&anr_config_cpy,0,sizeof(AudioAnrConfig));
        memset(&eq_config_cpy,0,sizeof(AudioEqConfig));
        memset(&hpf_config_cpy,0,sizeof(AudioHpfConfig));
        memset(&agc_config_cpy,0,sizeof(AudioAgcConfig));
        if(IaaApc_GetConfig(handle, &apc_init_cpy, &anr_config_cpy, &eq_config_cpy, &hpf_config_cpy, NULL, NULL, &agc_config_cpy) != ALGO_APC_RET_SUCCESS){
            printf("IaaApc_GetConfig() error.\t\n");
            return -1;
        }
        else{
            printf("IaaApc_GetConfig() succeed.\t\n");
        }
        sprintf(input_file,"%s","./../sample/data/APC_AFE_16K.wav");
        sprintf(output_file,"%s","./../sample/data/APC_out_16K.wav");

        fin = fopen(input_file, "rb");
        if(!fin)
        {
            printf("the input file %s could not be open\n",input_file);
            return -1;
        }

        fout = fopen(output_file, "wb");
        if(!fout)
        {
            printf("the output file could not be open\n");
            return -1;
        }

        fread(input, sizeof(char), 44, fin); // read header 44 bytes
        fwrite(input, sizeof(char),44, fout); // write 44 bytes output

        while(fread(input, sizeof(short), apc_init.point_number*apc_init.channel, fin))
        {

            counter++;
            T0  = (long)_OsCounterGetMs();
            ret1 = IaaApc_Run(handle,input);
    #if FILTER_ENABLE
            ret1 += IaaApc_FilterApply(handle, input);
    #endif
            T1  = (long)_OsCounterGetMs();
            avg += (T1 - T0);
            if(peak < (T1 - T0))
                peak = (T1 - T0);

            if(counter%1000== 999)
            {
                printf("counter = %d\n", counter);
                printf("current time = %f\n", (float)counter*PN/apc_init.sample_rate);
                printf("process time = %lu(ms)\t",(long)(T1 - T0));
            }

            if(ret1 != 0)
            {
                printf("Error occured in APC\n");
                break;
            }

            fwrite(input, sizeof(short), apc_init.point_number*apc_init.channel, fout);
        }
        avg /= counter;
        printf("AVG is %.2f ms\n",avg);
        printf("PEAK is %.2f ms\n",peak);
        IaaApc_Free(handle);
        free(working_buf_ptr);
        fclose(fin);
        fclose(fout);

        printf("Done\n");
    return 0;
    }

Use the APC API to read parameters from the APC JSON file, obtain the memory size required for APC algorithm execution, initialize the APC algorithm handle, configure parameters to the handle, execute the APC algorithm, and release the APC algorithm resources.

    #include <stdio.h>
    #include <unistd.h>
    #include <fcntl.h>
    #include <string.h>
    #include <time.h>
    #include <stdlib.h>
    #ifndef OS_WINDOWS
    #include <sys/ioctl.h>
    #endif
    #include <sys/types.h>
    #include <sys/stat.h>
    #include <sys/time.h>

    #include "AudioProcess.h"

    #if (ANR_IPU_ENABLE)
    #include "mi_sys.h"
    #endif

    #define USE_MALLOC               (1)
    #define USE_JSON                 (1)
    #define FILTER_ENABLE            (0)
    #define FREQ_AGC_ENABEL          (0)
    #define DIGITAL_GAIN_ENABLE      (0)

    unsigned int WorkingBuffer2[1] = {0};

    typedef unsigned char                uint8;
    typedef unsigned short               uint16;
    typedef unsigned long                uint32;

    float AVERAGE_RUN(int a)
    {
        static unsigned int num = 0;
        static float avg = 0;
        if(num == 0) avg = 0;
        num++;
        avg = avg + ((float)a - avg) / ((float)num);
        return avg;
    }
    unsigned int _OsCounterGetMs(void)
    {
        struct  timeval t1;
        gettimeofday(&t1,NULL);
        unsigned int T = ( (1000000 * t1.tv_sec)+ t1.tv_usec )/1000;
        return T;
    }

    int main(int argc, char *argv[])
    {
    #if (ANR_IPU_ENABLE)
        MI_SYS_Init(0);
    #endif
        short input[1024];
        unsigned int T0, T1;
        float avg = 0;
        float peak = 0;
        char input_file[512];
        char output_file[512];
        int counter=0;
    #if FREQ_AGC_ENABEL
        int freqBand[_AGC_FREQ_BAND_NUM];
        int compressionRatioArrayLowInput[_AGC_CR_NUM];
        int compressionRatioArrayLowOutput[_AGC_CR_NUM];
        int compressionRatioArrayMidInput[_AGC_CR_NUM];
        int compressionRatioArrayMidOutput[_AGC_CR_NUM];
        int compressionRatioArrayHighInput[_AGC_CR_NUM];
        int compressionRatioArrayHighOutput[_AGC_CR_NUM];
    #endif

        AudioApcBufferConfig apc_switch;
        memset(&apc_switch,0,sizeof(AudioApcBufferConfig));
    #if USE_JSON
        unsigned int use_apc_param_json = 1;
        char apc_para_json_file[512];
        sprintf(apc_para_json_file,"%s","./../sample/data/ApcParamJson.json");
        int apc_para_buffersize = IaaApc_GetJsonFileSize(apc_para_json_file);
        if(apc_para_buffersize == 0){
            printf("IaaApc_GetJsonFileSize() error. Can not load json file [%s]\t\n", apc_para_json_file);
            use_apc_param_json = 0;
        }
        else{
            printf("IaaApc_GetJsonFileSize() succeed.\t\n");
        }
    #if USE_MALLOC
        char *apc_para_json_buf_ptr = (char*)malloc(apc_para_buffersize);
    #else
        char apc_para_json_buf_ptr[512*1000];
    #endif
        if(use_apc_param_json){
            if(IaaApc_SwitchReadFromJson(&apc_switch, apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0){
                printf("IaaApc_SwitchReadFromJson() error.\t\n");
                return -1;
            }
            else{
                printf("IaaApc_SwitchReadFromJson() succeed.\t\n");
            }
        }
    #endif

        int buffersize = IaaApc_GetBufferSize(&apc_switch);
        if(buffersize == 0){
            printf("IaaApc_GetBufferSize() error.\t\n");
            return -1;
        }
        else{
            printf("IaaApc_GetBufferSize() succeed.\t\n");
        }
    #if USE_MALLOC
        char *working_buf_ptr = (char*)malloc(buffersize);
    #else
        char working_buf_ptr[512*1000];
    #endif

    #if USE_JSON
        unsigned int use_anr_intl_json = 1;
        char anr_intl_json_file[512];
        sprintf(anr_intl_json_file,"%s","./../sample/data/AnrInternalJson.json");
        int anr_intl_buffersize = IaaApc_GetJsonFileSize(anr_intl_json_file);
        if(anr_intl_buffersize == 0){
            printf("IaaApc_GetJsonFileSize() error. Can not load json file [%s]\t\n", anr_intl_json_file);
            use_anr_intl_json = 0;
        }
        else{
            printf("IaaApc_GetJsonFileSize() succeed.\t\n");
        }
    #if USE_MALLOC
        char *anr_intl_json_buf_ptr = (char*)malloc(anr_intl_buffersize);
    #else
        char anr_intl_json_buf_ptr[512*1000];
    #endif
    #endif

    #if USE_JSON
        unsigned int use_apc_intl_json = 1;
        char apc_intl_json_file[512];
        sprintf(apc_intl_json_file,"%s","./../sample/data/ApcInternalJson.json");
        int apc_intl_buffersize = IaaApc_GetJsonFileSize(apc_intl_json_file);
        if(apc_intl_buffersize == 0){
            printf("IaaApc_GetJsonFileSize() error. Can not load json file [%s]\t\n", apc_intl_json_file);
            use_apc_intl_json = 0;
        }
        else{
            printf("IaaApc_GetJsonFileSize() succeed.\t\n");
        }
    #if USE_MALLOC
        char *apc_intl_json_buf_ptr = (char*)malloc(apc_intl_buffersize);
    #else
        char apc_intl_json_buf_ptr[512*1000];
    #endif
    #endif

        FILE * fin, * fout;
        int ret1;
        AudioProcessInit apc_init;
        AudioAnrConfig anr_config;
        AudioEqConfig eq_config;
        AudioHpfConfig hpf_config;
        AudioAgcConfig agc_config;
        AudioApcOption apc_option;
        memset(&apc_init,0,sizeof(AudioProcessInit));
        memset(&anr_config,0,sizeof(AudioAnrConfig));
        memset(&eq_config,0,sizeof(AudioEqConfig));
        memset(&hpf_config,0,sizeof(AudioHpfConfig));
        memset(&agc_config,0,sizeof(AudioAgcConfig));
        memset(&apc_option,0,sizeof(AudioApcOption));
        APC_HANDLE handle;

    #if USE_JSON
        if(use_apc_param_json){
            if(IaaApc_InitReadFromJson(&apc_init, apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0){
                printf("IaaApc_InitReadFromJson() error.\t\n");
                return -1;
            }
            else{
                printf("IaaApc_InitReadFromJson() succeed.\t\n");
            }
        }
    #endif
        handle = IaaApc_Init((char *)working_buf_ptr, &apc_init, &apc_switch);
        if(handle==NULL){
            printf("IaaApc_Init() error.\t\n");
            return -1;
        }
        else{
            printf("IaaApc_Init() succeed.\t\n");
        }

    #if USE_JSON
        if(use_apc_param_json){
            if(IaaApc_ConfigReadFromJson(&anr_config, &eq_config, &hpf_config, &agc_config, apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0){
                printf("IaaApc_ConfigReadFromJson() error.\t\n");
                return -1;
            }
            else{
                printf("IaaApc_ConfigReadFromJson() succeed.\t\n");
            }
        }
    #endif
        if(IaaApc_Config(handle,&anr_config,&eq_config,&hpf_config,NULL,NULL,&agc_config) != -0){
            printf("IaaApc_Config() error.\t\n");
            return -1;
        }
        else{
            printf("IaaApc_Config() succeed.\t\n");
        }

    #if USE_JSON
        if(apc_switch.anr_enable && use_anr_intl_json){
            if(IaaApc_NrReadJson(handle, anr_intl_json_buf_ptr, anr_intl_json_file, anr_intl_buffersize) != 0){
                printf("IaaApc_NrReadJson() error.\t\n");
                return -1;
            }
            else{
                printf("IaaApc_NrReadJson() succeed.\t\n");
            }
        }
    #endif

    #if USE_JSON
        if(use_apc_intl_json){
            if(IaaApc_ReadJson(handle, apc_intl_json_buf_ptr, apc_intl_json_file, apc_intl_buffersize) != 0){
                printf("IaaApc_ReadJson() error.\t\n");
                return -1;
            }
            else{
                printf("IaaApc_ReadJson() succeed.\t\n");
            }
        }
    #endif

    #if FILTER_ENABLE
        float h[512];
    #if USE_JSON
        if(use_apc_param_json){
            if(IaaApc_FilterDesignReadFromJson(handle, apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0){
                printf("IaaEq_FilterDesignReadFromJson() error.\t\n");
                return -1;
            }
            else{
                printf("IaaEq_FilterDesignReadFromJson() succeed.\t\n");
            }
        }
    #endif
        IaaApc_FilterFreqz(handle,h);
    #endif


    #if FREQ_AGC_ENABEL
        if(agc_config.user_mode == 2){
    #if USE_JSON
            if(use_apc_param_json){
                if(IaaApc_SetAgcReadFromJson(&freqBand[0], &compressionRatioArrayLowInput[0], &compressionRatioArrayLowOutput[0],
                            &compressionRatioArrayMidInput[0], &compressionRatioArrayMidOutput[0],
                            &compressionRatioArrayHighInput[0], &compressionRatioArrayHighOutput[0],
                            apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0 ){
                    printf("IaaAgc_SetAgcReadFromJson() error.\t\n");
                    return -1;
                }
                else{
                    printf("IaaAgc_SetAgcReadFromJson() succeed.\t\n");
                }
            }
    #endif
            IaaApc_SetAgcFreqBand(handle, freqBand);
            IaaApc_SetLowFreqCompressionRatioCurve(handle, compressionRatioArrayLowInput, compressionRatioArrayLowOutput);
            IaaApc_SetMidFreqCompressionRatioCurve(handle, compressionRatioArrayMidInput, compressionRatioArrayMidOutput);
            IaaApc_SetHighFreqCompressionRatioCurve(handle, compressionRatioArrayHighInput, compressionRatioArrayHighOutput);
        }
    #endif

    #if DIGITAL_GAIN_ENABLE
    #if USE_JSON
        if(use_apc_param_json){
            if(IaaApc_OptionReadFromJson(&apc_option, apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0){
                printf("IaaApc_OptionReadFromJson() error.\t\n");
                return -1;
            }
            else{
                printf("IaaApc_OptionReadFromJson() succeed.\t\n");
            }
        }
    #endif
    #endif

        sprintf(input_file,"%s","./../sample/data/APC_AFE_16K.wav");
        sprintf(output_file,"%s","./../sample/data/APC_out_16K.wav");

        fin = fopen(input_file, "rb");
        if(!fin)
        {
            printf("the input file %s could not be open\n",input_file);
            return -1;
        }

        fout = fopen(output_file, "wb");
        if(!fout)
        {
            printf("the output file could not be open\n");
            return -1;
        }

        fread(input, sizeof(char), 44, fin); // read header 44 bytes
        fwrite(input, sizeof(char),44, fout); // write 44 bytes output

        while(fread(input, sizeof(short), apc_init.point_number*apc_init.channel, fin))
        {

            counter++;
            T0  = (long)_OsCounterGetMs();
    #if DIGITAL_GAIN_ENABLE
            ret1 = IaaApc_ApplyDigitalGain(handle,input,apc_option.digital_gain[0]);
    #endif
            ret1 = IaaApc_Run(handle,input);
    #if FILTER_ENABLE
            ret1 += IaaApc_FilterApply(handle, input);
    #endif

    #if DIGITAL_GAIN_ENABLE
            ret1 += IaaApc_ApplyDigitalGain(handle,input,apc_option.digital_gain[1]);
    #endif

            T1  = (long)_OsCounterGetMs();
            avg += (T1 - T0);
            if(peak < (T1 - T0))
                peak = (T1 - T0);

            if(counter%1000== 999)
            {
                printf("counter = %d\n", counter);
                printf("current time = %f\n", (float)counter*apc_init.point_number/apc_init.sample_rate);
                printf("process time = %lu(ms)\t",(long)(T1 - T0));
            }

            if(ret1 != 0)
            {
                printf("Error occured in APC\n");
                break;
            }

            fwrite(input, sizeof(short), apc_init.point_number*apc_init.channel, fout);
        }
        avg /= counter;
        printf("AVG is %.2f ms\n",avg);
        printf("PEAK is %.2f ms\n",peak);
        IaaApc_Free(handle);
        free(working_buf_ptr);
        fclose(fin);
        fclose(fout);
    #if (ANR_IPU_ENABLE)
        MI_SYS_Exit(0);
    #endif
        printf("Done\n");
    return 0;
    }

---

2. API REFERENCE

---

2.1. API List

API name	Features
IaaApc_GetBufferSize	Get the memory size required for Apc algorithm running
IaaApc_Init	Initialize the Apc algorithm
IaaApc_Config	Configure the Apc algorithm
IaaApc_SetLowFreqCompressionRatioCurve	Set Agc in Apc compression ratio by bin(low frequency)
IaaApc_SetMidFreqCompressionRatioCurve	Set Agc in Apc compression ratio by bin(Mid frequency)
IaaApc_SetHighFreqCompressionRatioCurve	Set Agc in Apc compression ratio by bin(High frequency)
IaaApc_SetAgcFreqBand	Set Agc in Apc frequency band
IaaApc_GetNrResult	Get Anr output
IaaApc_GetNrEqResult	Get Anr and Eq output
IaaApc_GetVadOut	Get the speech probability of Anr in the Apc algorithm
IaaApc_Run	Apc algorithm run
IaaApc_Free	Release Apc algorithm resources
IaaApc_Reset	Reinitialize the Apc algorithm
IaaApc_GetConfig	Get the Apc algorithm current configuration parameters
IaaApc_ApplyDigitalGain	Apply digital gain on input data
IaaAnr_GetBufferSize	Get the memory size required for Anr algorithm running
IaaAnr_Init	Initialize the Anr algorithm
IaaAnr_Config	Configure the Anr algorithm
IaaAnr_Run	Anr algorithm processing
IaaAnr_Free	Release Anr algorithm resources
IaaAnr_Reset	Reinitialize the Anr algorithm
IaaAnr_GetConfig	Get the Anr algorithm current configuration parameters
IaaEq_GetBufferSize	Get the memory size required for Eq algorithm running
IaaEq_Init	Initialize the Eq algorithm
IaaEq_Config	Configure the Eq algorithm
IaaEq_Run	Eq algorithm processing
IaaEq_Free	Release Eq algorithm resources
IaaEq_Reset	Reinitialize the Eq algorithm
IaaEq_GetConfig	Get the Eq algorithm current configuration parameters
IaaAgc_GetBufferSize	Get the memory size required for Agc algorithm running
IaaAgc_Init	Initialize the Agc algorithm
IaaAgc_Config	Configure the Agc algorithm
IaaAgc_SetLowFreqCompressionRatioCurve	Set Agc compression ratio by bin(low frequency)
IaaAgc_SetMidFreqCompressionRatioCurve	Set Agc compression ratio by bin(Mid frequency)
IaaAgc_SetHighFreqCompressionRatioCurve	Set Agc compression ratio by bin(High frequency)
IaaAgc_SetAgcFreqBand	Set Agc frequency band
IaaAgc_Run	Agc algorithm processing
IaaAgc_Free	Release Agc algorithm resources
IaaAgc_Reset	Reinitialize the Eq algorithm
IaaAgc_GetConfig	Get the Agc algorithm current configuration parameters
IaaApc_SetCompressionRatioCurve	Set Agc in Apc compression ratio curve for more slope segment
IaaAgc_SetCompressionRatioCurve	Set Agc compression ratio curve for more slope segment
IaaApc_NrEstimateReferAec	Noise estimation refer to Aec linear process output
IaaApc_EnhanceNNBFMode	Special enhancement for concatenating Bf mode 3 and Apc deep learning based noise reduction
IaaApc_FilterDesign	Initialized IIR filter configuration
IaaApc_FilterApply	IIR filter apply
IaaEq_FilterDesign	Initialized IIR filter configuration
IaaEq_FilterApply	IIR filter apply
IaaAnr_EnhanceNNBFMode	Special enhancement for concatenating Bf mode 3 and Anr deep learning based noise reduction
IaaApc_GetAPIVersion	Get Apc API version
IaaApc_SetHandleId	Set Apc Handle Id
IaaAnr_SetHandleId	Set Anr Handle Id
IaaEq_SetHandleId	Set Eq Handle Id
IaaAgc_SetHandleId	Set Agc Handle Id
IaaApc_GetJsonFileSize	Apc get size of json file
IaaApc_NrReadJson	Set json parameter into Apc Handle
IaaAnr_GetJsonFileSize	Anr get size of json file
IaaAnr_NrReadJson	Set json parameter into Anr Handle
IaaApc_EnableComfortNoise	Enable comfort noise algorithm and set power of comfort noise into Apc Handle
IaaAnr_EnableComfortNoise	Enable comfort noise algorithm and set power of comfort noise into Anr Handle
IaaEq_EnableComfortNoise	Enable comfort noise algorithm and set power of comfort noise into Eq Handle
IaaAgc_EnableComfortNoise	Enable comfort noise algorithm and set power of comfort noise into Agc Handle
IaaApc_EnableAutoSmooth	Enable automatic smooth algorithm into Apc handle
IaaAnr_EnableAutoSmooth	Enable automatic smooth algorithm into Anr handle
IaaApc_ApplyComfortNoise	Specified power comfort noise mixture
IaaApc_SwitchReadFromJson	Configure Json parameters to enable setting structure handle of Apc algorithm
IaaApc_InitReadFromJson	Configure Json parameters to initialize structure handle of the Apc algorithm
IaaApc_ConfigReadFromJson	Configure Json parameters to the structure handle of the Apc algorithm
IaaApc_SetAgcReadFromJson	Configure Json parameters to Agc band array
IaaApc_FilterDesignReadFromJson	Configure Json parameters to the Eq filter structure handle of the Apc algorithm
IaaAnr_InitReadFromJson	Configure Json parameters to the initialize structure handle of the Anr algorithm
IaaAnr_ConfigReadFromJson	Configure Json parameters to the structure handle of the Anr algorithm
IaaEq_GetJsonFileSize	Get the memory size to parse the content of the Json file required by Eq
IaaEq_InitReadFromJson	Configure Json parameters to initialize structure handle of the Eq algorithm
IaaEq_ConfigReadFromJson	Configure Json parameters to the structure handle of the Eq algorithm
IaaEq_FilterDesignReadFromJson	Configure Json parameters to the filter structure handle of the Eq algorithm
IaaAgc_GetJsonFileSize	Get the memory size to parse the content of the Json file required by Agc
IaaAgc_InitReadFromJson	Configure Json parameters to initialize structure handle of the Agc algorithm
IaaAgc_ConfigReadFromJson	Configure Json parameters to the structure handle of the Agc algorithm
IaaAgc_SetAgcReadFromJson	Configure Json parameters to Agc band array
IaaAnr_NrEstimateReferAec	Refer to the Aec linear processing results for noise reduction processing to avoid Anr convergence anomalies caused by nonlinear Aec
IaaApc_FilterFreqz	Get the result of superimposing the frequency response of several filters after configuring IaaApc_FilterDesign
IaaEq_FilterFreqz	Get the result of superimposing the frequency response of several filters after configuring IaaEq_FilterDesign
IaaApc_OptionReadFromJson	Configure Json parameters to optional structure
IaaApc_ReadJson	Configure Json parameters to Apc common setting
IaaEq_ReadJson	Configure Json parameters to Eq common setting
IaaAgc_ReadJson	Configure Json parameters to Agc common setting

---

2.2. IaaApc_GetBufferSize

• Features

  Get the memory size required for Apc algorithm running.

• Syntax

  unsigned int IaaApc_GetBufferSize(AudioApcBufferConfig *apc_switch);


• Parameters

  Parameter name	Description	Input/Output
  apc_switch	Structure pointer for configure the Apc algorithm to enable	Input

• Return value

  Return value is the memory size required for Apc algorithm running.

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  This interface only returns the memory size required to handle applications that request and release memory.

• Example

  Please refer to IaaApc_Run example.

---

2.3. IaaApc_Init

• Features

  Initialize the Apc algorithm .

• Syntax

  APC_HANDLE IaaApc_Init(char* const working_buffer_address,AudioProcessInit *audio_process_init, AudioApcBufferConfig *apc_switch);


• Parameters

  Parameter name	Description	Input/Output
  working_buffer_address	Apc algorithm memory address	Input
  audio_process_init	Apc algorithm initialization structure pointer	Input
  apc_switch	Apc algorithm enable structure pointer	Input

• Return value

  Return value	Result
  Not NULL	Successful
  NULL	Failed

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • In the Apc algorithm, Anr/Agc/Eq/Hpf supports 8K/16K/32K/48K sampling rate.

• Example

  Please refer to IaaApc_Run example.

---

2.4. IaaApc_Config

• Features

  Configure the Apc algorithm.

• Syntax

  ALGO_APC_RET IaaApc_Config(APC_HANDLE handle,
                      AudioAnrConfig *anr_config,
                      AudioEqConfig *eq_config,
                      AudioHpfConfig *hpf_config,
                      AudioVadConfig *vad_config,
                      AudioDereverbConfig *dereverb_config,
                      AudioAgcConfig *agc_config);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  anr_config	Configure Anr algorithm structure pointer	Input
  eq_config	Configure Eq algorithm structure pointer	Input
  hpf_config	Configure Hpf algorithm structure pointer	Input
  vad_config	Configure Vad algorithm structure pointer(stop using)	Input
  dereverb_config	Configure Dereverb algorithm structure pointer (stop using)	Input
  agc_config	Configure Agc algorithm structure pointer	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaApc_Run example.

---

2.5. IaaApc_SetLowFreqCompressionRatioCurve

• Features

  Set Agc in Apc compression ratio by bin (low frequency).

  Please set agc user_mode 2 to enable frequency domain Agc before calling this function.

• Syntax

  ALGO_APC_RET IaaApc_SetLowFreqCompressionRatioCurve(APC_HANDLE handle,
                      int* CompressRatioInput, int* CompressRatioOutput);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
  CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaApc_Run example.

---

2.6. IaaApc_SetMidFreqCompressionRatioCurve

• Features

  Set Agc in Apc compression ratio by bin (Mid frequency).

  Please set agc user_mode 2 to enable frequency domain Agc before calling this function.

• Syntax

  ALGO_APC_RET IaaApc_SetMidFreqCompressionRatioCurve(APC_HANDLE handle,
                      int* CompressRatioInput, int* CompressRatioOutput);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
  CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaApc_Run example.

---

2.7. IaaApc_SetHighFreqCompressionRatioCurve

• Features

  Set Agc in Apc compression ratio by bin (High frequency).

  Please set agc user_mode 2 to enable frequency domain Agc before calling this function.

• Syntax

  ALGO_APC_RET IaaApc_SetHighFreqCompressionRatioCurve(APC_HANDLE handle,
                      int* CompressRatioInput, int* CompressRatioOutput);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
  CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaApc_Run example.

---

2.8. IaaApc_SetAgcFreqBand

• Features

  Set Agc in Apc frequency band.

  Please set agc user_mode 2 to enable frequency domain Agc before calling this function.

• Syntax

  ALGO_APC_RET IaaApc_ SetAgcFreqBand(APC_HANDLE handle,
                          int* frequency_band);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  Frequency_band	Frequency band setting array. It involve low frequency upper limit, middle frequency upper limit and high frequency upper limit. For example: When the sampling rate is 16K, setting frequency band as {3000,4000,8000} Then the low frequency band is range from 0 to 3000Hz, middle frequency band is range from 3000 to 4000Hz, high frequency band is range from 4000 to 8000Hz. Please double check that the highest frequency can't exceed the half of sampling rate.	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaApc_Run example.

---

2.9. IaaApc_GetNrResult

• Features

  Get the Apc algorithm Anr processing result.

• Syntax

  ALGO_APC_RET IaaApc_GetNrResult(APC_HANDLE handle, short*
  nr_audio_out);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  nr_audio_out	Anr handles Output data pointer	Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • Anr in the Apc algorithm must be enabled before calling the interface to obtain data.

• Example

  Please refer to IaaApc_Run example.

---

2.10. IaaApc_GetNrEqResult

• Features

  Get the processing result of Anr and Eq in the Apc algorithm

• Syntax

  ALGO_APC_RET IaaApc_GetNrEqResult(APC_HANDLE handle,short*
  nr_eq_audio_out);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  nr_eq_audio_out	Anr and Eq handle output data pointer	Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • Enable Anr and Eq in the Apc algorithm before calling this interface to obtain data.

• Example

  Please refer to IaaApc_Run example.

---

2.11. IaaApc_GetVadOut

• Features

  Get the probability calculated by Anr that the current input signal is speech in the Apc algorithm.

• Syntax

  ALGO_APC_RET IaaApc_GetVadOut(APC_HANDLE handle, int* speech_probability);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  Speech_prob	Anr handle output speech probability pointer	Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • Enable Anr in the Apc algorithm before calling this interface to obtain data.

  • speech_probability is the probability that the input signal pss_audio_in (the input signal size is 256 bytes) in calling IaaApc_Run is the speech.

• Example

  Please refer to IaaApc_Run example.

---

2.12. IaaApc_Run

• Features

  Apc algorithm processing.

• Syntax

  ALGO_APC_RET IaaApc_Run(APC_HANDLE handle,short* pss_audio_in);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  pss_audio_in	Input data pointer	Input/Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • The data length must correspond to the point_number (sampling points required for one IaaApc_Run) set when calling IaaApc_Init. The processed data will be written back to the memory pointed to by pss_audio_in.

• Example

  • Please refer to the Example Introduction

---

2.13. IaaApc_Free

• Features

  Release Apc algorithm resources

• Syntax

  ALGO_APC_RET IaaApc_Free(APC_HANDLE handle);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  None.

• Example

  Please refer to IaaApc_Run example.

---

2.14. IaaApc_Reset

• Features

  Reinitialize the Apc algorithm.

• Syntax

  APC_HANDLE IaaApc_Reset(char* working_buffer_address,AudioProcessInit *audio_process_init, AudioApcBufferConfig *apc_switch);


• Parameters

  Parameter name	Description	Input/Output
  working_buffer_address	Memory address used by Apc algorithm	Input
  audio_process_init	Apc algorithm initialization structure pointer	Input
  apc_switch	Structure pointer for configure the Apc algorithm to enable	Input

• Return value

  Return value	Result
  Not NULL	Successful
  NULL	Failed

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  When the Apc algorithm is reinitialized and the function options are different from previous, we need to release the memory used by the original algorithm, call IaaApc_GetBufferSize again to get the memory size required by the current function options, and reapply for the corresponding size of memory for the Apc algorithm.

• Example

  None.

---

2.15. IaaApc_GetConfig

• Features

  Get the Apc algorithm current configuration parameters.

• Syntax

  ALGO_APC_RET IaaApc_GetConfig(APC_HANDLE handle,
                      AudioProcessInit *audio_process_init,
                      AudioAnrConfig *anr_config,
                      AudioEqConfig *eq_config,
                      AudioHpfConfig *hpf_config,
                      AudioVadConfig *vad_config,
                      AudioDereverbConfig *dereverb_config,
                      AudioAgcConfig *agc_config);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  audio_process_init	Apc algorithm initialization structure pointer	Output
  anr_config	The current Anr configuration parameters in the Apc algorithm	Output
  eq_config	The current Eq configuration parameters in the Apc algorithm	Output
  hpf_config	The current Hpf configuration parameters in the Apc algorithm	Output
  vad_config	The current Vad configuration parameters in the Apc algorithm(stop using)	Output
  dereverb_config	The current Dereverb configuration parameters in the Apc algorithm(stop using)	Output
  agc_config	The current Agc configuration parameters in the Apc algorithm	Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  None.

• Example

  Please refer to IaaApc_Run example.

---

2.16. IaaApc_ApplyDigitalGain

• Features

  Apply digital gain on input data.

• Syntax

  ALGO_APC_RET IaaApc_ApplyDigitalGain(APC_HANDLE handle,
  short* pss_audio_in, float gain_value);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc handle	Input
  pss_audio_in	Input data pointer	Input/Output
  gain_value	Gain value range: [-120,120]	input

• Return value

  Return value	Result
  Not NULL	Successful
  NULL	Failed

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.17. IaaAnr_GetBufferSize

• Features

  Get the memory size required for Anr algorithm running.

• Syntax

  unsigned int IaaAnr_GetBufferSize(void);


• Return value

  Return value is the memory size required for Anr algorithm running.

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  This interface only returns the memory size required to handle applications that request and release memory.

• Example

  Please refer to IaaAnr_Run example.

---

2.18. IaaAnr_Init

• Features

  Initialize the Anr algorithm.

• Syntax

  ANR_HANDLE IaaAnr_Init(char* working_buffer_address, AudioProcessInit *anr_init);


• Parameters

  Parameter name	Description	Input/Output
  working_buffer_address	Anr algorithm memory address	Input
  anr_init	Anr algorithm initialization structure pointer	Input

• Return value

  Return value	Result
  Not NULL	Successful
  NULL	Failed

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • Anr algorithm supports 8K/16K/32K/48K sampling rate.

• Example

  Please refer to IaaAnr_Run example.

---

2.19. IaaAnr_Config

• Features

  Configure the Anr algorithm.

• Syntax

  ALGO_ANR_RET IaaAnr_Config(ANR_HANDLE handle, AudioAnrConfig *anr_config);


• Parameters

  Parameter name	Description	Input/Output
  handle	Anr algorithm handle	Input
  anr_config	Configure Anr algorithm structure pointer	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaAnr_Run example.

---

2.20. IaaAnr_Run

• Features

  Anr algorithm processing.

• Syntax

  ALGO_ANR_RET IaaAnr_Run(ANR_HANDLE handle, short* pss_audio_in);


• Parameters

  Parameter name	Description	Input/Output
  handle	Anr algorithm handle	Input
  pss_audio_in	Input data pointer	Input/Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • The data length must correspond to the point_number (sampling points required for one IaaAnr_Run) set when calling IaaAnr_Init. The processed data will be written back to the memory pointed to by pss_audio_in.

• Example

  #include <stdio.h>
  #include <string.h>
  #include <stdlib.h>
  #include <sys/time.h>

  #include "AudioProcess.h"

  /*  0:Fixed input file  1:User input file   */
  #define IN_PARAMETER 1

  int main(int argc, char *argv[])
  {
      short in_output[1024];
      unsigned int workingBufferSize;
      char *workingBuffer = NULL;
      ANR_HANDLE handle;
      AudioProcessInit anr_init, anr_get_init;
      AudioAnrConfig anr_config, anr_get_config;
      ALGO_APC_RET ret;
      int tempSize;
      FILE* fpIn;  //input file
      FILE* fpOut; //output file
      char src_file[128] = {0};
      char dst_file[128] = {0};
      /*********************User change section start*******************/
      int intensity_band[6] = {3,24,40,64,80,128};
      int intensity[7] = {30,30,30,30,30,30,30};
      anr_init.point_number = 128;
      anr_init.channel = 1;
      anr_init.sample_rate = IAA_APC_SAMPLE_RATE_16000;

      anr_config.anr_enable = 1;
      anr_config.user_mode = 2;
      anr_config.anr_filter_mode = 4;
      anr_config.anr_smooth_level = 10;
      anr_config.anr_converge_speed = 2;
      /*********************User change section end*******************/
      memcpy(anr_config.anr_intensity_band, intensity_band, sizeof(intensity_band));
      memcpy(anr_config.anr_intensity, intensity, sizeof(intensity));
      //(1)IaaAnr_GetBufferSize
      workingBufferSize = IaaAnr_GetBufferSize();
      workingBuffer = (char *)malloc(workingBufferSize);
      if(NULL == workingBuffer)
      {
          printf("malloc workingBuffer failed !\n");
          return -1;
      }
      printf("malloc workingBuffer succeed !\n");
      //(2)IaaAnr_Init
      handle = IaaAnr_Init(workingBuffer, &anr_init);
      if(NULL == handle)
      {
          printf("IaaAnr_Init failed !\n");
          return -1;
      }
      printf("IaaAnr_Init succeed !\n");
      //(3)IaaAnr_Config
      ret = IaaAnr_Config(handle, &anr_config);
      if(ret)
      {
          printf("IaaAnr_Config failed !\n");
          return -1;
      }
      printf("IaaAnr_Config succeed !\n");
      //(4)IaaAnr_GetConfig
      ret = IaaAnr_GetConfig(handle, &anr_get_init, &anr_get_config);
      if(ret)
      {
          printf("IaaAnr_GetConfig failed !\n");
          return -1;
      }
      printf("IaaAnr_GetConfig succeed !\n");
      printf("anr_get_config.user_mode = %d, ...\n", anr_get_config.user_mode);

  #if IN_PARAMETER
      if(argc < 3)
      {
          printf("Please enter the correct parameters!\n");
          return -1;
      }
      sscanf(argv[1], "%s", src_file);
      sscanf(argv[2], "%s", dst_file);
  #else
      sprintf(src_file, "%s", "./APC_AFE_16K.wav");
      if(argc < 2)
      {
          printf("Please enter the correct parameters!\n");
          return -1;
      }
      sscanf(argv[1], "%s", dst_file);
  #endif

      fpIn = fopen(src_file, "rb");
      if(NULL == fpIn)
      {
          printf("fopen in_file failed !\n");
          return -1;
      }
      printf("fopen in_file success !\n");
      fpOut = fopen(dst_file, "wb");
      if(NULL == fpOut)
      {
          printf("fopen out_file failed !\n");
          return -1;
      }
      printf("fopen out_file success !\n");
  #if 1
      fread(in_output, sizeof(char), 44, fpIn);
      fwrite(in_output, sizeof(char), 44, fpOut);
  #endif
      tempSize = anr_init.point_number * anr_init.channel;
      while(tempSize == fread(in_output, sizeof(short), tempSize, fpIn))
      {
          //(5)IaaAnr_Run
          ret = IaaAnr_Run(handle, in_output);
          if(ret)
          {
              printf("IaaAnr_Run failed !\n");
              return -1;
          }
          fwrite(in_output, sizeof(short), tempSize, fpOut);
      }
      printf("Break:needBytes =%d \t nBytesRead = %d\n", anr_init.point_number * anr_init.channel, tempSize);
      //(6)IaaAnr_Free
      IaaAnr_Free(handle);
      free(workingBuffer);
      fclose(fpIn);
      fclose(fpOut);
      printf("APC_ANR end !\n");

      return 0;
  }


---

2.21. IaaAnr_Free

• Features

  Release Anr algorithm resources.

• Syntax

  ALGO_APC_RET IaaAnr_Free(ANR_HANDLE handle);


• Parameters

  Parameter name	Description	Input/Output
  handle	Anr algorithm handle	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaAnr_Run example.

---

2.22. IaaAnr_Reset

• Features

  Reinitialize the Anr algorithm.

• Syntax

  ANR_HANDLE IaaAnr_Reset(char* working_buffer_address, AudioProcessInit *anr_init);


• Parameters

  Parameter name	Description	Input/Output
  working_buffer_address	Memory address used by Anr algorithm	Input
  anr_init	Anr algorithm initialization structure pointer	Input

• Return value

  Return value	Result
  Not NULL	Successful
  NULL	Failed

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.23. IaaAnr_GetConfig

• Features

  Get the Anr algorithm current configuration parameters.

• Syntax

  ALGO_ANR_RET IaaAnr_GetConfig(ANR_HANDLE handle, AudioProcessInit *anr_init, AudioAnrConfig *anr_config);


• Parameters

  Parameter name	Description	Input/Output
  handle	Anr algorithm handle	Input
  anr_init	Anr algorithm initialization structure pointer	Output
  anr_config	Anr algorithm in the current configuration parameters	Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaAnr_Run example.

---

2.24. IaaEq_GetBufferSize

• Features

  Get the memory size required for Anr algorithm running.

• Syntax

  unsigned int IaaEq_GetBufferSize(void);


• Parameters

  Parameter name	Description	Input/Output

• Return value

  Return value is the memory size required for Eq algorithm running.

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  This interface only returns the memory size required to handle applications that request and release memory.

• Example

  Please refer to IaaEq_Run example.

---

2.25. IaaEq_Init

• Features

  Initialize the Eq algorithm.

• Syntax

  EQ_HANDLE IaaEq_Init(char* working_buffer_address, AudioProcessInit *eq_init);


• Parameters

  Parameter name	Description	Input/Output
  working_buffer_address	Eq algorithm memory address	Input
  eq_init	Eq algorithm initialization structure pointer	Input

• Return value

  Return value	Result
  Not NULL	Successful
  NULL	Failed

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • Eq/Hpf algorithm supports 8K/16K/32K/48K sampling Rate.

• Example

  Please refer to IaaEq_Run example.

---

2.26. IaaEq_Config

• Features

  Configure the Eq algorithm.

• Syntax

  ALGO_EQ_RET IaaEq_Config(EQ_HANDLE handle, AudioHpfConfig *hpf_config, AudioEqConfig *eq_config);


• Parameters

  Parameter name	Description	Input/Output
  handle	Eq algorithm handle	Input
  hpf_config	Configure Hpf algorithm structure pointer	Input
  eq_config	Configure Eq algorithm structure pointer	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  None.

• Example

  Please refer to IaaEq_Run example.

---

2.27. IaaEq_Run

• Features

  Eq algorithm processing.

• Syntax

  ALGO_EQ_RET IaaEq_Run(EQ_HANDLE handle, short* pss_audio_in);


• Parameters

  Parameter name	Description	Input/Output
  handle	Eq algorithm handle	Input
  pss_audio_in	Input data pointer	Input/Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • The data length must correspond to the point_number (sampling points required for one IaaEq_Run set when calling IaaEq_Init. The processed data will be written back to the memory pointed to by pss_audio_in.

• Example

  #include <stdio.h>
  #include <string.h>
  #include <stdlib.h>
  #include <sys/time.h>

  #include "AudioProcess.h"

  /*  0:Fixed input file  1:User input file   */
  #define IN_PARAMETER 1

  int main(int argc, char *argv[])
  {
      short in_output[1024];
      unsigned int workingBufferSize;
      char *workingBuffer = NULL;
      EQ_HANDLE handle;
      AudioProcessInit eq_init, eq_get_init;
      AudioHpfConfig hpf_config, hpf_get_config;
      AudioEqConfig  eq_config, eq_get_config;
      ALGO_APC_RET ret;
      int tempSize;

      FILE* fpIn;  //input file
      FILE* fpOut; //output file
      char src_file[128] = {0};
      char dst_file[128] = {0};
      /*********************User change section start*******************/
      short eq_table[129];
      memset(eq_table, 0, sizeof(eq_table));
      eq_init.point_number = 128;
      eq_init.channel = 1;
      eq_init.sample_rate = IAA_APC_SAMPLE_RATE_16000;

      hpf_config.hpf_enable = 1;
      hpf_config.user_mode = 1;
      hpf_config.cutoff_frequency = AUDIO_HPF_FREQ_150;

      eq_config.eq_enable = 1;
      eq_config.user_mode = 1;
      /*********************User change section end*******************/
      memcpy(eq_config.eq_gain_db, eq_table, sizeof(eq_table));
      //(1)IaaEq_GetBufferSize
      workingBufferSize = IaaEq_GetBufferSize();
      workingBuffer = (char *)malloc(workingBufferSize);
      if(NULL == workingBuffer)
      {
          printf("malloc workingBuffer failed !\n");
          return -1;
      }
      printf("malloc workingBuffer succeed !\n");
      //(2)IaaEq_Init
      handle = IaaEq_Init(workingBuffer, &eq_init);
      if(NULL == handle)
      {
          printf("IaaEq_Init failed !\n");
          return -1;
      }
      printf("IaaEq_Init succeed !\n");
      //(3)IaaEq_Config
      ret = IaaEq_Config(handle, &hpf_config, &eq_config);
      if(ret)
      {
          printf("IaaEq_Config failed !\n");
          return -1;
      }
      printf("IaaEq_Config succeed !\n");
      //(4)IaaEq_GetConfig
      ret = IaaEq_GetConfig(handle, &eq_get_init, &hpf_get_config, &eq_get_config);
      if(ret)
      {
          printf("IaaEq_GetConfig failed !\n");
          return -1;
      }
      printf("IaaEq_GetConfig succeed !\n");
      printf("eq_get_config.user_mode = %d, ...\n", eq_get_config.user_mode);

  #if IN_PARAMETER
      if(argc < 3)
      {
          printf("Please enter the correct parameters!\n");
          return -1;
      }
      sscanf(argv[1], "%s", src_file);
      sscanf(argv[2], "%s", dst_file);
  #else
      sprintf(src_file, "%s", "./APC_AFE_16K.wav");
      if(argc < 2)
      {
          printf("Please enter the correct parameters!\n");
          return -1;
      }
      sscanf(argv[1], "%s", dst_file);
  #endif

      fpIn = fopen(src_file, "rb");
      if(NULL == fpIn)
      {
          printf("fopen in_file failed !\n");
          return -1;
      }
      printf("fopen in_file success !\n");
      fpOut = fopen(dst_file, "wb");
      if(NULL == fpOut)
      {
          printf("fopen out_file failed !\n");
          return -1;
      }
      printf("fopen out_file success !\n");
  #if 1
      fread(in_output, sizeof(char), 44, fpIn);
      fwrite(in_output, sizeof(char), 44, fpOut);
  #endif
      tempSize = eq_init.point_number * eq_init.channel;
      while(tempSize == fread(in_output, sizeof(short), tempSize, fpIn))
      {
          //(5)IaaEq_Run
          ret = IaaEq_Run(handle, in_output);
          if(ret)
          {
              printf("IaaEq_Run failed !\n");
              return -1;
          }
          fwrite(in_output, sizeof(short), tempSize, fpOut);
      }
      printf("Break:needBytes =%d \t nBytesRead = %d\n", eq_init.point_number * eq_init.channel, tempSize);
      //(6)IaaEq_Free
      IaaEq_Free(handle);
      free(workingBuffer);
      fclose(fpIn);
      fclose(fpOut);
      printf("APC_EQ end !\n");

      return 0;
  }


---

2.28. IaaEq_Free

• Features

  Release Eq algorithm resources.

• Syntax

  ALGO_EQ_RET IaaEq_Free(EQ_HANDLE handle);


• Parameters

  Parameter name	Description	Input/Output
  handle	Eq algorithm handle	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  None.

• Example

  Please refer to IaaEq_Run example.

---

2.29. IaaEq_Reset

• Features

  Reinitialize the Eq algorithm.

• Syntax

  EQ_HANDLE IaaEq_Reset(char* working_buffer_address, AudioProcessInit *eq_init);


• Parameters

  Parameter name	Description	Input/Output
  working_buffer_address	Memory address used by Eq algorithm	Input
  eq_init	Eq algorithm initialization structure pointer	Input

• Return value

  Return value	Result
  Not NULL	Successful
  NULL	Failed

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  None.

• Example

  None.

---

2.30. IaaEq_GetConfig

• Features

  Get the Eq algorithm current configuration parameters.

• Syntax

  ALGO_EQ_RET IaaEq_GetConfig(EQ_HANDLE handle,
  AudioProcessInit *eq_init,
  AudioHpfConfig *hpf_config,
  AudioEqConfig *eq_config);


• Parameters

  Parameter name	Description	Input/Output
  handle	Eq algorithm handle	Input
  eq_init	Eq algorithm initialization structure pointer	Output
  hpf_config	Hpf algorithm in the current configuration parameters	Output
  eq_config	Eq algorithm in the current configuration parameters	Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  None.

• Example

  Please refer to IaaEq_Run example

---

2.31. IaaAgc_GetBufferSize

• Features

  Get the memory size required for Agc algorithm running.

• Syntax

  unsigned int IaaAgc_GetBufferSize(void);


• Parameters

  Parameter name	Description	Input/Output

• Return value

  Return value is the memory size required for Agc algorithm running.

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  This interface only returns the memory size required to handle applications that request and release memory.

• Example

  Please refer to IaaAgc_Run example.

---

2.32. IaaAgc_Init

• Features

  Initialize the Agc algorithm.

• Syntax

  AGC_HANDLE IaaAgc_Init(char* working_buffer_address, AudioProcessInit *agc_init);


• Parameters

  Parameter name	Description	Input/Output
  working_buffer_address	Agc algorithm memory address	Input
  agc_init	Agc algorithm initialization structure pointer	Input

• Return value

  Return value	Result
  Not NULL	Successful
  NULL	Failed

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • Agc algorithm supports 8K/16K/32K/48K sampling rate.

• Example

  Please refer to IaaAgc_Run example.

---

2.33. IaaAgc_Config

• Features

  Configure the Agc algorithm.

• Syntax

  ALGO_AGC_RET IaaAgc_Config(AGC_HANDLE handle, AudioAgcConfig *agc_config);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input
  agc_config	Configure Agc algorithm structure pointer	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  None.

• Example

  Please refer to IaaAgc_Run example.

---

2.34. IaaAgc_SetLowFreqCompressionRatioCurve

• Features

  Set Agc compression ratio by bin (low frequency).

  Please set agc user_mode 2 to enable frequency domain Agc before calling this function.

• Syntax

  ALGO_AGC_RET IaaAgc_SetLowFreqCompressionRatioCurve(AGC_HANDLE handle,
                      int* CompressRatioInput, int* CompressRatioOutput);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input
  CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
  CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaAgc_Run example.

---

2.35. IaaAgc_SetMidFreqCompressionRatioCurve

• Features

  Set Agc compression ratio by bin (Mid frequency). Please set agc user_mode 2 to enable frequency domain Agc before calling this function.

• Syntax

  ALGO_AGC_RET IaaAgc_SetMidFreqCompressionRatioCurve(AGC_HANDLE handle,
                      int* CompressRatioInput, int* CompressRatioOutput);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input
  CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
  CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaAgc_Run example.

---

2.36. IaaAgc_SetHighFreqCompressionRatioCurve

• Features

  Set Agc compression ratio by bin (High frequency).

  Please set agc user_mode 2 to enable frequency domain Agc before calling this function.

• Syntax

  ALGO_AGC_RET IaaAgc_SetHighFreqCompressionRatioCurve(AGC_HANDLE handle,
                      int* CompressRatioInput, int* CompressRatioOutput);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input
  CompressRatioInput	Compression ratio curve input array, please refer to compression ratio of agc_config	Input
  CompressRatioOutput	Compression ratio curve output array, please refer to compression ratio of agc_config	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaAgc_Run example.

---

2.37. IaaAgc_SetAgcFreqBand

• Features

  Set Agc frequency band.

  Please set agc user_mode 2 to enable frequency domain Agc before calling this function.

• Syntax

  ALGO_AGC_RET IaaAgc_SetAgcFreqBand(AGC_HANDLE handle, int* frequency_band);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input
  Frequency_band	Frequency band setting array. It involve low frequency upper limit, middle frequency upper limit and high frequency upper limit. For example: When the sampling rate is 16K, setting frequency band as {3000,4000,8000} Then the low frequency band is range from 0 to 3000Hz, middle frequency band is range from 3000 to 4000Hz, high frequency band is range from 4000 to 8000Hz. Please double check that the highest frequency can't exceed the half of sampling rate.	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaAgc_Run example.

---

2.38. IaaAgc_Run

• Features

  Agc algorithm processing.

• Syntax

  ALGO_AGC_RET IaaAgc_Run(AGC_HANDLE handle, short* pss_audio_in);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input
  pss_audio_in	Input data pointer	Input/Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • The data length must correspond to the point_number (sampling points required for one IaaAgc_Run) set when calling IaaAgc_Init. The processed data will be written back to the memory pointed to by pss_audio_in.

• Example

  #include <stdio.h>
  #include <string.h>
  #include <stdlib.h>
  #include <sys/time.h>

  #include "AudioProcess.h"

  /*  0:Fixed input file  1:User input file   */
  #define IN_PARAMETER 1

  int main(int argc, char *argv[])
  {
      short in_output[1024];
      unsigned int workingBufferSize;
      char *workingBuffer = NULL;
      AGC_HANDLE handle;
      AudioProcessInit agc_init, agc_get_init;
      AudioAgcConfig agc_config, agc_get_config;
      ALGO_APC_RET ret;
      int tempSize;
      FILE* fpIn;  //input file
      FILE* fpOut; //output file
      char src_file[128] = {0};
      char dst_file[128] = {0};
      /*********************User change section start*******************/
      short compression_ratio_input[7] = {-65,-55,-48,-25,-18,-12,0};
      short compression_ratio_output[7] = {-65,-50,-27,-12,-1,-1,-1};
      int freqBand[7] = {1000,6000,8000};
      int compressionRatioArrayLowInput[7] = {-65,-55,-48,-25,-18,-12,0};
      int  compressionRatioArrayLowOutput [7] = {-65,-50,-27,-12,-1,-1,-1};
      int  compressionRatioArrayMidInput [7] = {-65,-55,-48,-25,-18,-12,0};
      int  compressionRatioArrayMidOutput [7] = {-65,-50,-27,-12,-1,-1,-1};
      int  compressionRatioArrayHighInput [7] = {-65,-55,-48,-25,-18,-12,0};
      int  compressionRatioArrayHighOutput [7] = {-65,-50,-27,-12,-1,-1,-1};
      agc_init.point_number = 128;
      agc_init.channel = 1;
      agc_init.sample_rate = IAA_APC_SAMPLE_RATE_16000;

      agc_config.agc_enable = 1;
      agc_config.user_mode = 2;
      agc_config.gain_info.gain_max  = 40;
      agc_config.gain_info.gain_min  = -10;
      agc_config.gain_info.gain_init = 12;
      agc_config.drop_gain_max = 36;
      agc_config.drop_gain_step = 1;
      agc_config.attack_time = 1;
      agc_config.release_time = 1;
      agc_config.noise_gate_db = -80;
      agc_config.noise_gate_attenuation_db = 0;
      agc_config.drop_gain_threshold = -5;
      /*********************User change section end*******************/
      memcpy(agc_config.compression_ratio_input, compression_ratio_input, sizeof(compression_ratio_input));
      memcpy(agc_config.compression_ratio_output, compression_ratio_output, sizeof(compression_ratio_output));
      //(1)IaaAgc_GetBufferSize
      workingBufferSize = IaaAgc_GetBufferSize();
      workingBuffer = (char *)malloc(workingBufferSize);

      if(NULL == workingBuffer)
      {
          printf("malloc workingBuffer failed !\n");
          return -1;
      }
      printf("malloc workingBuffer succeed !\n");
      //(2)IaaAgc_Init
      handle = IaaAgc_Init(workingBuffer, &agc_init);
      if(NULL == handle)
      {
          printf("IaaAgc_Init failed !\n");
          return -1;
      }
      printf("IaaAgc_Init succeed !\n");
      //(3)IaaAgc_Config
      ret = IaaAgc_Config(handle, &agc_config);
      if(ret)
      {
          printf("IaaAgc_Config failed !\n");
          return -1;
      }
      printf("IaaAgc_Config succeed !\n");

      IaaAgc_SetAgcFreqBand(handle, freqBand);
      IaaAgc_SetLowFreqCompressionRatioCurve(handle,compressionRatioArrayLowInput, compressionRatioArrayLowOutput);
      IaaAgc_SetMidFreqCompressionRatioCurve(handle,compressionRatioArrayMidInput, compressionRatioArrayMidOutput);
      IaaAgc_SetHighFreqCompressionRatioCurve(handle,compressionRatioArrayHighInput, compressionRatioArrayHighOutput);
      //(4)IaaAgc_GetConfig
      ret = IaaAgc_GetConfig(handle, &agc_get_init, &agc_get_config);
      if(ret)
      {
          printf("IaaAgc_GetConfig failed !\n");
          return -1;
      }
      printf("IaaAgc_GetConfig succeed !\n");
      printf("agc_get_config.user_mode = %d, ...\n", agc_get_config.user_mode);

  #if IN_PARAMETER
      if(argc < 3)
      {
          printf("Please enter the correct parameters!\n");
          return -1;
      }
      sscanf(argv[1], "%s", src_file);
      sscanf(argv[2], "%s", dst_file);
  #else
      sprintf(src_file, "%s", "./APC_AFE_16K.wav");
      if(argc < 2)
      {
          printf("Please enter the correct parameters!\n");
          return -1;
      }
      sscanf(argv[1], "%s", dst_file);
  #endif

      fpIn = fopen(src_file, "rb");
      if(NULL == fpIn)
      {
          printf("fopen in_file failed !\n");
          return -1;
      }
      printf("fopen in_file success !\n");
      fpOut = fopen(dst_file, "wb");
      if(NULL == fpOut)
      {
          printf("fopen out_file failed !\n");
          return -1;
      }
      printf("fopen out_file success !\n");

      fread(in_output, sizeof(char), 44, fpIn);
      fwrite(in_output, sizeof(char), 44, fpOut);

      tempSize = agc_init.point_number * agc_init.channel;
      while(tempSize == fread(in_output, sizeof(short), tempSize, fpIn))
      {
          //(5)IaaAgc_Run
          ret = IaaAgc_Run(handle, in_output);
          if(ret)
          {
              printf("IaaAnr_Run failed !\n");
              return -1;
          }
          fwrite(in_output, sizeof(short), tempSize, fpOut);
      }
      printf("Break:needBytes =%d \t nBytesRead = %d\n", agc_init.point_number * agc_init.channel, tempSize);
      //(6)IaaAgc_Free
      IaaAgc_Free(handle);
      free(workingBuffer);
      fclose(fpIn);
      fclose(fpOut);
      printf("APC_AGC end !\n");

      return 0;
  }


---

2.39. IaaAgc_Free

• Features

  Release Agc algorithm resources.

• Syntax

  ALGO_AGC_RET IaaAgc_Free(AGC_HANDLE handle);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  None.

• Example

  Please refer to IaaAgc_Run example.

---

2.40. IaaAgc_Reset

• Features

  Reinitialize the Eq algorithm.

• Syntax

  AGC_HANDLE IaaAgc_Reset(char* working_buffer_address, AudioProcessInit *agc_init);


• Parameters

  Parameter name	Description	Input/Output
  working_buffer_address	Memory address used by Agc algorithm	Input
  agc_init	Agc algorithm initialization structure pointer	Input

• Return value

  Return value	Result
  Not NULL	Successful
  NULL	Failed

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  None.

• Example

  None.

---

2.41. IaaAgc_GetConfig

• Features

  Get the Agc algorithm current configuration parameters.

• Syntax

  ALGO_AGC_RET IaaAgc_GetConfig(AGC_HANDLE handle, AudioProcessInit *agc_init, AudioAgcConfig *agc_config);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input
  agc_init	Agc algorithm initialization structure pointer	Output
  agc_config	Agc algorithm in the current configuration parameters	Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  None.

• Example

  Please refer to IaaAgc_Run example.

---

2.42. IaaApc_SetCompressionRatioCurve

• Features

  Set Agc in Apc compression ratio curve for more slope segment.

• Syntax

  ALGO_APC_RET IaaApc_SetCompressionRatioCurve(APC_HANDLE handle, short* CompressionRatioInput, short* CompressionRatioOutput, int curve_len);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  CompressionRatioInput	Compression ratio curve input	Input
  CompressionRatioOutput	Compression ratio curve output	Input
  curve_len	Compression ratio curve array length value Range: [2, 20]	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaApc_Run example.

---

2.43. IaaAgc_SetCompressionRatioCurve

• Features

  Set Agc compression ratio curve for more slope segment.

• Syntax

  ALGO_AGC_RET IaaAgc_SetCompressionRatioCurve(AGC_HANDLE handle, short* CompressionRatioInput, short* CompressionRatioOutput, int curve_len);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input
  CompressionRatioInput	Compression ratio curve input	Input
  CompressionRatioOutput	Compression ratio curve output	Input
  curve_len	Compression ratio curve array length value Range: [2, 20]	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to IaaAgc_Run example.

---

2.44. IaaApc_NrEstimateReferAec

• Features

  Noise estimation refer to Aec linear process output.

• Syntax

  ALGO_APC_RET IaaApc_NrEstimateReferAec (APC_HANDLE handle, short aec_in);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  aec_in	Input data pointer. Provide Aec linear process output for Noise reduction module.	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • The API is only support AudioAnrConfig anr_filter_mode 0~4.

---

2.45. IaaApc_EnhanceNNBFMode

• Features

  Special enhancement for concatenating Bf mode 3 and APC deep learning based noise reduction.

• Syntax

  ALGO_APC_RET IaaApc_EnhanceNNBFMode(APC_HANDLE handle, APC_BF_HANDLE  handle2 , int is_enable);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc handle	Input
  handle2	Bf handle	Input
  is_enable	0:disable, 1: enable	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • The API is only applicable to special enhancement that using BF mode 3 and anr_filter_mode 5 simultaneously.

  • Must include BF library.

  • The API should be run between IaaBf_Run and IaaApc_Run.

---

2.46. IaaApc_FilterDesign

• Features

  Initialized IIR filter configuration.

• Syntax

  ALGO_APC_RET IaaApc_FilterDesign(APC_HANDLE handle, int filter_cnt, AudioFilterConfig* filter_config);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  filter_cnt	Filter sequence range:[1,10]	Input
  filter_config	Filter configuration	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • The results of filter design must be based on the frequency response curve. It does not mean that the target gain will be achieved by setting a certain frequency.

  • Because this filter is an IIR filter and will have a non-linear impact on the phase, it is recommended to place it at the end of all algorithms.

  • If the Q value is set too large, it means the energy decreases steeply, which may cause other frequency bands to increase abnormally. Please refer to the frequency response curve.

  • If you want to achieve a steeper curve, you can design multiple identical filter superpositions.

  • There is no standard answer to filter design, it depends on the user's needs.

• Example

  Please refer to the example section in IaaEq_FilterDesign.

---

2.47. IaaApc_FilterApply

• Features

  IIR filter apply.

• Syntax

  ALGO_APC_RET IaaApc_FilterApply(APC_HANDLE handle, short* pss_audio_in);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  pss_audio_in	Input data pointer	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  //filter 1
  AudioFilterConfig filter_design;
  filter_design.q_factor = 5;
  filter_design.f0 = 1000;
  filter_design.type = EQ_NOTCH_FILTER;
  filter_design.gain = -10;
  //filter 2
  AudioFilterConfig filter_design2;
  filter_design2.q_factor = 5;
  filter_design2.f0 = 5000;
  filter_design2.type = EQ_NOTCH_FILTER;
  filter_design2.gain = -10;
  //filter 3
  AudioFilterConfig filter_design3;
  filter_design3.q_factor = 5;
  filter_design3.f0 = 500;
  filter_design3.type = EQ_NOTCH_FILTER;
  filter_design3.gain = -10;

  IaaApc_FilterDesign(handle, 1, &filter_design);
  IaaApc_FilterDesign(handle, 2, &filter_design2);
  IaaApc_FilterDesign(handle, 3, &filter_design3);
  float h[512];
  IaaApc_FilterApply(handle, h);

  while(read input data){
  ret1 = IaaApc_FilterApply(handle, input);
  }


---

2.48. IaaEq_FilterDesign

• Features

  Initialized IIR filter configuration.

• Syntax

  ALGO_EQ_RET IaaEq_FilterDesign (EQ_HANDLE handle, int filter_cnt, AudioFilterConfig* filter_config);


• Parameters

  Parameter name	Description	Input/Output
  handle	Eq algorithm handle	Input
  filter_cnt	Filter sequence range:[1,10]	Input
  filter_config	Filter configuration	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • The result of filtering design is based on the frequency response curve. The target gain is not always achieved by setting the filter to a certain level.
  • Suggest that user should put this filtering at the end of audio process flow, because this filtering is IIR filtering.
  • The higher the Q factor, the faster the energy drop. It may cause other frequency band to pull up abnormally. Please refer to this frequency response curve.
  • If users want to get faster drop of frequency response curve, users can design serval filter for application.
  • There is no stardard answer of filtering design. It's all based on user's requirement.

• Example

  • The following is an example of over-set Q factor

    filter_design.q_factor = 5;

    filter_design.f0 = 2000;

    filter_design.type = EQ_HIGH_PASS_FILTER;

    filter_design.gain = 3;




  • Filter overlay

    As the name suggests, it's straightforward to set up multiple filters.

    //filter1
    AudioFilterConfig filter_design;

    filter_design.q_factor = 1;

    filter_design.f0 = 2000;

    filter_design.type = EQ_HIGH_PASS_FILTER;

    filter_design.gain = 0;

    //filter 2
    AudioFilterConfig filter_design2;

    filter_design2.q_factor = 1;

    filter_design2.f0 = 2000;

    filter_design2.type = EQ_HIGH_PASS_FILTER;

    filter_design2.gain = 0;


    The blue line below is the frequency response of filter_design only, while the orange line is the frequency response of filter_design and filter_design2 at the same time, which can achieve a faster frequency drop.

---

2.49. IaaEq_FilterApply

• Features

  IIR filter apply.

• Syntax

  ALGO_EQ_RET IaaEq_FilterApply(EQ_HANDLE handle, short* pss_audio_in);


• Parameters

  Parameter name	Description	Input/Output
  handle	Eq algorithm handle	Input
  pss_audio_in	Input data pointer	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  //filter 1
  AudioFilterConfig filter_design;
  filter_design.q_factor = 5;
  filter_design.f0 = 1000;
  filter_design.type = EQ_NOTCH_FILTER;
  filter_design.gain = -10;
  //filter 2
  AudioFilterConfig filter_design2;
  filter_design2.q_factor = 5;
  filter_design2.f0 = 5000;
  filter_design2.type = EQ_NOTCH_FILTER;
  filter_design2.gain = -10;
  //filter 3
  AudioFilterConfig filter_design3;
  filter_design3.q_factor = 5;
  filter_design3.f0 = 500;
  filter_design3.type = EQ_NOTCH_FILTER;
  filter_design3.gain = -10;

  IaaEq_FilterDesign(handle, 1, &filter_design);
  IaaEq_FilterDesign(handle, 2, &filter_design2);
  IaaEq_FilterDesign(handle, 3, &filter_design3);
  float h[512];
  IaaEq_FilterFreqz(handle, h);

  while(read input data){
  ret1 = IaaEq_FilterApply(handle, input);
  }


---

2.50. IaaAnr_EnhanceNNBFMode

• Features

  Special enhancement for concatenating Bf mode 3 and ANR deep learning based noise reduction.

• Syntax

  ALGO_ANR_RET IaaAnr_EnhanceNNBFMode(ANR_HANDLE handle, ANR_BF_HANDLE  handle2 , int is_enable);


• Parameters

  Parameter name	Description	Input/Output
  handle	Anr algorithm handle	Input
  handle2	Bf algorithm handle	Input
  is_enable	0:disable, 1: enable	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • The API is only applicable to special enhancement that using BF mode 3 and anr_filter_mode 5 simultaneously.
  • Must include BF library.
  • The API should be run between IaaBf_Run and IaaAnr_Run.

---

2.51. IaaApc_GetAPIVersion

• Features

  Get version of Apc API.

• Syntax

  ALGO_APC_RET IaaApc_GetAPIVersion(unsigned short* major, unsigned short* minor);


• Parameters

  Parameter name	Description	Input/Output
  major	Input data pointer and get number before the decimal point of APC API version	Output
  minor	Input data pointer and get number after the decimal point of APC API version	Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.52. IaaApc_SetHandleId

• Features

  Set Apc Handle Id.

• Syntax

  ALGO_APC_RET IaaApc_SetHandleId(APC_HANDLE handle, int id);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  id	Apc handle id range:[0,100]	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.53. IaaAnr_SetHandleId

• Features

  Set Anr Handle Id.

• Syntax

  ALGO_ANR_RET IaaAnr_SetHandleId(ANR_HANDLE handle, int id);


• Parameters

  Parameter name	Description	Input/Output
  handle	Anr algorithm handle	Input
  id	Anr handle id range:[0,100]	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.54. IaaEq_SetHandleId

• Features

  Set Eq Handle Id.

• Syntax

  ALGO_EQ_RET IaaEq_SetHandleId(EQ_HANDLE handle, int id);


• Parameters

  Parameter name	Description	Input/Output
  handle	Eq algorithm handle	Input
  id	Eq handle id range:[0,100]	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.55. IaaAgc_SetHandleId

• Features

  Set Agc Handle Id.

• Syntax

  ALGO_AGC_RET IaaAgc_SetHandleId(AGC_HANDLE handle, int id);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input
  id	Agc handle id range:[0,100]	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.56. IaaApc_GetJsonFileSize

• Features

  Apc get size of json file.

• Syntax

  unsigned int IaaApc_GetJsonFileSize(char* jsonfile);


• Parameters

  Parameter name	Description	Input/Output
  jsonfile	name of json file	Input

• Return value

  Return value is the memory size required for decoding json file.

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.57. IaaApc_NrReadJson

• Features

  Set json parameter into Apc Handle.

• Syntax

  ALGO_APC_RET IaaApc_NrReadJson(APC_HANDLE handle, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  jsonBuffer	json buffer memory address	Input
  jsonfile	name of json file	Input
  buffSize	size of json file	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.58. IaaAnr_GetJsonFileSize

• Features

  Anr get size of json file.

• Syntax

  unsigned int IaaAnr_GetJsonFileSize(char* jsonfile);


• Parameters

  Parameter name	Description	Input/Output
  jsonfile	name of json file	Input

• Return value

  Return value is the memory size required for decoding json file.

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.59. IaaAnr_NrReadJson

• Features

  Set json parameter into Anr Handle.

• Syntax

  ALGO_ANR_RET IaaAnr_NrReadJson(ANR_HANDLE handle, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  handle	Anr algorithm handle	Input
  jsonBuffer	json buffer memory address	Input
  jsonfile	name of json file	Input
  buffSize	size of json file	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.60. IaaApc_EnableComfortNoise

• Features

  Enable comfort noise algorithm and set power of comfort noise into Apc Handle

• Syntax

  ALGO_APC_RET IaaApc_EnableComfortNoise(APC_HANDLE handle, int enable, int dB);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  enable	enable comfort noise algorithm	Input
  dB	set power of comfort noise	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.61. IaaAnr_EnableComfortNoise

• Features

  Enable comfort noise algorithm and set power of comfort noise into Anr Handle

• Syntax

  ALGO_ANR_RET IaaAnr_EnableComfortNoise(ANR_HANDLE handle, int enable, int dB);


• Parameters

  Parameter name	Description	Input/Output
  handle	Anr algorithm handle	Input
  enable	enable comfort noise algorithm	Input
  dB	set power of comfort noise	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.62. IaaEq_EnableComfortNoise

• Features

  Enable comfort noise algorithm and set power of comfort noise into Eq Handle

• Syntax

  ALGO_EQ_RET IaaEq_EnableComfortNoise(EQ_HANDLE handle, int enable, int dB);


• Parameters

  Parameter name	Description	Input/Output
  handle	Eq algorithm handle	Input
  enable	enable comfort noise algorithm	Input
  dB	set power of comfort noise	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.63. IaaAgc_EnableComfortNoise

• Features

  Enable comfort noise algorithm and set power of comfort noise into Agc Handle

• Syntax

  ALGO_AGC_RET IaaAgc_EnableComfortNoise(AGC_HANDLE handle, int enable, int dB);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input
  enable	enable comfort noise algorithm	Input
  dB	set power of comfort noise	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.64. IaaApc_EnableAutoSmooth

• Features

  Enable automatic smooth algorithm into Apc Handle

• Syntax

  ALGO_APC_RET IaaApc_EnableAutoSmooth(APC_HANDLE handle, int enable);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  enable	enable auto smooth algorithm	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.65. IaaAnr_EnableAutoSmooth

• Features

  Enable automatic smooth algorithm into Anr Handle

• Syntax

  ALGO_ANR_RET IaaAnr_EnableAutoSmooth(ANR_HANDLE handle, int enable);


• Parameters

  Parameter name	Description	Input/Output
  handle	Anr algorithm handle	Input
  enable	enable auto smooth algorithm	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.66. IaaApc_ApplyComfortNoise

• Features

  Specified power comfort noise mixture.

• Syntax

  ALGO_APC_RET IaaApc_ApplyComfortNoise(CngStruct cng_para, short* pss_audio_in);


• Parameters

  Parameter name	Description	Input/Output
  cng_para	comfort noise configuration structure	Input
  pss_audio_in	Input data. It will be overwrirted by processed signal	Input/Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.67. IaaApc_SwitchReadFromJson

• Features

  Configure Json parameters to enable setting structure handle of Apc algorithm

• Syntax

  ALGO_APC_RET IaaApc_SwitchReadFromJson(AudioApcBufferConfig *apc_switch, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  apc_switch	Structure handle of Apc algorithm enable setting	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  #include <stdio.h>
  #include <unistd.h>
  #include <fcntl.h>
  #include <string.h>
  #include <time.h>
  #include <stdlib.h>
  #ifndef OS_WINDOWS
  #include <sys/ioctl.h>
  #endif
  #include <sys/types.h>
  #include <sys/stat.h>
  #include <sys/time.h>

  #include "AudioProcess.h"

  #define USE_MALLOC               (1)
  #define USE_JSON                 (1)
  #define FILTER_ENABLE            (0)
  #define FREQ_AGC_ENABEL          (1)
  #define DIGITAL_GAIN_ENABLE      (1)

  unsigned int WorkingBuffer2[1] = {0};

  typedef unsigned char                uint8;
  typedef unsigned short               uint16;
  typedef unsigned long                uint32;

  float AVERAGE_RUN(int a)
  {
      static unsigned int num = 0;
      static float avg = 0;
      if(num == 0) avg = 0;
      num++;
      avg = avg + ((float)a - avg) / ((float)num);
      return avg;
  }
  unsigned int _OsCounterGetMs(void)
  {
      struct  timeval t1;
      gettimeofday(&t1,NULL);
      unsigned int T = ( (1000000 * t1.tv_sec)+ t1.tv_usec )/1000;
      return T;
  }

  int main(int argc, char *argv[])
  {
      short input[1024];
      unsigned int T0, T1;
      float avg = 0;
      float peak = 0;
      char input_file[512];
      char output_file[512];
      int counter=0;
  #if FREQ_AGC_ENABEL
      int freqBand[_AGC_FREQ_BAND_NUM];
      int compressionRatioArrayLowInput[_AGC_CR_NUM];
      int compressionRatioArrayLowOutput[_AGC_CR_NUM];
      int compressionRatioArrayMidInput[_AGC_CR_NUM];
      int compressionRatioArrayMidOutput[_AGC_CR_NUM];
      int compressionRatioArrayHighInput[_AGC_CR_NUM];
      int compressionRatioArrayHighOutput[_AGC_CR_NUM];
  #endif

      AudioApcBufferConfig apc_switch;
      memset(&apc_switch,0,sizeof(AudioApcBufferConfig));
  #if USE_JSON
      unsigned int use_apc_param_json = 1;
      char apc_para_json_file[512];
      sprintf(apc_para_json_file,"%s","./../sample/data/ApcParamJson.json");
      int apc_para_buffersize = IaaApc_GetJsonFileSize(apc_para_json_file);
      if(apc_para_buffersize == 0){
          printf("IaaApc_GetJsonFileSize() error. Can not load json file [%s]\t\n", apc_para_json_file);
          use_apc_param_json = 0;
      }
      else{
          printf("IaaApc_GetJsonFileSize() succeed.\t\n");
      }
  #if USE_MALLOC
      char *apc_para_json_buf_ptr = (char*)malloc(apc_para_buffersize);
  #else
      char apc_para_json_buf_ptr[512*1000];
  #endif
      if(use_apc_param_json){
          if(IaaApc_SwitchReadFromJson(&apc_switch, apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0){
              printf("IaaApc_SwitchReadFromJson() error.\t\n");
              return -1;
          }
          else{
              printf("IaaApc_SwitchReadFromJson() succeed.\t\n");
          }
      }
  #endif

      int buffersize = IaaApc_GetBufferSize(&apc_switch);
      if(buffersize == 0){
          printf("IaaApc_GetBufferSize() error.\t\n");
          return -1;
      }
      else{
          printf("IaaApc_GetBufferSize() succeed.\t\n");
      }
  #if USE_MALLOC
      char *working_buf_ptr = (char*)malloc(buffersize);
  #else
      char working_buf_ptr[512*1000];
  #endif

  #if USE_JSON
      unsigned int use_anr_intl_json = 1;
      char anr_intl_json_file[512];
      sprintf(anr_intl_json_file,"%s","./../sample/data/AnrInternalJson.json");
      int anr_intl_buffersize = IaaApc_GetJsonFileSize(anr_intl_json_file);
      if(anr_intl_buffersize == 0){
          printf("IaaApc_GetJsonFileSize() error. Can not load json file [%s]\t\n", anr_intl_json_file);
          use_anr_intl_json = 0;
      }
      else{
          printf("IaaApc_GetJsonFileSize() succeed.\t\n");
      }
  #if USE_MALLOC
      char *anr_intl_json_buf_ptr = (char*)malloc(anr_intl_buffersize);
  #else
      char anr_intl_json_buf_ptr[512*1000];
  #endif
  #endif

  #if USE_JSON
      unsigned int use_apc_intl_json = 1;
      char apc_intl_json_file[512];
      sprintf(apc_intl_json_file,"%s","./../sample/data/ApcInternalJson.json");
      int apc_intl_buffersize = IaaApc_GetJsonFileSize(apc_intl_json_file);
      if(apc_intl_buffersize == 0){
          printf("IaaApc_GetJsonFileSize() error. Can not load json file [%s]\t\n", apc_intl_json_file);
          use_apc_intl_json = 0;
      }
      else{
          printf("IaaApc_GetJsonFileSize() succeed.\t\n");
      }
  #if USE_MALLOC
      char *apc_intl_json_buf_ptr = (char*)malloc(apc_intl_buffersize);
  #else
      char apc_intl_json_buf_ptr[512*1000];
  #endif
  #endif

      FILE * fin, * fout;
      int ret1;
      AudioProcessInit apc_init;
      AudioAnrConfig anr_config;
      AudioEqConfig eq_config;
      AudioHpfConfig hpf_config;
      AudioAgcConfig agc_config;
      AudioApcOption apc_option;
      memset(&apc_init,0,sizeof(AudioProcessInit));
      memset(&anr_config,0,sizeof(AudioAnrConfig));
      memset(&eq_config,0,sizeof(AudioEqConfig));
      memset(&hpf_config,0,sizeof(AudioHpfConfig));
      memset(&agc_config,0,sizeof(AudioAgcConfig));
      memset(&apc_option,0,sizeof(AudioApcOption));
      APC_HANDLE handle;

  #if USE_JSON
      if(use_apc_param_json){
          if(IaaApc_InitReadFromJson(&apc_init, apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0){
              printf("IaaApc_InitReadFromJson() error.\t\n");
              return -1;
          }
          else{
              printf("IaaApc_InitReadFromJson() succeed.\t\n");
          }
      }
  #endif
      handle = IaaApc_Init((char *)working_buf_ptr, &apc_init, &apc_switch);
      if(handle==NULL){
          printf("IaaApc_Init() error.\t\n");
          return -1;
      }
      else{
          printf("IaaApc_Init() succeed.\t\n");
      }

  #if USE_JSON
      if(use_apc_param_json){
          if(IaaApc_ConfigReadFromJson(&anr_config, &eq_config, &hpf_config, &agc_config, apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0){
              printf("IaaApc_ConfigReadFromJson() error.\t\n");
              return -1;
          }
          else{
              printf("IaaApc_ConfigReadFromJson() succeed.\t\n");
          }
      }
  #endif
      if(IaaApc_Config(handle,&anr_config,&eq_config,&hpf_config,NULL,NULL,&agc_config) != -0){
          printf("IaaApc_Config() error.\t\n");
          return -1;
      }
      else{
          printf("IaaApc_Config() succeed.\t\n");
      }

  #if USE_JSON
      if(apc_switch.anr_enable && use_anr_intl_json){
          if(IaaApc_NrReadJson(handle, anr_intl_json_buf_ptr, anr_intl_json_file, anr_intl_buffersize) != 0){
              printf("IaaApc_NrReadJson() error.\t\n");
              return -1;
          }
          else{
              printf("IaaApc_NrReadJson() succeed.\t\n");
          }
      }
  #endif

  #if USE_JSON
      if(use_apc_intl_json){
          if(IaaApc_ReadJson(handle, apc_intl_json_buf_ptr, apc_intl_json_file, apc_intl_buffersize) != 0){
              printf("IaaApc_ReadJson() error.\t\n");
              return -1;
          }
          else{
              printf("IaaApc_ReadJson() succeed.\t\n");
          }
      }
  #endif

  #if FILTER_ENABLE
      float h[512];
  #if USE_JSON
      if(use_apc_param_json){
          if(IaaApc_FilterDesignReadFromJson(handle, apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0){
              printf("IaaEq_FilterDesignReadFromJson() error.\t\n");
              return -1;
          }
          else{
              printf("IaaEq_FilterDesignReadFromJson() succeed.\t\n");
          }
      }
  #endif
      IaaApc_FilterFreqz(handle,h);
  #endif

  #if FREQ_AGC_ENABEL
      if(agc_config.user_mode == 2){
  #if USE_JSON
          if(use_apc_param_json){
              if(IaaApc_SetAgcReadFromJson(&freqBand[0], &compressionRatioArrayLowInput[0], &compressionRatioArrayLowOutput[0],
                          &compressionRatioArrayMidInput[0], &compressionRatioArrayMidOutput[0],
                          &compressionRatioArrayHighInput[0], &compressionRatioArrayHighOutput[0],
                          apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0 ){
                  printf("IaaAgc_SetAgcReadFromJson() error.\t\n");
                  return -1;
              }
              else{
                  printf("IaaAgc_SetAgcReadFromJson() succeed.\t\n");
              }
          }
  #endif
          IaaApc_SetAgcFreqBand(handle, freqBand);
          IaaApc_SetLowFreqCompressionRatioCurve(handle, compressionRatioArrayLowInput, compressionRatioArrayLowOutput);
          IaaApc_SetMidFreqCompressionRatioCurve(handle, compressionRatioArrayMidInput, compressionRatioArrayMidOutput);
          IaaApc_SetHighFreqCompressionRatioCurve(handle, compressionRatioArrayHighInput, compressionRatioArrayHighOutput);
      }
  #endif

  #if DIGITAL_GAIN_ENABLE
  #if USE_JSON
      if(use_apc_param_json){
          if(IaaApc_OptionReadFromJson(&apc_option, apc_para_json_buf_ptr, apc_para_json_file, apc_para_buffersize) != 0){
              printf("IaaApc_OptionReadFromJson() error.\t\n");
              return -1;
          }
          else{
              printf("IaaApc_OptionReadFromJson() succeed.\t\n");
          }
      }
  #endif
  #endif

      sprintf(input_file,"%s","./../sample/data/APC_AFE_16K.wav");
      sprintf(output_file,"%s","./../sample/data/APC_out_16K.wav");

      fin = fopen(input_file, "rb");
      if(!fin)
      {
          printf("the input file %s could not be open\n",input_file);
          return -1;
      }

      fout = fopen(output_file, "wb");
      if(!fout)
      {
          printf("the output file could not be open\n");
          return -1;
      }

      fread(input, sizeof(char), 44, fin); // read header 44 bytes
      fwrite(input, sizeof(char),44, fout); // write 44 bytes output

      while(fread(input, sizeof(short), apc_init.point_number*apc_init.channel, fin))
      {

          counter++;
          T0  = (long)_OsCounterGetMs();
  #if DIGITAL_GAIN_ENABLE
          ret1 = IaaApc_ApplyDigitalGain(handle,input,apc_option.digital_gain[0]);
  #endif
          ret1 = IaaApc_Run(handle,input);
  #if FILTER_ENABLE
          ret1 += IaaApc_FilterApply(handle, input);
  #endif

  #if DIGITAL_GAIN_ENABLE
          ret1 += IaaApc_ApplyDigitalGain(handle,input,apc_option.digital_gain[1]);
  #endif

          T1  = (long)_OsCounterGetMs();
          avg += (T1 - T0);
          if(peak < (T1 - T0))
              peak = (T1 - T0);

          if(counter%1000== 999)
          {
              printf("counter = %d\n", counter);
              printf("current time = %f\n", (float)counter*apc_init.point_number/apc_init.sample_rate);
              printf("process time = %lu(ms)\t",(long)(T1 - T0));
          }

          if(ret1 != 0)
          {
              printf("Error occured in APC\n");
              break;
          }

          fwrite(input, sizeof(short), apc_init.point_number*apc_init.channel, fout);
      }
      avg /= counter;
      printf("AVG is %.2f ms\n",avg);
      printf("PEAK is %.2f ms\n",peak);
      IaaApc_Free(handle);
      free(working_buf_ptr);
      fclose(fin);
      fclose(fout);

      printf("Done\n");
  return 0;
  }


---

2.68. IaaApc_InitReadFromJson

• Features

  Configure Json parameters to initialize structure handle of the Apc algorithm

• Syntax

  ALGO_APC_RET IaaApc_InitReadFromJson(AudioProcessInit *audio_process_init, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  audio_process_init	Apc algorithm initialization structure handle	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to the example section of IaaApc_SwitchReadFromJson.

---

2.69. IaaApc_ConfigReadFromJson

• Features

  Configure Json parameters to the structure handle of the Apc algorithm

• Syntax

  ALGO_APC_RET IaaApc_ConfigReadFromJson(AudioAnrConfig *anr_config, AudioEqConfig *eq_config, AudioHpfConfig *hpf_config, AudioAgcConfig *agc_config, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  anr_config	Configure the structure handle of the Anr algorithm	Input/Output
  eq_config	Configure the structure handle of the Eq algorithm	Input/Output
  hpf_config	Configure the structure handle of the Hpf algorithm	Input/Output
  agc_config	Configure the structure handle of the Agc algorithm	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to the example section of IaaApc_SwitchReadFromJson.

---

2.70. IaaApc_SetAgcReadFromJson

• Features

  Configure Json parameters to Agc band array

• Syntax

  ALGO_APC_RET IaaApc_SetAgcReadFromJson(int *freqBand, int *compressionRatioArrayLowInput, int *compressionRatioArrayLowOutput, int *compressionRatioArrayMidInput, int *compressionRatioArrayMidOutput, int *compressionRatioArrayHighInput, int *compressionRatioArrayHighOutput, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  freqBand	Frequency band array, including low frequency upper limit, middle frequency upper limit and high frequency upper limit. For example: When the sampling rate is 16K, setting frequency band as {3000,4000,8000} Then the low frequency band is range from 0 to 3000Hz, middle frequency band is range from 3000 to 4000Hz, high frequency band is range from 4000 to 8000Hz. Please double check that the highest frequency can't exceed the half of sampling rate.	Input/Output
  compressionRatioArrayLowInput	Compression ratio input, please refer to compression ratio in agc_config	Input/Output
  compressionRatioArrayLowOutput	Compression ratio output, please refer to compression ratio in agc_config	Input/Output
  compressionRatioArrayMidInput	Compression ratio input, please refer to compression ratio in agc_config	Input/Output
  compressionRatioArrayMidOutput	Compression ratio output, please refer to compression ratio in agc_config	Input/Output
  compressionRatioArrayHighInput	Compression ratio input, please refer to compression ratio in agc_config	Input/Output
  compressionRatioArrayHighOutput	Compression ratio output, please refer to compression ratio in agc_config	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to the example section of IaaApc_SwitchReadFromJson.

---

2.71. IaaApc_FilterDesignReadFromJson

• Features

  Configure Json parameters to the Eq filter structure handle of the Apc algorithm

• Syntax

  ALGO_APC_RET IaaApc_FilterDesignReadFromJson(APC_HANDLE handle, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to the example section of [IaaApc_SwitchReadFromJson](#267-iaaapc_switchreadfromjson).


---

2.72. IaaAnr_InitReadFromJson

• Features

  Configure Json parameters to the initialize structure handle of the Anr algorithm

• Syntax

  ALGO_ANR_RET IaaAnr_InitReadFromJson(AudioProcessInit *anr_init, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  anr_init	Anr algorithm initialization structure handle	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.73. IaaAnr_ConfigReadFromJson

• Features

  Configure Json parameters to the structure handle of the Anr algorithm

• Syntax

  ALGO_ANR_RET IaaAnr_ConfigReadFromJson(AudioAnrConfig *anr_config, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  anr_config	Configure the structure handle of the Anr algorithm	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.74. IaaEq_GetJsonFileSize

• Features

  Get the memory size to parse the content of the Json file required by Eq

• Syntax

  unsigned int IaaEq_GetJsonFileSize(char* jsonfile);


• Parameters

  Parameter name	Description	Input/Output
  jsonfile	Json file name	Input

• Return value

  The return value is the memory size required to parse the Json file content.

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.75. IaaEq_InitReadFromJson

• Features

  Configure Json parameters to initialize structure handle of the Eq algorithm

• Syntax

  ALGO_EQ_RET IaaEq_InitReadFromJson(AudioProcessInit *eq_init, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  eq_init	Initialization structure handle of Eq algorithm	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.76. IaaEq_ConfigReadFromJson

• Features

  Configure Json parameters to the structure handle of the Eq algorithm

• Syntax

  ALGO_EQ_RET IaaEq_ConfigReadFromJson(AudioEqConfig *eq_config, AudioHpfConfig *hpf_config, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  eq_config	Configure the structure handle of the Eq algorithm	Input/Output
  hpf_config	Configure the structure handle of the Hpf algorithm	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.77. IaaEq_FilterDesignReadFromJson

• Features

  Configure Json parameters to the filter structure handle of the Eq algorithm

• Syntax

  ALGO_EQ_RET IaaEq_FilterDesignReadFromJson(EQ_HANDLE handle, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  handle	Eq algorithm handle	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.78. IaaAgc_GetJsonFileSize

• Features

  Get the memory size to parse the content of the Json file required by Agc

• Syntax

  unsigned int IaaAgc_GetJsonFileSize(char* jsonfile);


• Parameters

  Parameter name	Description	Input/Output
  jsonfile	Json file name	Input

• Return value

  The return value is the memory size required to parse the Json file content.

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.79. IaaAgc_InitReadFromJson

• Features

  Configure Json parameters to initialize structure handle of the Agc algorithm

• Syntax

  ALGO_AGC_RET IaaAgc_InitReadFromJson(AudioProcessInit *agc_init, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  agc_init	Initialization structure handle of Agc algorithm	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.80. IaaAgc_ConfigReadFromJson

• Features

  Configure Json parameters to the structure handle of the Agc algorithm

• Syntax

  ALGO_AGC_RET IaaAgc_ConfigReadFromJson(AudioAgcConfig *agc_config, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  agc_config	Configure the structure handle of the Agc algorithm	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.81. IaaAgc_SetAgcReadFromJson

• Features

  Configure Json parameters to Agc band array

• Syntax

  ALGO_AGC_RET IaaAgc_SetAgcReadFromJson(int *freqBand, int *compressionRatioArrayLowInput, int *compressionRatioArrayLowOutput, int *compressionRatioArrayMidInput, int *compressionRatioArrayMidOutput, int *compressionRatioArrayHighInput, int *compressionRatioArrayHighOutput, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  freqBand	Frequency band array, including low frequency upper limit, middle frequency upper limit and high frequency upper limit. For example: When the sampling rate is 16K, setting frequency band as {3000,4000,8000} Then the low frequency band is range from 0 to 3000Hz, middle frequency band is range from 3000 to 4000Hz, high frequency band is range from 4000 to 8000Hz. Please double check that the highest frequency can't exceed the half of sampling rate.	Input/Output
  compressionRatioArrayLowInput	Compression ratio input, please refer to compression ratio in agc_config	Input/Output
  compressionRatioArrayLowOutput	Compression ratio output, please refer to compression ratio in agc_config	Input/Output
  compressionRatioArrayMidInput	Compression ratio input, please refer to compression ratio in agc_config	Input/Output
  compressionRatioArrayMidOutput	Compression ratio output, please refer to compression ratio in agc_config	Input/Output
  compressionRatioArrayHighInput	Compression ratio input, please refer to compression ratio in agc_config	Input/Output
  compressionRatioArrayHighOutput	Compression ratio output, please refer to compression ratio in agc_config	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

---

2.82. IaaAnr_NrEstimateReferAec

• Features

  Refer to the Aec linear processing results for noise reduction to avoid Anr convergence anomalies caused by nonlinear Aec.

• Syntax

  ALGO_ANR_RET IaaAnr_NrEstimateReferAec (ANR_HANDLE handle, short aec_in);


• Parameters

  Parameter name	Description	Input/Output
  handle	Anr algorithm handle	Input
  aec_in	Input data index, which provides data for noise estimation by the NR algorithm. Microphone data or Aec linear processing results can be used	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • The API is only support AudioAnrConfig anr_filter_mode 0~4.

---

2.83. IaaApc_FilterFreqz

• Features

  Get the result of superimposing the frequency response of several filters after configuring IaaApc_FilterDesign.

• Syntax

  ALGO_APC_RET IaaApc_FilterFreqz(APC_HANDLE handle, float* frequency_response);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input
  frequency_response	The result of the frequency response superposition of several filters, which is returned to frequency_response in the form of an array of 512 floats	Input/Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  The superimposed frequency response of all digital filters currently designed can be drawn and returned to the frequency_response parameter in the form of an array of 512 floats. It is recommended that users use excel to draw the current frequency response. The 512 values in the array correspond to frequencies. From 0 to sample rate/2, the value of frequency_response represents the gain value.

• Example

  Please refer to the example section in IaaApc_FilterApply.

---

2.84. IaaEq_FilterFreqz

• Features

  Get the result of superposition of frequency responses of several filters after configuring IaaEq_FilterFreqz.

• Syntax

  ALGO_EQ_RET IaaEq_FilterFreqz(EQ_HANDLE handle, float* frequency_response);


• Parameters

  Parameter name	Description	Input/Output
  handle	Eq algorithm handle	Input
  frequency_response	The result of the superposition of frequency responses of several filters, which is returned to frequency_response in the form of an array of 512 floats	Input/Output

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  The superimposed frequency response of all digital filters currently designed can be drawn and returned to the frequency_response parameter in the form of an array of 512 floats. It is recommended that users use excel to draw the current frequency response. The 512 values in the array correspond to frequencies. From 0 to sample rate/2, the value of frequency_response represents the gain value.

• Example

  Please refer to the example section in IaaEq_FilterApply.

---

2.85. IaaApc_OptionReadFromJson

• Features

  Configure Json parameters to optional structure.

• Syntax

  ALGO_APC_RET IaaApc_OptionReadFromJson(AudioApcOption *apc_option, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  apc_option	Apc option setting pointer	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to the example section in IaaApc_SwitchReadFromJson.

---

2.86. IaaApc_ReadJson

• Features

  Configure Json parameters to Apc common setting

• Syntax

  ALGO_APC_RET IaaApc_ReadJson(APC_HANDLE handle, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  handle	Apc algorithm handle	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Note

  • It's available by using AUDIO_APC_DUMP, AUDIO_ANR_DUMP, AUDIO_EQ_DUMP, AUDIO_EQ_DUMP, AUDIO_DUMP_PATH to enable/disable dump debug operation.
  • User can use AUDIO_DUMP_PATH to set dump data path, the strings length is up to 40.

  • User can use Pre_APC_GAIN, POST_APC_GAIN to set Digital gain in the first and last process in IaaApc_Run. the range of gain value is [-120, 120], data type is floating. Please refer to the following figure:



• Example

  {
      "project": "APC",
      "AUDIO_APC_DUMP": 1,
      "AUDIO_ANR_DUMP": 1,
      "AUDIO_EQ_DUMP": 1,
      "AUDIO_AGC_DUMP": 1,
      "AUDIO_DUMP_PATH": "./",
      "PRE_APC_GAIN": 10.0,
      "POST_APC_GAIN": -5.0
  }


---

2.87. IaaEq_ReadJson

• Features

  Configure Json parameters to Eq common setting

• Syntax

  ALGO_EQ_RET IaaEq_ReadJson(EQ_HANDLE handle, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  handle	Eq algorithm handle	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to the example section in IaaApc_SwitchReadFromJson.

---

2.88. IaaAgc_ReadJson

• Features

  Configure Json parameters to Agc common setting

• Syntax

  ALGO_AGC_RET IaaAgc_ReadJson(AGC_HANDLE handle, char* jsonBuffer, char* jsonfile, unsigned int buffSize);


• Parameters

  Parameter name	Description	Input/Output
  handle	Agc algorithm handle	Input/Output
  jsonBuffer	The memory address used to parse the Json file content	Input
  jsonfile	Json file name	Input
  buffSize	The memory size required to parse the Json file content	Input

• Return value

  Return value	Result
  0	Successful
  Non-zero	Failed, refer to error code

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Dependency

  • Header: AudioProcess.h

  • Library: libAPC_LINUX.so/ libAPC_LINUX.a

• Example

  Please refer to the example section in IaaApc_SwitchReadFromJson.

---

3. APC DATA TYPE

---

3.1. APC data type list

Data type	Definition
AudioApcBufferConfig	The buffer configuration parameter structure type of the Apc algorithm
AudioProcessInit	Apc algorithm initialization parameter structure type
APC_HANDLE	Apc algorithm handle type
AudioAnrConfig	The Anr configuration parameter structure type of the Apc algorithm
AudioEqConfig	The Eq configuration parameter structure type of the Apc algorithm
AudioHpfConfig	The Hpf configuration parameter structure type of the Apc algorithm
AudioAgcConfig	The Agc configuration parameter structure type of the Apc algorithm
AgcGainInfo	Agc gain parameter structure type in Apc algorithm
IAA_APC_SAMPLE_RATE	Define the sampling rate type in the Apc algorithm
NR_CONVERGE_SPEED	Anr algorithm convergence speed type
IAA_HPF_FREQ	Hpf algorithm cut-off frequency type
ANR_HANDLE	Anr algorithm handle type
EQ_HANDLE	Eq algorithm handle type
AGC_HANDLE	Agc algorithm handle type
APC_BF_HANDLE	Define the BF handle type that cooperating with Apc algorithm
EQ_FILTER_TYPE	IIR filter type
AudioFilterConfig	The IIR configuration parameter structure type of the filter algorithm
CngStruct	The configuration parameter structure type of the comfort noise
AudioApcOption	Apc optional configuration structure

---

3.2. AudioApcBufferConfig

• Description

  Define the buffer configuration parameter structure type of the Apc algorithm.

• Definition

  typedef struct{

      unsigned int anr_enable;

      unsigned int eq_enable;

      unsigned int dr_enable;

      unsigned int vad_enable;

      unsigned int agc_enable;

  }AudioApcBufferConfig;


• Member

  Member name	Description
  anr_enable	The Anr enable option in the Apc algorithm is used to assist in calculating the memory size required for Apc algorithm running.
  eq_enable	The Eq enable option in the Apc algorithm is used to assist in calculating the memory size required for Apc algorithm running.
  dr_enable	Algorithm is being developed
  vad_enable	Vad algorithm has established a separate module, Vad is currently disabled in APC, it is recommended to close
  agc_enable	The Agc enable option in the Apc algorithm is used to assist in calculating the memory size required for Apc algorithm running.

• Note

  None.

• Related data types and interfaces

  IaaApc_GetBufferSize

  IaaApc_Init

  IaaApc_Reset

---

3.3. AudioProcessInit

• Description

  Define Apc(Anr/Eq/Hpf/Agc) algorithm initialization parameter structure type.

• Definition

  typedef struct {

      unsigned int point_number;

      unsigned int channel;

      IAA_APC_SAMPLE_RATE sample_rate;

  }AudioProcessInit;


• Member

  Member name	Description
  point_number	The amount of data processed by the algorithm once (that is, how many sampling points are in a frame), the value is 128 or 256(according to chip), and how many short values need to be given to Apc is determined by chip. Value range: 128 or 256
  channel	The channel numbers of data. If it is a dual channel, the data given to Apc in each frame is twice the point_number.
  sample_rate	Data sampling frequency

• Related data types and interfaces

  IaaApc_Init

  IaaApc_Reset

  IaaApc_GetConfig

  IaaAnr_Init

  IaaAnr_Reset

  IaaAnr_GetConfig

  IaaEq_Init

  IaaEq_Reset

  IaaEq_GetConfig

  IaaAgc_Init

  IaaAgc_Reset

  IaaAgc_GetConfig

---

3.4. APC_HANDLE

• Description

  Apc algorithm handle type.

• Definition

  typedef void* APC_HANDLE;


• Member

  Member name	Description

• Note

  None.

• Related data types and interfaces

  IaaApc_Init

  IaaApc_Config

  IaaApc_GetNrResult

  IaaApc_GetNrEqResult

  IaaApc_Run

  IaaApc_Free

  IaaApc_Reset

---

3.5. AudioAnrConfig

• Description

  Define the Anr configuration parameter structure type of the Apc algorithm.

• Definition

  typedef struct{

      unsigned int anr_enable;

      unsigned int user_mode;

      int anr_intensity_band[6];

      int anr_intensity[7];

      unsigned int anr_smooth_level;

      NR_CONVERGE_SPEED anr_converge_speed;

      int anr_filter_mode;

  }AudioAnrConfig;


• Member

  Member name	Description
  anr_enable	Whether to enable Anr algorithm
  user_mode	Anr algorithm running mode
  anr_intensity_band	Anr frequency range Range [1,128]; step size 1
  anr_intensity	ANR intensity, the larger the value, the higher the ANR intensity, but at the same time it will also bring about the loss/damage of details. The recommended value is 10. Range [0,30]; step size 1
  anr_smooth_level	Frequency domain smoothness Recommended value:10 Range [0,10]; step size 1
  anr_converge_speed	Noise convergence speed Recommended value: NR_SPEED_MID Range [NR_SPEED_LOW;NR_SPEED_MID;NR_SPEED_HIGH]
  anr_filter_mode	Frequency domain noise reduction filter Range [0,6]; step size 1

• Note

  • When anr_enable is FALSE, other Anr parameters will not work;

  • user_mode specifies the running mode of Anr. 0, means that the Anr algorithm does not use other Anr parameters at all, but uses the internal settings of the Anr algorithm; 1 or 2 means that the Anr parameters under the application are completely used.

  • anr_intensity_band, ANR frequency range, the latter element must be greater than or equal to the first element.

    For example: u32NrIntensityBand[0]= 10, then: u32NrIntensityBand[1] must be greater than or equal to 10.

    The highest frequency corresponding to the current sampling rate is divided into 128 parts on average, and the frequency range corresponds to how many parts form a frequency band.

    For example: the current sampling rate is 16K, the corresponding maximum frequency is 8K, each one is 8000 / 128 ≈ 62.5Hz. Under the setting of {4,6,36, 49,50,51}, the ANR frequency range is {0 ~ 4 * 62.5Hz, 4 ~ 6 * 62.5Hz, 6 ~ 36 * 62.5Hz, 36 ~ 49 * 62.5Hz, 49 ~ 50 * 62.5Hz, 50 ~ 51 * 62.5Hz, 51-127 * 62.5Hz} = {0 ~ 250Hz, 250 ~ 375Hz, 375 ~ 2250Hz, 2250 ~ 3062.5Hz, 3062.5 ~ 3125Hz, 3125 ~ 3187.5Hz, 3187.5Hz ~ 8000Hz}, anr_intensity is the Anr intensity, According to the frequency band division of anr_intensity_band, different parameters are set for the noise situation of each frequency band.

  • anr_smooth_level, the smoothness of Anr algorithm the frequency domain procession, avoid excessively large suppression gaps between adjacent frequencies during noise estimation, resulting in sound damage.

  • anr_converge_speed, Anr algorithm convergence speed, noise update speed, the faster the setting, the faster the Anr will converge, but the details will be lost/damaged.

  • anr_filter_mode specifies the Anr algorithm. 0 is the original Anr algorithm. 1 ~ 4 Anr algorithms are based on different noise estimation approaches. 5 Anr algorithm is deep-learning based noise reduction algorithm. 6 Anr algorithm is IPU based deep-learning algorithm.

  • When using anr_filter_mode 5, the anr_converge_speed must be set as NR_SPEED_MID or NR_SPEED_HIGH. In addition, anr_smooth_level will not affect the results of using anr_filter_mode 5.

  • When using anr_filter_mode 5 and the anr_converge_speed is NR_SPEED_MID, it will reduce the cpu loading effectively(most half), but the trade off is less noise suppress effect and lower converge speed.

  • anr_filter_mode 5 has two version. Version 5 are focus on wideband scenario from 0kHz to 8kHz, supporting 8kHz, 16kHz and 32kHz sampling rate and 128 point number. Version 3 is designed for superwideband scenario from 0kHz to 16kHz and only support 32kHz sampling rate and 256 point number. The latest anr_filter_mode 5 version 5 is recommended. The anr_filter_mode version can be checked by following command to APC or ANR library.

     strings libAPC_LINUX.a | grep ALGO

  • When using anr_filter_mode 6, anr_smooth_level will not affect the results.

  • When using anr_filter_mode 6, The recommended setting for anr_converge_speed is NR_SPEED_HIGH.

• Related data types and interfaces

  IaaApc_Config

  IaaApc_GetConfig

  IaaAnr_Config

  IaaAnr_GetConfig

  NR_CONVERGE_SPEED

---

3.6. AudioEqConfig

• Description

  Define the Eq configuration parameter structure type of the Apc algorithm.

• Definition

  typedef struct{

      unsigned int eq_enable;

      unsigned int user_mode;

      short eq_gain_db[129];

  }AudioEqConfig;


• Member

  Member name	Description
  eq_enable	Whether to enable Eq algorithm
  user_mode	Eq algorithm running mode
  eq_gain_db	Eq algorithm gain adjustment value, divide the frequency range of the current sampling rate into 129 frequency ranges for adjustment. Unit: 1dB Range [-100,20]; step size 1

• Note

  • When eq_enable is FALSE, other Eq parameters will not work;

  • user_mode specifies the running mode of Eq. 0, means Eq uses the preset parameters which are all 0, without any gain or attenuation; 1 means that the Eq parameters under the application are completely used.

  • eq_gain_db is the table for gain adjustment, divide the frequency range of the current sampling rate into 129 frequency ranges for adjustment. For example: the current sampling rate is 16K, the corresponding highest frequency is 8K, 8000 / 129 ≈ 62Hz, the frequency range of a single adjustment is 62Hz, and 0-8K is divided into {0-1 * 62Hz, 1-2 * 62Hz, 2-3 * 62Hz, …, 128-129 * 62Hz} = {0-62Hz, 62-124Hz, 124-186Hz, … ,7938-8000Hz}, each segment corresponds to a gain value.

• Related data types and interfaces

  IaaApc_Config

  IaaApc_GetConfig

  IaaEq_Config

  IaaEq_GetConfig

---

3.7. AudioHpfConfig

• Description

  Define the Hpf configuration parameter structure type of the Apc algorithm.

• Definition

  typedef struct{

      unsigned int hpf_enable;

      unsigned int user_mode;

      IAA_HPF_FREQ cutoff_frequency;

  }AudioHpfConfig;


• Member

  Member name	Description
  hpf_enable	Whether to enable Hpf algorithm
  user_mode	The running mode of the Hpf algorithm, setting 1 is the frequency domain processing mode, and setting 2 is the time domain processing mode
  cutoff_frequency	Hpf cutoff frequency Range: [0,1,2,3,4]

• Note

  • When hpf_enable is FALSE, other Hpf parameters will not work;

  • user_mode specifies the running mode of Hpf. 0, represents the preset parameters without any attenuation; 1, represents the application of the Hpf parameters set by the user, the Hpf algorithm is applied in the frequency domain, and the internal algorithm connection process of APC is ANR → EQ/HPF → AGC; 2, represents applying the Hpf parameters set by the user. The Hpf algorithm is applied in the time domain. The internal algorithm connection process of APC is HPF → ANR → EQ → AGC.

  • cutoff_frequency is the cutoff frequency of Hpf. Signals below this frequency will be filtered out.

  • If you only need to use the Hpf algorithm, hpf_enable is TRUE, and eq_enable in AudioEqConfig is set to FALSE. Please also set eq_enable in AudioApcBufferConfig to TRUE so that the system can get the correct memory size required to run the algorithm through IaaApc_GetBufferSize.

• Related data types and interfaces

  IaaApc_Config

  IaaApc_GetConfig

  IaaEq_Config

  IaaEq_GetConfig

---

3.8. AudioAgcConfig

• Description

  Define the Agc configuration parameter structure type of the Apc algorithm.

• Definition

  typedef struct

  {

      unsigned int agc_enable;

      unsigned int user_mode;

      //gain setting

      AgcGainInfo gain_info;

      unsigned int drop_gain_max;

      //attack time, release time

      unsigned int attack_time;

      unsigned int release_time;

      //target level

      short compression_ratio_input[7];

      short compression_ratio_output[7];

      int drop_gain_threshold;

      // noise gate

      int noise_gate_db;

      unsigned int noise_gate_attenuation_db;

      unsigned int gain_step;

  }AudioAgcConfig;


• Member

  Member name	Description
  agc_enable	Whether to enable Agc algorithm
  user_mode	Agc algorithm running mode. This value is set to 1 for time domain Agc process. and it is set to 2 for frequency domain Agc process.
  gain_info	The Agc algorithm gain information, which defines the maximum, minimum and initial values of the AGC gain
  drop_gain_max	The maximum value of instantaneous gain drop, prevent output saturation. If the output plus the current Gain exceeds the dB value set by drop_gain_threshold, Agc will instantly reduce the Gain to prevent the peak value of the current signal from exceeding drop_gain_threshold. Range: [0,120]; Step size: 1 Note：This value only represents the range that can be lowered, but the specific value that can be lowered depends on the minimum value of the AGC gain.
  attack_time	Time step for gain reduction, take 4 milliseconds as 1 unit, if set to 2, it will judge whether to increase Gain every 8 milliseconds. Range: [1,99]; step size: 1
  release_time	Time step for gain increase, take 4 milliseconds as 1 unit, if set to 2, it will judge whether to increase Gain every 8 milliseconds Range: [1,99]; step size: 1
  compression_ratio_input	Use with compression_ratio_output, realize the curve with multiple slopes through multiple turning points to get the relationship between input power level and output power level. Range: [-120,0]dBFS; step size: 1
  compression_ratio_output	Use with compression_ratio_input, realize the curve with multiple slopes through multiple turning points to get the relationship between input power level and output power level. Range: [-120,0]dBFS; step size: 1
  drop_gain_threshold	Attenuation threshold, When the signal peak amplitude exceeds this value, it will attenuate instantly, and the attenuation amplitude is limited by drop_gain_max and gain_info. Range: [-120,0]dB; step size: 1
  noise_gate_db	Noise threshold, when the signal is less than this value, treat it as noise. Case1: If you set noise_gate_db from -80 to 0, the current gain value will converge to 0 according to the release/attack time. Case2: If you set noise_gate_db from 1 to 80, when the signal is less than this value, the Gain value will not be changed, and keep the Gain value of the previous frame Range: [-120,120] ; step size: 1
  noise_gate_attenuation_db	When the noise threshold is effective, it is input source attenuation percentage. Range: [0,100] ; step size: 1
  gain_step	The speed of applying gain is 0.5dB as a unit. If it is set to 1, then ±0.5dB is applied per frame according to requirements. The higher the value, the faster the speed of increasing and decreasing the volume. Range: [1,10] ; step size: 1

• Note

  • When agc_enable is FALSE, other Agc parameters will not work;

  • user_mode specifies the running mode of Agc. 0, means that the Agc algorithm does not use other Agc parameters at all, but uses the internal settings of the Agc algorithm; 1 means that the Agc parameters under the application are completely used.

  • Compression ratio Curve defines the relationship between InputOutput energy. By setting seven points, six different slope transitions can be obtained. For example, the parameters are set as follows:

    compression_ratio_input[7] = {-80, -60, -50,-40,-30,-12,0}

    compression_ratio_output[7] = {-80, -45, -36, -27, -18, -9, -6}


    The curve is shown in the figure below.



    If you don't need so many different slopes, you can set the last compression ratio parameter to 0, as follows:

    compression_ratio_input[7] = {-70, -60, -30, 0,0,0,0};

    compression_ratio_output[7] = {-60, -50, -10, -3, 0,0,0};




  • There are two modes for the noise gate setting, which can converge Gain to 0 or keep it unchanged. Convergence to 0 can prevent signals smaller than the noise gate from being amplified, maintain noise stability, and maintain the Gain value unchanged to avoid the "breathing phenomenon" where the beginning and end of the voice disappear.

  • If user set user mode to 2, frequency domain Agc process enable. Please refer to the following API and call following API when user use frequency domain Agc.

    IaaApc_SetLowFreqCompressionRatioCurve

    IaaApc_SetMidFreqCompressionRatioCurve

    IaaApc_SetHighFreqCompressionRatioCurve

    IaaApc_SetAgcFreqBand

    IaaAgc_SetLowFreqCompressionRatioCurve

    IaaAgc_SetMidFreqCompressionRatioCurve

    IaaAgc_SetHighFreqCompressionRatioCurve

    IaaAgc_SetAgcFreqBand

• Related data types and interfaces

  IaaApc_Config

  IaaApc_GetConfig

  IaaAgc_Config

  IaaAgc_GetConfig

---

3.9. AgcGainInfo

• Description

  Define Agc gain parameter structure type in Apc algorithm.

• Definition

  typedef struct

  {

      int gain_max; //gain maximum

      int gain_min; //gain minimum

      int gain_init; //default gain (initial gain)

  }AgcGainInfo;


• Member

  Member name	Description
  gain_max	Maximum gain Range: [-120,100]; step size: 1
  gain_min	Minimum gain Range: [-120,100] ; step size: 1
  gain_init	Gain initial value Range: [-100,100] ; step size: 1

• Note

  None.

• Related data types and interfaces

  AudioAgcConfig

---

3.10. IAA_APC_SAMPLE_RATE

• Description

  Define the sampling rate type in the Apc algorithm.

• Definition

  typedef enum {

      IAA_APC_SAMPLE_RATE_8000 = 8000 ,

      IAA_APC_SAMPLE_RATE_16000 = 16000 ,

      IAA_APC_SAMPLE_RATE_32000 = 32000 ,

      IAA_APC_SAMPLE_RATE_48000 = 48000 ,

  }IAA_APC_SAMPLE_RATE;


• Member

  Member name	Description
  IAA_APC_SAMPLE_RATE_8000	8K sampling rate
  IAA_APC_SAMPLE_RATE_16000	16K sampling rate
  IAA_APC_SAMPLE_RATE_32000	32K sampling rate
  IAA_APC_SAMPLE_RATE_48000	48K sampling rate

• Note

  None.

• Related data types and interfaces

  AudioProcessInit

---

3.11. NR_CONVERGE_SPEED

• Description

  Define Anr algorithm convergence speed type.

• Definition

  typedef enum {

      NR_SPEED_LOW,

      NR_SPEED_MID,

      NR_SPEED_HIGH

  } NR_CONVERGE_SPEED;


• Member

  Member name	Description
  NR_SPEED_LOW	Low speed
  NR_SPEED_MID	Medium speed
  NR_SPEED_HIGH	High speed

• Note

  • Low/medium/high NR convergence speed represents 3/2/1 frame update once noise suppression

• Related data types and interfaces

  AudioAnrConfig

---

3.12. IAA_HPF_FREQ

• Description

  Define Hpf algorithm cut-off frequency type.

• Definition

  typedef enum {

      AUDIO_HPF_FREQ_80 , /* 80Hz*/

      AUDIO_HPF_FREQ_120, /*120Hz*/

      AUDIO_HPF_FREQ_150, /*150Hz*/

      AUDIO_HPF_FREQ_500, /*500Hz*/

      AUDIO_HPF_FREQ_BUTT,

  }IAA_HPF_FREQ;


• Member

  Member name	Description
  AUDIO_HPF_FREQ_80	80Hz
  AUDIO_HPF_FREQ_120	120Hz
  AUDIO_HPF_FREQ_150	150Hz
  AUDIO_HPF_FREQ_500	500Hz
  AUDIO_HPF_FREQ_BUTT

• Related data types and interfaces

  AudioHpfConfig

---

3.13. ANR_HANDLE

• Description

  Define Anr algorithm handle type.

• Definition

  typedef void* ANR_HANDLE;


• Related data types and interfaces

  IaaAnr_Init

  IaaAnr_Config

  IaaAnr_Run

  IaaAnr_Free

  IaaAnr_Reset

  IaaAnr_GetConfig

---

3.14. EQ_HANDLE

• Description

  Define Eq algorithm handle type.

• Definition

  typedef void* EQ_HANDLE;


• Related data types and interfaces

  IaaEq_Init

  IaaEq_Config

  IaaEq_Run

  IaaEq_Free

  IaaEq_Reset

  IaaEq_GetConfig

---

3.15. AGC_HANDLE

• Description

  Define Agc algorithm handle type.

• Definition

  typedef void* AGC_HANDLE;

• Related data types and interfaces

  IaaAgc_Init

  IaaAgc_Config

  IaaAgc_Run

  IaaAgc_Free

  IaaAgc_Reset

  IaaAgc_GetConfig

---

3.16. APC_BF_HANDLE

• Description

  Define the BF handle type that cooperating with Apc algorithm.

• Definition

  typedef void* APC_BF_HANDLE;


• Related data types and interfaces

  IaaApc_EnhanceNNBFMode

• Note

  • This handle is only applicable to special enhancement that using BF mode as 3 and anr_filter_mode as 5 simultaneously. It won't affect the results of using other modes.

---

3.17. EQ_FILTER_TYPE

• Description

  Define IIR filter type.

• Definition

  typedef enum {

      EQ_NOTCH_FILTER ,

      EQ_HIGH_PASS_FILTER,

      EQ_LOW_PASS_FILTER,

  }EQ_FILTER_TYPE;


• Member

  Member name	Description
  EQ_NOTCH_FILTER	Notch filter
  EQ_HIGH_PASS_FILTER	High pass filter
  EQ_LOW_PASS_FILTER	Low pass filter

• Related data types and interfaces

  AudioFilterConfig

---

3.18. AudioFilterConfig

• Description

  Define IIR filter parameter structure type in filter algorithm.

• Definition

  typedef struct{

      EQ_FILTER_TYPE type;

      int f0;

      int q_factor;

      int gain;

  }AudioFilterConfig;


• Member

  Member name	Description
  type	Filter type by EQ_FILTER_TYPE
  f0	Fitler center frequency
  q_fctor	Q factor
  gain	Gain value

• Related data types and interfaces

  EQ_FILTER_TYPE

• Note

  • type

    There are three types, notch filter/high-pass filter/low-pass filter, the following figures is the typical frequency response of three types of filter. 1. Notch fitler is for specific frequency suppression. 2. High-pass filter is the suppression of band below a specific frequency. 3. Low-pass filter is the suppression of band above a specific frequency.



  • f0

    f0 is transition frequency for HPF and LPF, the bend in the frequency response curve. That is the -3dB frequency point.

    And for notch filter, f0 is center frequency. Please refer to the following figure.



  • q_factor

    Q is quality factor. The formula of q factor is as following. $f_0$, $f_1$ and $f_2$ Please refer to the above figure. $<span class="arithmatex"><span class="MathJax_Preview">Q=\frac{f_0}{f_2-f_1}</span><script type="math/tex">Q=\frac{f_0}{f_2-f_1}$

  • gain

    This is steady state gain of HPF and LPF, and for notch filter, gain represent peak value.

    filter_design.q_factor = 1;

    filter_design.f0 = 2000;

    filter_design.type = EQ_HIGH_PASS_FILTER;

    filter_design.gain = 3;


    The frequency response is as following



    filter_design.q_factor = 1;

    filter_design.f0 = 2000;

    filter_design.type = EQ_NOTCH_FILTER;

    filter_design.gain = 3;


    The frequency response is as following



---

3.19. CngStruct

• Description

  The structure of comfort noise configuration.

• Definition

  typedef struct
  {
      int energy_dbfs;

      short point_number;

      int channel_num;

  }CngStruct;


• Member

  Member name	Description
  energy_dbfs	specified power of comfort noise
  point_number	input data frame length
  channel_num	input data channel number

• Note

  If the channel number is stereo, user should permutate the data following the sequence of left/right/left/right...

---

3.20. AudioApcOption

• Description

  Apc optional configuration structure。

• Definition

  typedef struct
  {
      int digital_gain[10];

  }AudioApcOption;


• Member

  Member name	Description
  digital_gain	the specified gain which apply at input data

• Related data types and interfaces

  IaaApc_OptionReadFromJson

  IaaApc_ApplyDigitalGain

• Note

  • User set up to 10 different digital_gain, please use with IaaApc_ApplyDigitalGain.

  • For the setting of digital_gain, please refer to IaaApc_ApplyDigitalGain.

---

4. Error code

APC API error codes are shown as follow:

Error code	Definition	Description
0x00000000	ALGO_APC_RET_SUCCESS	APC run successful
0x10000501	ALGO_APC_RET_INIT_ERROR	APC not initialized
0x10000502	ALGO_APC_RET_INVALID_HANDLE	HANDLE invalid
0x10000503	ALGO_APC_RET_INVALID_SAMPLE_RATE	Sampling frequency is not supported
0x10000504	ALGO_APC_RET_INVALID_POINT_NUMBER	Points per frame not supported
0x10000505	ALGO_APC_RET_INVALID_CHANNEL	Channel number doesn't support
0x10000506	ALGO_APC_ANR_RET_INVALID_ENABLE	ANR switch parameter setting is invalid
0x10000507	ALGO_APC_ANR_RET_INVALID_MODE	ANR mode parameter setting is invalid
0x10000508	ALGO_APC_ANR_RET_INVALID_INTENSITY	ANR intensive parameter setting is invalid
0x10000509	ALGO_APC_ANR_RET_INVALID_SMOOTH_LEVEL	ANR smoothing parameter setting is invalid
0x10000510	ALGO_APC_ANR_RET_INVALID_COVERGE_SPEED	ANR convergence rate parameter setting is invalid
0x10000511	ALGO_APC_EQ_RET_INVALID_ENABLE	EQ switch parameter setting is invalid
0x10000512	ALGO_APC_EQ_RET_INVALID_MODE	EQ mode parameter setting is invalid
0x10000513	ALGO_APC_EQ_RET_INVALID_TABLE	EQ parameter setting is invalid
0x10000514	ALGO_APC_HPF_RET_INVALID_ENABLE	HPF switch parameter setting is invalid
0x10000515	ALGO_APC_HPF_RET_INVALID_MODE	HPF mode parameter setting is invalid
0x10000516	ALGO_APC_HPF_RET_INVALID_TABLE	HPF parameter setting is invalid
0x10000517	ALGO_APC_AGC_RET_INVALID_ENABLE	AGC switch parameter setting is invalid
0x10000518	ALGO_APC_AGC_RET_INVALID_MODE	AGC mode parameter setting is invalid
0x10000519	ALGO_APC_AGC_RET_INVALID_COMPRESSION_RATIO	AGC compression curve parameter setting is invalid
0x10000520	ALGO_APC_AGC_RET_INVALID_FREQUENCY_BAND	AGC frequency band setting is invalid
0x10000521	ALGO_APC_AGC_RET_INVALID_DROP_GAIN_MAX	AGC anti-saturation parameter setting is invalid
0x10000522	ALGO_APC_AGC_RET_INVALID_GAIN_STEP	AGC gain step parameter setting is invalid
0x10000523	ALGO_APC_AGC_RET_INVALID_RELEASE_TIME	AGC recovery time parameter setting is invalid
0x10000524	ALGO_APC_AGC_RET_INVALID_ATTACK_TIME	AGC subtracted time parameter setting is invalid
0x10000525	ALGO_APC_AGC_RET_INVALID_NOISE_GATE	AGC noise threshold parameter setting is invalid
0x10000526	ALGO_APC_AGC_RET_INVALID_NOISE_ATTENU	AGC noise attenuation setting is invalid
0x10000527	ALGO_APC_AGC_RET_INVALID_DROP_GAIN_LEVEL	AGC anti-saturation threshold parameter setting is invalid
0x10000528	ALGO_APC_AGC_RET_INVALID_GAIN_INFO	AGC gain control parameter setting is invalid
0x10000529	ALGO_APC_RET_API_CONFLICT	Other APIs are running
0x10000530	ALGO_APC_RET_INVALID_CALLING	Incorrect order of calling API
0x10000531	ALGO_APC_RET_FAILED	Parameter setting error
