MI AQSERVER API¶

REVISION HISTORY¶

Revision No.	Description	Date
1.0	Initial release	10/24/2024

1. Overview¶

1.1. Module Description¶

AQ SERVER (Audio Quality tuning Server) is an audio quality tuning service used to complete data communication between the tuning tool (AudioTuning Tool) and the development board, including online reading and setting of Audio module parameters, and obtaining Audio module input and output data.

PS: By default, it is for internal use. If necessary, you can contact FAE to obtain the toolkit

1.2. Basic Structure¶

APC

APC (Audio Process Chain) is an algorithm combination that includes noise reduction, equalizer, and automatic gain control.
AGC

AGC (Automatic Gain Control) is used to control the digital output gain.
EQ

EQ (Equalizer) is used to increase or decrease specific frequency bands.
ANR

ANR (Acoustic Noise Reduction)is used to remove persistent, fixed-frequency noise in the environment.
AEC

AEC (Acoustic Echo Cancellation) is used to suppress remote echo.
BF

BF (Beamforming) is a directional signal processing technology used for sensor array transmission or reception. It uses spatial filtering and sensor arrays to enhance signals at specific angles and suppress signals in other directions.
DH DH (Dehowling) is a function to suppress howling. Howling is common in sound reinforcement systems. When microphones and speakers are in the same venue, the sound is amplified by the speakers and then picked up by the microphones, forming a sound feedback loop.

1.3. Basic Structure¶

MI_AQSERVER supports the following functions:

Support AQ and Audio parameter settings.
Support dump audio data.

1.4. Application scenarios¶

AQSERVER can be applied to the following scenarios:

Pure linux scenario

In the linux environment, NetWork and IQTool connection debugging are supported.
Dualos scenario

In the dualos environment, NetWork and IQTool connection debugging are supported.

1.5. Working Principle¶

AQSERVER has two calling methods:

Network interaction process:

1.6. Development process¶

Enter the alkaid project root directory and make menuconfig.
Press Enter to enter the Sdk Config sub-option
Press Enter to enter the Interface Compile Config sub-option
Press the spacebar to select the aqserver sub-module and recompile the project

After the compilation is completed, libmi_aqserver.a will be generated under sdk/interface/src/aqserver

1.7. Example Introduction¶

Take audio_alg_APC_demo as an example, there are two ways

1.7.1 Run with the ready-made demo¶

Step 1: The demo is stored in the sdk/verify/mi_demo/source/audio/audio_alg_APC_demo, enter the path.
Step 2: Run compile command: make source/audio/audio_alg_APC_demo.
Step 3: After successful compilation, go to the sdk/verify/mi_demo/out directory to get the demo file.

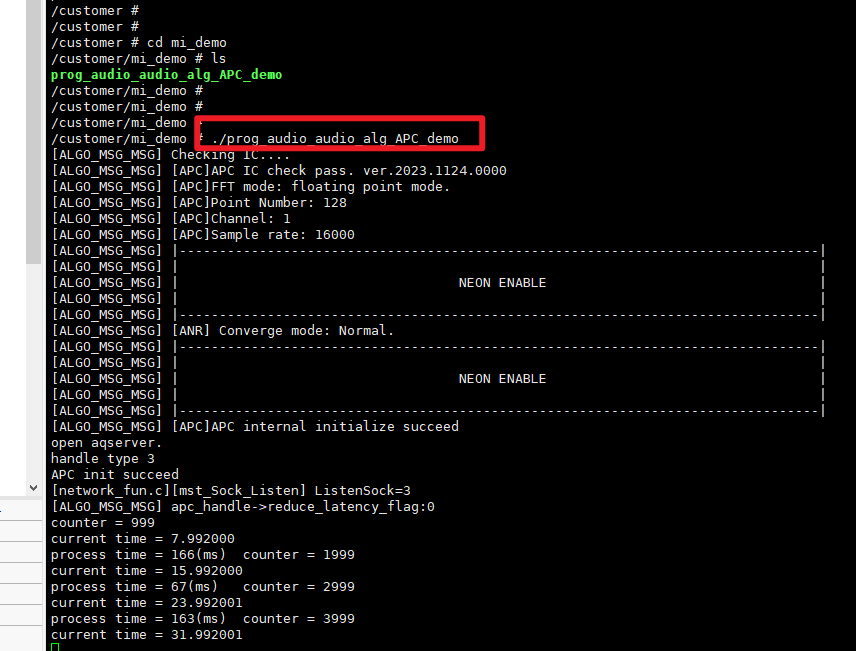

Step 4: Run demo

1.7.2 Integrate into demo¶

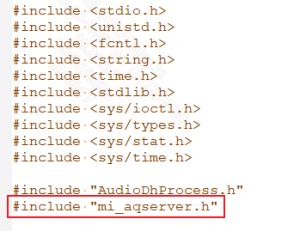

Step 1: Import mi_aqserver.h file

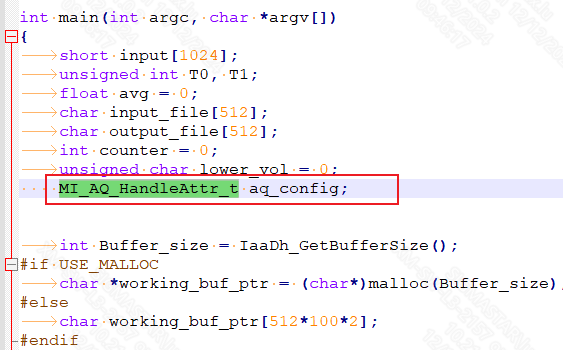

Step 2: Set the MI_AQ_HandleAttr_t variable

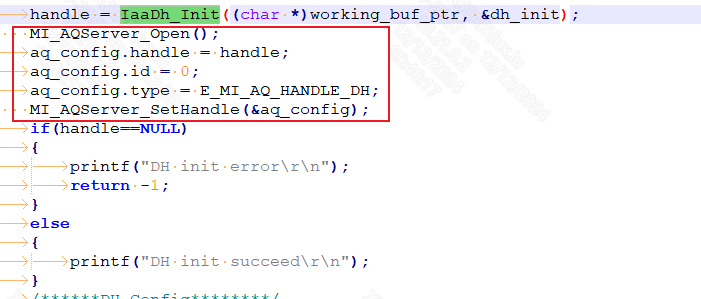

Step 3: Start aqserver and set handle

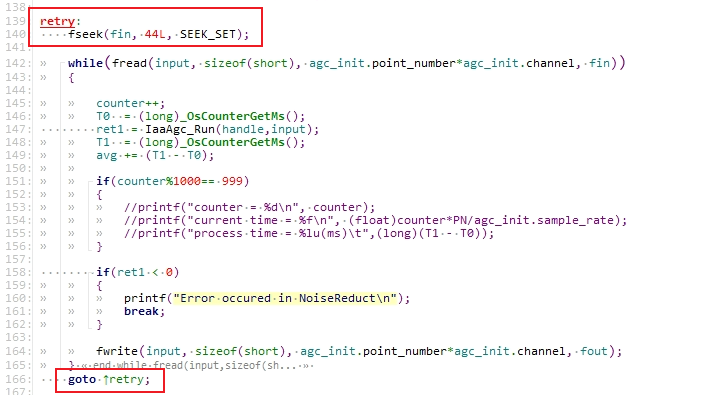

Step 4: Modify the demo to run repeatedly

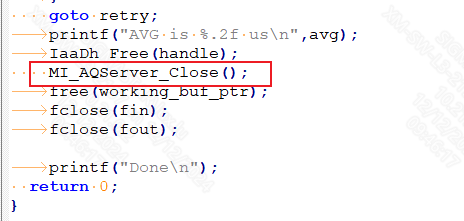

Step 5: Call MI_AQServer_Close() when exiting the demo

Step 6: Modify the makefile file and link the aqserver related libraries

LIBS += -lm -lmi_aqserver -lAGC_LINUX -lANR_LINUX -lEQ_LINUX -lDH_LINUX -lBF_2MIC_LINUX -lAEC_LINUX

2. API LIST¶

This function module provides the following APIs:

API Name	Function
MI_AQSERVER_Open	Open the AQ server
MI_AQSERVER_Close	Close the AQ server
MI_AQSERVER_SetDataPath	Set the AQ server data storage path
MI_AQServer_SetHandle	Set the module type supported by AQ server

2.1. MI_AQSERVER_Open¶

Function

Call this interface to open the AQ server.
Syntax

MI_S32 MI_AQSERVER_Open();
Return Value
- 0, AQ server open successfully.
- Others, failed to open the AQ server.
Dependency
- Header file: mi_aqserver.h
- Library file: libmi_aqserver.a
Note

Currently, only one AQ server can be created. After it is created, you can use the AQ Tool to connect and debug

Example

/* open AQSERVER*/
ret = MI_AQServer_Open();
if (0 != ret)
{
    Printf("open aqserver error:%x\n", ret);
    return ret;
}

Related APIs

MI_AQSERVER_Close

2.2. MI_AQSERVER_Close¶

Function

Call this interface to close the AQ server.
Syntax

MI_ S32 MI_AQSERVER_Close();
Return Value
- 0, AQ server is close successfully.
- Others, failed to close the AQ server.
Dependency
- Header file: mi_aqserver.h
- Library file: libmi_aqserver.a
Note

Calling MI_AQSERVER_Open and MI_AQSERVER_Close needs to correspond.

Example

/* close AQSERVER*/

ret = MI_AQSERVER_Close();

if (0 != ret)

{

    Printf("close aqserver error:%x\n", ret);

    return ret;

}

Related APIs

MI_AQSERVER_Open

2.3. MI_AQSERVER_SetDataPath¶

Function

Set the data storage path of the AQ server.
Syntax

MI_S32 MI_AQSERVER_SetDataPath(char* path);
Form parameter

Parameter Name Description Input/Output

path Path of IQ server data, ending with \0. Input
Return Value
- 0, Success.
- Others, setup failed.
Dependency
- Header file: mi_aqserver.h
- Library file: libmi_aqserver.a
Note
- This interface can be called before MI_AQSERVER_Open
- Before calling, please confirm whether the path is accessible.

Example

/*declaration*/

char *data_path = "/customer/iqconfig/";

/* set AQSERVER data path*/

ret = MI_AQSERVER_SetDataPath(data_path);

if (0 != ret)

{

    Printf("set aqserver data path error:%x\n", ret);

    return ret;

}

Related APIs

None.

2.4. MI_AQServer_SetHandle¶

Function

Set the Audio module handle to allow users to set module type support by executing different audio demos APC/ANR/EQ/AGC/DH/AEC/BF.
Syntax

MI_S32 MI_AQServer_SetHandle(MI_AQ_HandleAttr_t *pHandleInfo);
Form parameter

Parameter Name Description Input/Output

pHandleInfo supports module structure data input Input
Return Value
- 0, Success.
- Others, setup failed.
Dependency
- Header file:mi_aqserver.h
- Library file:libmi_aqserver.a
Note
- This interface can be called after MI_AQSERVER_Open

Example

/*declaration*/

AudioApcBufferConfig apc_switch;
apc_switch.anr_enable = 1;
apc_switch.eq_enable = 1;
apc_switch.dr_enable = 0;
apc_switch.vad_enable = 0;
apc_switch.agc_enable = 1;
int Buffer_size = IaaApc_GetBufferSize(&apc_switch);

char working_buf_ptr[512*100*2];
FILE * fin, * fout;
int ret1;
AudioProcessInit apc_init;
APC_HANDLE handle;
int PN=128;
apc_init.point_number = PN;
apc_init.channel = 1;
apc_init.sample_rate = IAA_APC_SAMPLE_RATE_16000;

handle = IaaApc_Init((char *)working_buf_ptr, &apc_init, &apc_switch);
MI_AQServer_Open();
aq_config.handle = handle;
aq_config.id = 0;
aq_config.type = E_MI_AQ_HANDLE_APC;

/* set IQSERVER custom function*/

ret = MI_AQServer_SetHandle(&aq_config);
if (0 != ret)
{

    Printf("set aqserver handle type error:%x\n", ret);
    return ret;
}

Related APIs

None.

3. AQServer Data Type¶

Data Type	Description
MI_AQ_HANDLE_TYPE_e	Define the supported Audio module handle types
MI_AQ_HandleAttr_t	Define the supported handle type structures

3.1. MI_AQ_HANDLE_TYPE_e¶

Description

Define supported Audio module handle types

Definition

typedef enum
{
    E_MI_AQ_HANDLE_ANR = 0,
    E_MI_AQ_HANDLE_AGC,
    E_MI_AQ_HANDLE_EQ,
    E_MI_AQ_HANDLE_APC,
    E_MI_AQ_HANDLE_AEC,
    E_MI_AQ_HANDLE_DH,
    E_MI_AQ_HANDLE_BF,
}MI_AQ_HANDLE_TYPE_e;

Member

Name	Description
E_MI_AQ_HANDLE_ANR	ANR module handle type
E_MI_AQ_HANDLE_AGC	AGC module handle type
E_MI_AQ_HANDLE_EQ	EQ module handle type
E_MI_AQ_HANDLE_APC	APC module handle type
E_MI_AQ_HANDLE_AEC	AEC module handle type
E_MI_AQ_HANDLE_DH	DH module handle type
E_MI_AQ_HANDLE_BF	BF module handle type

Related Data Type and Interface

None.

3.2. MI_AQ_HandleAttr_t¶

Description

Defines the supported handle type structures.

Definition

typedef struct MI_AQ_HandleAttr_s
{
    void *handle;
    MI_U32 id;
    MI_AQ_HANDLE_TYPE_e type;
} MI_AQ_HandleAttr_t;

Member

Name	Description
handle	Handle pointer corresponding to the handle type
id	Number corresponding to the number of handle type pages created
type	The handle type's ordinal number in the MI_AQ_HANDLE_TYPE_e enumeration

Related Data Type and Interface

None.
