ADCLP User Guide¶

REVISION HISTORY¶

Revision No.	Description	Date
1.0	Initial release	01/24/2024
1.1	Remove sstar_adclp_set_vol(), reference voltage is set by dts	07/24/2024
1.2	add the introduction of iio interface and adc key usage	03/10/2025
1.3	Replace the debug section with FAQ	11/27/2025

1. Overview¶

The Successive Approximation ADC uses a feedback comparison circuit structure. A brief summary of the implementation method is: add a value to the DAC to get a corresponding output analog voltage, then compare this analog voltage with the input analog voltage signal. If the two are not equal, adjust the value, until the two analog voltages are equal. The final value obtained is the desired conversion result.

2. Keyword Description¶

ADCLP

Analog-to-digital converter Low Precision (10-bit)
ADCMP

Analog-to-digital converter Medium Precision (12-bit)
upper/lower bound

ADCLP can set the upper and lower bound of the external input voltage value. If the value exceeds the range, an interrupt will be triggered.
reference voltage

The reference voltage used for analog-to-digital conversion calculations, which is also the maximum range. If the reference voltage is set to 1.8v, when the external input voltage is >=1.8v, the digital value reaches the maximum value of 1023.

3. Function Description¶

SAR ADCLP has a total of 5 Channels to support analog-to-digital conversion of external input voltages
The sampling accuracy is 10-bit, so the obtained register value range is 0~0x3ff
Supports two levels of reference voltage(maximum range) switching, respectively 1.8V and 1.0V
Supports threshold setting of external input voltage
Sampling frequency = 12Mhz / 104 = 115384hz (equivalent to a sampling interval of 8667ns per point on the hardware).

4. Hardware Connection¶

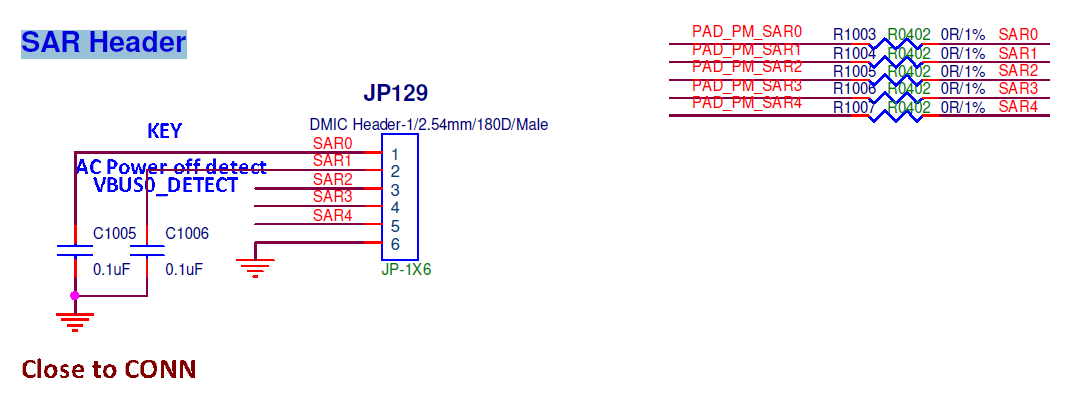

As shown in the figure below, the external voltage can be connected to the pin PAD_PM_SAR0-4:

5. Calculation¶

The main function of SAR ADCLP is to convert analog signals into corresponding digital signals, that is, the input voltage can be converted into digital quantities and stored in registers. The input voltage can be calculated through the formula below:

Calculation formula: voltage = (register value / full scale) * reference voltage

That is, if the value read is 0x1D2, the available voltage is about 0x1D2/0x3FF * 1.8 = 0.82v.

6. Uboot Usage¶

6.1. Uboot Config¶

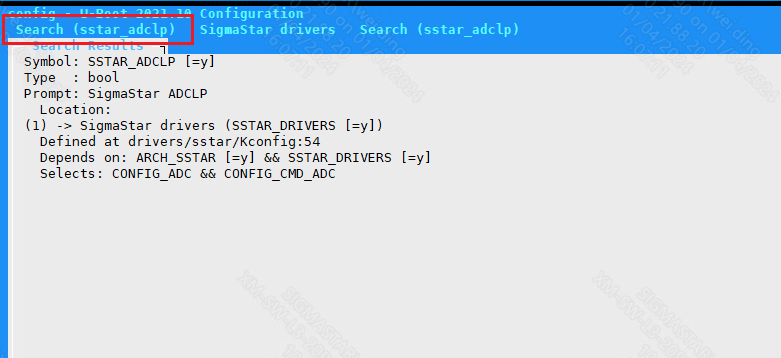

From Kconfig, you can see that to support ADCLP, you need to configure CONFIG_SSTAR_ADCLP, CONFIG_ADC, and CONFIG_CMD_ADC. To enable CONFIG_CMD_ADC, you need to configure DM_REGULATOR first.

Configure CONFIG_SSTAR_ADCLP
Configure CONFIG_ADC
Configure DM_REGULATOR
Configure CONFIG_CMD_ADC

6.2. DTS Configuration¶

The DTS configuration of SAR ADCLP only needs to configure the following information in iford.dtsi:

adclp: adclp {
    compatible = "sstar,adclp";
    reg = <0x1F002800 0x200>;
    chan-num = <5>;
    ref-voltage = <1800>;
    status = "okay";
};

SAR ADCLP DTS configuration instructions:

Attribute	Description	Value	Note
compatible	Match the driver for driver registration	"sstar,adclp"	Modification not allowed
reg	Set the register bank address	<0x1F002800 0x200>	Modification not allowed
chan-num	Set the number of supported channels	5	Modification not allowed
ref-voltage	Set the level of reference voltage	in mv, can select 1800 or 1000	Can be modified where necessary
status	Select whether to enable the driver	"okay" or "disable"	Can be modified where necessary

6.3. Uboot Command Parameter Description and Usage Example¶

Enter adc on the command line:

①adc list → You can check whether sar adclp is bound

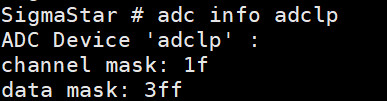

②adc info adclp → You can check the number of channels and data accuracy supported by sar adclp

As shown in the figure below, the number of channels currently supported is 5 (note that the mask is 0x1f), and the maximum data value is 0x3ff.

③adc single adclp [channel] → You can view the data of a specific channel

As shown below, the value of channel 0 is 605.

According to the formula: voltage = (data / 0x3ff) * reference voltage

In this case, the voltage is 605 / 1023 * 1.8 V = 1.065V.

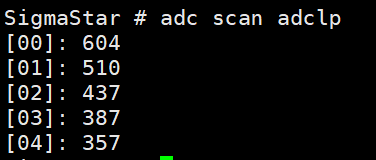

④adc scan adclp [channel mask] → You can view the data of multiple channels

adc scan adclp: You can view the data of all channels

adc scan adclp 0x3: You can view the data of channel 0 and channel 1.

7. Kernel Usage¶

7.1. Kernel Config¶

SAR ADCLP associated driver module Config:

CONFIG_IIO

SAR ADCLP driver enable requires the following configuration:

Device Drivers --->

    [*] Sstar SoC platform drivers --->

        <*> Sstar ADCLP driver

7.2. DTS Configuration¶

The DTS configuration of SAR ADCLP only needs to configure the following information in iford.dtsi:

adclp0: adclp0@1f002800 {
    compatible = "sstar,adclp";
    interrupt-parent = <&sstar_pm_main_intc>;
    interrupts = <INT_PMSLEEP_IRQ_SAR_KP>;
    reg = <0x1F002800 0x200>;
    clocks = <&CLK_sar>;
    interrupt-enable;
    channel = <0>;
    ref-voltage = <1800>;
    upper-bound = <0x3FF>;
    lower-bound = <0>;
    status = "ok";
};

Attribute	Description	Value	Note
compatible	Match the driver for driver registration	"sstar,adclp"	Modification not allowed
interrupt-parent	Bind the interrupt controller	&sstar_pm_main_intc	Modification not allowed
interrupts	Bind the interrupt number	INT_PMSLEEP_IRQ_SAR_KP	Modification not allowed
reg	Set the register bank address	0x1F002800	Modification not allowed
clocks	Set the clock source	&CLK_sar	Modification not allowed
interrupt-enable	Enable the interrupt	bool type, disable by annotation	Can be modified where necessary
channel	Set the channel	0~4	Modification not allowed
ref-voltage	Set the level of reference voltage	in mv, can select 1800 or 1000	Can be modified where necessary
upper-bound	Set the threshold upper bound voltage	0~0x3FF, enable interrupts to be valid	Can be modified where necessary
lower-bound	Set the threshold lower bound voltage	0~0x3FF, enable interrupts to be valid	Can be modified where necessary
status	Select whether to enable the driver	"ok" or "disable"	Can be modified where necessary

7.3. Padmux Configuration¶

SAR-ADCLP does not require padmux configuration. PAD_PM_SAR0-4 is configured as ADC sampling function by default.

7.4. Module Usage¶

7.4.1. SYSFS Interface¶

Enter Channel 0 of SAR ADCLP sampling
```
cd /sys/class/sstar/adclp0/
```
Set the SAR ADCLP0 threshold (Not setting the threshold does not affect sampling)
```
echo 800 400 > /sys/class/sstar/adclp0/threshold
```
Enable SAR ADCLP0
```
echo 1 > enable
```
Get the SAR ADCLP0 value after sampling
```
cat /sys/class/sstar/adclp0/value
```

7.4.2. IOCTL Usage¶

The header file <drv_adclp.h> is located in kernel/driver/sstar/sar directory.

IOCTL_ADCLP_SET_BOUND

Set the sampling voltage threshold
IOCTL_ADCLP_READ_VALUE

Get the value after voltage conversion

...

struct adclp_bound
{
    unsigned short upper_bound;
    unsigned short lower_bound;
};

#define ADCLP_IOC_MAXNR 2

#define ADCLP_IOC_MAGIC        'a'
#define IOCTL_ADCLP_SET_BOUND  _IO(ADCLP_IOC_MAGIC, 0)
#define IOCTL_ADCLP_READ_VALUE _IO(ADCLP_IOC_MAGIC, 1)

...

Sample code

The source code is located in kernel/driver/sstar/sar/ut/ut_adclp.c

#include <fcntl.h>
#include <stdio.h>
#include <errno.h>
#include <signal.h>
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <sys/stat.h>
#include <sys/ioctl.h>
#include <sys/types.h>
#include <drv_adclp.h>

void sample_warn(int num)
{
    printf("adclp data exceeding the threshold\n");
}

int main(int argc, char **argv)
{
    int                fd;
    char               cmd;
    int                flags;
    unsigned short     value;
    unsigned int       channel;
    char               path[64];
    struct adclp_bound adclp_bd;

    if (argc == 2)
    {
        channel = atoi(argv[1]);
    }
    else if (argc == 4)
    {
        channel              = atoi(argv[1]);
        adclp_bd.upper_bound = atoi(argv[2]);
        adclp_bd.lower_bound = atoi(argv[3]);
    }
    else
    {
        printf("format: ut_adclp [channel] <upper> <lower>\n");
        return -1;
    }

    snprintf(path, sizeof(path), "/dev/adclp%u", channel);
    fd = open((const char *)(char *)path, O_RDWR);
    if (fd < 0)
    {
        printf("open device fail\n");
        return -1;
    }

    if (argc == 4)
    {
        ioctl(fd, IOCTL_ADCLP_SET_BOUND, &adclp_bd);
    }

    signal(SIGIO, sample_warn);

    fcntl(fd, F_SETOWN, getpid());
    flags = fcntl(fd, F_GETFL);
    fcntl(fd, F_SETFL, flags | FASYNC);

    while (1)
    {
        cmd = getchar();
        if (cmd == 'q' || cmd == 'Q')
        {
            break;
        }

        ioctl(fd, IOCTL_ADCLP_READ_VALUE, &value);
        printf("adclp%u data[%hu]\n", channel, value);
    }

    close(fd);

    return 0;
}

7.4.3. IIO SYSFS Interface¶

Since each channel of adclp is an independent node, it is distributed in the same way under iio sysfs:

take ii0:device0 as an example：

cat in_voltage_raw：get adc raw code

cat in_voltage_scale：get scale

at this time, the voltage is 714 * 3.225806451 = 2303 mv

7.4.4. how to use adc key¶

7.4.4.1 CONFIG¶

CONFIG_SSTAR_ADCLP=Y

CONFIG_IIO=Y

CONFIG_INPUT=Y

CONFIG_INPUT_EVDEV=Y

CONFIG_INPUT_KEYBOARD=Y

CONFIG_KEYBOARD_ADC=Y

7.4.4.2 DTS Configuration¶

#include "../../../../drivers/sstar/include/iford/irqs.h"
#include "../../../../drivers/sstar/include/iford/gpio.h"
#include <dt-bindings/interrupt-controller/irq.h>
#include "../../../../include/uapi/linux/input-event-codes.h"  //Generally `linux,code` use the content of input event code，this header file needs to be included when compiling
#include <dt-bindings/interrupt-controller/arm-gic.h>

   adc-keys0 {
       compatible = "adc-keys";
       io-channels = <&adclp0 0>;   //adclp0 corresponds to the 10-bit adc channel 0, and the second parameter defaults to 0
       io-channel-names = "buttons";
       poll-interval = <900>;       //unit:ms
       keyup-threshold-microvolt = <1800000>;  //voltage threshold when the button is released
       esc-key {
           linux,code = <KEY_MICMUTE>;
           label = "micmute";
           press-threshold-microvolt = <1200000>; //when the ADC voltage is 1200mv, report the KEY_MICMUTE press event
       };

       home-key {
           linux,code = <KEY_MODE>;
           label = "mode";
           press-threshold-microvolt = <1880000>;
       };

       menu-key {
           linux,code = <KEY_PLAY>;
           label = "play";
           press-threshold-microvolt = <1650000>;
       };

       vol-down-key {
           linux,code = <KEY_VOLUMEDOWN>;
           label = "volume down";
           press-threshold-microvolt = <1320000>;
       };

       vol-up-key {
           linux,code = <KEY_VOLUMEUP>;
           label = "volume up";
           press-threshold-microvolt = <825000>;
       };
   };

   adc-keys1 {
       compatible = "adc-keys";
       io-channels = <&adclp1 0>;  //adclp1 corresponds to the 10-bit adc channel 1, and the second parameter defaults to 0
       io-channel-names = "buttons";
       poll-interval = <1000>;
       keyup-threshold-microvolt = <3300000>;
       esc-key {
           linux,code = <KEY_MICMUTE>;
           label = "micmute";
           press-threshold-microvolt = <2060000>;
       };

       home-key {
           linux,code = <KEY_MODE>;
           label = "mode";
           press-threshold-microvolt = <1880000>;
       };

       menu-key {
           linux,code = <KEY_PLAY>;
           label = "play";
           press-threshold-microvolt = <1650000>;
       };

       vol-down-key {
           linux,code = <KEY_VOLUMEDOWN>;
           label = "volume down";
           press-threshold-microvolt = <1320000>;
       };

       vol-up-key {
           linux,code = <KEY_VOLUMEUP>;
           label = "volume up";
           press-threshold-microvolt = <825000>;
       };
   };

7.4.4.3 Verify adc key events¶

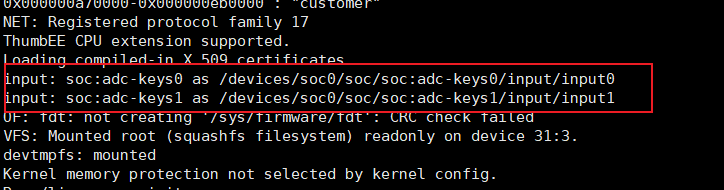

According to the above dts configuration, adc-key0 is bound to adclp channel 0, and it can be seen from the startup log that it is registered as input0:

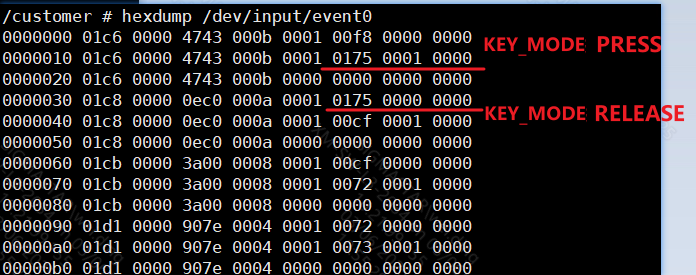

Therefore, hexdump /dev/input/event0 and adjust the voltage at the same time to get the following information:

the 6^th column is the event type, 1 means EV_KEY, 0 means EV_SYN

the 7^th column is the key value, 0x175 means KEY_MODE

the 8^th column is the key status, 1 means pressed, 0 means lifted

8. Using API in Kernel Mode¶

The header file <drv_adclp_io.h> is located in kernel/driver/sstar/sar directory.

...

typedef int (*adclp_cb_t)(u8 channel);

int sstar_adclp_enable(u8 channel, u8 enable);
int sstar_adclp_get_data(u8 channel, u16 *data);
int sstar_adclp_set_bound(u8 channel, u16 max, u16 min);
int sstar_adclp_register_callback(u8 channel, adclp_cb_t cb_t);
int sstar_adclp_unregister_callback(u8 channel, adclp_cb_t cb_t);

...

sstar_adclp_enable

Objective

Enable the sampling function of the specified channel

Syntax

int sstar_adclp_enable(u8 channel, u8 enable);

Parameter

Parameter Name Description

channel Sampling channel

enable Enable or not
Return Value

Return Value Description

0 Success

EINVAL Channel not supported

sstar_adclp_get_data

Objective

Get the external input voltage value of the specified channel

Syntax

int sstar_adclp_get_data(u8 channel, u16 *data)

Parameter

Parameter Name Description

channel Sampling channel

data get the pointer address of the sampling result
Return Value

Return Value Description

0 Success

EINVAL Channel not supported

sstar_adclp_set_bound

Objective

Set the threshold for a specified channel

Syntax

int sstar_adclp_set_bound(u8 channel, u16 max, u16 min)

Parameter

Parameter Name Description

channel Sampling channel

max Threshold upper bound

min Threshold lower bound
Return Value

Return Value Description

0 Success

EINVAL Channel not supported

sstar_adclp_register_callback

Objective

Register the callback function of the specified channel (the same channel supports registering multiple callback functions). When the sampling result exceeds the threshold, the callback function can be used for corresponding processing.

Syntax

int sstar_adclp_register_callback(u8 channel, adclp_cb_t cb_t)

Parameter

Parameter Name Description

channel Sampling channel

cb_t Function pointer
Return Value

Return Value Description

0 Successful registration

EINVAL Registration failed

sstar_adclp_unregister_callback

Objective

Release the callback function of the specified channel and the memory applied during registration.

Syntax

int sstar_adclp_unregister_callback(u8 channel, adclp_cb_t cb_t)

Parameter

Parameter Name Description

channel Sampling channel

cb_t Function pointer
Return Value

Return Value Description

0 Success

EINVAL Registration failed

9. FAQ¶

Q1：SAR ADCLP Interface Does Not Exist

Check if the status of the DTS ADCLP node is ok
Check if the kernel config is configured, see [7.1. Kernel Config Configuration]

Q2: The external input voltage changes, but the SAR ADCLP sampling data does not change

When the PIN is in GPIO MODE, the sampling data will not change. You can read the register value to determine whether the PIN is switched to GPIO MODE:

0x14 0x11 BIT0-BIT5:
Each BIT of BIT0~BIT5 corresponds to a channel. When value=0, the PIN pin of the channel is in GPIO MODE. When value=1, the PIN pin of the channel is in ADC MODE. For example, when BIT0=0, channel 0 is in GPIO MODE. When BIT1=1, channel 1 is in ADC MODE.

0x14 0x11 BIT8-BIT13:
Each BIT of BIT8~BIT13 corresponds to a channel. The prerequisite is that the PIN pin is in GPIO MODE. When value=0, the PIN pin is switched to output. When value=1, the PIN pin is switched to input.

0x14 0x12 BIT0-BIT5:
Each BIT of BIT0~BIT5 corresponds to a channel. The prerequisite is that the PIN pin is in GPIO MODE and is set to ouput. When value=0, the PIN pin of the channel is switched to a low level. When value=1, the PIN pin of the channel is switched to a high level.

For example: riu_r 0x14 0x11
Return value: 0x3F3F -> All channels are in ADC MODE
Return value: 0x3E3E -> Channel 0 is in GPIO MODE, and the rest of the channels are in ADC MODE
Return value: 0x0000 -> All channels are in GPIO MODE and switched to output

When the PIN pin register is set to non-GPIO MODE, the sampled data still does not change. You can set the PIN pin to GPIO MODE and perform an output high/low test. If the PIN pin level cannot be pulled up or down, it can be judged as a hardware problem.

Q3: The first or first few sampling data have a large deviation from the actual input voltage

This problem is most likely related to the sampling timing. You can use GPIO as a trigger source to obtain the voltage status of the component at each sampling.

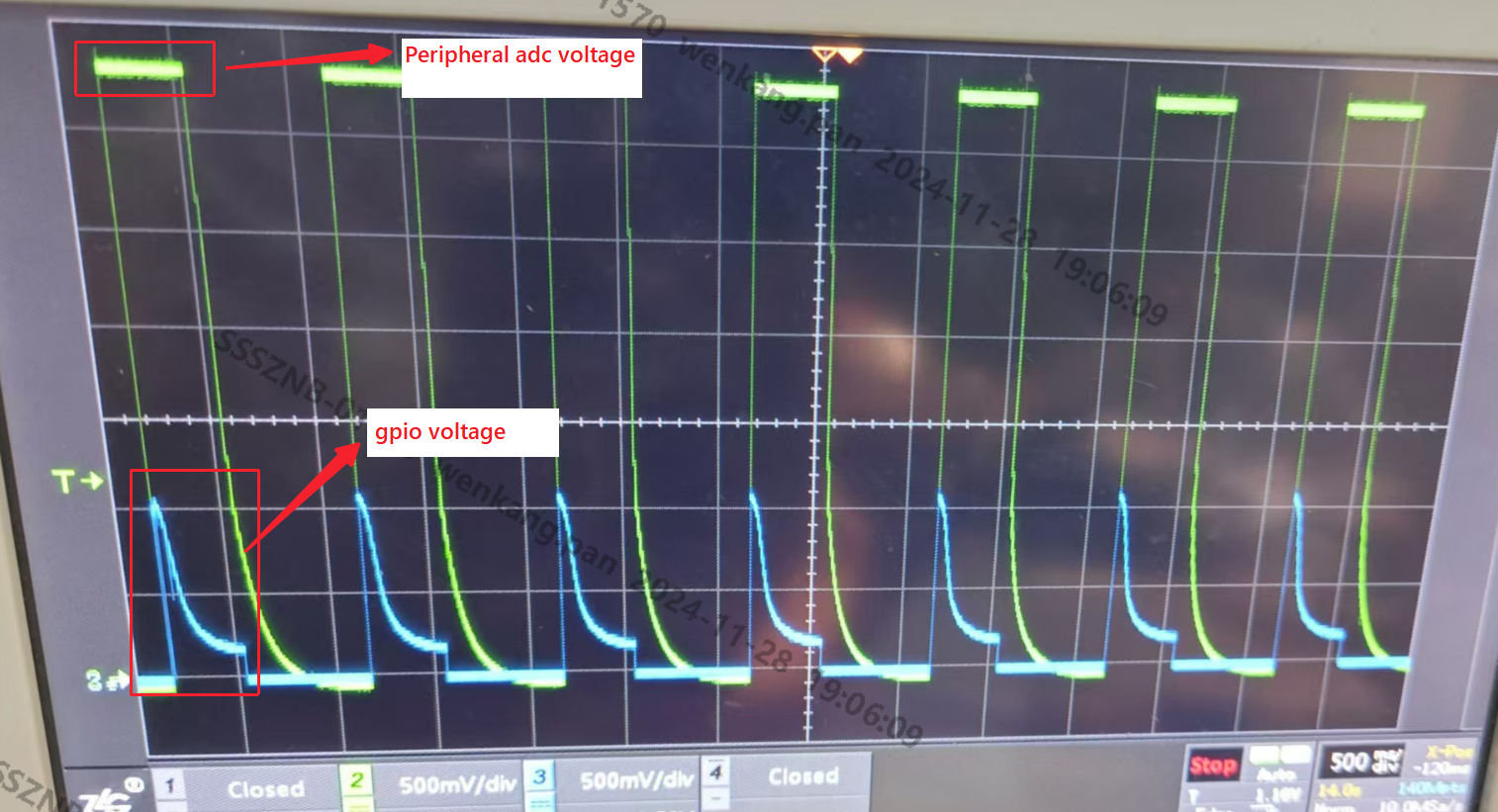

As shown in the figure below, before triggering ADC sampling, GPIO switches from high level to low level. The ADC sampling timing is just in the process of voltage decline, not when the voltage is stable. Therefore, it is judged as sampling abnormality. At this time, it is necessary to wait until the component is stable before sampling.

Parameter Name	Description
channel	Sampling channel
data	get the pointer address of the sampling result

Parameter Name	Description
channel	Sampling channel
max	Threshold upper bound
min	Threshold lower bound

Return Value	Description
0	Successful registration
EINVAL	Registration failed

Return Value	Description
0	Success
EINVAL	Registration failed
