Audio Input Demo Program Description

REVISION HISTORY

Revision No.
Description
 Date
1.0
  • Initial release
    		•  01/15/2026

    1. Function Introduction

    This demo showcases audio input functionality, using IIS RX / DMIC to receive digital audio data from external audio devices. The recording duration is 10 seconds, with the audio format being mono, a sampling rate of 16KHz, PCM format, and the recorded data can be exported to a specified path.

    • IIS RX audio receiving capability
    • DMIC audio receiving capability
    • Audio data export functionality

    Keyword Description

    • IIS RX (I2S Receive)

      IIS RX is the receiving mode of the I2S bus, used to receive digital audio data from external audio devices. This demo supports receiving audio data through IIS RX.

    • DMIC (Digital Microphone Interface)

      DMIC is a hardware interface specifically designed for digital microphones, enabling sound signals to be transmitted directly in digital form to the processor, avoiding noise interference during the analog-to-digital conversion process.

    2. Compilation Environment Description

    Note

    The board has the test program packaged by default: /customer/sample_code/bin/prog_audio_ai_demo.

    If you do not need to modify the test program, you can skip this section.

    If you wish to modify this demo yourself, please refer to the following steps.

    Step1: Before compiling the demo separately, you need to compile the SDK completely. For details, please refer to the Setting Up the Compilation Environment section.

    Step2: Compile the demo separately.

    cd <project_root_directory>/sdk/verify/sample_code
# Compile ai_demo
make source/iford/audio/ai_demo -j16

    The path for the generated output: <project_root_directory>/sdk/verify/sample_code/out/arm/app/prog_audio_ai_demo

    Step3: Copy the demo and resource files to the board.

    # Copy to the board directory
/customer/sample_code/bin/
# ai_demo: Execute on the board
chmod 777 /customer/sample_code/bin/prog_audio_ai_demo

    3. Hardware Confirmation

    3.1 Hardware Version

    Note

    To use the audio input functionality, please first refer to the Differences Between V1.0 and V2.0 Hardware to confirm hardware support.

    3.3 Connection Method Description

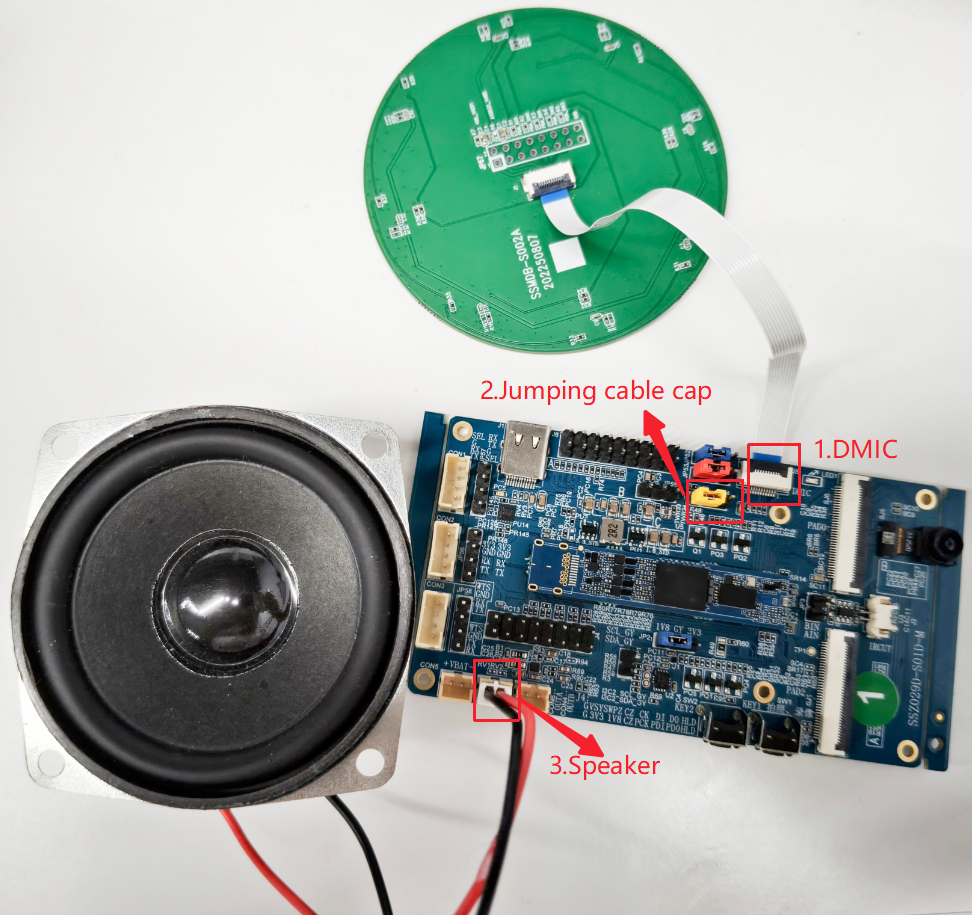

    The connection method is shown in the figure below. Please note:

    1. This is the DMIC input.

    2. Power jumper cap for DMIC:

      • When using IIS RX, if audio is routed through TWS, connect the jumper cap to the two on the left.
      • When using DMIC, if audio is routed through SOC, connect to the two on the right. Refer to the diagram below for the jumper cap replacement to the right.

    3. This is the speaker.

    4. Running Instructions

    Using IIS RX to receive audio data.

    cd /customer/sample_code/bin/
./prog_audio_ai_demo iis

    The demo will receive 10 seconds of audio data (mono, 16KHz, PCM format) via the IIS bus and export it to the file /customer/sample_code/bin/out/audio/ai_dump.wav.

    Using DMIC to receive audio data

    cd /customer/sample_code/bin/
./prog_audio_ai_demo gain 20 dmic

    The demo will receive 10 seconds of audio data (mono, 16KHz, PCM format) via the DMIC and export it to the file /customer/sample_code/bin/out/audio/ai_dump.wav.
