MI IVE DEBUG SOP

---

REVISION HISTORY

Revision No.	Description	Date
1.00	Initial release	02/22/2024

---

1. Introduction

This document aims to introduce how to perform preliminary investigation when encountering MI IVE-related issues, quickly locate problems, and what information needs to be provided to IVE owner for analysis after determining it is a Sigmastar SDK issue.

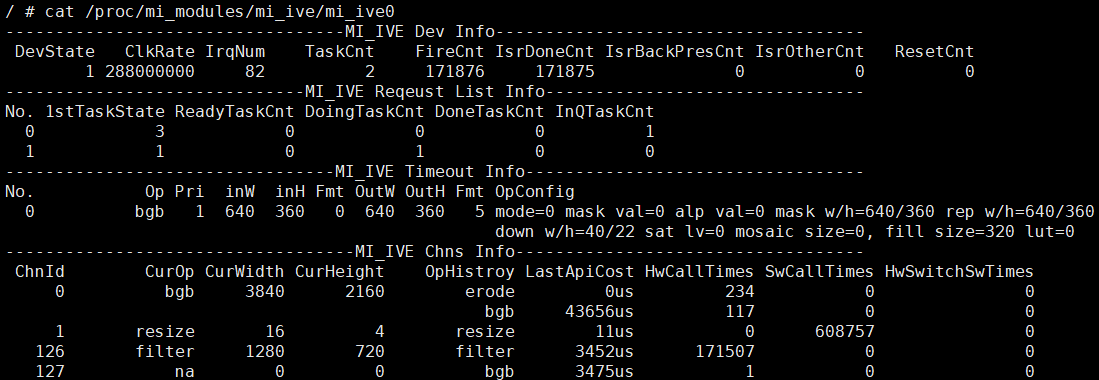

• Supports cat /proc/mi_modules/mi_ive/mi_ive0 to obtain proc information. Diagram is as follows:



2. Common IVE Issues

2.1 Insufficient Performance

Debug flow reference diagram:

Debug flow:

Flow	Verification Method	Exit Condition	Next Step	Information to Provide	Related FAQ
A	Refer to IVE API documentation section 4.1 Intelligent Acceleration Hardware API Implementation for confirmation	Exit Condition 1: No hardware acceleration support Exit Condition 2: Has hardware acceleration support	Exit Condition 1: B Exit Condition 2: C
B	Use top and other methods to check cpu loading usage	Exit Condition 1: Too high -> Adjust App thread priority Exit Condition 2: Normal -> Confirm with IVE owner if operator has optimization space	Process ends	Exit Condition 2: Operator parameter configuration: Input/output image/memory resolution, memory configuration information, control parameter information
C	Refer to IVE API documentation section 4.3 Intelligent Acceleration Engine Usage Limitations for confirmation	Exit Condition 1: Does not meet hardware acceleration requirements -> Adjust parameters according to documentation Exit Condition 2: Meets hardware acceleration support	Exit Condition 1: Process ends Exit Condition 2: D
D	Use the following Method 1 for confirmation	Exit Condition 1: Not using hardware acceleration -> Confirm with IVE owner Exit Condition 2: Using hardware acceleration	Exit Condition 1: Process ends Exit Condition 2: E	Exit Condition 1: Operator parameter configuration: Input/output image/memory resolution, memory configuration information, control parameter information
E	Use the following Method 2 for confirmation	Exit Condition 1: Does not meet usage expectations -> Adjust clk and retest Exit Condition 2: Meets expectations -> Confirm with IVE owner	Process ends	Exit Condition 2: Operator parameter configuration: Input/output image/memory resolution, memory configuration information, control parameter information

• Method 1. Use the following commands for confirmation. If the register values read by /customer/riu_r show no change before and after app runs, it indicates the operator is not actually using hardware acceleration.

  /customer/riu_w 0x151e 0x10 0x1f
  /customer/riu_w 0x1520 0x02 0x3

  /customer/riu_r 0x151e 0x10
  /customer/riu_r 0x1520 0x02
  /customer/riu_r 0x151f 0x4
  /customer/riu_r 0x1520 0x69

  // Run app for testing
  /customer/riu_r 0x151e 0x10
  /customer/riu_r 0x1520 0x02
  /customer/riu_r 0x151f 0x4
  /customer/riu_r 0x1520 0x69


  • Can also be confirmed through proc information. Before calling MI_IVE_Destroy, obtain proc information. If HwCallTimes count is 0, it indicates the operator is not actually using hardware acceleration.

• Method 2. Use the following commands to confirm actual clk rate used:

  /customer/riu_r 0x1038 0x6a
  // bit[11:10]=0x0: 288M
  // bit[11:10]=0x1: 216M
  // bit[11:10]=0x2: 384M
  // bit[11:10]=0x3: 432M - OD


  • Can also be confirmed through proc information. After obtaining proc information, confirm actual clk rate used directly according to ClkRate.

2.2 Effect Abnormal

Debug flow:

Flow	Verification Method	Exit Condition	Next Step	Information to Provide	Related FAQ
A	Refer to corresponding sections of IVE API documentation for each operator, confirm if parameter settings meet expected effect settings	Exit Condition 1: Parameter abnormal -> Modify parameters and retest Exit Condition 2: Parameter normal	Process ends	Exit Condition 2: Operator parameter configuration: Input/output image/memory resolution, memory configuration information, control parameter information	Refer to the IVE API documentation to confirm the operator parameter settings

• Example 1 as shown below: For Filter operator with the same mask parameter settings, different shift parameters result in large output effect differences.



2.3 Memory Overrun Issue

IVE memory overrun example: Log with Name=IVE indicates IVE encountered memory overrun; where IsWrite=0 indicates read memory overrun, IsWrite=1 indicates write memory overrun.

[MI WRN] MI_SYS_Mma_MmuCallback [mi_sys][369]: [MI_SYS_Mma_MmuCallback] Status=0x2, PhyAddr=0x40260000, ClientId=0x1c,Name=IVE IsWrite=0

[MI WRN] MI_SYS_Mma_MmuCallback [mi_sys][369]: [MI_SYS_Mma_MmuCallback] Status=0x6, PhyAddr=0x406e0000, ClientId=0x1c,Name=IVE IsWrite=1

Debug flow:

Flow	Verification Method	Exit Condition	Next Step	Information to Provide	Related FAQ
A	Confirm if memory size configuration matches resolution For 1280x720 input resolution ->U8C1 format image requires memory size of 1280x720x1 ->YUV422_YUYV format image requires memory size of 1280x720x2	Exit Condition 1: Mismatch -> Modify memory configuration and retest Exit Condition 2: Match	Process ends	Exit Condition 2: 1. Operator parameter configuration: Input/output image/memory resolution, memory configuration information, control parameter information 2. Step 1 debug information

• Step 1. Configure and capture information according to the following steps:

  vi /config/modparam.json # Add or update "debugMmu":1 in E_MI_MODULE_ID_SYS node
  reboot

  echo debug_mmu debug_log 1 1 1 0 > /proc/mi_modules/mi_sys/mi_sys0 # Output IVE internal allocate/free memory information log & memory usage during memory overrun
  // echo debug_mmu debug_log 0 0 0 0 > /proc/mi_modules/mi_sys/mi_sys0 # Close
  cat /proc/kmsg

  // Run app for testing in other console, provide kmsg with memory overrun log


2.4 Other Abnormal Issues

For other issues, after using IVE, follow the steps below to capture information multiple times and confirm with IVE owner.

cat /proc/mi_modules/mi_ive/debug_hal/ive_axi
cat /proc/mi_modules/mi_ive/mi_ive0
/customer/riu_r 0x151e
/customer/riu_r 0x151f
/customer/riu_r 0x1520
/customer/riu_r 0x1038 0x6a
